2/1.5B-AH Slurry pump spares

Product Brands: Tobee

2/1.5B-AH Slurry Pump is designed by some of high chrome wear parts, mainly parts include: B15127NA Impeller, B15110NA Volute Liner, B15041NA FPL Insert, B005M Bearing Assembly, etc

price:

$698.00

Pump Type:

Horizontal Pump

Pump Models:

2/1.5B-AH

HS Code:

8413910000

Quantity:

- + (169 available)

Add to Favorite Items (236)

Sales: 369+

2x1.5B-AH Slurry Pump is designed by some of high chrome wear parts, mainly parts include: B15127NA Impeller, B15110NA Volute Liner, B15041NA FPL Insert, B005M Bearing Assembly, etc

Tobee® is committed to improvement of slurry pump wear parts continues with the introduction of the Hyper chrome alloy material. Slurry pump wear parts have direct connection with slurry, are very crucial to the service life of slurry pumps. The slurry pump wear parts include slurry pump impeller, slurry pump liners, slurry pump throat bush, slurry pump frame plate liner insert, slurry pump casing etc, They are very easily worn-out components because the wear parts work under longtime impact of abrasive and corrosive slurries in the high speed. For the long service life of slurry pump wear parts, the material plays an important role here.

Slurry Pump Wear Parts Benefits:
• Increased wear life – Tobee slurry pump wear parts is designed to increase wear life between 30% and 50%
• Power savings – lower pump power consumption
• Cost reduction – higher pump efficiency sustained over a longer pumping operation time
• Retrofit – new high abrasion resistance slurry pump wear parts retrofit to your current slurry pumps
• Lower NPSH requirements – results in enhanced hydraulic performance and extended wear life
• Material combinations – rubber or metal part combinations available

2/1.5B-AH Slurry Pump Parts List:

No.	Pump Parts Name	Pump Model	Pump Part Code	Matl. Code	Unit Weight (kg)
1	Adjust Screw	2/1.5B-AH	B001	E62
2	Base	2/1.5B-AH	B003M	G01	20.0

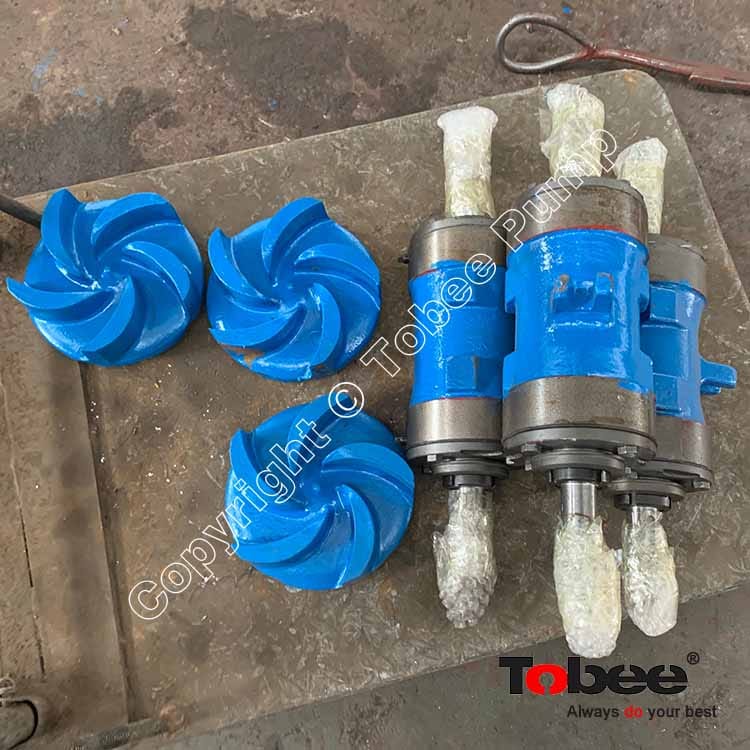

3	Bearing Assembly	2/1.5B-AH	B005M	ZWZ Bearing	15.5
4	Bearing Housing	2/1.5B-AH	B004M	G01	7.0
5	Cover Plate	2/1.5B-AH	B15013	D21	14.6
6	Cover Plate Bolt	2/1.5B-AH	B015	E65
7	Cover Plate Liner	2/1.5B-AH	B15017	R55	3.0
8	Discharge Joint	2/1.5B-AH	B15132L	S01	0.1
9	End Cover	2/1.5B-AH	B024	G01	0.8
10	Expeller	2/1.5B-AH	B028	A05	0.6
11	Expeller Ring	2/1.5B-AH	B029	A05	2.6
12	Expeller Ring	2/1.5B-AH	B029R	R55	0.7
13	Frame Plate	2/1.5B-AH	B15032	D21	14.8
14	Frame Plate Bolt	2/1.5B-AH	B026	E62
15	Frame Plate Liner	2/1.5B-AH	B15036	R55	2.0

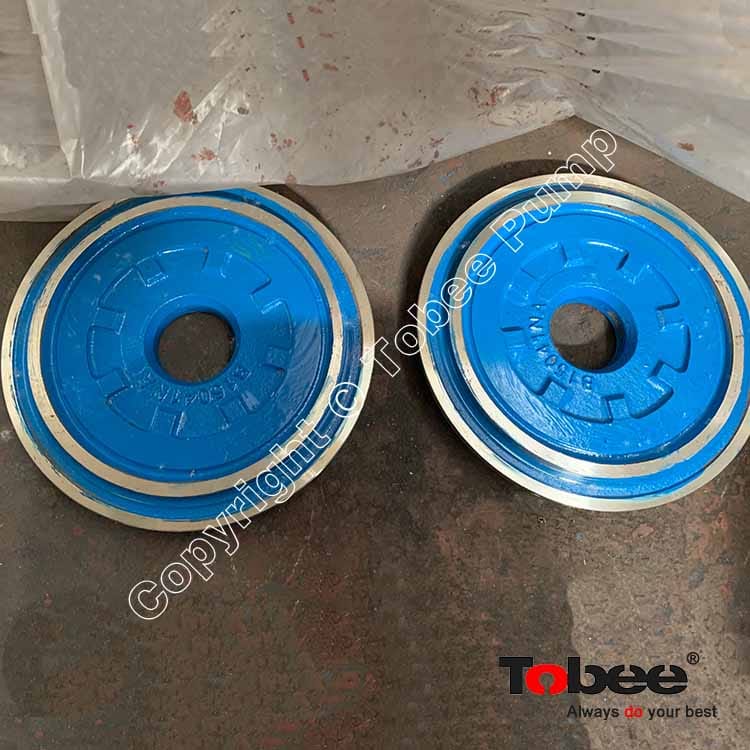

16	Frame Plate Liner Insert	2/1.5B-AH	B15041	A05	3.4
17	Frame Plate Stud	2/1.5B-AH	B039	E62
18	Gland	2/1.5B-AH	B044	G01	0.4
19	Gland	2/1.5B-AH	B044	C23	0.4
20	Gland Bolt	2/1.5B-AH	B045	C23
21	Grease Retainer	2/1.5B-AH	B046	G01	0.2

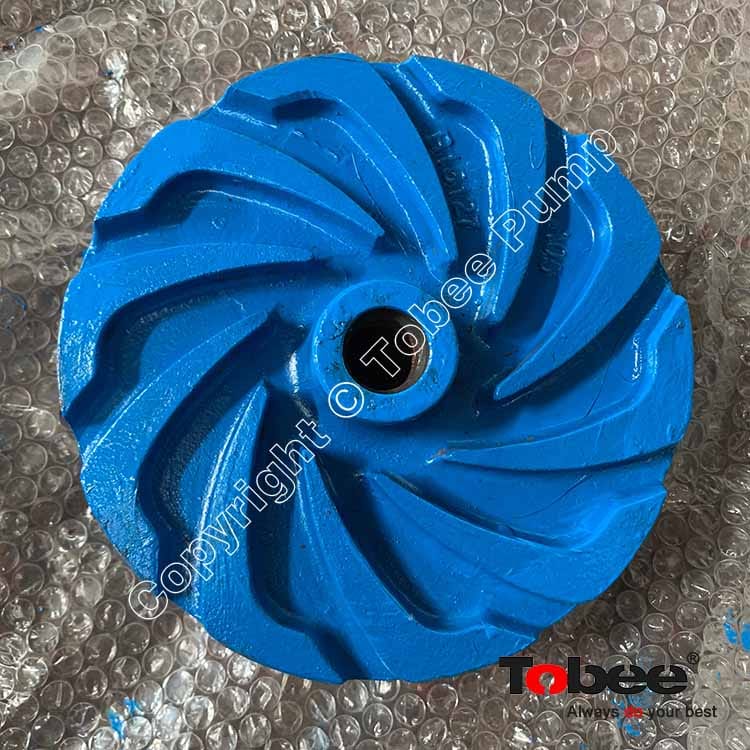

22	Impeller	2/1.5B-AH	B15127	A05	5.9
23	Impeller	2/1.5B-AH	B15127	R55	2.0
24	Intake Joint	2/1.5B-AH	B15060	S01	0.04
25	Labyrinth	2/1.5B-AH	B062	G01	0.3
26	Labyrinth Locknut	2/1.5B-AH	B061	E62	0.1
27	Lantern Restrictor	2/1.5B-AH	B118	C23	0.2
28	Lantern Ring	2/1.5B-AH	B063	C23	0.1
29	Lip Seal	2/1.5B-AH	B090	S01
30	Neck Ring	2/1.5B-AH	B067	C23	0.03
31	O ring	2/1.5B-AH	B109	S10
32	O ring	2/1.5B-AH	B217	S10
33	Packing	2/1.5B-AH	B111	Q05
34	Packing	2/1.5B-AH	B111	Q05A
35	Packing	2/1.5B-AH	B111	Q21
36	Packing	2/1.5B-AH	B111	X06
37	Piston Ring	2/1.5B-AH	B108	G01
38	Seal	2/1.5B-AH	B122	S01	0.1
39	Shaft	2/1.5B-AH	B073M	E05	3.9
40	Shaft Sleeve	2/1.5B-AH	B075	C21	0.3
41	Shaft Sleeve	2/1.5B-AH	B075	C23	0.3
42	Shaft Sleeve	1.5/1 B-AH	B075	J05
43	Shaft Sleeve	2/1.5B-AH	B076	C21	0.3
44	Shaft Sleeve	2/1.5B-AH	B076	C23	0.3
45	Shaft Spacer	2/1.5B-AH	B117	C21	0.2
46	Shaft Spacer	2/1.5B-AH	B117	C23
47	Shaft Spacer	1.5/1 B-AH	B117	J05	0.2
48	Shim Set	2/1.5B-AH	B025	P10
49	Stuffing Box	2/1.5B-AH	B078	A05	2.5
50	Volute Frame Seal	2/1.5B-AH	B15125	S01	0.02

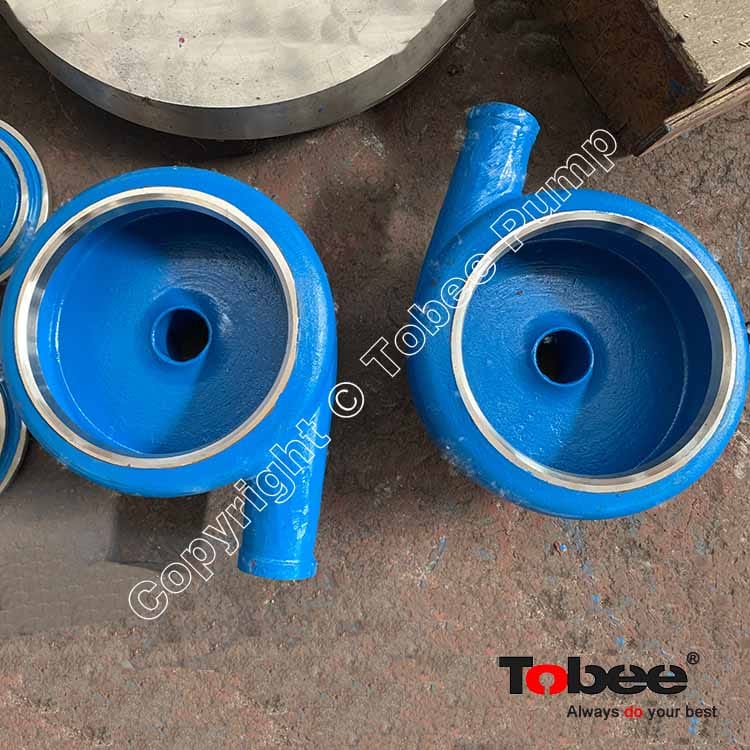

51	Volute Liner	2/1.5B-AH	B15110	A05	15.0
