Home > All Product > Polyurethane Pump Parts C2036HS1 Frame Plate Liner for 3/2C-AH Horizontal Slurry Pump

Polyurethane Pump Parts C2036HS1 Frame Plate Liner for 3/2C-AH Horizontal Slurry Pump

(0 Reviews)

C2036HS1

Product Brands: Tobee

Tobee® Slurry Pump Polyurethane Liners have Cover plate liners, Frame plate liner, The liners are together with throat bush and Frame plate liner insert form a pump chamber, The impeller works in it. The polyurethane liners are generally made of polyurethane without steel skeleton. But the polyurethane impeller, throat bush and frame plate liner insert are embedded the steel skeleton.

price:

$399.00 $499.00

Part Number:

C2036HS1

Quantity:

- + (100 available)
Add to Favorite Items (0)

Sales: 0+

Tobee® Slurry Pump Polyurethane Parts are directly connection with slurries, It is very crucial to the service life of slurry pumps. The worklife of Polyurethane parts is longer than Rubber materials for 3~5 times, Polyurethane wetted parts include Impeller, Throatbush, Frame plate liner, Cover plate liner, Frame plate liner insert etc. They are very easily worn-out components because they work under longtime impact of abrasive and corrosive slurries. For the long service life of pump parts, Polyurethane material plays an important role here.

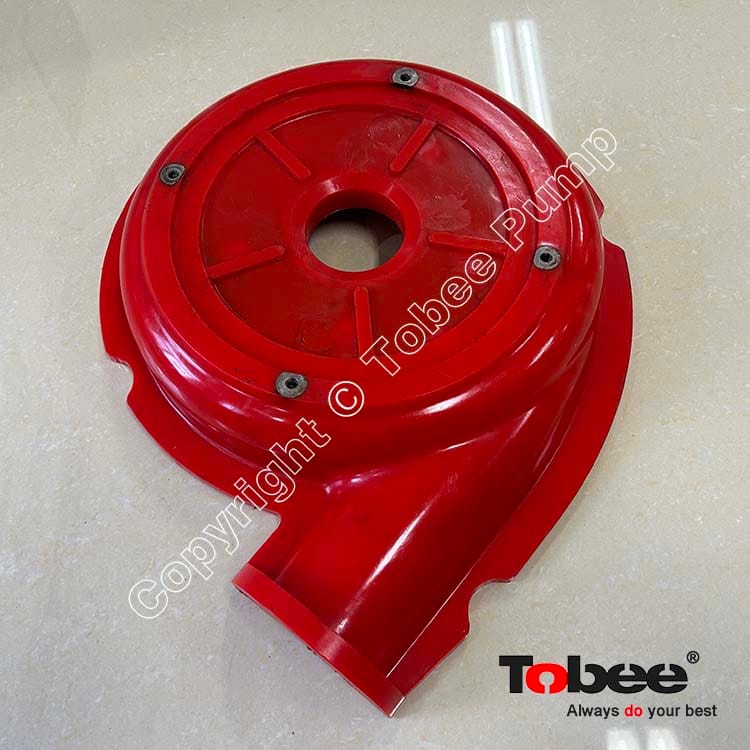

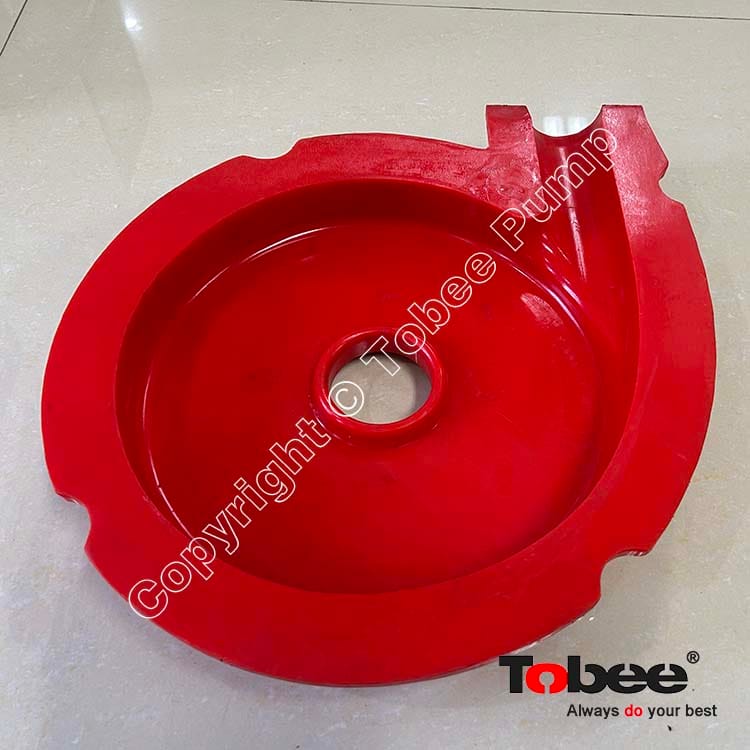

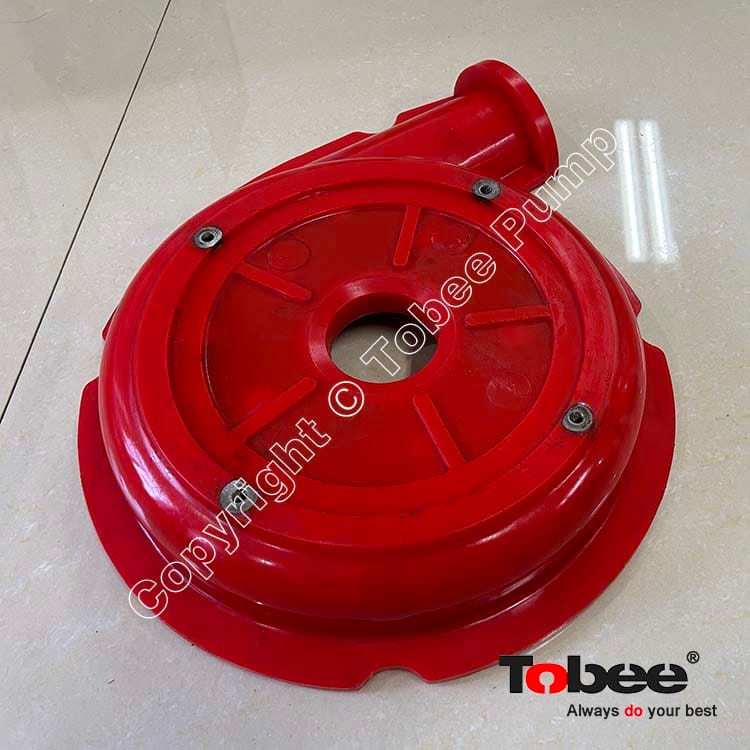

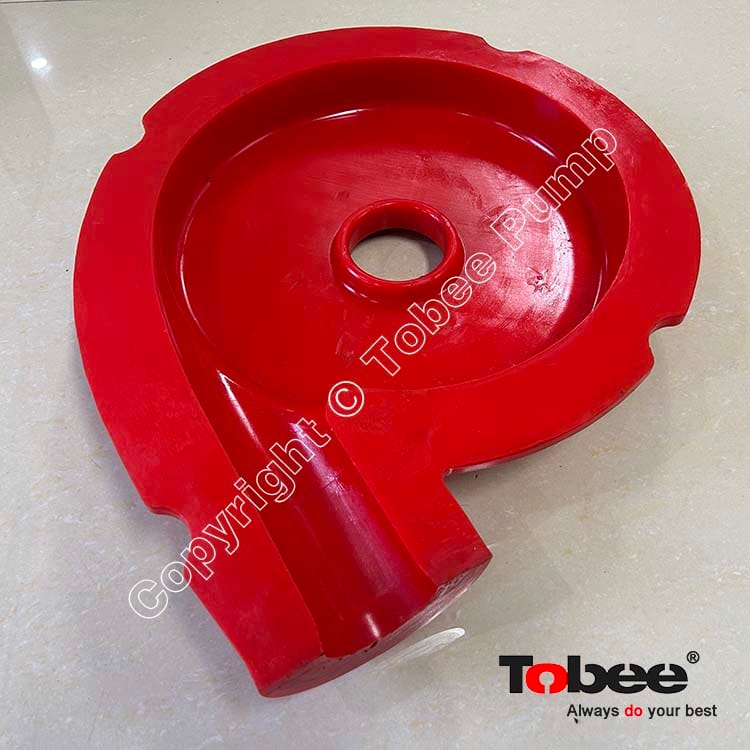

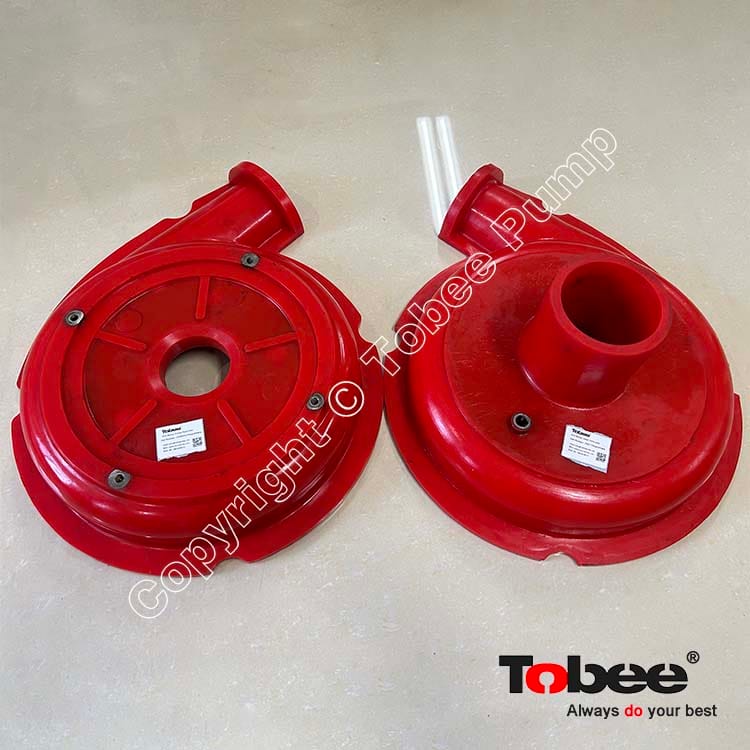

Polyurethane Pump Parts C2036HS1 Frame Plate liner for 3/2C-AH Horizontal Slurry Pump

Tobee® Design Features of Slurry Pump Polyurethane Liners:

√ Slurry pump Polyurethane Liners wear resistance is excellent, the wear resistance of polyurethane slurry pump sets is generally rubber slurry pump parts and metal slurry pump more than 3-5 times, polyurethane slurry pump parts is more longer life, and thus replace the low frequency, high efficiency.
√ Slurry pump polyurethane liners with excellent hydrolysis resistance, oil, acid and alkali, corrosion resistance. It can be used in any mineral processing, transportation environment.
√ Slurry pump polyurethane liners sets of special production process makes the polyurethane is directly cast with a steel skeleton, polyurethane adhesive layer and steel skeleton bonding firmly, not degumming, continuous layer.
√ Slurry pump polyurethane liners surface is smooth, no burr, non-stick material, low coefficient of friction, the material running resistance is small, high transport efficiency.
√ Slurry pump polyurethane liners with excellent rebound performance, impact resistance, can effectively reduce the impact of the transport medium on the pump.

√ Slurry pump polyurethane liners sets the use of no noise, can greatly improve the working environment.

Tobee® Polyurethane Slurry Pump Liners Codes:

Pump Model

Part Code

Part Name

Material

1.5/1B-AH

Cover plate liner

B1017 / B1017TL1

Polyurethane

Frame plate liner

B1036 / B1036TL1 / B1036HS1

Polyurethane

2/1.5B-AH

Cover plate liner

B15017 / B15017TL1

Polyurethane

Frame plate liner

B15036 / B15036TL1 / B15036HS1

Polyurethane

3/2C-AH

Cover plate liner

C2017 / C2017 TL1

Polyurethane

Frame plate liner

C2036 / C2036TL1 / C2036HS1

Polyurethane

4/3C-AH

4/3D-AH

Cover plate liner

D3017 / D3017TL1 / D3017EP

Polyurethane

Frame plate liner

D3036 / D3036TL1 / D3036HS1 / D3036EP

Polyurethane

6/4D-AH

Cover plate liner

E4018 / E4018TL1 / E4018EP

Polyurethane

Frame plate liner

E4036 / E4036TL1 /E4036HS1 / E4036EP

Polyurethane

8/6E-AH

8/6F-AH

Cover plate liner

F6018 / F6018TL1 / F6018EP

Polyurethane

Frame plate liner

F6036 / F6036TL1 / F6036HS1 / F6036EP

Polyurethane

10/8E-M

Cover plate liner

F8018 / F8018TL1

Polyurethane

Frame plate liner

F8036 / F8036TL1 / F8036HS1

Polyurethane

10/8F-AH

Cover plate liner

G8018 / G8018TL1 / G8018SRTL1

Polyurethane

Frame plate liner

G8036 / G036TL1 / G8036TL1HS1

Polyurethane

12/10ST-AH

Cover plate liner

G101G10018 / G10018TL1

Polyurethane

Frame plate liner

G10036 / G10036TL1 / G10036HS1

Polyurethane

14/12ST-AH

Cover plate liner

G12018 / G12018TL1

Polyurethane

Frame plate liner

G12043 / G12043TL1

Polyurethane

16/14TU-AH

Cover plate liner

H14018

Polyurethane

Frame plate liner

H14043

Polyurethane

20/18TU-AH

Cover plate liner

U18043

Polyurethane

Frame plate liner

U18083

Polyurethane

300S-L

Cover plate liner

RSL30018

Polyurethane

Frame plate liner

RSL30036

Polyurethane

350S-L

Cover plate liner

S35018

Polyurethane

Frame plate liner

S35043

Polyurethane

400ST-L

Cover plate liner

TL40018

Polyurethane

Frame plate liner

TL40043

Polyurethane

450ST-L

Cover plate liner

TL45018

Polyurethane

Frame plate liner

TL45043

Polyurethane

600GSL

Cover plate liner

GSL60018

Polyurethane

Frame plate liner

GSL60043

Polyurethane

800GSL

Cover plate liner

GSL80018

Polyurethane

Frame plate liner

GSL80043

Polyurethane

Tobee® Polyurethane Slurry Pump Parts are widely used for 1.5/1B-AH Slurry Pump, 2/1.5B-AH Slurry Pump, 3/2C-AH Slurry Pump, 4/3D-AH Slurry Pump, 6/4E-AH Slurry Pump, 8/6E-AH Slurry Pump, 10/8ST-AH Slurry Pump, 12/10ST-AH Slurry Pump, 14/12ST-AH Slurry Pump, 16/14TU-AH Slurry Pump, 300S-L Slurry Pump, 350S-L Slurry Pump, 400ST-L Slurry Pump etc.
