Home > SLURRY PUMP PARTS > AH Slurry Pump Parts > 16/14 AH Slurry Pump > WH14110-A05A Volute Lining for 16/14TU-AH Slurry Pump

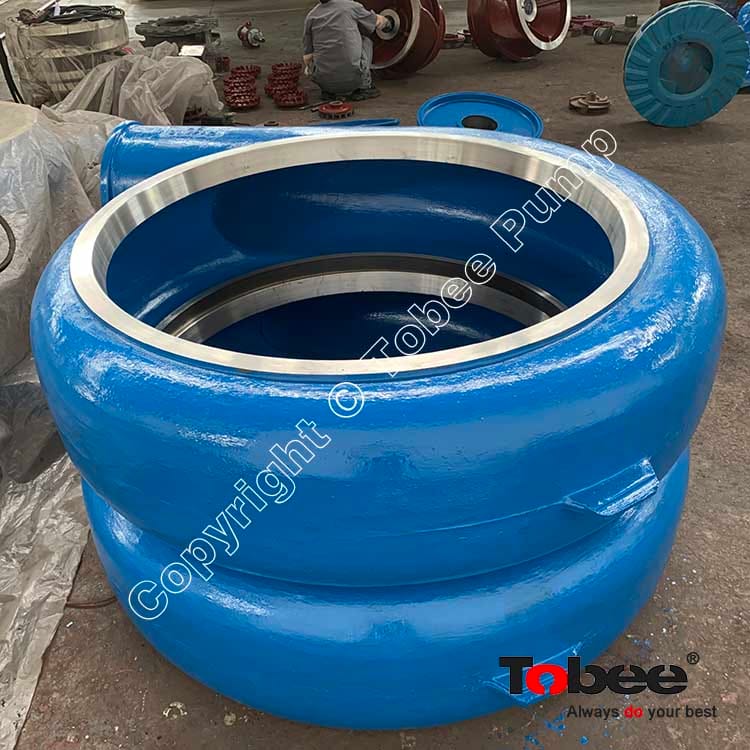

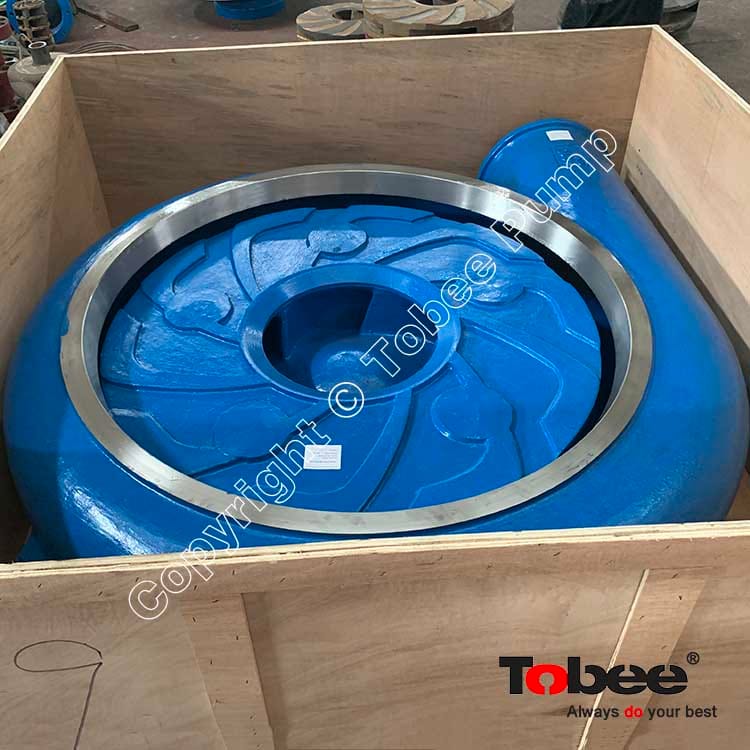

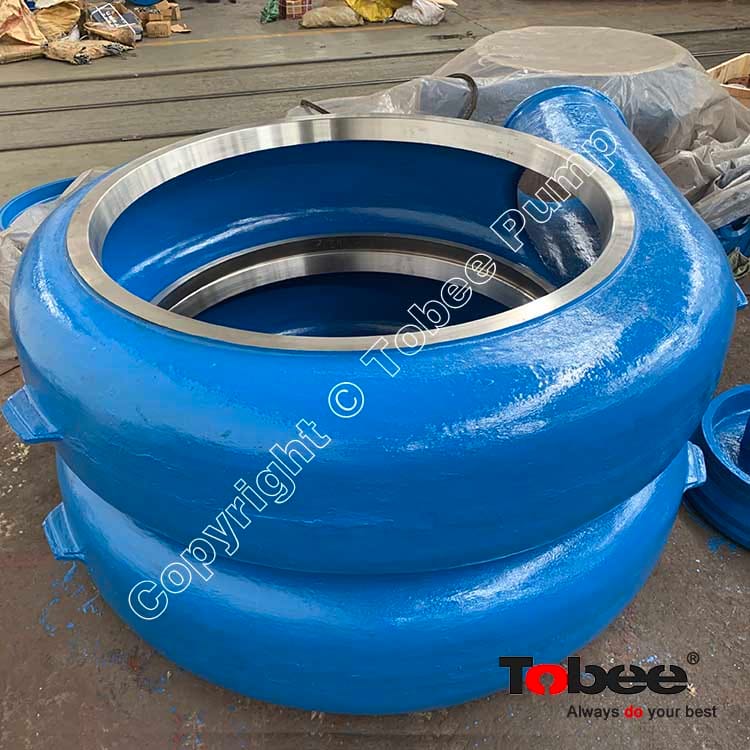

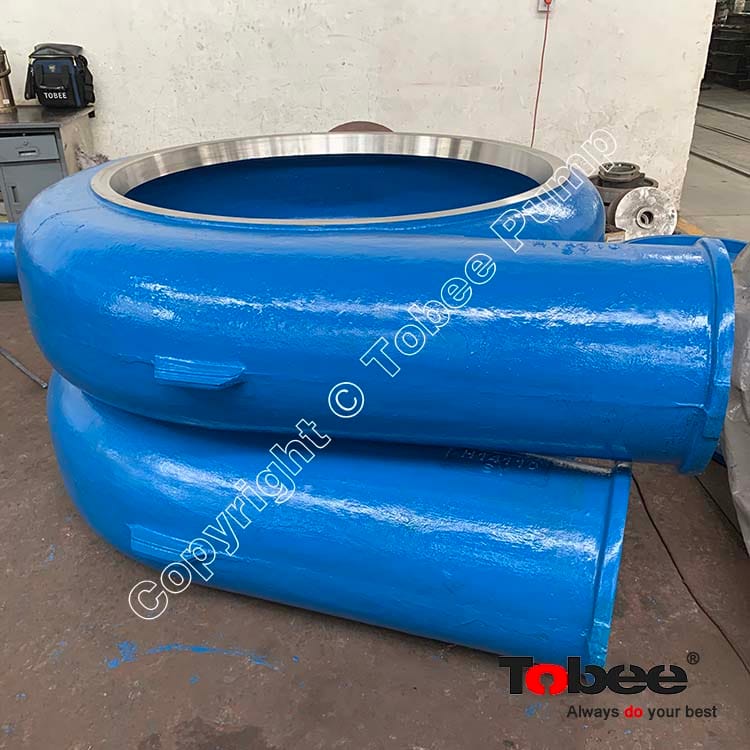

WH14110-A05A Volute Lining for 16/14TU-AH Slurry Pump

(1 Reviews)

TB-WH14110-A05A

Product Brands: Tobee

WH14110-A05A Volute Lining is used for 16x14TU-AH Centrifugal Slurry Pump.

price:

$13,000.00 $13,900.00

Pump model:

16/14TU-AH

Quantity:

- + (15 available)
Add to Favorite Items (24)

Sales: 5+

WH14110-A05A Volute Lining is used for 16x14TU-AH Centrifugal Slurry Pump.



Slurry Pump Volute Liners H14110 are interchangeable with 16/14TU-AH slurry pump volute liners. It is also one of wetted parts for slurry pumps. It forms a pump chamber with throat bush and frame plate liner insert and so slurry will wash them, Slurry pump volute Liner is a curved funnel increasing in area to the discharge port. It is often used together with impeller for slurry pumps. As the area of the cross-section increases, the volute reduces the speed of the liquid and increases the pressure of the liquid. The main purposes of a volute casing is to help balance the hydraulic pressure on the shaft of the slurry pump. materials can be High chrome alloy, Natural Rubber, Polyurethane for different working applications.



Slurry Pump Volute Liners:



Volute Liner Code

AH Slurry Pump

Volute Liner Metal Materials

B1110

1.5/1B-AH

A05, A05A, A61, A07, A49, A33, etc

B15110

2/1.5B-AH

A05, A05A, A61, A07, A49, A33, etc

C2110

3/2C-AH

A05, A05A, A61, A07, A49, A33, etc

D3110

4/3C-AH, 4/3D-AH

A05, A05A, A61, A07, A49, A33, etc

E4110

6/4D-AH, 6/4E-AH

A05, A05A, A61, A07, A49, A33, etc

EP4110

6/4E-AHP

A05, A05A, A61, A07, A49, A33, etc

F6110

8/6E-AH, 8/6F-AH

A05, A05A, A61, A07, A49, A33, etc

G8110

10/8F-AH, 10/8ST-AH

A05, A05A, A61, A07, A49, A33, etc

G10110

12/10F-AH, 12/10ST-AH

A05, A05A, A61, A07, A49, A33, etc

G12110

14/12F-AH, 14/12ST-AH

A05, A05A, A61, A07, A49, A33, etc

H14110

16/14TU-AH

A05, A05A, A61, A07, A49, A33, etc

Volute Liner Code

HH Slurry Pump

Volute Liner Metal Materials

CH1110

1.5/1C-HH

A05, A05A, A61, A07, A49, A33, etc

DH2110

3/2D-HH

A05, A05A, A61, A07, A49, A33, etc

EH3110

4/3E-HH

A05, A05A, A61, A07, A49, A33, etc

FH4110

6/4F-HH

A05, A05A, A61, A07, A49, A33, etc

FH4110

6-H

A05, A05A, A61, A07, A49, A33, etc

Volute Liner Code

M Slurry Pump

Volute Liner Metal Materials

F8110

10/8E-M, 10/8F-M,10/8R-M

A05, A05A, A61, A07, A49, A33, etc

F10110

12/10E-M, 12/10F-M

A05, A05A, A61, A07, A49, A33, etc

Volute Liner Code

L Slurry Pump

Volute Liner Metal Materials

AL2110

20A-L

A05, A05A, A61, A07, A49, A33, etc

BL5110

50B-L

A05, A05A, A61, A07, A49, A33, etc

CL75110

75C-L

A05, A05A, A61, A07, A49, A33, etc

DL10110

100D-L

A05, A05A, A61, A07, A49, A33, etc

EL15110

150E-L

A05, A05A, A61, A07, A49, A33, etc

SL20110

200E-L

A05, A05A, A61, A07, A49, A33, etc

SL30110

300S-L

A05, A05A, A61, A07, A49, A33, etc

SL35110

350S-L

A05, A05A, A61, A07, A49, A33, etc

TL40110

400ST-L

A05, A05A, A61, A07, A49, A33, etc

TL45110

450ST-L

A05, A05A, A61, A07, A49, A33, etc

UL55110

550TU-L

A05, A05A, A61, A07, A49, A33, etc
