Home > SLURRY PUMP PARTS > AH Slurry Pump Parts > 3/2 AH Slurry Pump > C2110A05 Volute Liner for 3/2C-AH Metal Lined Slurry Pump

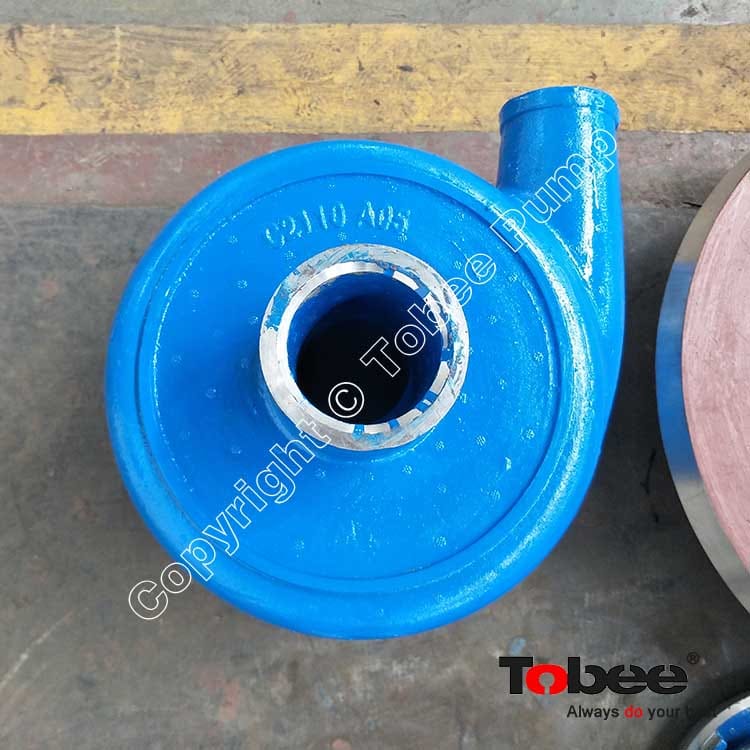

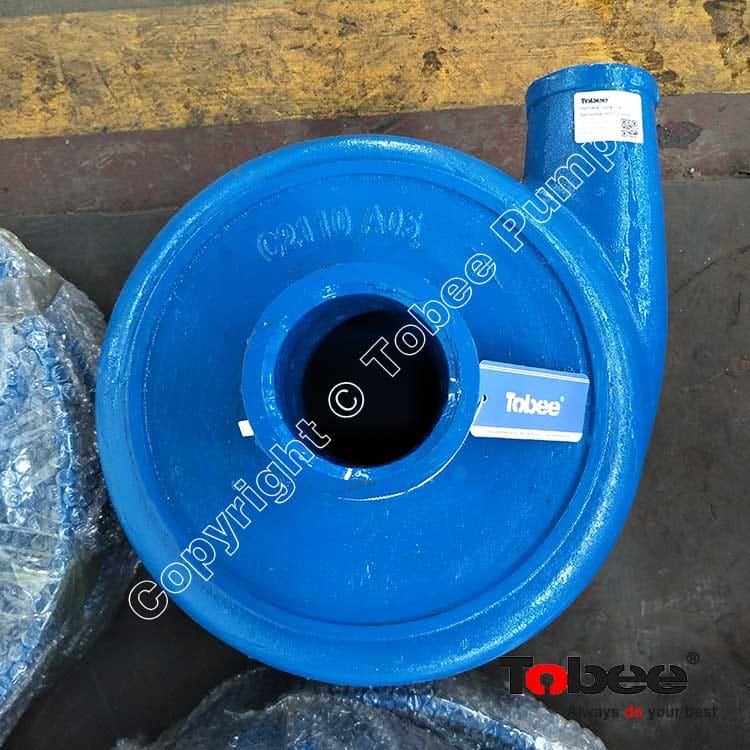

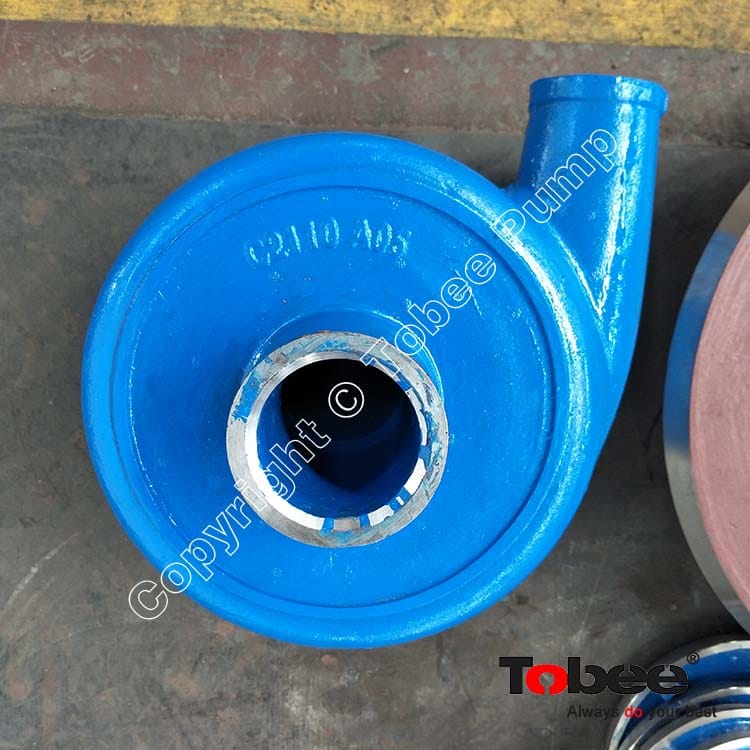

C2110A05 Volute Liner for 3/2C-AH Metal Lined Slurry Pump

(5 Reviews)

TB-C2110A05

Product Brands: Tobee

C2110A05 Volute Liner suit for 3x2C-AH Metal Lined Slurry Pumps.

price:

$559.00 $620.00

Parts Code:

C2110A05

Pump model:

3/2C-AH

Metal Materials:

A05 A05A

Quantity:

- + (60 available)
Add to Favorite Items (12)

Sales: 20+

C2110A05 Volute Liner is an important high chrome wet parts for 3/2 C AH Slurry Pump.



Slurry Pump Volute Liners are interchangeable with AH/HH/L/M slurry pump volute lines, It is also one of wetted parts for slurry pumps. It forms a pump chamber with throat bush and frame plate liner insert and so slurry will wash them, Slurry pump volute Liner is a curved funnel increasing in area to the discharge port. It is often used together with impeller for slurry pumps. As the area of the cross-section increases, the volute reduces the speed of the liquid and increases the pressure of the liquid.


Slurry Pump Liners Functions:



  • Closed the impeller to a certain space, so that inhaled and forced out liquid through the role of the impeller.
  • Most of Pump casings are made to be Volute-shaped, it is also called the volute Because the area of channel section is widening , the high speed liquid around the impeller gradually reduce the flow velocity, and part of the kinetic energy is converted to static pressure can effectively
  • The pump casing is not only collected liquid that thrown out by the slurry pump impeller , but also an energy conversion device
  • Lead evenly the liquid to the impeller, collect the high-speed flowed liquid from the impeller, and send to the next level or export-led.
  • Realize the energy conversion, Reduce the flow speed, transform the kinetic energy to pressure energy .
  • Connect other components, and play a supporting role.



Slurry Pump Volute Liner Codes:



Volute Liner Code

AH Slurry Pump

Volute Liner Metal Materials

B1110

1.5/1B-AH

A05, A05A, A61, A07, A49, A33, etc

B15110

2/1.5B-AH

A05, A05A, A61, A07, A49, A33, etc

C2110

3/2C-AH

A05, A05A, A61, A07, A49, A33, etc

D3110

4/3C-AH, 4/3D-AH

A05, A05A, A61, A07, A49, A33, etc

E4110

6/4D-AH, 6/4E-AH

A05, A05A, A61, A07, A49, A33, etc

EP4110

6/4E-AHP

A05, A05A, A61, A07, A49, A33, etc

F6110

8/6E-AH, 8/6F-AH

A05, A05A, A61, A07, A49, A33, etc

G8110

10/8F-AH, 10/8ST-AH

A05, A05A, A61, A07, A49, A33, etc

G10110

12/10F-AH, 12/10ST-AH

A05, A05A, A61, A07, A49, A33, etc

G12110

14/12F-AH, 14/12ST-AH

A05, A05A, A61, A07, A49, A33, etc

H14110

16/14TU-AH

A05, A05A, A61, A07, A49, A33, etc

Volute Liner Code

HH Slurry Pump

Volute Liner Metal Materials

CH1110

1.5/1C-HH

A05, A05A, A61, A07, A49, A33, etc

DH2110

3/2D-HH

A05, A05A, A61, A07, A49, A33, etc

EH3110

4/3E-HH

A05, A05A, A61, A07, A49, A33, etc

FH4110

6/4F-HH

A05, A05A, A61, A07, A49, A33, etc

FH4110

6-H

A05, A05A, A61, A07, A49, A33, etc

Volute Liner Code

M Slurry Pump

Volute Liner Metal Materials

F8110

10/8E-M, 10/8F-M,10/8R-M

A05, A05A, A61, A07, A49, A33, etc

F10110

12/10E-M, 12/10F-M

A05, A05A, A61, A07, A49, A33, etc

Volute Liner Code

L Slurry Pump

Volute Liner Metal Materials

AL2110

20A-L

A05, A05A, A61, A07, A49, A33, etc

BL5110

50B-L

A05, A05A, A61, A07, A49, A33, etc

CL75110

75C-L

A05, A05A, A61, A07, A49, A33, etc

DL10110

100D-L

A05, A05A, A61, A07, A49, A33, etc

EL15110

150E-L

A05, A05A, A61, A07, A49, A33, etc

SL20110

200E-L

A05, A05A, A61, A07, A49, A33, etc

SL30110

300S-L

A05, A05A, A61, A07, A49, A33, etc

SL35110

350S-L

A05, A05A, A61, A07, A49, A33, etc

TL40110

400ST-L

A05, A05A, A61, A07, A49, A33, etc

TL45110

450ST-L

A05, A05A, A61, A07, A49, A33, etc

UL55110

550TU-L

A05, A05A, A61, A07, A49, A33, etc
