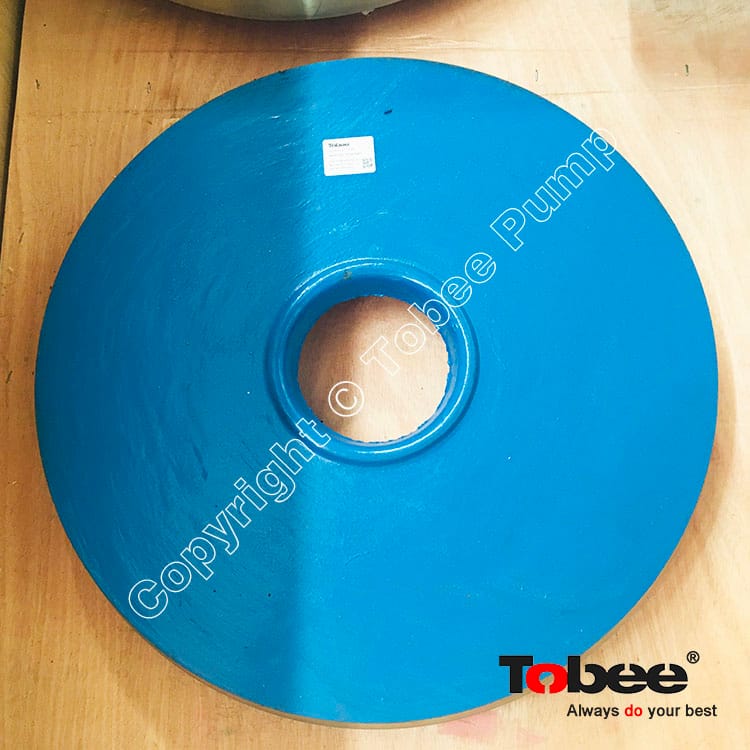

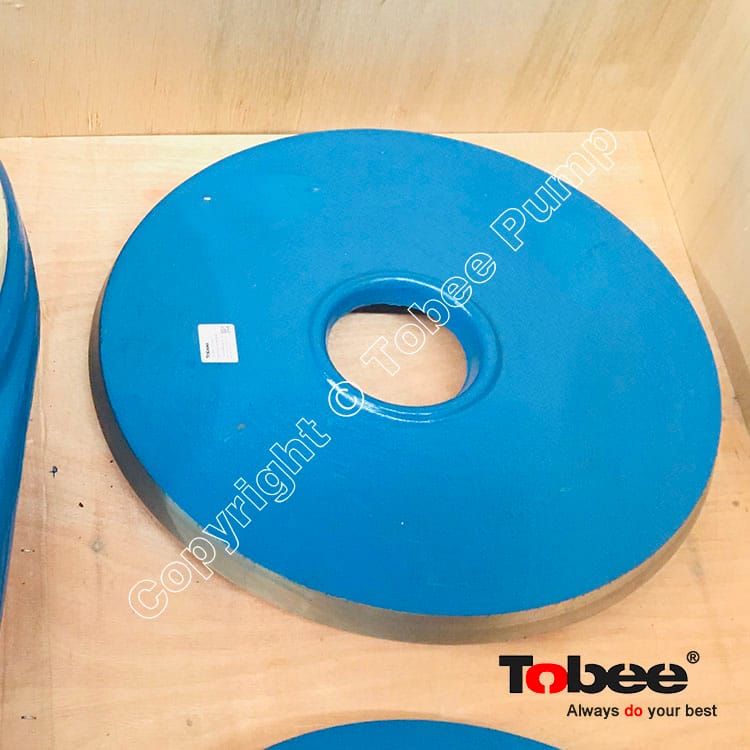

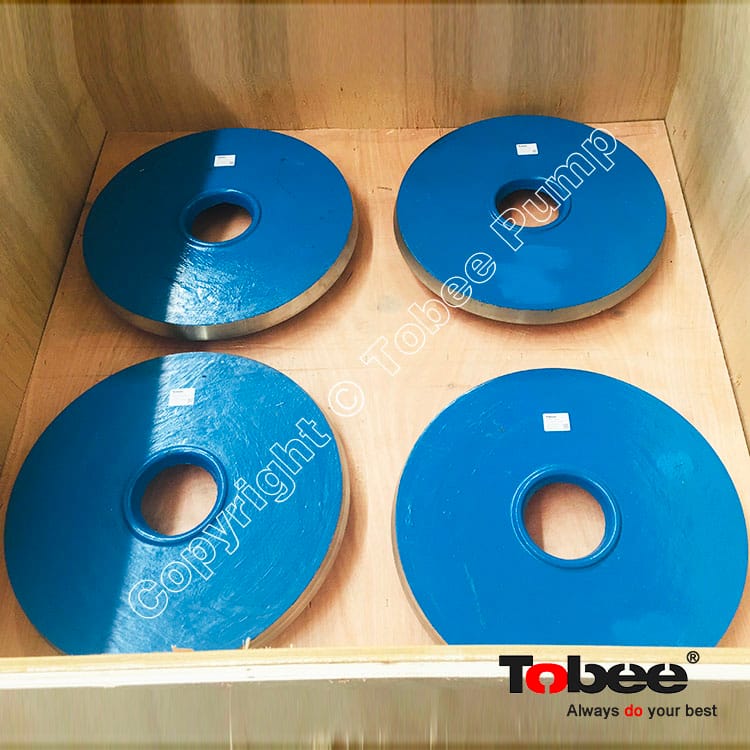

Tobee® High Chrome Frame Plate Liner Insert DH2041MA05 is the wet-end parts for 3/2D-HH High Head Slurry Pumps, It forms a pump chamber with throat bush and volute liner where the slurry would flow through them.
Frame plate liner insert basic part number is 041, it is a wet part where the shaft passes through, it is drive side liner which is connected with frame plate in horizontal lined slurry pump.
Alloy frame plate liner insert is common in small and large pumps, but rubber frame plate liner insert appears in large pumps, because rubber frame plate liner insert and frame plate liner are normally in one solid piece in small pumps.
Frame plate liner insert can be abbreviated to FPL Insert, it is a common and generally accepted alternate spelling.
Slurry pump frame plate liner insert are normally made in high chrome alloy or natural rubber, special materials are also available.
Our slurry pump frame plate liner inserts are available to suit: AH pumps, L pumps, M pumps and HH pumps.
Slurry Pump Frame Plate Liner Insert Code:
|
AH Slurry Pumps |
Materials |
|
|
1.5/1B-AH |
High chrome, Natural rubber, Polyurethane |
|
|
2/1.5B-AH |
High chrome, Natural rubber, Polyurethane |
|
|
3/2C-AH |
High chrome, Natural rubber, Polyurethane |
|
|
4/3C-AH, 4/3D-AH |
High chrome, Natural rubber, Polyurethane |
|
|
6/4D-AH, 6/4E-AH |
High chrome, Natural rubber, Polyurethane |
|
|
8/6E-AH, 8/6F-AH, 8/6R-AH |
High chrome, Natural rubber, Polyurethane |
|
|
10/8ST-AH |
High chrome, Natural rubber, Polyurethane |
|
|
12/10ST-AH |
High chrome, Natural rubber, Polyurethane |
|
|
14/12F-AH,14/12ST-AH |
High chrome, Natural rubber, Polyurethane |
|
|
16/14TU-AH |
High chrome, Natural rubber, Polyurethane |
|
|
FPL Insert |
HH Slurry Pumps |
Materials |
|
CH1041 |
1.5/1C-HH |
High chrome, Polyurethane |
|
3/2D-HH |
High chrome, Polyurethane |
|
|
EH3041 |
4/3E-HH |
High chrome, Polyurethane |
|
FH4041 |
6/4F-HH |
High chrome, Polyurethane |
|
FH6041 |
6S-H, 8/6S-H |
High chrome, Polyurethane |
|
FPL Insert |
L Slurry Pumps |
Materials |
|
175041 |
20A-L |
High chrome, Natural rubber |
|
32056 |
50B-L |
High chrome, Natural rubber |
|
43041 |
75C-L |
High chrome, Natural rubber |
|
64041 |
100D-L |
High chrome, Natural rubber |
|
86041 |
150E-L |
High chrome, Natural rubber |
|
108041 |
200E-L |
High chrome, Natural rubber |
|
300S-L |
High chrome, Natural rubber |
|
|
SL35041 |
350S-L |
High chrome, Natural rubber |
|
STL40041 |
400ST-L |
High chrome, Natural rubber |
|
STL45041 |
450ST-L |
High chrome, Natural rubber |
|
TUL55041 |
550TU-L |
High chrome, Natural rubber |
|
FPL Insert |
G(H) Gravel Pumps |
Materials |
|
DG4041 |
6/4D-G, 6/4E-G |
High chrome |
|
EG6041 |
8/6E-G |
High chrome |
|
FG8041 |
10/8F-G, 10/8S-G |
High chrome |
|
FG10041 |
12/10G-G |
High chrome |
|
GG12041 |
14/12G-G |
High chrome |
|
FGH8041 |
10/8F-GH |
High chrome |
|
SGGH10041 |
12/10G-GH |
High chrome |
|
TG14041 |
16/14TU-GH |
High chrome |
|
FPL Insert |
SP Vertical Slurry Pumps |
Materials |
|
SP4041 |
40PV-SP |
High chrome, Natural rubber, Polyurethane |
|
SP65041 |
65QV-SP |
High chrome, Natural rubber, Polyurethane |
|
100RV-SP |
High chrome, Natural rubber, Polyurethane |
|
|
SP15041 |
150SV-SP |
High chrome, Natural rubber, Polyurethane |
|
SP20041 |
200SV-SP |
High chrome, Natural rubber, Polyurethane |
|
SP25041 |
250TV-SP |
High chrome, Natural rubber, Polyurethane |
|
SP30041 |
300TV-SP |
High chrome, Natural rubber, Polyurethane |
Tobee® Frame plate liner insert forms a pump chamber with throat bush and volute liner where the slurry would flow through them, Tobee offers high chrome, natural rubber and polyurethane materials for different working condition. And the working side of the frame plate liner insert is easily worn out owing to the corrosive slurry hit the plate of the working side in high speed, particularly in the surface of the place, if the surface is not smooth enough, the filtration is high and wear/corrosion speed will raise.
