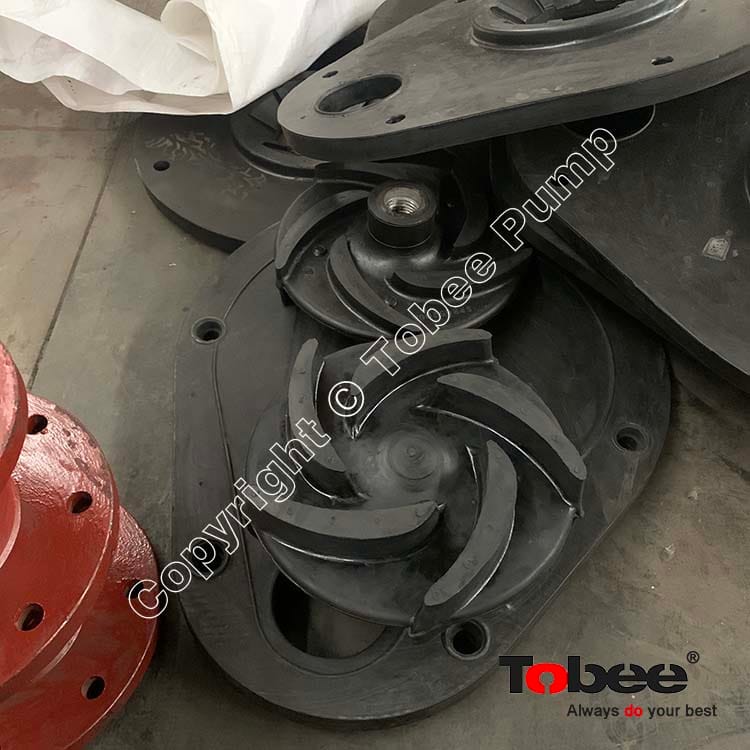

Vertical Pump Impeller SP40206A05 SP65206A05 SP10026A05 SP15206A05 SP20206A05

Product Brands: Tobee

Tobee® Impeller SP10206A05 is as one of the most main parts of vertical slurry pump, For the long operating service of slurry pump, the impeller plays an important role here.

price:

$598.00

Pump Type:

Vertical Spindle Pump

Part Codes:

SP10206A05

HS Code:

8413910000

Quantity:

- + (69 available)

Add to Favorite Items (0)

Sales: 0+

Tobee® Metal Impeller SP10206A05 is as one of the most main parts of vertical slurry pump, For the long operating service of slurry pump, the impeller plays an important role here.

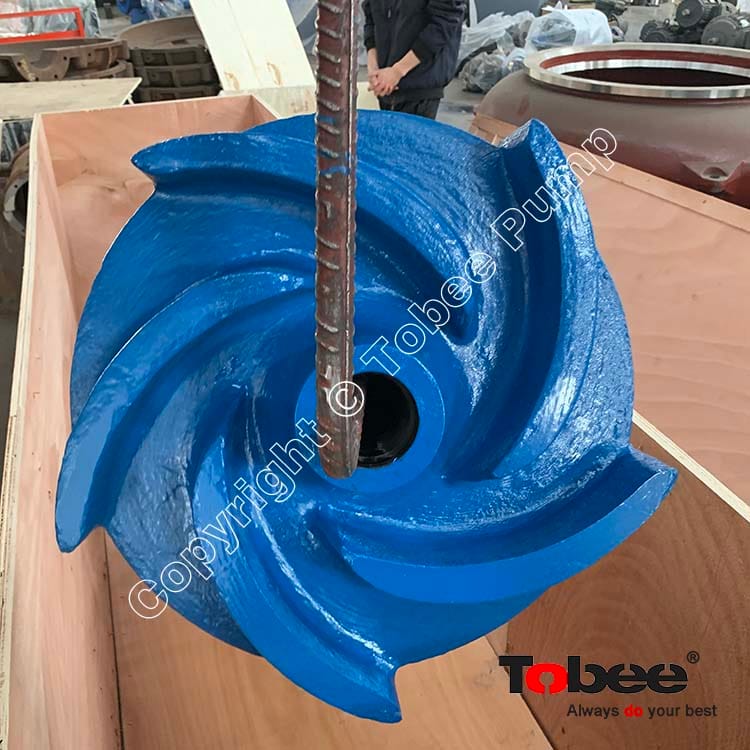

The impeller is the rotating element of the vertical slurry pump that actually moves the slurry. The slurry enters the impeller centre or eye and by centrifugal force moves the slurry outwards and into the the volute chamber. Tobee has many types and variables such as open and closed as well as different numbers of vanes. Tobee also offers these impellers in many different materials types to meet your specific slurry pump requirements.

Metal Model: 40PV-SP, 65QV-SP, 100RV-SP,150SV-SP, 200SV-SP, 250TV-SP, 300TV-SP
Wet End parts:
Pump Impeller SP40206A05, SP65206A05,SP10206A05, SP15206A05, SP20206A05, SP25206A05, SP30206A05
Pump Casing SP40092A05, SP65092A05, SP10092A05, SP15092A05, SP20092A05, SP25092A05, SP30092A05
Pump Back liner SP40041A05, SP65041A05, SP10041A05, SP15041A05, SP20041A05, SP25041A05, SP30041A05
Rubber Model: 40PV-SPR, 65QV-SPR, 100RV-SPR,150SV-SPR, 200SV-SPR, 250TV-SPR, 300TV-SPR
Wet End parts:

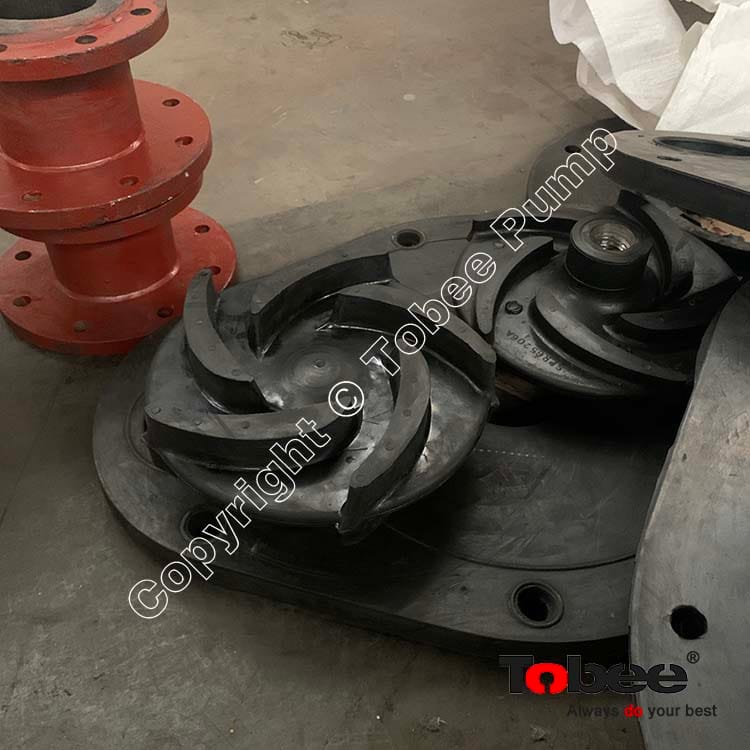

Pump Impeller SPR40206, SPR65206,SPR10206, SPR15206, SPR20206, SPR25206, SPR30206
Pump Casing SPR40092, SPR65092, SPR10092, SPR15092, SPR20092, SPR25092, SPR30092
Pump Back liner SPR40041, SPR65041, SPR10041, SPR15041, SPR20041, SPR25041, SPR30041
Impeller O-ring RV064-S10, Discharge Pipe Gasket SP10204, Rubber Back liner Seal E4124S01

100RV SP Metal Lined Vertical Slurry Pump Parts List:

No.	Pump Model	Part Name	Basic Part No.	Part Code	Material
1	100RV-SP	Bearing Housing	004	RV004-1	Ductile
2	100RV-SP	Bearing Sleeve	008	RV008	-
3	100RV-SP	Bearing	009	R009	SKF/Timken
4	100RV-SP	Bearing	009D	R009D-1	SKF/Timken
5	100RV-SP	Mounting Plate	019	RV10019	Steel
6	100RV-SP	End Cover	024	RV024	Ductile
7	100RV-SP	Low End Cover	024L	RV024L-1	Steel
8	100RV-SP	Key	-	RV070	Steel
9	100RV-SP	Washer	-	85	Steel
10	100RV-SP	Shim Set	025	RV025	-
11	100RV-SP	Nipple	-	M10X1	Steel
12	100RV-SP	Name Plate	-	-	-
13	100RV-SP	Rivet	-	-	Steel
14	100RV-SP	Back Liner	041	SP10041	Chrome alloy
15	100RV-SP	Suction Joint	060	SP10060	-
16	100RV-SP	Lock Nut	061	RV061	Steel
17	100RV-SP	Labyrinth	062	RV062	Steel
18	100RV-SP	Nipple 45	-	M10X1	Steel
19	100RV-SP	O Ring	064	RV064	Ductile
20	100RV-SP	Shaft	073	RV10073	Steel
21	100RV-SP	Shaft Sleeve Ejector	077	RV077	-
22	100RV-SP	Bearing Seal	089	RV089	-
23	100RV-SP	Casing	092	SP10092	Chrome alloy
24	100RV-SP	Column	102	RV10102	-
25	100RV-SP	Piston Ring	108	R108	Steel
26	100RV-SP	End Cover Set Screw	-	S027M	Steel
27	100RV-SP	Strainer	116	SP10116-1	-
28	100RV-SP	Lower Strainer	116L	SP10116L	D21
29	100RV-SP	Casing Seal	124	E4124	-
30	100RV-SP	Discharge Pipe	154	RV10154	-
31	100RV-SP	Flinger	184	RV-184-1	-
32	100RV-SP	Discharge Pipe Gasket	204	SP10204	-
33	100RV-SP	Impeller	206	SP10206	Chrome alloy
34	100RV-SP	O Ring	217	RV217	Steel
35	100RV-SP	Spacer Set	290	RV290	-
36	100RV-SP	Suction Pipe	322	SP10322	-

The rugged SP/SPR heavy duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. These pumps are proving their reliability and efficiency worldwide in:

• minerals processing;

• coal preparation;

• chemical processing;

• effluent handling;

• sand and gravel;

• and almost every other tank, pit or hole-in-the-ground slurry handling situation.
