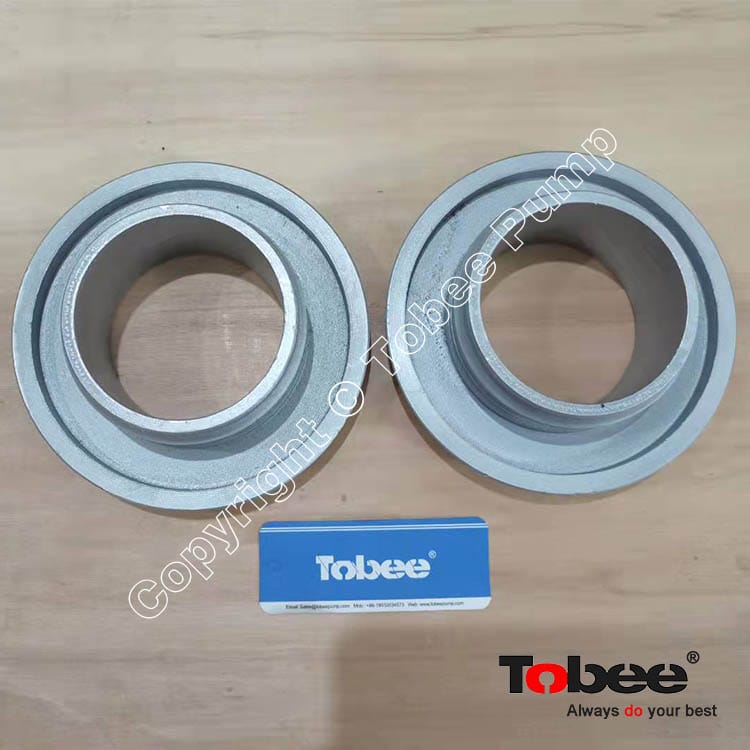

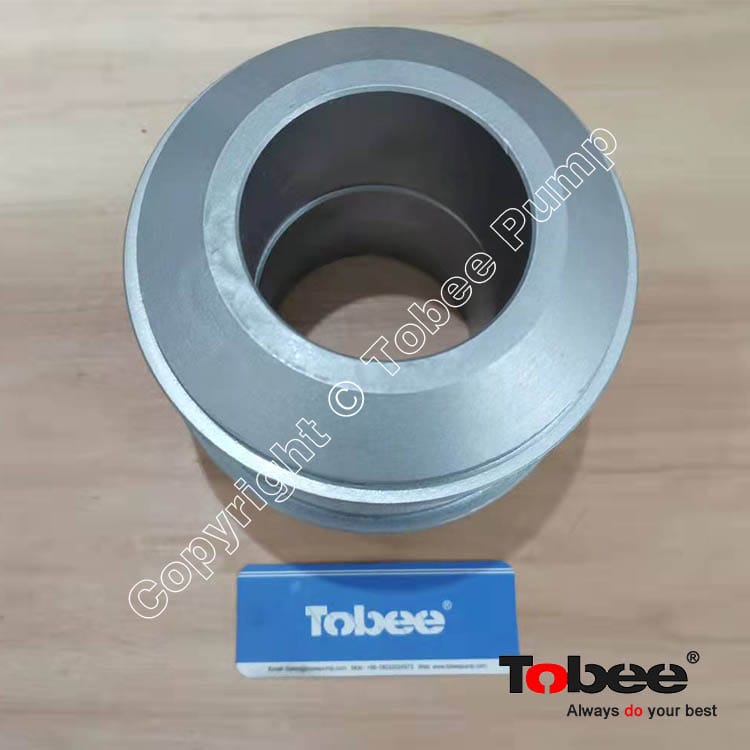

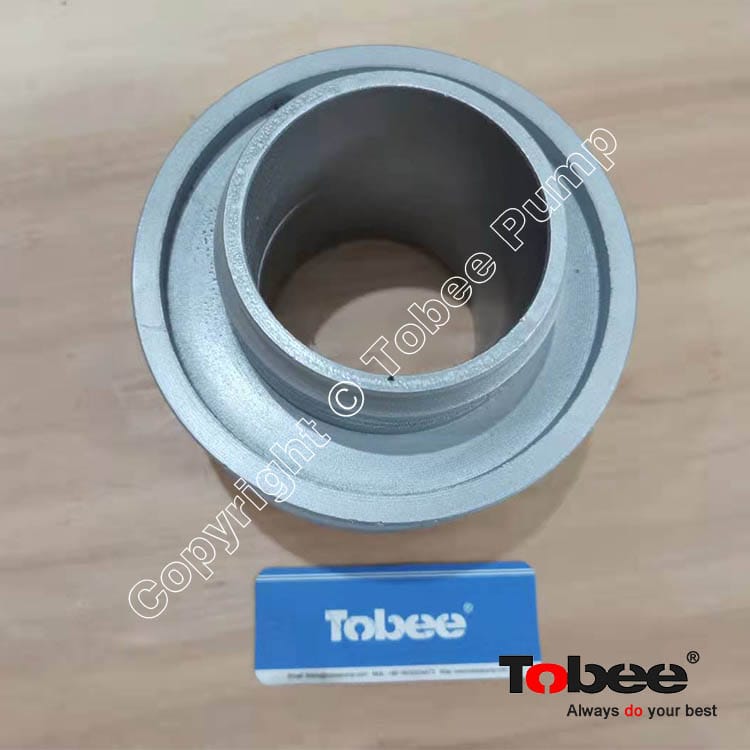

Slurry Pump Labyrinth Parts D062210D81 - It is a component of drive end parts and can be used for 6x4D-AH Slurry Pumps, its purpose is to plug the hole in slurry pump bearing housing where the slurry pump shaft passes through for preventing leaking oil. And the slurry pump labyrinth also ensures permanent protection to the rotor and stator form a non-contacting with no wearing parts.
Tobee® can offer various materials as the client required, such as C23, D81, E62, G02, etc, for AH, HH, M, L, and G/GH pumps.
Horizontal Slurry Pump Labyrinth Part code: B062, C062, D062, DD062XL, E062, EE062, EE062XL, F062, F062-10, G062-10, GAM062-10, FAM062, X062, R062-1, R062DM, S062, S062DM, T062, T062DM, PV062, QV062, RV062, SV062, etc.
Slurry Pump Parts List for 6/4 D-AH Slurry Pump:
|
No. |
Pump Parts Name |
Pump Model |
Pump Parts Code |
Matl. Code |
|
1 |
Adjust Screw |
6/4 D-AH |
D001 |
E62 |
|
2 |
Base |
6/4D-AH |
D003M |
G01 |
|
3 |
Bearing Assembly |
6/4D-AH |
DAM005M |
ZWZ Bearing |
|
4 |
Bearing Housing |
6/4D-AH |
D004M |
G01 |
|
5 |
Cover Plate |
6/4D-AH |
E4013 |
D21 |
|
6 |
Cover Plate Bolt |
6/4D-AH |
E4015 |
E65 |
|
7 |
Cover Plate Liner |
6/4D-AH |
E4018 |
R55 |
|
8 |
Cover Plate Liner |
6/4D-AH |
E4018TL1 |
R55 |
|
9 |
Discharge Joint |
6/4D-AH |
E4132L |
S01 |
|
10 |
End Cover |
6/4D-AH |
D024 |
G01 |
|
11 |
Expeller |
6/4D-AH |
DAM028 |
A05 |
|
12 |
Expeller Ring |
6/4D-AH |
DAM029 |
A05 |
|
13 |
Expeller Ring |
6/4D-AH |
DAM029R |
R55 |
|
14 |
Frame Plate |
6/4D-AH |
DAM4032 |
D21 |
|
15 |
6/4D-AH |
E4036 |
R55 |
|
|
16 |
Frame Plate Bolt |
6/4D-AH |
DAM026 |
E62 |
|
17 |
Frame Plate Liner |
6/4D-AH |
E4036TL1 |
R55 |
|
18 |
Frame Plate Liner Insert |
6/4D-AH |
E4041 |
A05 |
|
19 |
Frame Plate Stud |
6/4D-AH |
D039 |
E62 |
|
20 |
Gland |
6/4D-AH |
D044 |
G01 |
|
21 |
Gland |
6/4D-AH |
D044 |
C23 |
|
22 |
Gland Bolt |
6/4D-AH |
D045 |
C23 |
|
23 |
Grease Retainer |
6/4D-AH |
D046 |
G01 |
|
24 |
Impeller |
6/4D-AH |
E4147 |
A05 |
|
25 |
Impeller |
6/4D-AH |
R55 |
|
|
26 |
Intake Joint |
6/4D-AH |
E4060 |
S01 |
|
27 |
Labyrinth |
6/4D-AH |
D062 |
G01 |
|
28 |
Labyrinth Locknut |
6/4D-AH |
D061 |
E62 |
|
29 |
Lantern Restrictor |
6/4D-AH |
D118 |
C23 |
|
30 |
Lantern Ring |
6/4D-AH |
D063 |
C23 |
|
31 |
Lip Seal |
6/4D-AH |
D090 |
S01 |
|
32 |
Neck Ring |
6/4D-AH |
D067 |
C23 |
|
33 |
O ring |
6/4D-AH |
D109 |
S10 |
|
34 |
O ring |
6/4D-AH |
F064 |
S10 |
|
35 |
Packing |
6/4D-AH |
D111 |
Q05 |
|
36 |
Packing |
6/4D-AH |
D111 |
Q05A |
|
37 |
Packing |
6/4D-AH |
D111 |
Q21 |
|
38 |
Packing |
6/4D-AH |
D111 |
Q22 |
|
39 |
Piston Ring |
6/4D-AH |
D108 |
G01 |
|
40 |
Seal |
6/4D-AH |
E122 |
S01 |
|
41 |
Shaft |
6/4D-AH |
DAM073M |
E05 |
|
42 |
Shaft Sleeve |
6/4D-AH |
D075 |
C21 |
|
43 |
Shaft Sleeve |
6/4D-AH |
D075 |
C23 |
|
44 |
Shaft Sleeve |
6/7D-AH |
D075 |
J05 |
|
45 |
Shaft Sleeve |
6/4D-AH |
D076 |
C21 |
|
46 |
Shaft Sleeve |
6/4D-AH |
D076 |
C23 |
|
47 |
Shaft Sleeve |
6/4D-AH |
D076 |
J05 |
|
48 |
Shaft Spacer |
6/4D-AH |
DAM117 |
C21 |
|
49 |
Shaft Spacer |
6/4D-AH |
DAM117 |
C23 |
|
50 |
Shaft Spacer |
6/4D-AH |
DAM117 |
J05 |
|
51 |
Shim Set |
6/4D-AH |
D025 |
P10 |
|
52 |
Stuffing Box |
6/4D-AH |
DAM078 |
A05 |
|
53 |
Throatbush |
6/4D-AH |
E4083 |
A05 |
|
54 |
Throatbush |
6/4D-AH |
E4083 |
R55 |
|
55 |
Volute Frame Seal |
6/4D-AH |
E4124 |
S01 |
