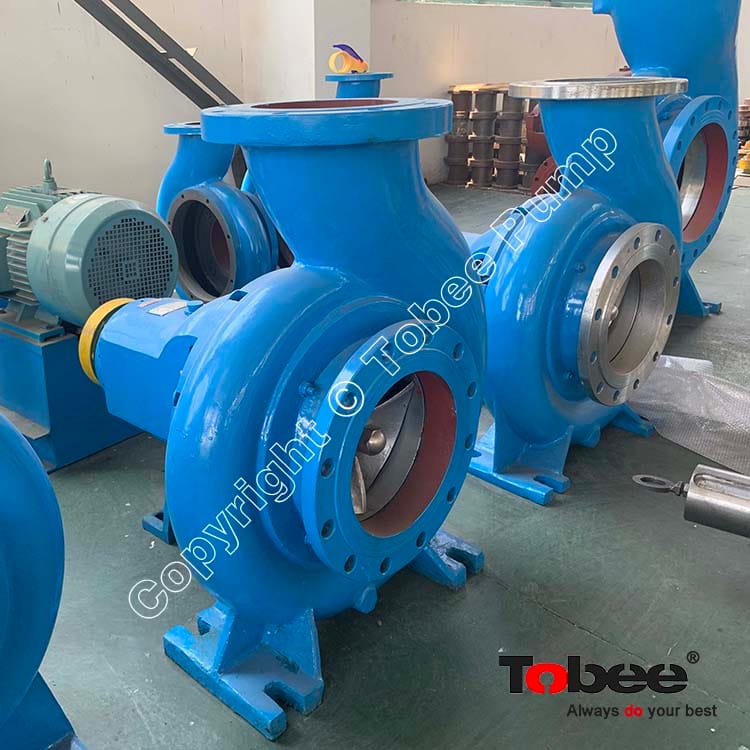

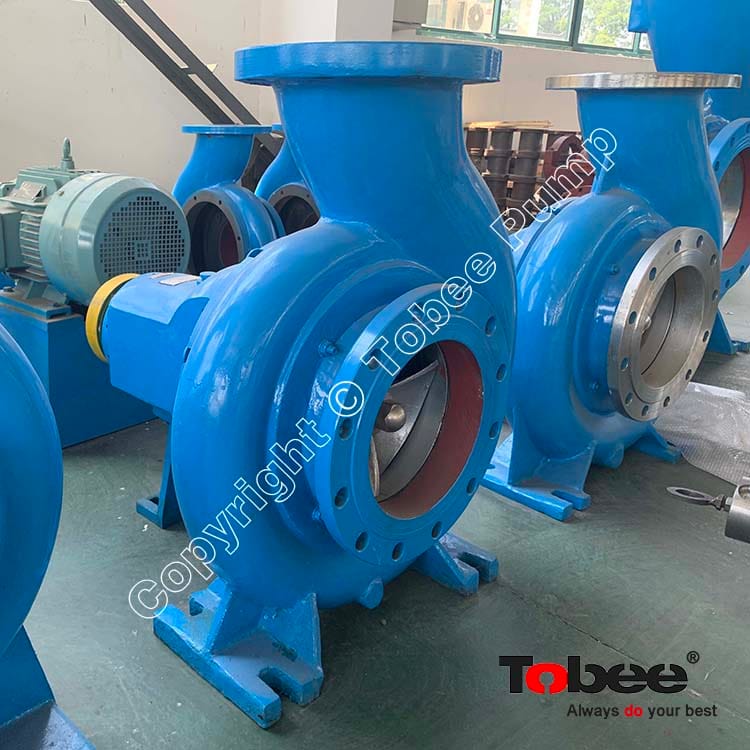

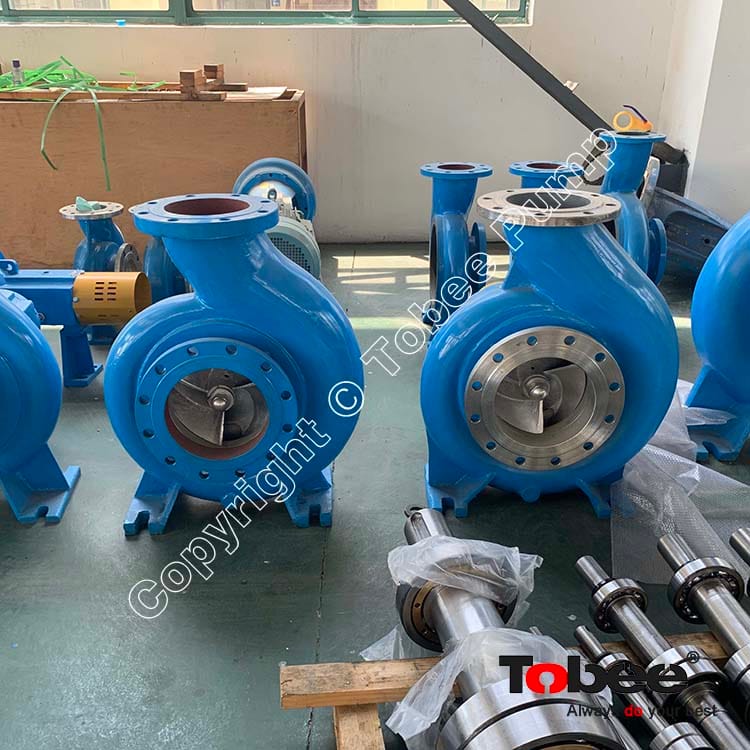

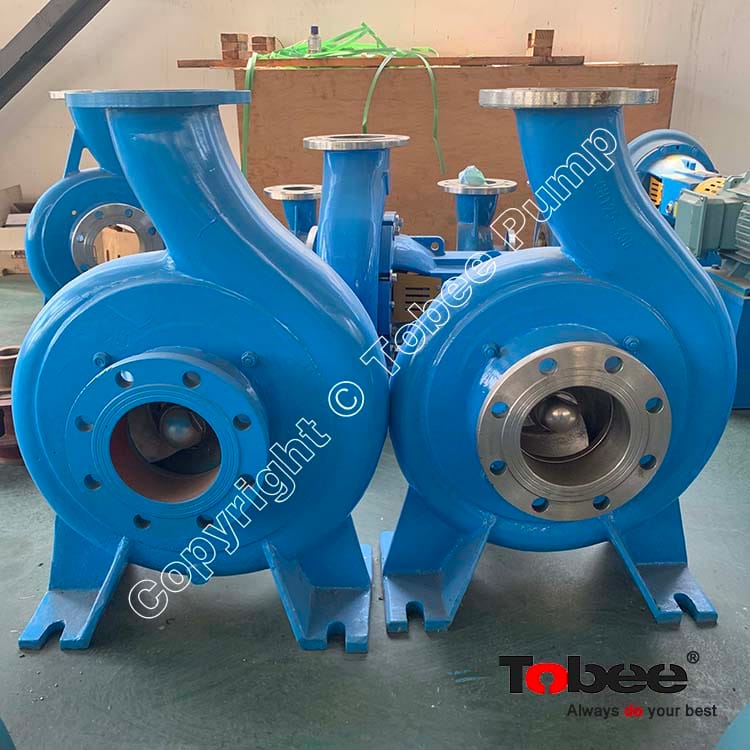

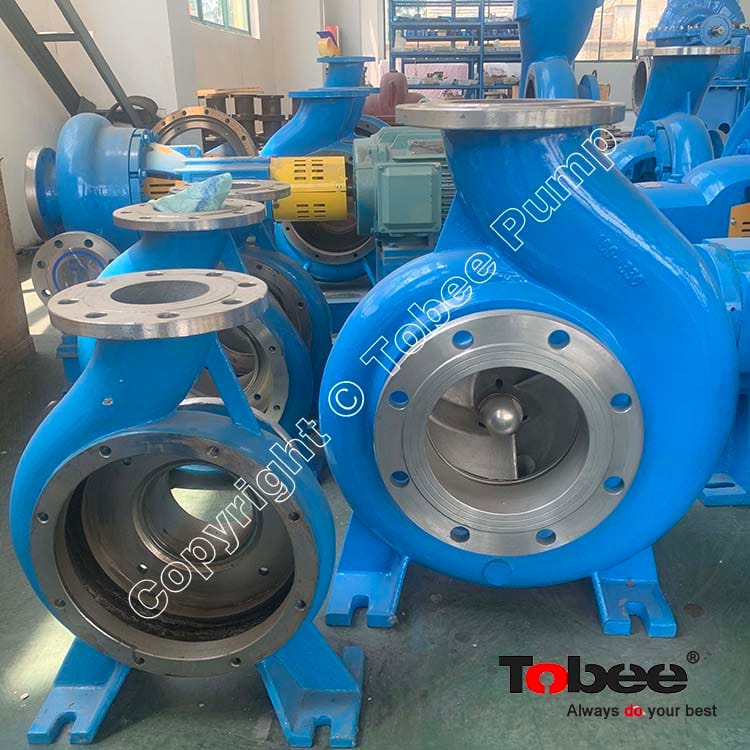

Equivalent Andritz Pump S3 100-350 Semi-open type impeller bare shaft centrifugal pump for sugar industry.
ANDRITZ S & ACP Series Centrifugal Paper Pulp Pumps are available with closed, semi-open or open impellers with 3 vanes or 6vanes in a highly wear-resistant design. These pumps are suitable for conveying many different media. Depending on the impeller design, they can convey slightly contaminated and contaminated media with some solids and content up to consistencies up to 8%. S series and ACP series paper pulp pumps are wide used in the pulp and paper, mining, offshore, power, food, and chemical industry. Additionally, water supply, waste water treatment, desalination plants, and irrigation as well as drainage etc.
Tobee® manufacture a range of replacement parts including impellers(2 vanes, 3 vanes, 6 vanes, 8 vanes), casings, casing cover, front lining, rear lining, stuffing box body, shaft etc which for Andritz S series pumps, ACP series pumps, FP series pumps etc
Tobee® Pump is always making continuous optimization of materials like Cast steel, EPDM, Hypalon, Hastelloy, CD4MCu, Viton, Fluoroplastic, Ceramic, Bronze, Titanium, Aluminum and other anti-abrasive & corrosive materials for various applications.
Such as impeller: EN-GJL 250, 1.4460 and 1.4517, casing/casing cover: EN-GJL 250 and 1.4460, volute casing: EN-GJL 250, EN-GJS-400-15 and 1.4460, bearing housing EN-GJL 250 and 1.4468, front and rear lining: 1.4460 and 1.4517, stuffing box body EN-GJL 250, 1.4460 and 1.4408, shaft: 1.4021 & 1.4462 and 1.4404 & 1.4439, etc.
Tobee® S100-350 Centrifugal Pumps Performance Parameter:
|
Model |
Capacity Q |
Head H (m) |
Speed n (r/min) |
Power P (kw) |
Eff. η (%) |
Impeller dia. (mm) |
|
|
m3/h |
l/s |
||||||
|
S100-350 |
168 |
46.7 |
90 |
2950 |
110 |
65 |
310 |
|
185 |
51.4 |
15.2 |
|||||
|
260 |
72.2 |
9 |
|||||
S Series Single-stage Pump Applications:
