Home > SLURRY PUMP PARTS > AH Slurry Pump Parts > 8/6 AH Slurry Pump > Packing Seal Slurry Pump Stuffing Box EAM078D21

Packing Seal Slurry Pump Stuffing Box EAM078D21

(0 Reviews)

TB-EAM078 D21

Product Brands: Tobee

Pump Parts Stuffing Box EAM078D21 can be installed on 8x6E-AH Packing Seal Slurry Pump and 10x8E-M Packing Seal Slurry Pump.

price:

$1,799.00 $1,999.00

Part Code:

EAM078D21

Pump Models:

8x6E-AH 10x8E-M

Materials:

D21 A05

Quantity:

- + (310 available)
Add to Favorite Items (0)

Sales: 0+

Pump Parts Stuffing Box EAM078D21 can be installed on 8x6E-AH Packing Seal Slurry Pump and 10x8E-M Packing Seal Slurry Pump.

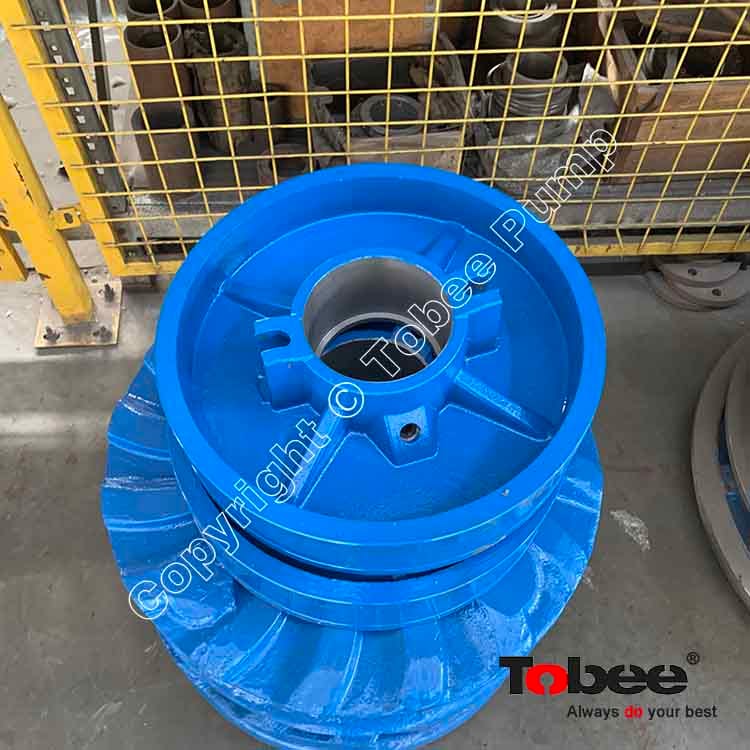

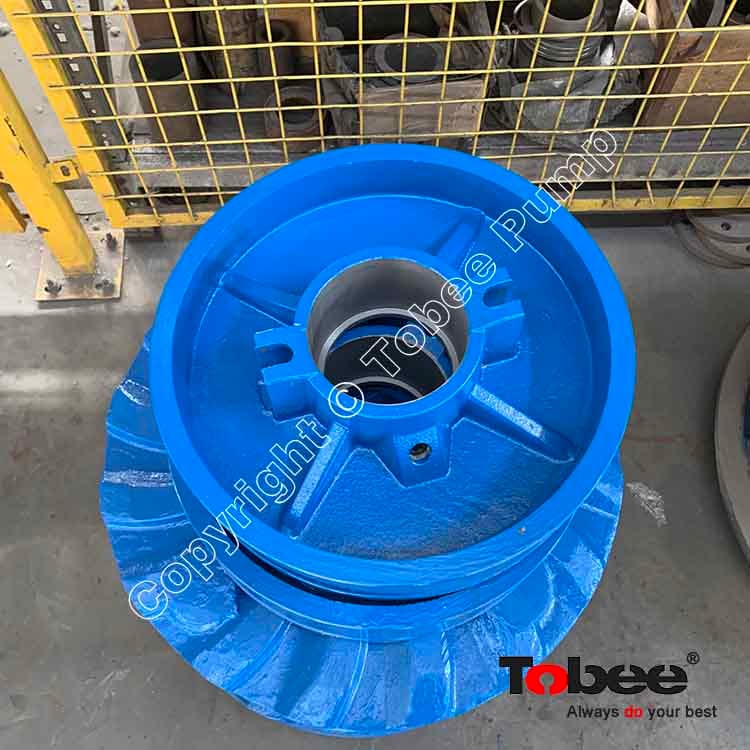

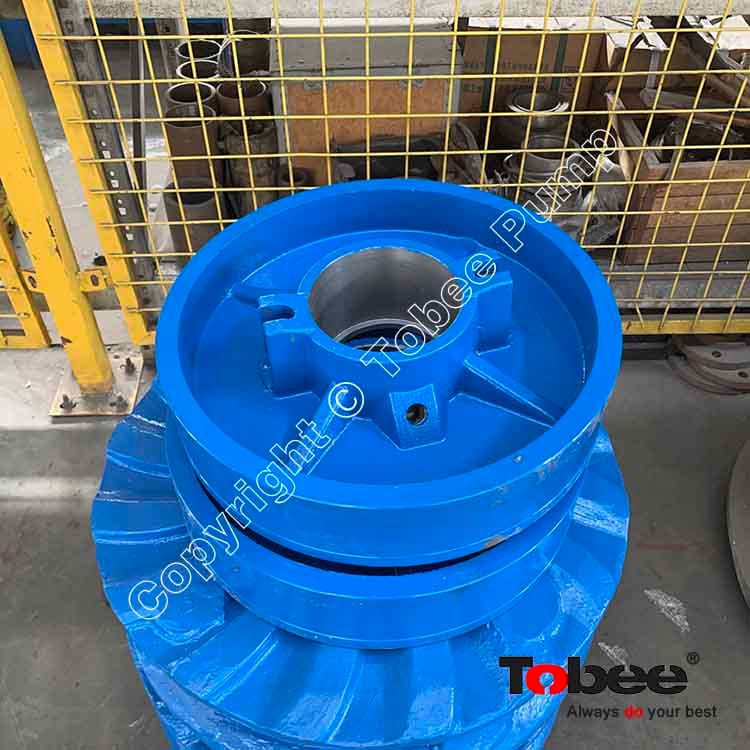

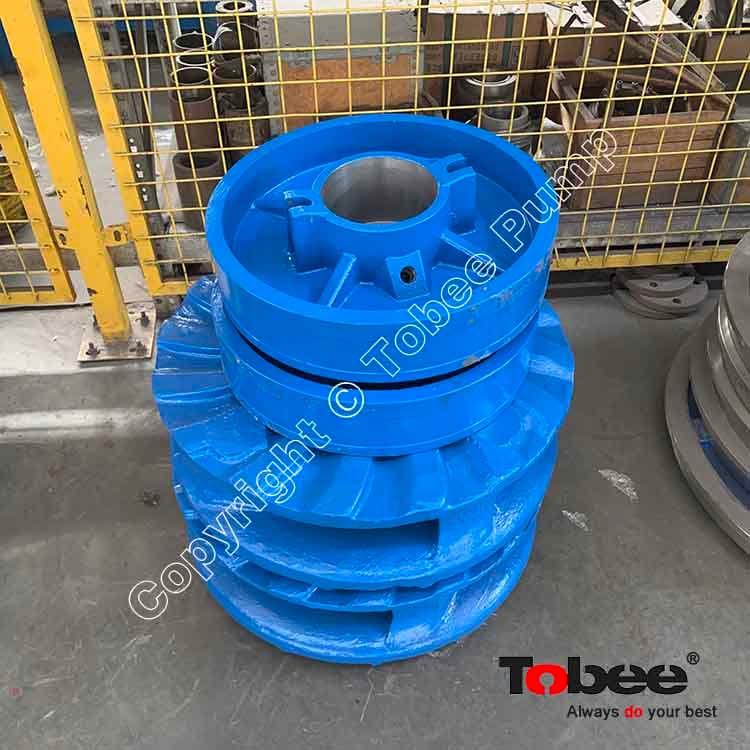

Slurry Pump Parts Stuffing Box EAM078D21 is an assembly which is used to house a gland seal for 8x6E-AH Slurry Pumps and 10x8E-M Slurry Pumps. The stuffing box parts used to prevent leakage of fluid, such as water or slurry, between sliding or turning parts of sealing arrangement.

Slurry pump stuffing box is one of shaft seal parts in gland packing seal pumps where the packing is housed in. The packing area of stuffing box is longer than expeller ring, so it can contain more packing. Clean water is injected into the stuffing box to flush solid particles away and to cool and lubricate the packing and shaft sleeve. Stuffing box type sealing provides a more robust configuration for slurry pump and is able to operate effectively under a broader range of conditions. Slurry pump stuffing box components are of D21 cast iron, A05 high chrome, stainless steel, brass or other application-specific materials.

Tobee® slurry pump stuffing boxes are also available to suit: AH slurry pumps, L slurry pumps, M slurry pumps, HH slurry pumps, G and GH pumps.



Slurry Pump Parts Stuffing Box Codes:

Standard Part code

Hi-seal part code

Materials

Pump model

B078

B078HS1

D21, A05, G01

1.5/1 B AH, 2/1.5 B AH

C078

C078HS1

D21, A05, G01

3/2 C AH

CAM078

CAM078HS1

D21, A05, G01

4/3 C AH

CH078

CH078HS1

D21, A05, G01

1.5/1 C HH

D078

D078HS1

D21, A05, G01

4/3 D AH

DAM078

DAM078HS1

D21, A05, G01

6/4 D AH

DSC078

DSC078HS1

D21, A05, G01

100 D L 6/4 D SC

DH078

DH078HS1

D21, A05, G01

3/2 D HH

E078

E078HS1

D21, A05, G01

6/4 E AH

EAM078

EAM078HS1

D21, A05, G01

8/6 E AH, 10/8 E M

ESC6078

ESC6078HS1

D21, A05, G01

150 E L, 8/6 E SC

EP078

EP078HS1

D21, A05, G01

6/4 E AHPP

F078

F078HS1

D21, A05, G01

8/6 F AH

FAM078

FAM078HS1

D21, A05, G01

10/8 F AH

FH078

FH078HS1

D21, A05, G01

6/4 F HH

F8078

F8078HS1

D21, A05, G01

12/10 F M

G078

G078HS1

D21, A05, G01

10/8 ST AH, 12/10 ST AH, 14/12 ST AH

G8078

G8078HS1

D21, A05, G01

12/10 G AH

G10078

G10078HS1

D21, A05, G01

14/12 G AH

TU18078

TU18078HS1

D21, A05, G01

16/14 TU AH, 550 TU L

H078

H078HS1

D21, A05, G01

16/14 H AH, 20/18 H AH

S30078

S30078HS1

D21, A05, G01

300 S L

STL45078

STL45078HS1

D21, A05, G01

400 ST L, 450 ST L
