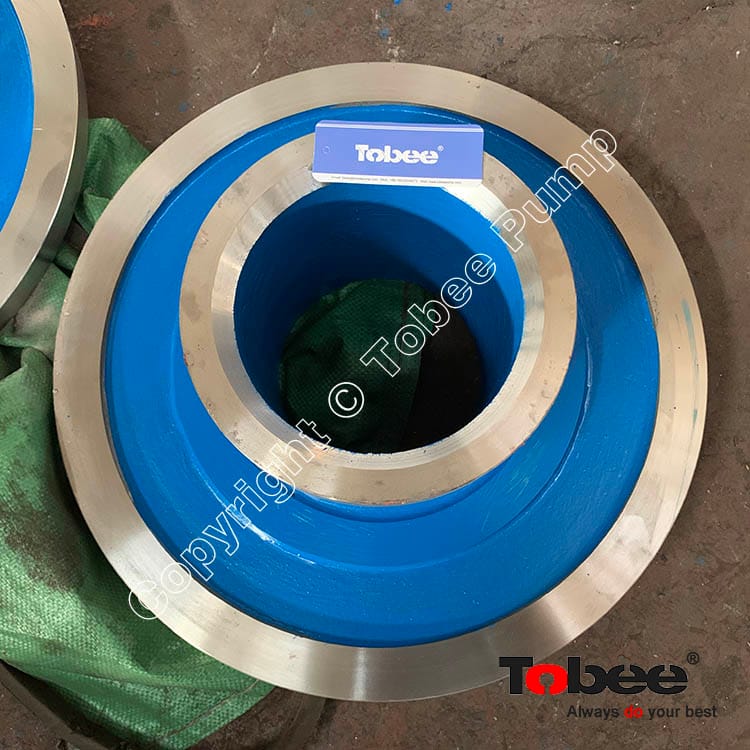

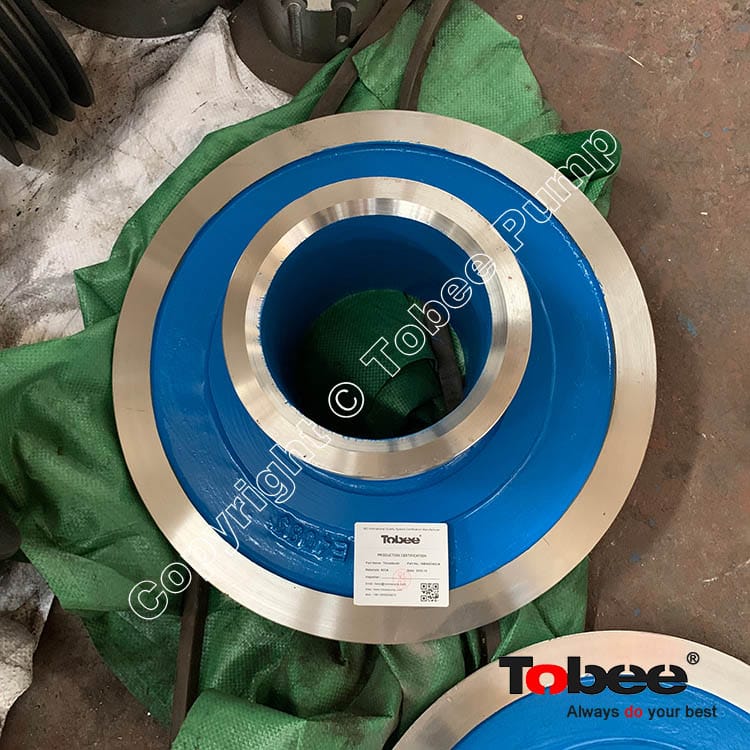

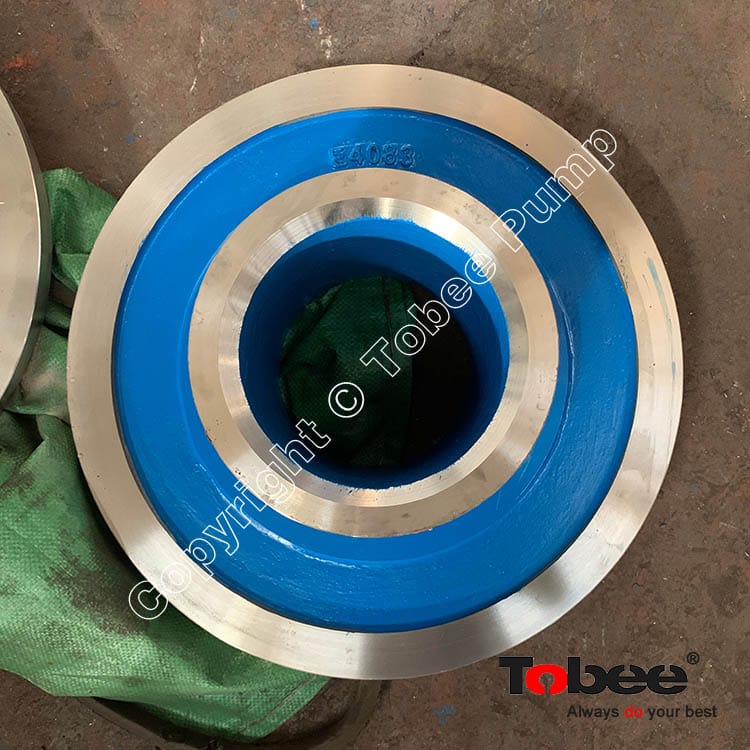

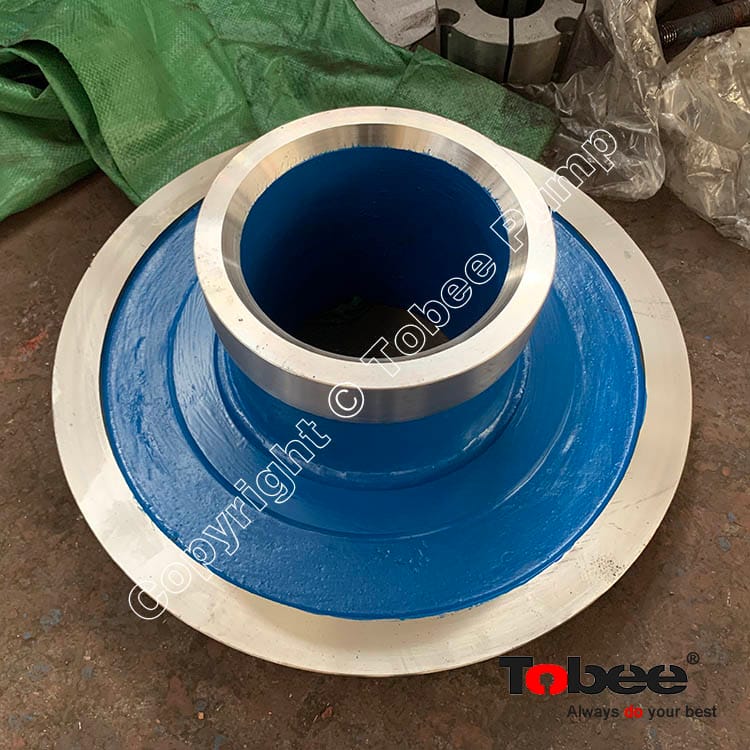

One of Wetted Part Throat Bush E4083A05A for 6/4 AH Slurry Pump

Product Brands: Tobee

Tobee® E4083A05 Slurry Pump Throat bush for 6x4 D-AH and 6/4 E-AH Pump. And Its wear-resistance is very important to pump work-life. Tobee offers Cr27Mo high chrome alloy which is high abrasion resistance, and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

price:

$620.00

Parts Code:

E4083A05A

Material:

A05A

Pump model:

6x4D-AH 6x4E-AH

Quantity:

- + (280 available)

Add to Favorite Items (50)

Sales: 190+

Tobee® E4083A05 Slurry Pump Throat bush for 6x4 D-AH and 6/4 E-AH Pump. And Its wear-resistance is very important to pump work-life. Tobee offers Cr27Mo high chrome alloy which is high abrasion resistance, and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

Slurry Pump Throat Bush Code:

Throat Bush Code	AH Slurry Pump	Slurry Pump Materials
E4083	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6083	8/6E-AH, 8/6F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G8083	10/8F-AH, 10/8ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G10083	12/10ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G12083	14/12ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
H14083	16/14TU-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Throat Bush Code	HH Slurry Pump	Slurry Pump Materials
DH2083	3/2D-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
DH3083	4/3E-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FH4083	6/4F-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Throat Bush Code	G(H) Gravel Pump	Gravel Pump Materials
GG1412013-1	12/10G-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GGH10013	12/10G-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FGH8013	10/8S-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
HG14130M	16/14TU-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

For the High chrome alloy parts, the standard is High chrome Alloy(27% Cr), it can be used from PH 5 to 12, and its hardness can be to HRC65, which is a very good choice for slurry control and transport. But in some conditions, the PH may lower than 5, then we try to use A49, it can lower to PH4, mostly used in FGD processing, Tobee offers the full chrome alloy parts including A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 etc.

Slurry Pump Components Drawing:

Label: 6/4 AH Slurry Pump Wetted Parts Throat Bush E4083A05A Slurry Pump Wetted Parts Slurry Pump Throat Bush Parts High chrome alloy parts A05 material Throat Bush Parts
