Home > CENTRIFUGAL PUMP PARTS > Mission Pump Parts > Magnum I Pump > 10x8x14 Magnum Pump > Stuffing Box, Mech.Seal 22223-01-30 of Mission Pump Parts

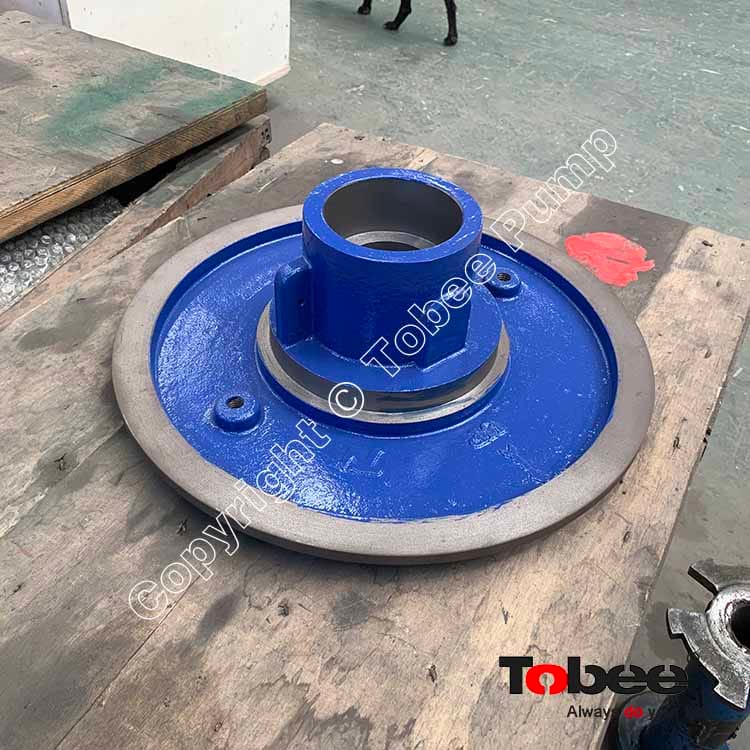

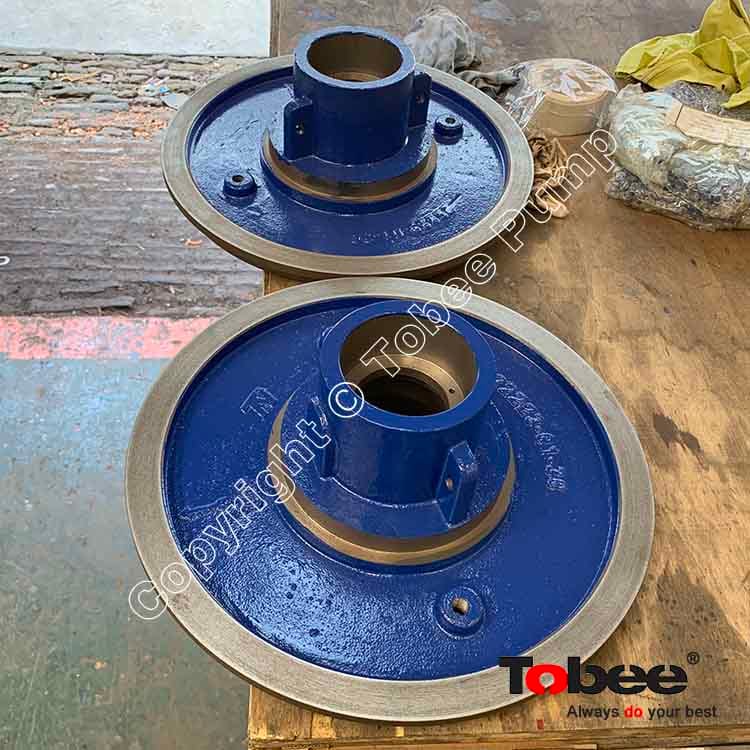

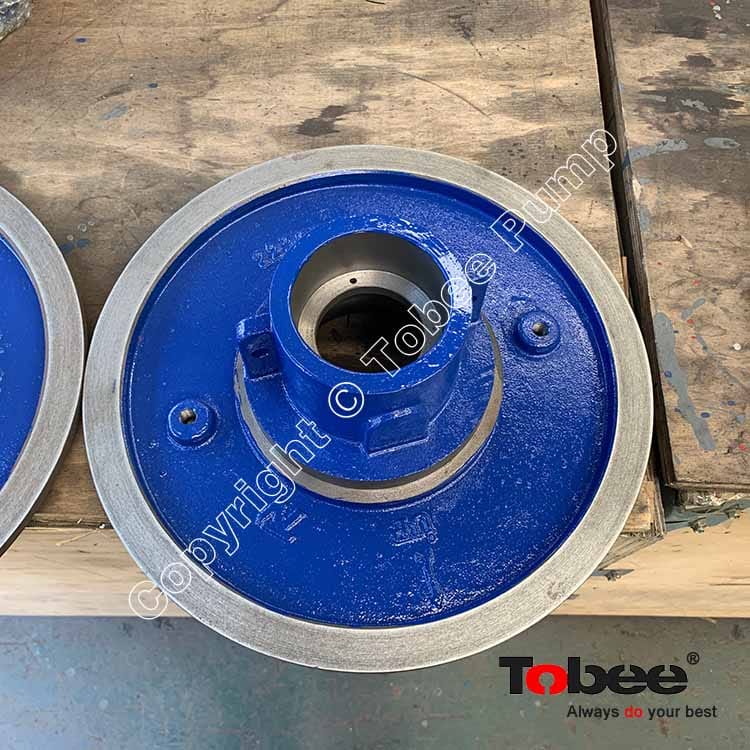

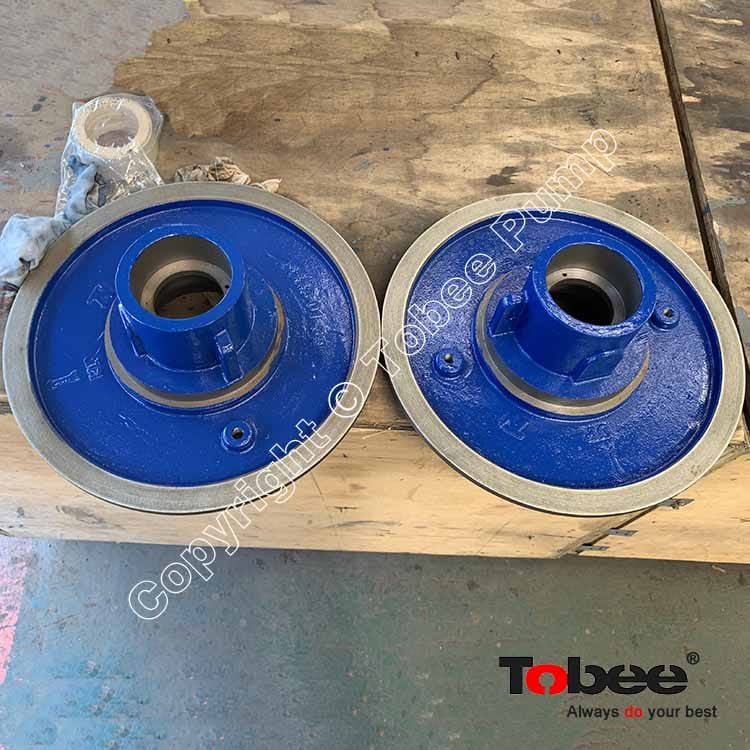

Stuffing Box, Mech.Seal 22223-01-30 of Mission Pump Parts

(10 Reviews)

TB-22223-01-30

Product Brands: Tobee

P/N: 22223-01-30 / 641116157 Stuffing Box, Mech.Seal used for Mission Magnum I Pumps.

price:

$599.00 $620.00

Part Code:

22223-01-30

Part #:

641116157

Material:

Hard Iron

Quantity:

- + (150 available)
Add to Favorite Items (19)

Sales: 50+

P/N: 22223-01-30 / 641116157 Stuffing Box, Mech.Seal used for Mission Magnum I Pumps.



An easily removable stuffing box allows these pumps to be customized to meet customer needs. The different options available are stuffing boxes to accommodate:

• Shaft packing
• Single mechanical seal

The packed box has a tapped opening to the lantern ring to allow grease lubrication or a flush line to be attached.


Dual stuffing box bolts are positioned 180 degrees apart to hold the stuffing box in position during casing removal. When only one stuffing box bolt is used the stuffing box remains in position on one side while the other side moves with the casing, causing the casing to bind and make removal difficult.



Tobee® offers a complete line of centrifugal sand pumps to suit for all kinds of drilling sand pump application. Size ranges from 3x2x13, 4x3x13, 5x4x14, 6x5x11,6x5x14, 8x6x11,8x6x14, 10x8x14, 12x10x23 to 14x12x22b. Bare pumps, matching motors are available from 7.5KW to 90KW, with rotation 800, 1000, 1150,1450, 1750 to 3500 RPM at 50Hz or 60Hz.

The model 10x8x14 and 8x6x14 centrifugal magnum pump used on solid control system over 3000 meter-long drilling rigs, with big viscosity and heavy specific gravity drilling fluid. 8x6x11 centrifugal mud solid control feeding pump applies to under 3000 meter-long drilling rigs, and it also can be used to supply mud to triplex mud pump as a filling pump. 6×5×11 centrifugal pump applies to truck-mounted drilling rigs or pocket drilling rigs. 4x3x13 drilling centrifugal pump is usually used as measuring pump or replenishment pump. 3x2x13 model pump is usually used as clean water pump.



Mission Magnum Sand Pump Parts Code:
