Mission Magnum 14x12 XP Pump Parts

(750 Reviews)

TB-14x12x22

Product Brands: Tobee

The 12x10x23 & 14x12x22 XP pumps are ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive, or just plain tough to pump, such as high concentration sand slurry in oil and gas hydraulic fracturing process

price:

$9,000.00 $9,500.00

Impeller Type:

Open Closed

Quantity:

- + (27 available)
Add to Favorite Items (320)

Sales: 290+

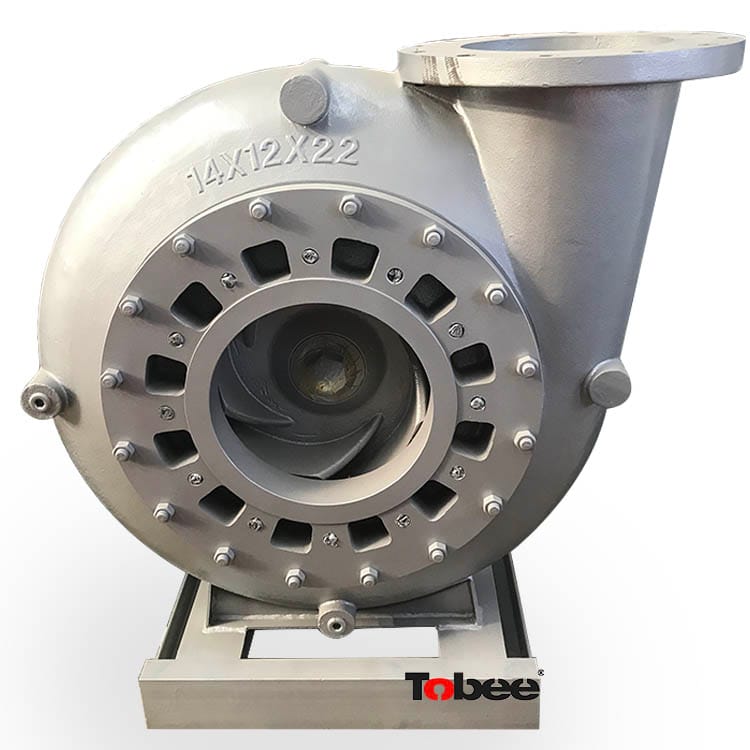

MISSION MAGNUM XP PUMPS

The 12x10x23 & 14x12x22 XP pumps are ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive, or just plain tough to pump, such as high concentration sand slurry in oil and gas hydraulic fracturing process. Full pipe diameter entrance design guarantees the pumps maximum efficiency. Compact dimension design make the fracking pump ideal for mobile or stationary applications. All the pump fuild ends spare parts are made of hard iron or high chrome , ASTM532, Class III, Type A, with hardness 65HRC, ensures the pump maximum life time. The Magnum XP pumps can deliver flow rates from 3000 - 7500 gpm at 75 - 410 feet of head at low speeds.

The compact overall dimensions of the MAGNUM XP make it an excellent choice for high volume mobile and stationary applications where a small footprint is critical.

The MAGNUM XP Pump is designed for continuous operation with minimal maintenance. The low stuffing box pressure and extra-heavy shaft design are engineered to provide maximum seal life. The unique casing flow divider on the 12x10x23 and 14x12x22 cuts the radial load in half, doubling bearing life. The heavy-duty bearings are permanently lubricated to minimize maintenance.



Mission Magnum XP Pump Parts List:

Mission Magnum 14x12 XP Pump Parts

Mission Type Magnum XP Parts List

Item #

Description

Qty.

Base Part Number

Processing Number



Item #

Description

Qty.

Base Part Number

Processing Number

1

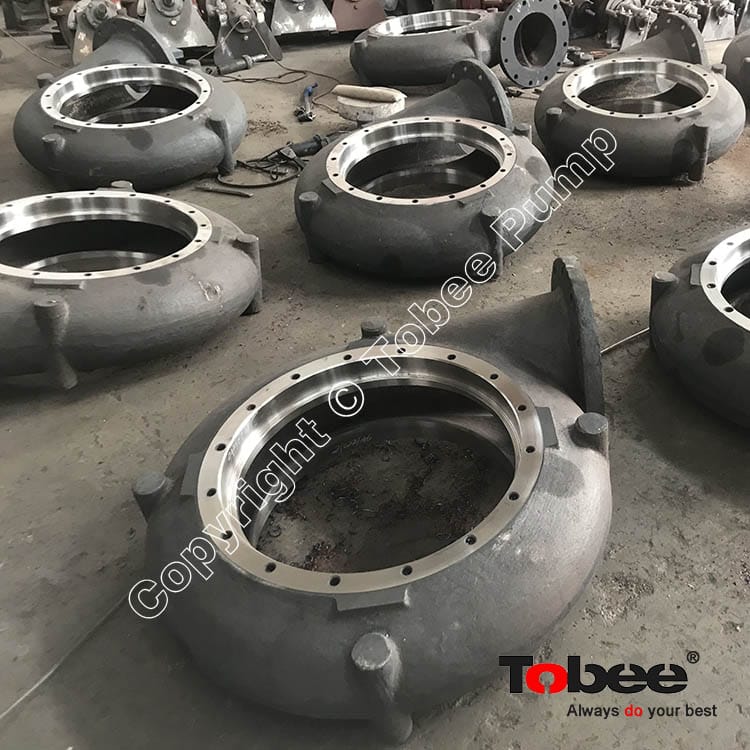

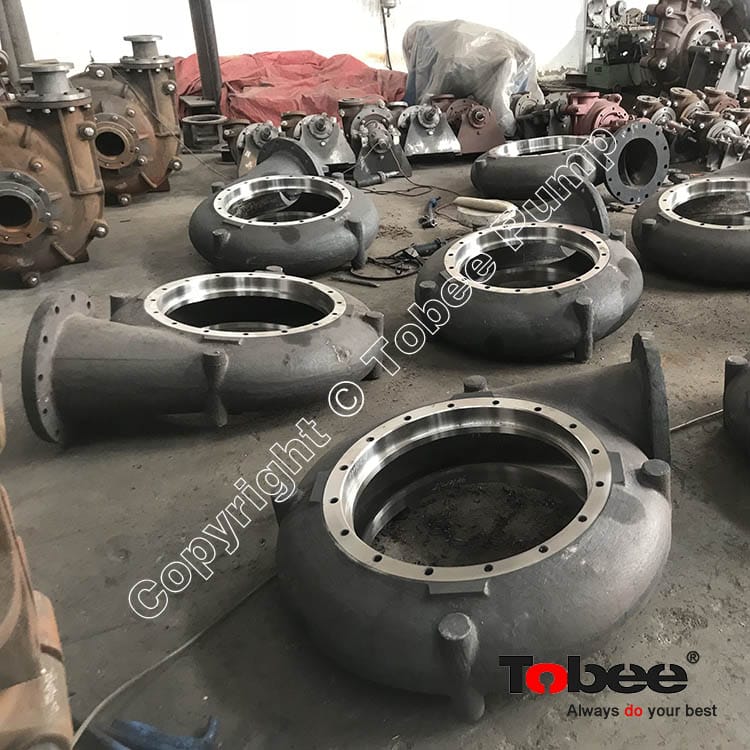

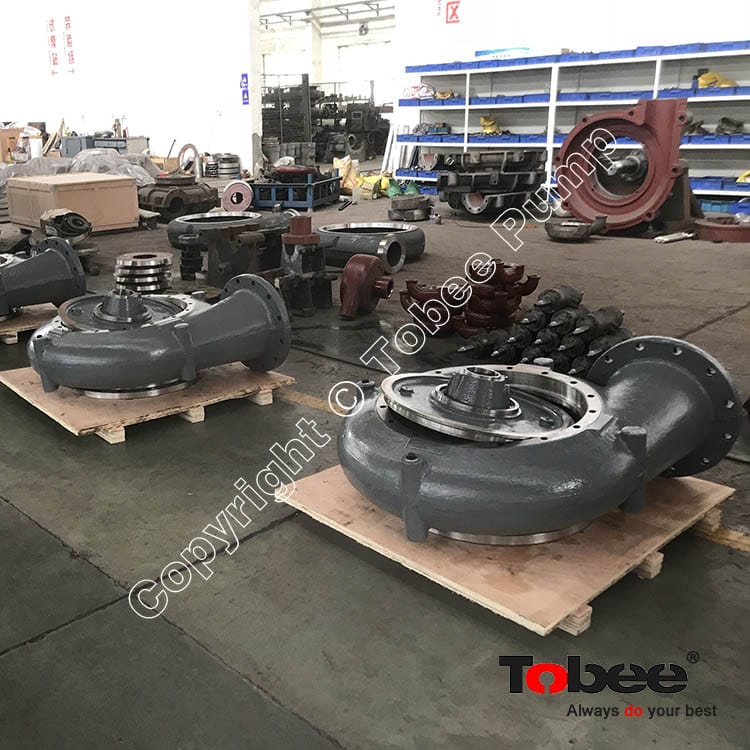

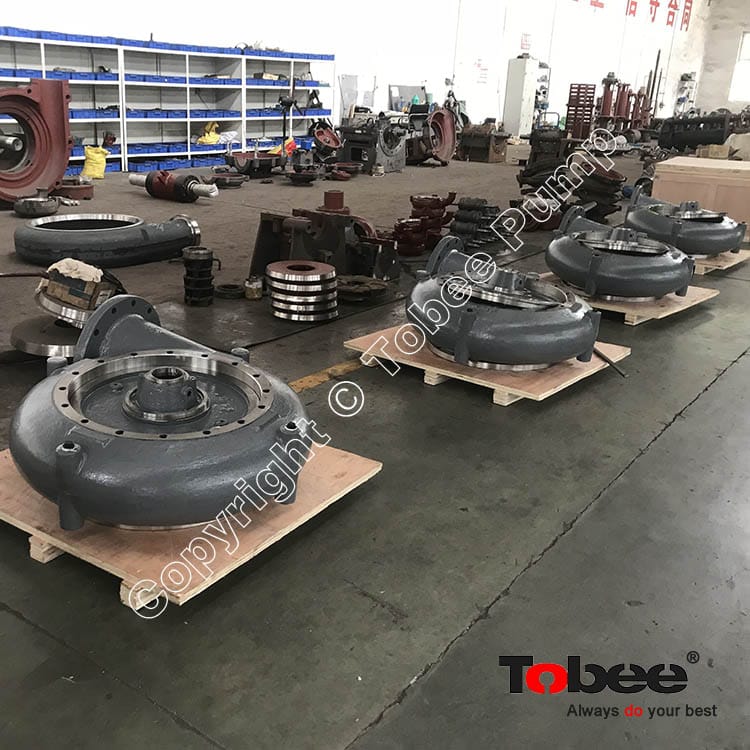

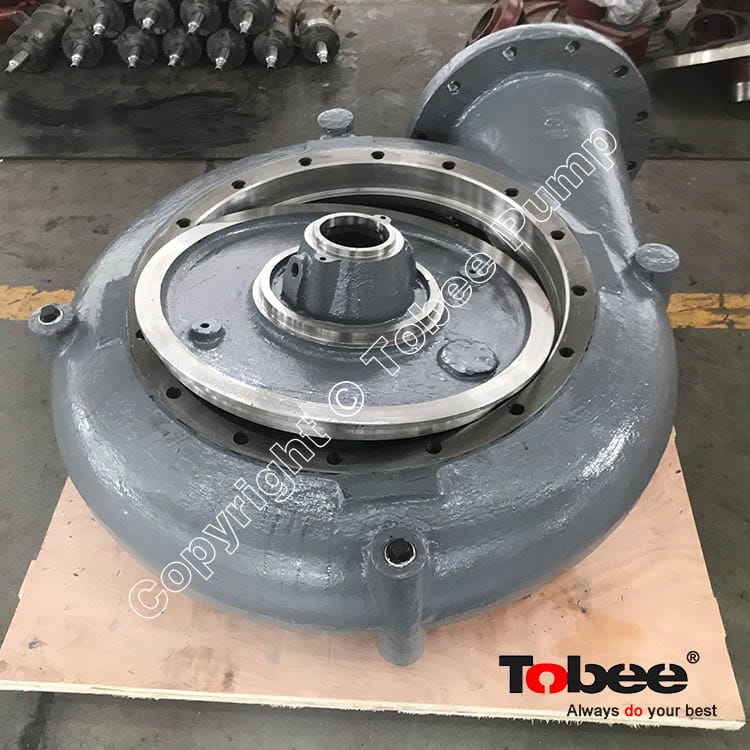

Casing, 14X12X22

1

24022-01-30A

651120206



25

Bearing, Outboard (14X12 )

1

20616-2

658413307



Casing, 12x10x23



25008-01-30A

662001001





Bearing, Outboard (12X10 & 8X6)

2



661009001



Casing, 8x6x18



25289-02-30A

662002089



26

Seal, Bearing Cover

1

7496-267

658408802

2

Nut, Casing

32

3932-61

648402014



27

Lock Washer

1

Jun-24

658407002

3

Stud, Casing (14X12 & 12X10)

32

3862-86

658403308



28

Lock Nut, Bearing

1

Jun-23

658406509



Stud, Casing (8X6)

16

3862-90

601208285



29

Oil Seal, Bearing Cover

2

20619-04

658413638



Stud, Casing (8X6)

16

3862-92

648401118



30

Drive Screws

6

12530

601482417

4

Gasket, Casing (14x12x22)

2

10399-55-01

658410501



31

Nameplate

1

23017

601501505



Gasket, Casing (12x10x23)



25012-01-01

661010001



32

Shaft

1

24028-33

656420007



Gasket, Casing (8x6x18)



25012-02-05

662010032



33

Key, Coupling

1

4372-30-21

658405055

5

Cover, Front (14x12x22)

1

24021-01-30

654310309



34

Cover, Bearing O.B.

1

24033-01-01

654314004



Cover, Front (12x10x23)



25009-01-30

662014003



35

Bolts, Bearing Cover

2

3861-139

648401081



Cover, Front (8x6x18)



25291-02-30

662014129



36

Washer, Bearing Cover

2

3936-19-L8

648402030

6

Impeller, 14x12 Clockwise Rot. 22”

1

24024-X0-HS

662005003



37

Nuts, Bearing Housing

2

3932-62

658404702



Impeller, 12x10 Clockwise Rot. 23”



25010-Y0-30

662005002



38

Bolt, Bearing Housing

4

3861-138

648401057



Impeller, 8x6 Clockwise Rot. 18”



25292-T0-30

662005018



39

Washer, Flat

2

3936-19-L8

648402030

7

Seal, Impeller Nose

1

7496-158

658408109



40

Bolt, Packing Gland

2

3861-165

601408289

8

Key, Impeller

1

4372-29-21

658405006



41

Gland, Packing Half

2

24034-01-13

654315100

9

Nose, Impeller ( Hex Design)

1

24025-04-25L

652309601



42

Packing Set

1

8264-344-K

658409503



Nose, Impeller (Two Flat Design)



24025-01-25L

652309600



43

Screw, Cap

2

3909-04-87

658404207



Nose, Impeller (2 Flat Ion Nitride)



24025-03-25L

662014054



44

Plug, Grease

1

Jan-05

601474695

10

Screw, Set

1

14430-19

658411400



45

Breather

1

Jan-67

601473689

11

Jam Nut

1

24026-25L

658414255



46

Plug, Fitting

1

19368

661010020

12

Seal, Impeller

1

7496-153

658408059



58

Plug, Pipe

2

2002/1/5

658409859

13

Mechanical Seal (Crane Type)

1

24036

658416102



59

Plug, Pipe

1

2006/1/5

658410006

14

Stuffing Box, Mech. Seal (14X12)

1

24027-01-30

653322305



60

Tag, Mechanical Seal

1

22566

603445727



Stuffing Box, Mech. Seal (12X10)



24027-02-30

662014002



Packed Split-Box and Wearplate



Stuffing Box, Mech. Seal (8X6)



25290-02-30

662014128



47

Wearplate, Split Box

1

24023-01-XX

654310507

15

Bolt, Stuffing Box

2

3861-117

648401016



48

Packing Set

1

8264-345-K

658409552

16

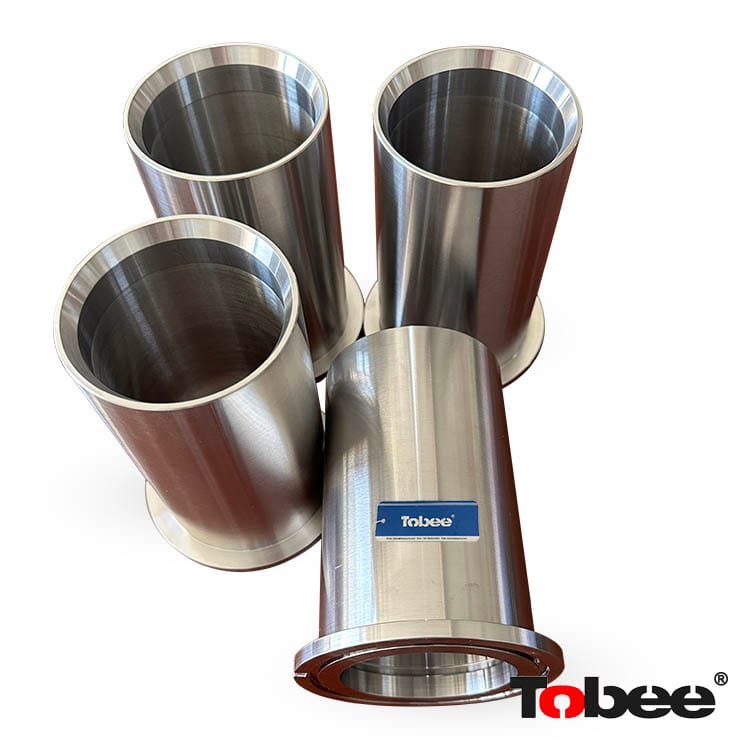

Sleeve, Shaft

1

24029-21BZ

656422201



49

Nut and Washer Assembly

2

22216-02

658413935

17

Seal, Sleeve

1

7496-234

658408505



50

Bolt, Split-Box

2

3861-168

1/2-13x4 lg Gr 5

18

Slinger

1

24030-01-13

654311604



51

Stuffing Box, Split

2

24037-01-87

654317007

19

Seal, Slinger

1

7496-238P

658408554



52

Latern Ring Half

2

24039-13

658418207

21

Oil Seal, Inboard Bearing

2

20619-03

658413604



53

Fitting, Grease

1

19368-01

601499403

21

Bearing, Inboard

1

20615-2

658413000



54

Screw, Cap

2

3909-13-87

658404405

22

Frame 14X12

1

24031-01-01

654312008



Auxiliary Tools



Frame 12X10



24031-02-01

662014001



55

Tool, Impeller Nose & Nut

1

24040

658420203



Frame 8X6



25293-02-01

662014130





Tool, Impeller Nose (HEX)



Standard Hex Socket



23

Housing, Bearing

1

24032-01-01

654313006



56

Tool, Impeller Removal

1

24041

658420252

24

Seal, Bearing Housing

1

7496-272

658408901



57

Tool, Shaft Holder

1

24042

658420302



Common Applications Include:
Sand slurry
Supply boat mud transfer
Slag
Fly ash
Bottom ash
Dredge tailings
Food processing
Blending
Paper pulp processing
Waste slurries
Sewage
Fluid supercharging
Spent liquor
Nickel shot
Copper, bauxite, and quarry slurries
Lead and zinc ore and tailings

Available Sizes:
8X6X18
12x10x23
14x12x22
