End Cover D024-10D81 for 4x3D Mining Mud Mixing Pump

(0 Reviews)

D024-10D81

Product Brands: Tobee

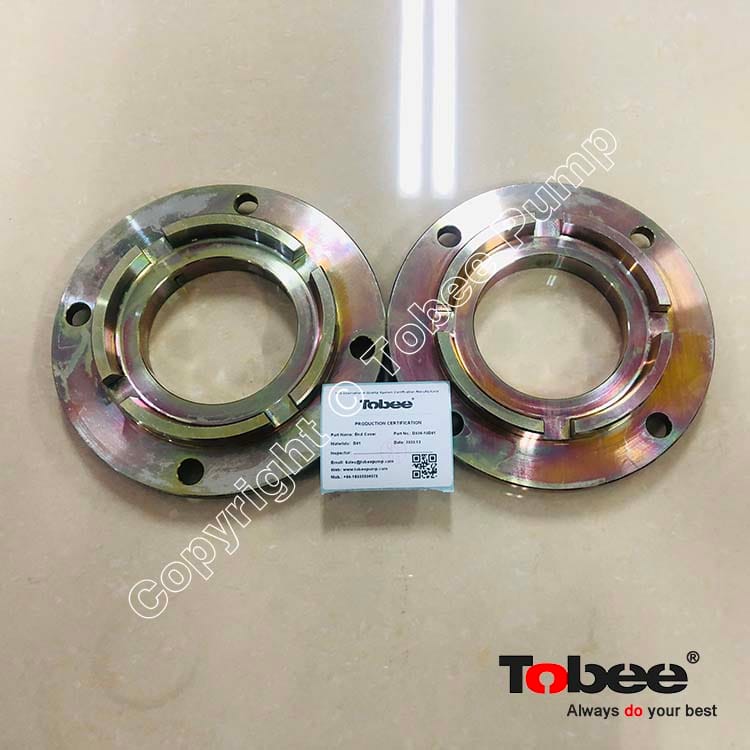

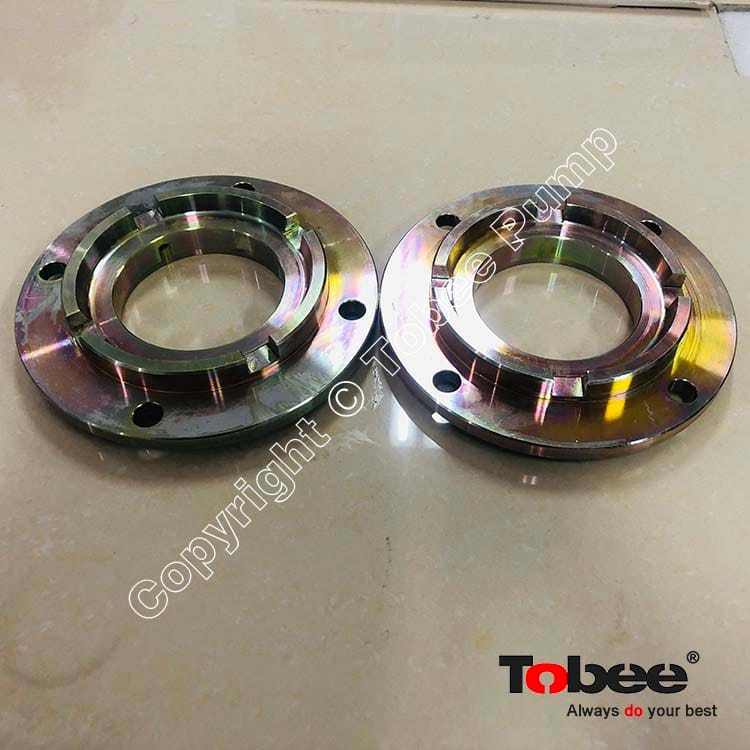

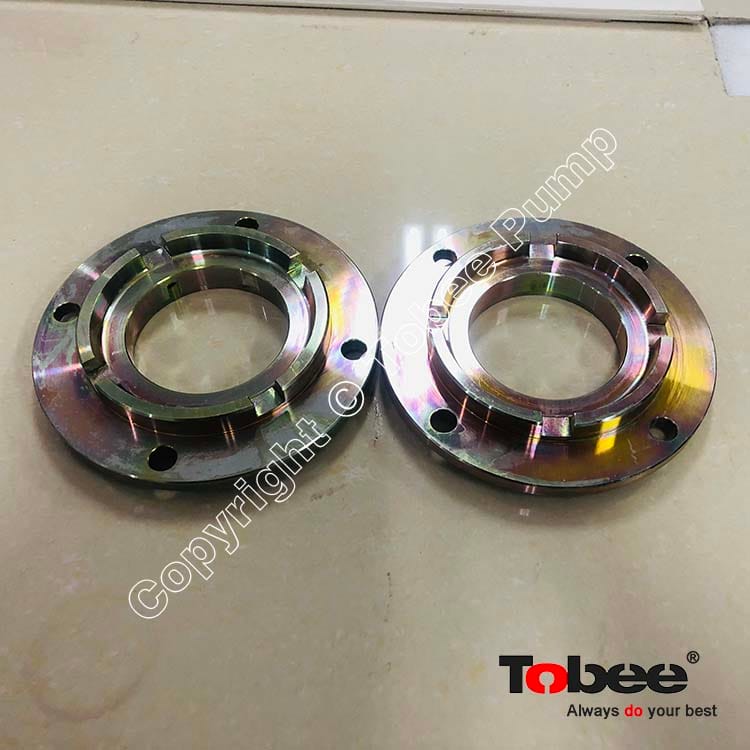

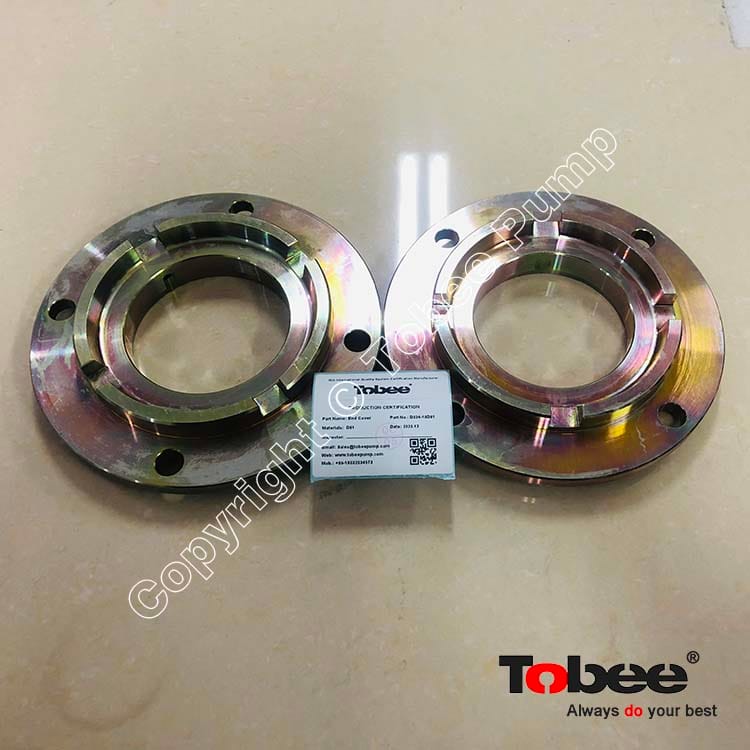

Tobee® Pump Parts End Cover D024E62 is one of the important parts in 4/3 DAH cement slurry pump bearing assembly D005M. D024 Slurry Pump End Cover can be used for 4/3D AH slurry pump, and also can installed for 6x4D-AH slurry pumps. Slurry pump end cover is one of drive pump end parts which is installed on both ends of slurry pump bearing housing to fix the bearings, so end cover of Slurry Pump.

price:

$190.00 $230.00

Part Number:

D024-10D81

Part Material:

D81

Quantity:

- + (100 available)
Add to Favorite Items (0)

Sales: 0+

Tobee® Slurry Pump Parts are interchangeable with AH/HH/L/M slurry pump parts and designed by spatial structure CFD and impeller casting CAE, Precision casting and professional heat treatment process make the parts upto more higher hardness, Precision machining and painting technology ensure the parts are more conformable with fluidics, With strict quality control, Tobee’s high chrome wear parts provide users with longer 30%-60% wear life and higher efficiency due to advanced manufacturing processes. Increasing users enjoy perfect fit and finish to reduce installation workload.

Tobee® Slurry Pumps Interchangeable parts:

√ Completely interchangeable with AH, AHR, HH, M, L horizontal slurry pumps, SP, SPR vertical slurry pumps, G,GH gravel sand pumps, AF froth slurry pumps etc

√ Metal materials code: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

√ Nature rubber materials code: R08, R24, R26, R33, R38, R55, R66

√ Synthetic rubber materials code: S01, S10, S12, S21, S31, S42, S44, S50

√ Polyurethane materials code: U01, U05

√ Shaft material: 45#, 40CrMo, SS304, SS316

√ Shaft sleeve material: SS410, SS420 SS304, SS316

√ Lantern ring material: 304, 316, PTFE

√ Bearing housing/ bearing end cover material: G01, D21

√ Expeller, Expeller ring: A05

√ Packing: Q05

Tobee® Slurry Pump Spares List:

Basic Part Number

Description

Basic Part Number

Description

001

Adjusting Screw

080

Stepped Washer

003

Base

081

Keeper Plate

004

Bearing Housing

083

Throatbush

005

Bearing Assembly

085

Throatbush Cotter

008

Bearing Sleeve

089

Bearing Seal

009

Bearing

090

Shaft Seal

011

Clamp Washer

092

Sump Pump Casing

012

Clamp Bolt

102

Sump Pump Column

013

Cover Plate

108

Piston Ring

015

Cover Plate Bolt

109

Shaft Sleeve O-Ring

017

Cover Plate Liner

110

Volute Liner

018

Cover Plate Liner – Throatbush

111

Packing Ring

019

Sump Pump Mounting Plate

112

Throatbush

021

Impeller – Two Vanes Open

114

Impeller – Six Vanes Open

023

Cover Plate Liner Stud

116

Sump Pump Strainer

024

End Cover

117

Shaft Spacer

025

End Cover Shim

118

Lantern Restrictor

026

Frame Plate Liner Stud

122

Seal Ring

027

End Cover Set Screw

124

Volute Cover Seal

028

Expeller

125

Volute Frame Seal

029

Expeller Ring

126

Gland Clamp Bolt

032

Frame Plate

127

Impeller – Five Vanes Open

034

Frame Plate Bolt

130

Flange

036

Frame Plate Liner

131

Gravel Pump Bowl

039

Frame Plate Liner Stud

132

Discharge Joint Ring

040

Frame Plate Liner Insert Bolt

134

Clamp Ring

041

Frame Plate Liner Insert

135

Clamp Ring

043

Frame Plate Liner

137

Impeller – Three Vanes Closed

044

Gland

138

Grease Cup Adaptor

045

Gland Bolt

143

Volute Seal Holder

046

Grease Retainer

144

Volute Seal Holder Stud

049

Impeller – Eight Vanes Closed

145

Impeller – Four Vanes Closed

051

Impeller – Two Vanes Open

147

Impeller – Five Vanes Closed

052

Impeller – Three Vanes Open

154

Sump Pump Discharge Pipe

053

Impeller – Eight Vanes Open

179

Shaft Sleeve Spacer

056

Impeller – Four Vanes Open

184

Sump Pump Flinger

058

Impeller – Six Vanes Closed

190

Suction Cover

060

Intake Joint Ring

191

Impeller – Eight Vanes Open

061

Labyrinth Locknut

204

Discharge Joint

062

Labyrinth

206

Sump Pump Impeller

063

Lantern Ring

217

Impeller O-Ring

064

Impeller Sealing O-Ring

221

Flange

066

Motor Support Bolt

239

Release Collar

067

Neck Ring

241

Lip Seal Gland

070

Shaft Key

290

Sump Pump Spacer

073

Shaft

292

Door Clamp Plate

075

Shaft Sleeve

322

Sump Pump Suction Pipe

076

Shaft Sleeve – Long Type

360

Mechanical Seal Adaptor

078

Stuffing Box

424

Mechanical Seal Shaft sleeve

079

Expeller Ring Stud
