Home > SLURRY PUMP PARTS > AH Slurry Pump Parts > 6/4 AH Slurry Pump > D024E62 End Cover for 4/3D AH Cement Slurry Pump

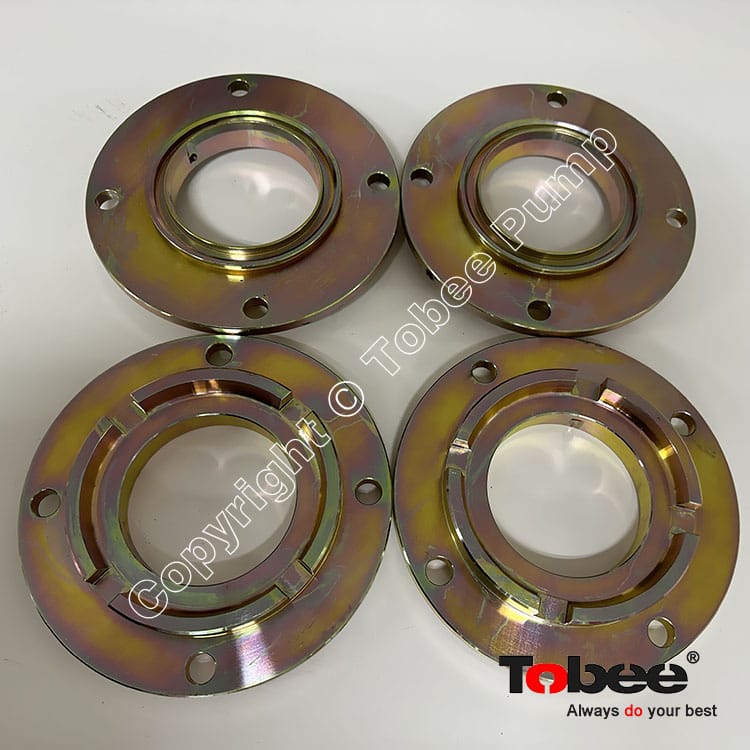

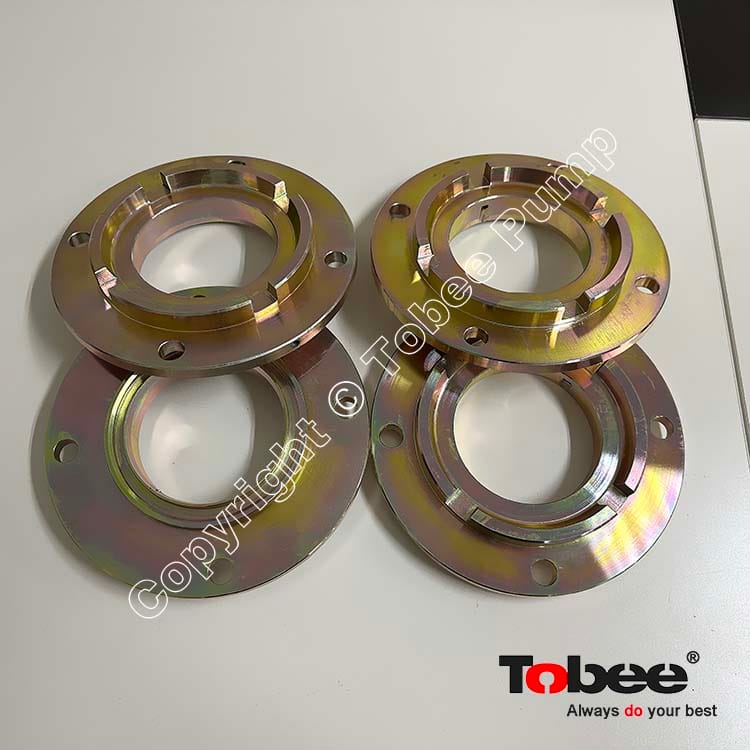

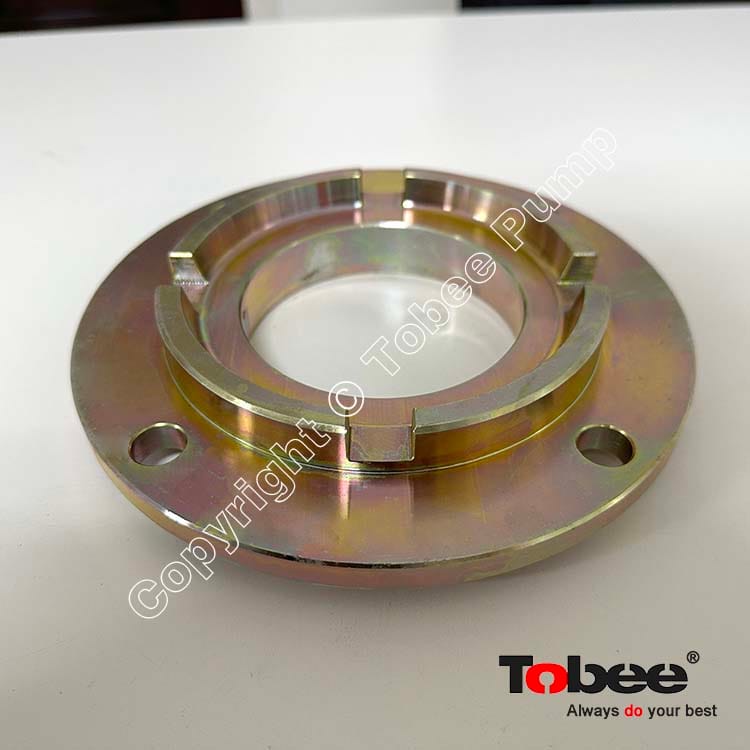

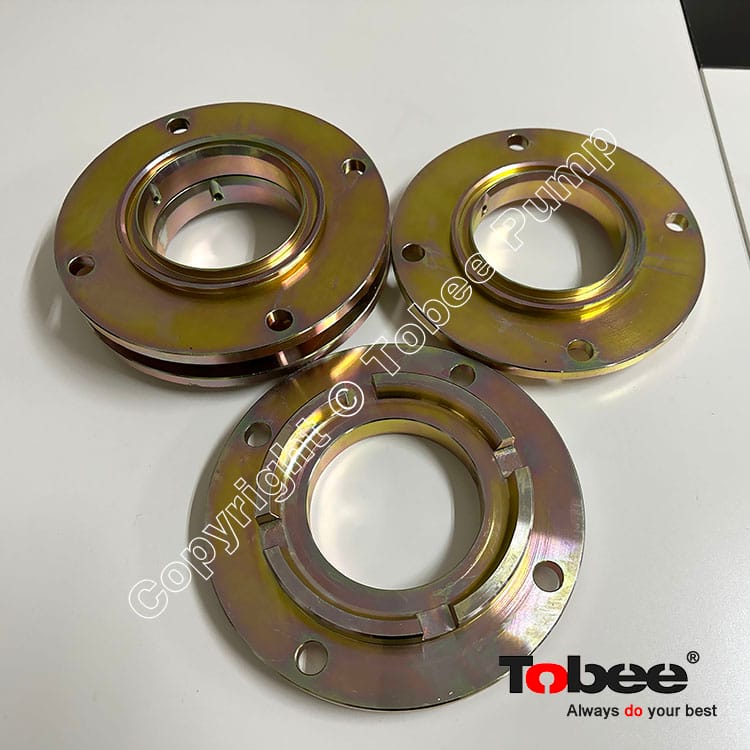

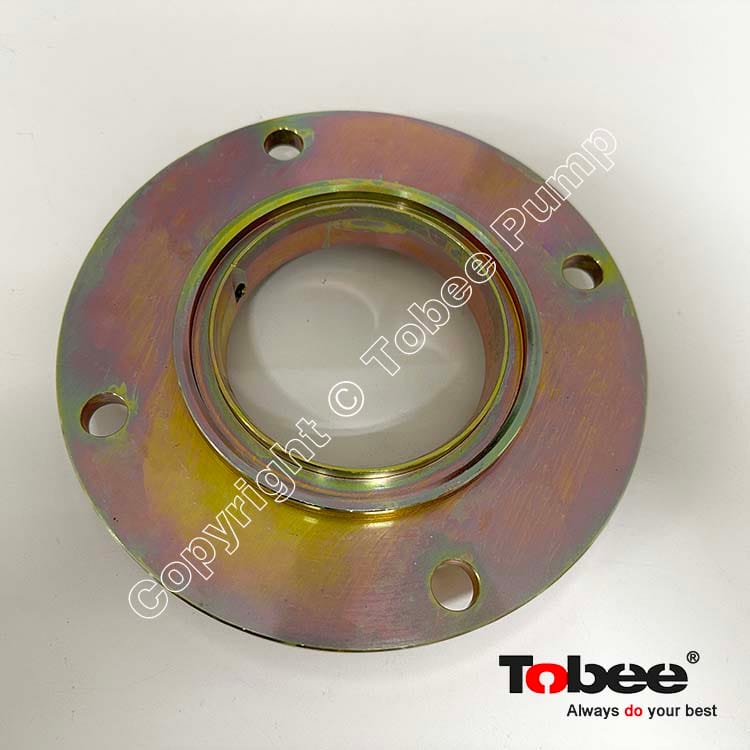

D024E62 End Cover for 4/3D AH Cement Slurry Pump

(0 Reviews)

TB-D024E62

Product Brands: Tobee

Tobee® Pump Parts End Cover D024E62 is one of the important parts in 4/3 DAH cement slurry pump bearing assembly D005M.

price:

$190.00 $230.00

Pump Models:

4/3D AH 6/4D AH

Quantity:

- + (460 available)
Add to Favorite Items (0)

Sales: 0+

Tobee® Pump Parts End Cover D024E62 is one of the important parts in 4/3 DAH cement slurry pump bearing assembly D005M.

D024E62 Slurry Pump End Cover can be used for 4/3D AH slurry pump, and also can installed for 6x4D-AH slurry pumps. Slurry pump end cover is one of drive pump end parts which is installed on both ends of slurry pump bearing housing to fix the bearings, so end cover of Slurry Pump is an important part for the slurry pump bearing assembly to directly affects the using status of the pump bearing assembly, thereby will directly affect slurry pump operation and work life.

Tobee® 4/3D AH Slurry Pump Parts List:

No.

Pump Part Name

Pump Model

Pump Part Code

Matl. Code

Unit Weight
(kg)

1

Adjust Screw

4/3 D-AH

D001

E62



2

Base

4/3 D-AH

D003M

G01

72.0

3

Bearing Assembly

4/3 D-AH

D005M

ZWZ Bearing

63.0

4

Bearing Housing

4/3 D-AH

D004M

G01

25.0

5

Cover Plate

4/3 D-AH

D3013

D21

46.0

6

Cover Plate Bolt

4/3 D-AH

D015

E65



7

Cover Plate Liner

4/3 D-AH

D3017

R55

8.0

8

Discharge Joint

4/3 D-AH

D3132L

S01

0.2

9

End Cover

4/3 D-AH

D024

D21, E62, E65

2.2

10

Expeller

4/3 D-AH

D028

A05

3.3

11

Expeller Ring

4/3/D-AH

D029

A05

6.3

12

Expeller Ring

4/3 D-AH

D029R

R55

1.7

13

Frame Plate

4/3 D-AH

D3032

D21

42.0

14

Frame Plate Bolt

4/3 D-AH

D026

E62



15

Frame Plate Liner

4/3 D-AH

D3036

R55

6.5

16

Frame Plate Liner Insert

4/3 D-AH

D3041

A05

14.0

17

Frame Plate Stud

4/3 D-AH

D039

E62



18

Gland

4/3 D-AH

D044

G01

1.2

19

Gland

4/3 D-AH

D044

C23

1.2

20

Gland Bolt

4/3 D-AH

D045

C23



21

Grease Retainer

4/3 D-AH

D046

G01

1.0

22

Impeller

4/3 D-AH

D3147

A05

24.0

23

Impeller

4/3 D-AH

D3147

R55

9.0

24

Intake Joint

4/3 D-AH

D3060

S01

0.2

25

Labyrinth

4/3 D-AH

D062

G01

1.0

26

Labyrinth Locknut

4/3 D-AH

D061

E62

0.4

27

Lantern Restrictor

4/3 D-AH

D118

C23

0.5

28

Lantern Ring

4/3 D-AH

D063

C23

0.3

29

Lip Seal

4/3 D-AH

D090

S01



30

Neck Ring

4/3 D-AH

D067

C23

0.1

31

O ring

4/3 D-AH

D109

S10



32

O ring

4/3 D-AH

E064

S10



33

Packing

4/3 D-AH

D111

Q05



34

Packing

4/3 D-AH

D111

Q05A



35

Packing

4/3 D-AH

D111

Q22



36

Packing

4/3 D-AH

D111

Q21

0.28

37

Piston Ring

4/3 D-AH

D108

G01



38

Seal

4/3 D-AH

D122

S01

0.2

39

Shaft

4/3 D-AH

D073M

E05

21.7

40

Shaft Sleeve

4/3 D-AH

D075

C21

1.0

41

Shaft Sleeve

4/3 D-AH

D075

C23

1.0

42

Shaft Sleeve

4/3 D-AH

D075

J05



43

Shaft Sleeve

4/3 D-AH

D076

C21

1.0

44

Shaft Sleeve

4/3 D-AH

D076

C23

1.0

45

Shaft Sleeve

4/3 D-AH

D076

J05



46

Shaft Spacer

4/3 D-AH

D117

C21

0.7

47

Shaft Spacer

4/3 D-AH

D117

C23

0.7

48

Shaft Spacer

4/3 D-AH

D117

J05



49

Shim Set

4/3 D-AH

D025

P10



50

Stuffing Box

4/3 D-AH

D078

A05

7.0

51

Volute Frame Seal

4/3 D-AH

D3125

S01

0.2

52

Volute Liner

4/3 D-AH

D3110

A05

63.0
