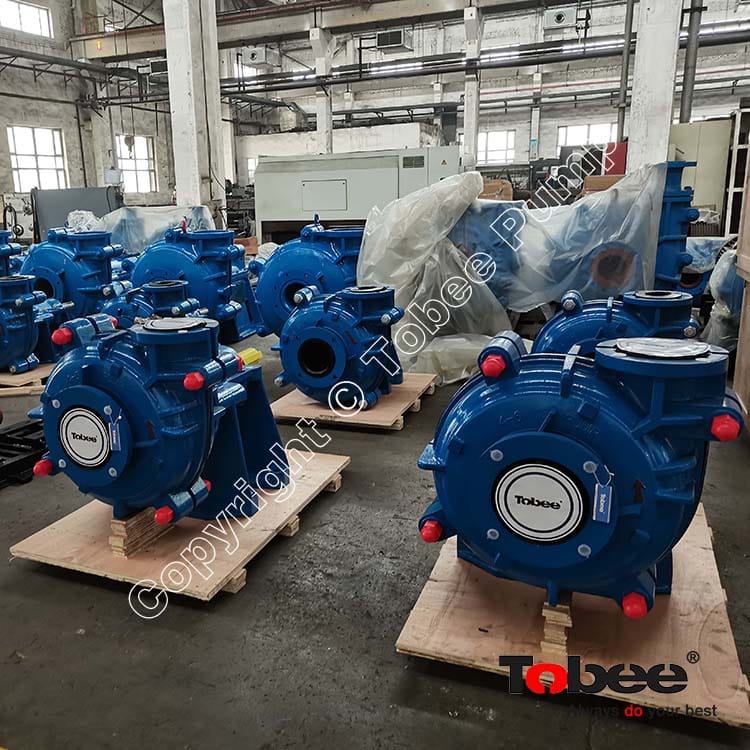

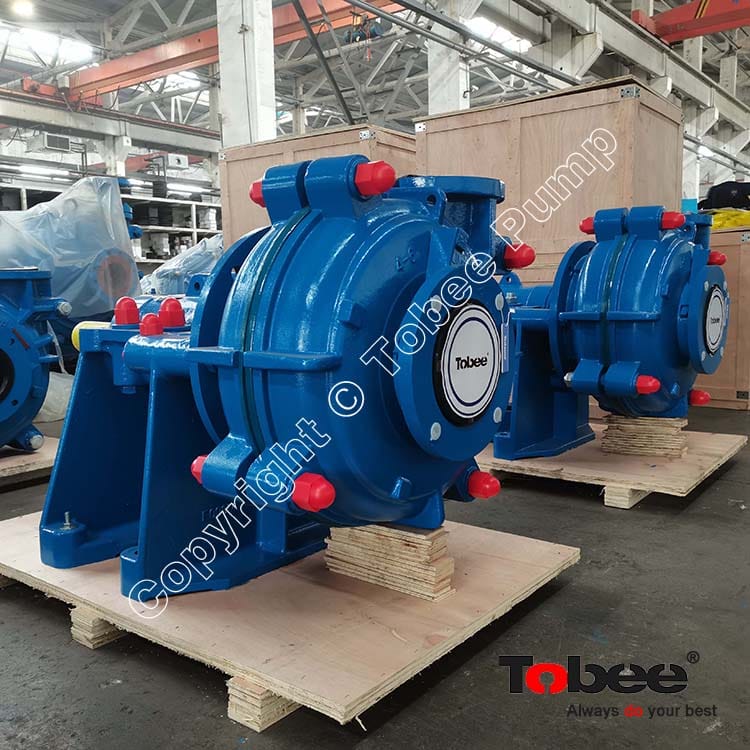

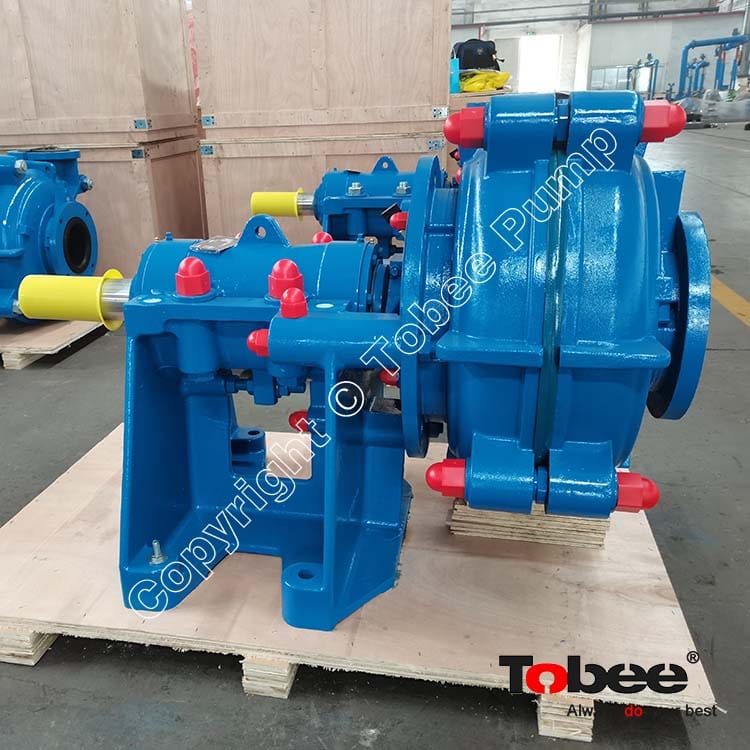

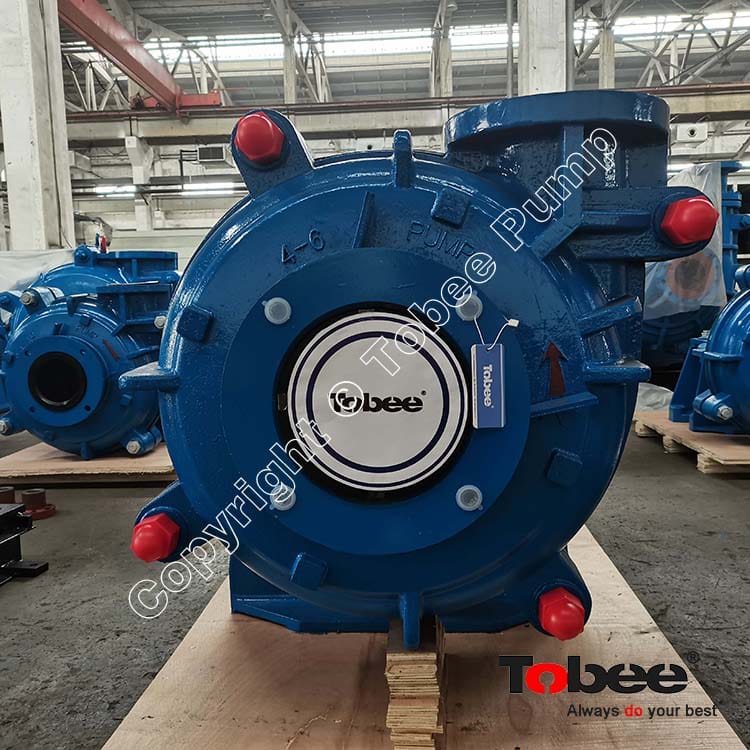

Tobee® 6/4E-AHR Rubber Slurry Pumps for Copper Mines, and our slurry pumps are lined with replaceable, abrasion-resistant liners, which are designed specifically for the slurry being pumped, with natural rubber, urethane, high-chrome alloy and many other material options, no slurry is too great a challenge.
Tobee® 6x4 E-AH Rubber Lined Slurry Pump Specification:
Pump type: Single-Stage Pump
Capacity: 144-324 m3/h
Head: 12-45 m
Speed: 800-1350 r/min
Impeller Dia.: 365 mm
Matching power: Max.120 kW
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Working pressure: Low Pressure Pump
Pump Type: Horizontal Slurry Pump
Material: R08, R26, R55, S02, S12, S21, S31, S42 etc
Warranty: 3 Year (except Wet End Parts)
Tobee® 6x4 E-AHR Rubber Lined Slurry Pump Design Features:
√ Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely.
√ Interchangeable anti-abrasive wet parts made of high-chrome alloys.
√ The discharge branch can be oriented to any eight positions at the interval of 45 degrees.
√ Various drive types: DC (direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control etc.
√ The shaft seal uses the packing seal, expeller seal and mechanical seal.
Tobee® 6x4 E-AHR Rubber Lined Slurry Pump Applications:
Slurry pumps are widely popular pumps that are used for handling robust and difficult tasks as they have sturdy construction. Slurry Pumps can be used in the following industries: Pumps for grinding circuits, Tailings transfer, Cyclone feed, Pressure filter feed, Wash water (sand and gravel), Tunnel dewatering, FGD reactor feed (lime), Fly ash pumping, Waste and Recycling, Pulp & Paper, etc.
