6x4D-AH Centrifugal Slurry Pump Frame Plate DAM4032

(0 Reviews)

TB-DAM4032

Product Brands: Tobee

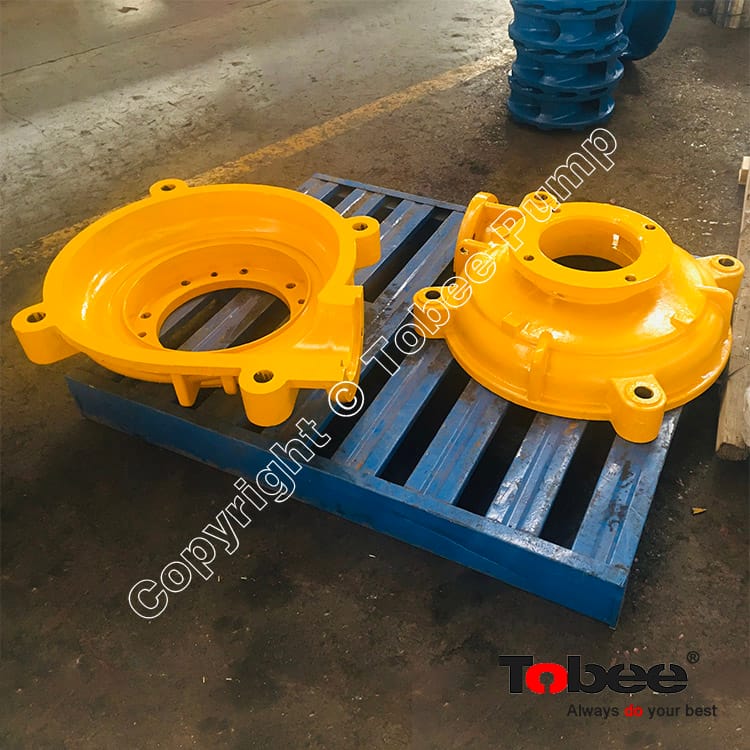

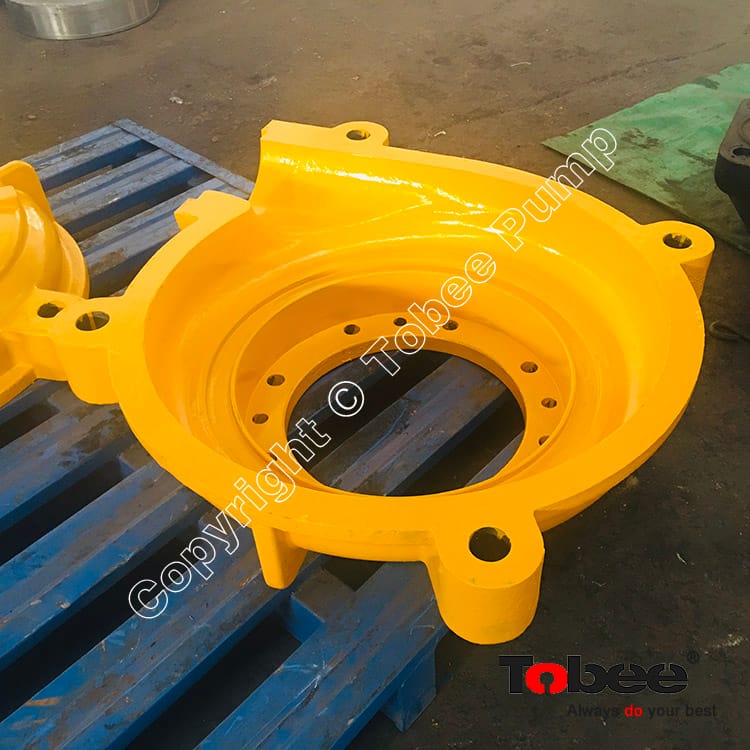

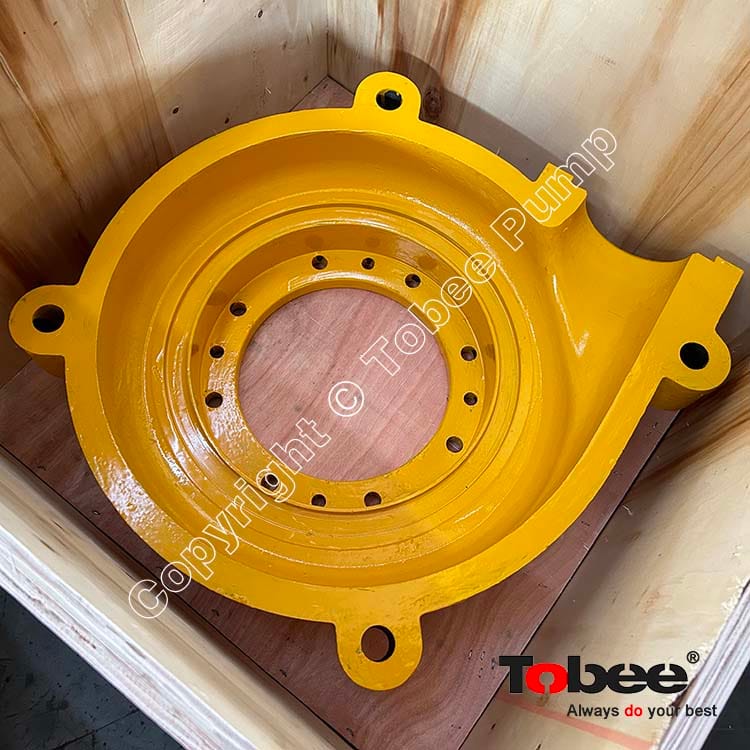

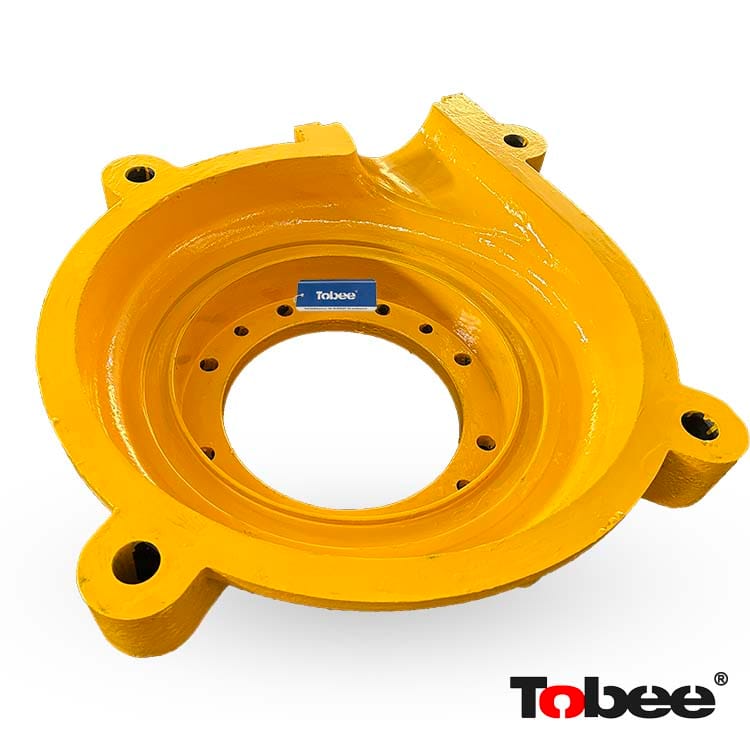

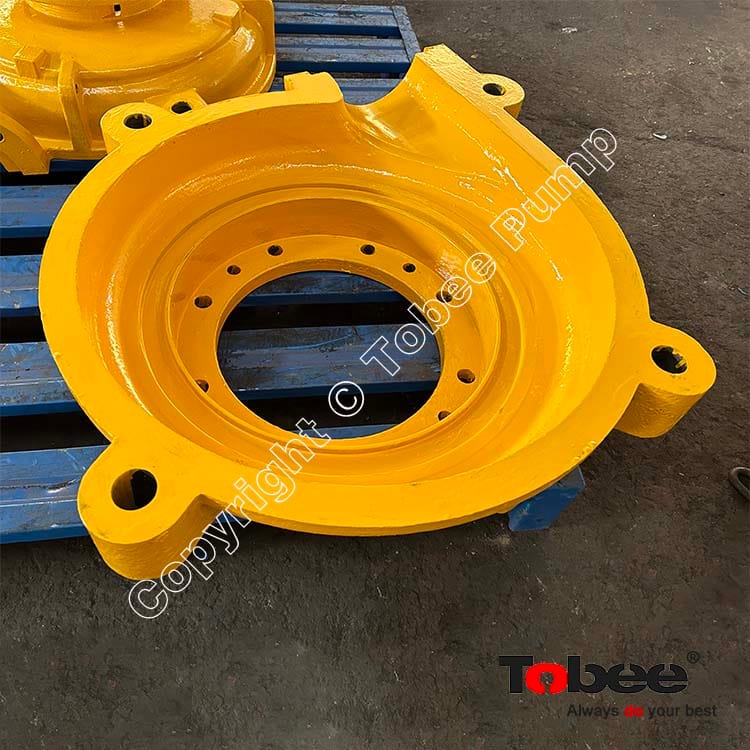

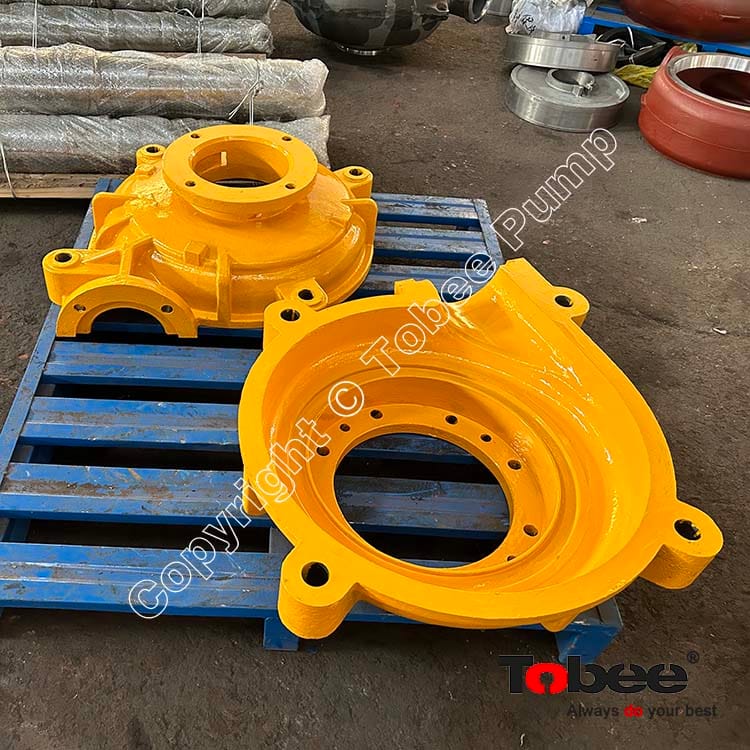

Tobee® 6x4 inch DAH Metal Lined Slurry Pump and Spare Parts Frame Plate DAM4032 is one of the best important parts, it's combine with the pump cover plate E4013.

price:

$998.00 $1,299.00

Part Code:

DAM4032

Material:

D21 A05

Pump Models:

6x4D-AH 6x4E-AH

Quantity:

- + (310 available)
Add to Favorite Items (0)

Sales: 0+

Tobee® 6x4 inch DAH Metal Lined Slurry Pump and Spare Parts Frame Plate DAM4032 is one of the best important parts, it's combine with the pump cover plate E4013.

Tobee® Slurry Pump Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety. Generally, the material of slurry pump cover plate less than 6/4 size is made from Gary Iron, greater than 6/4 size is made from Ductile Iron for supporting higher pressure. For all the series-connected slurry pumps, Ductile iron cover plate is requested.

Cover Plate is in suction end of split casing slurry pump. It's the outer shell of the radial subdivision, and combined with Frame plate together make up the complete pump body. Cover Plate is under pressure of pump cavity, and at the same time bear the force of pipeline. So Cover plate need to have more higher request for strength.

Frame Plate is in drive end of split casing slurry pump. It connects with Frame plate liner insert and beside the Bearing assembly. Same as the cover plate, Frame plate also bear the pressure of pump cavity. The working pressure of slurry pump is decided by the loading capability of frame plate, So the right materials of slurry pump frame plate is very important.

Tobee® 6/4D-AH Slurry Pump Parts List:

No.

Parts Name

Pump Model

Parts Code

Metal Code

Unit Weight
(kg)

1

Adjust Screw

6/4 D-AH

D001

E62

/

2

Base

6/4D-AH

D003M

G01

72.0

3

Bearing Assembly

6/4D-AH

DAM005M

ZWZ Bearing

64.5

4

Bearing Housing

6/4D-AH

D004M

G01

25.0

5

Cover Plate

6/4D-AH

E4013

D21

90.0

6

Cover Plate Bolt

6/4D-AH

E4015

E65



7

Cover Plate Liner

6/4D-AH

E4018

R55

11

8

Cover Plate Liner

6/4D-AH

E4018TL1

R55

/

9

Discharge Joint

6/4D-AH

E4132L

S01

0.4

10

End Cover

6/4D-AH

D024

G01

2.2

11

Expeller

6/4D-AH

DAM028

A05

8.2

12

Expeller Ring

6/4D-AH

DAM029

A05

17.6

13

Expeller Ring

6/4D-AH

DAM029R

R55

4.2

14

Frame Plate

6/4D-AH

DAM4032

D21

86.5

15

Frame Plate Liner

6/4D-AH

E4036

R55

17.0

16

Frame Plate Bolt

6/4D-AH

DAM026

E62

/

17

Frame Plate Liner

6/4D-AH

E4036TL1

R55

/

18

Frame Plate Liner Insert

6/4D-AH

E4041

A05

31.6

19

Frame Plate Stud

6/4D-AH

D039

E62

/

20

Gland

6/4D-AH

D044

G01

1.2

21

Gland

6/4D-AH

D044

C23

1.2

22

Gland Bolt

6/4D-AH

D045

C23

/

23

Grease Retainer

6/4D-AH

D046

G01

1.0

24

Impeller

6/4D-AH

E4147

A05

69

25

Impeller

6/4D-AH

E4147

R55

8.5

26

Intake Joint

6/4D-AH

E4060

S01

0.5

27

Labyrinth

6/4D-AH

D062

G01

1.0

28

Labyrinth Locknut

6/4D-AH

D061

E62

0.4

29

Lantern Restrictor

6/4D-AH

D118

C23

0.5

30

Lantern Ring

6/4D-AH

D063

C23

0.3

31

Lip Seal

6/4D-AH

D090

S01

/

32

Neck Ring

6/4D-AH

D067

C23

0.1

33

O ring

6/4D-AH

D109

S10

/

34

O ring

6/4D-AH

F064

S10

/

35

Packing

6/4D-AH

D111

Q05

/

36

Packing

6/4D-AH

D111

Q05A

/

37

Packing

6/4D-AH

D111

Q21

/

38

Packing

6/4D-AH

D111

Q22

/

39

Piston Ring

6/4D-AH

D108

G01

/

40

Seal

6/4D-AH

E122

S01

0.4

41

Shaft

6/4D-AH

DAM073M

E05

22.9

42

Shaft Sleeve

6/4D-AH

D075

C21

1.0

43

Shaft Sleeve

6/4D-AH

D075

C23

1.0

44

Shaft Sleeve

6/4D-AH

D075

J05

/

45

Shaft Sleeve

6/4D-AH

D076

C21

1.0

46

Shaft Sleeve

6/4D-AH

D076

C23

1.0

47

Shaft Sleeve

6/4D-AH

D076

J05

/

48

Shaft Spacer

6/4D-AH

DAM117

C21

0.9

49

Shaft Spacer

6/4D-AH

DAM117

C23

/

50

Shaft Spacer

6/4D-AH

DAM117

J05

/

51

Shim Set

6/4D-AH

D025

P10

/

52

Stuffing Box

6/4D-AH

DAM078

A05

15.5

53

Throat Bush

6/4D-AH

E4083

A05

48.4

54

Throat Bush

6/4D-AH

E4083

R55

6

55

Volute Frame Seal

6/4D-AH

E4124

S01

0.6
