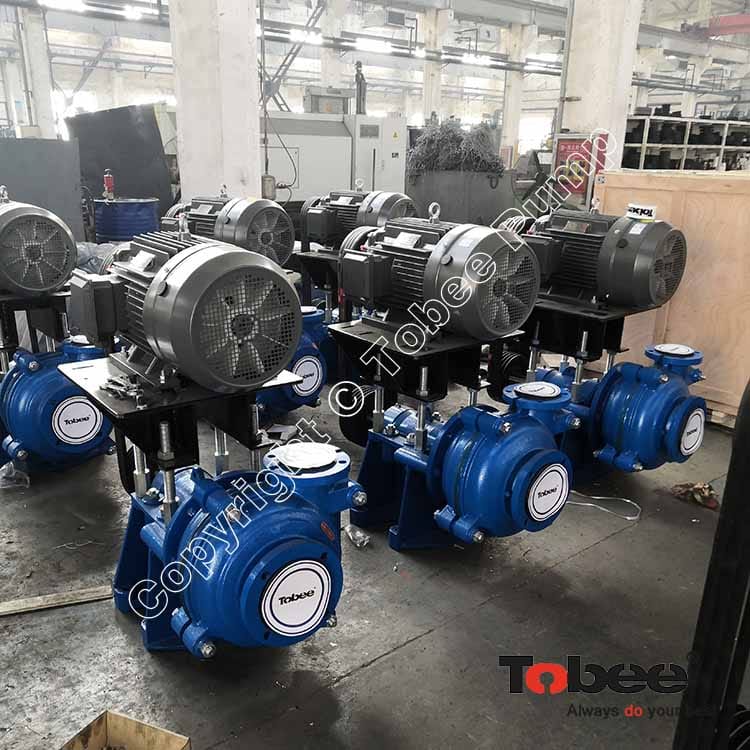

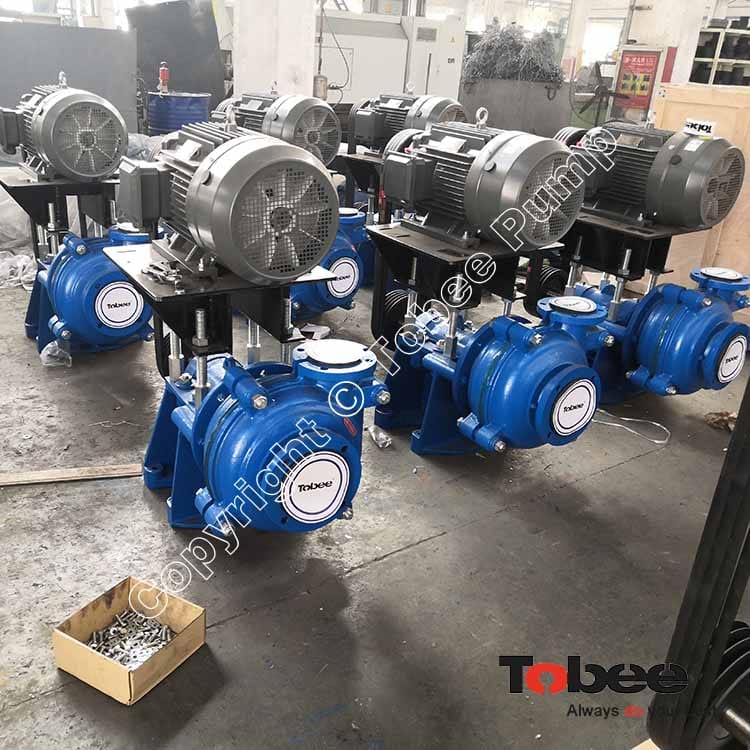

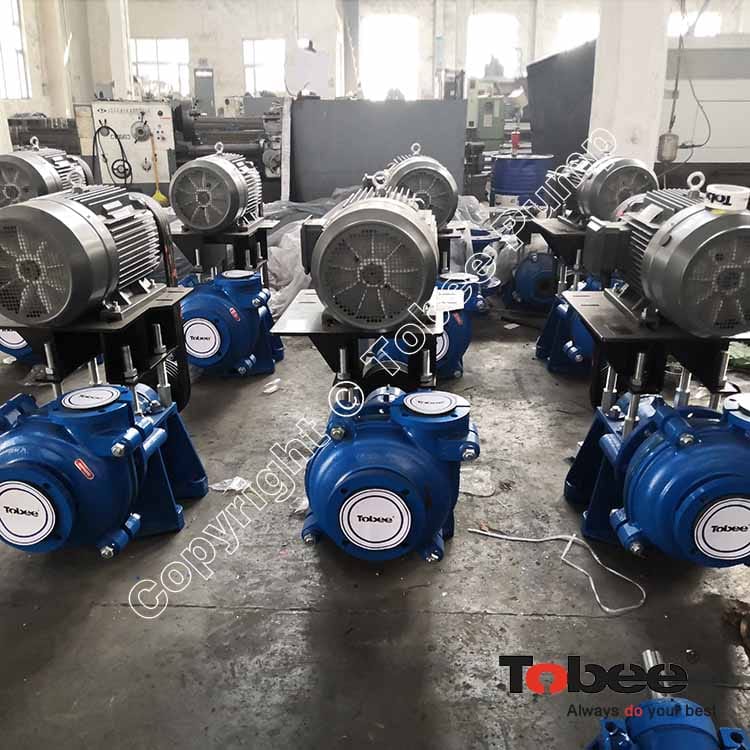

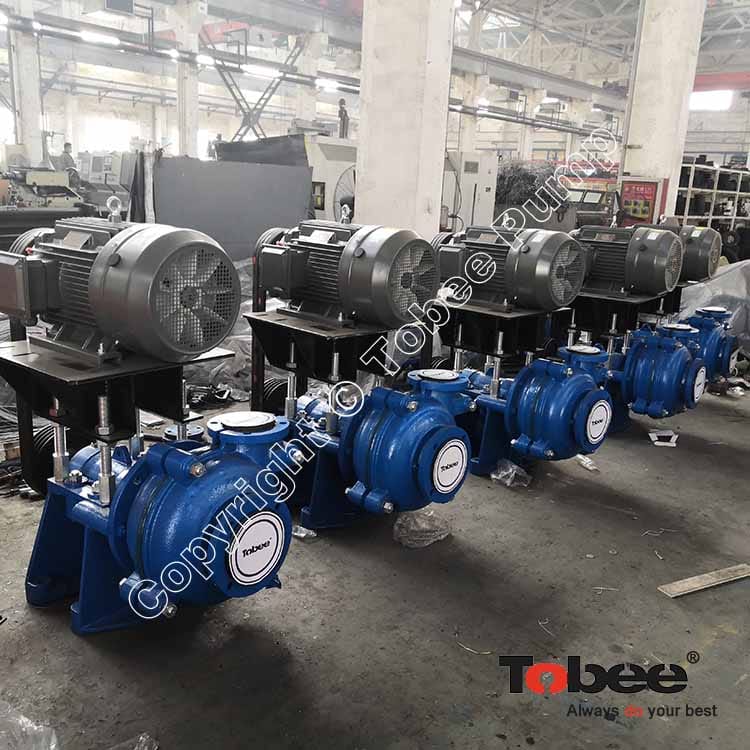

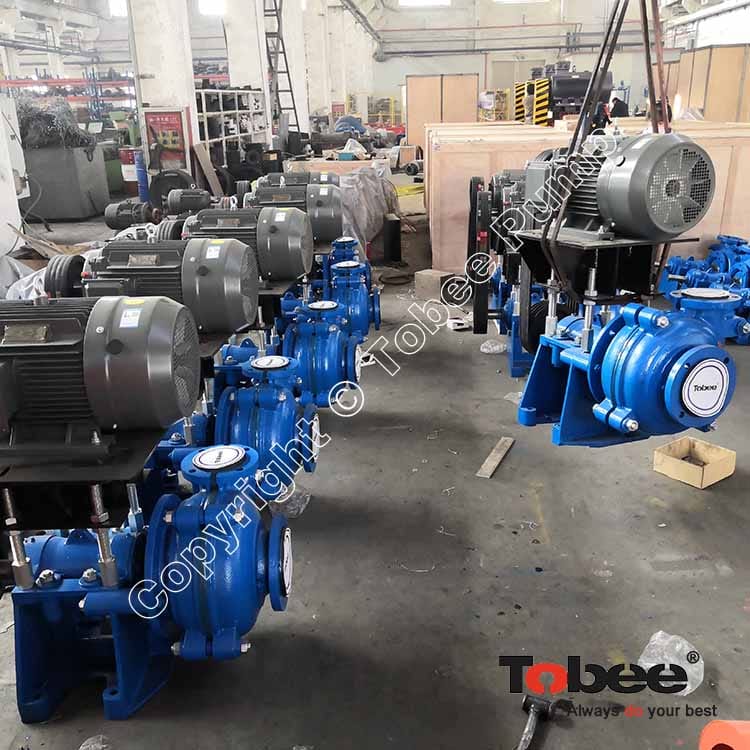

4x3D AH Horizontal Sand Slurry Pump with Rubber Liners

Product Brands: Tobee

Tobee® THR Rubber Slurry Pumps are similar to TH metal lined slurry pump in structure. The main difference between TH and THR is the material of wetted parts, which are natural rubber, chloroprene rubber or other wear-resistant rubbers. THR Rubber lined slurry pumps are more suitable in delivering strong corrosive or abrasive slurries of small particle size without sharp edges.

Add to Favorite Items (0)

Sales: 0+

Tobee^® THR Rubber Lined Slurry pumps are interchangeable with world's standard AHR rubber lined slurry pumps for heavy duties,The THR rubber slurry pump is cantilevered, horizontal, centrifugal, natural rubber lined slurry pump for handling strong corrosive or abrasive slurries of small particle size without sharp edges in the mining, mineral dressing, metallurgy, coal, power, building material and other industrial departments etc.

4x3D AH Horizontal Sand Slurry Pump with Rubber Liners

Design Features:

√ Double casings design centrifugal rubber lined slurry pump, wide passage for solids

√ Bearing assembly & frame: Both standard & high capacity types available.

√ A large diameter shaft with a short overhang minimizes deflection and vibration.

√ Heavy duty roller bearing is housed in a removable bearing cartridge.

√ Rubber slurry pump body is fastened with the frame by minimum bolts.

√ Slurry pump impeller adjustment is provided in a convenient position below the bearing assembly.

√ Slurry pump Impeller & liner material: natural rubber etc

√ High efficiency impeller available: up to 86.5% for certain type.

√ Interchangeable wet parts material: High chrome alloy metal: PH: 5-12; natural rubber: PH: 4-12.

√ Shaft seal: Packing seal, centrifugal seal, mechanical seal.

√ Discharge branch: 8 positions in each 45°.

√ Driving type: V-belt, flexible coupling, gearbox, hydraulic coupler etc.

Tobee^® 4/3 D AHR Rubber Lined Slurry Pump Performance Parameters:

Model

Max. Power

(kw)

Materials

Clear water performance

Impeller

Vane No.

Liner

Impeller

Capacity Q

(m3/h)

Head H

(m)

Speed n

(rpm)

Eff. η

(%)

NPSH

(m)

4/3D-AHR

Rubber

79.2-180

5-34.5

800-1800

3-5

Tobee^® Rubber Lined Slurry Pumps Applications:

Rubber lined slurry pumps are widely used for Mill discharge, Ni acid slurry, Coarse sand, Coarse tailings, Phosphate matrix, Minerals concentrate, Heavy media, Sugar beet, Dredging, Bottom/Fly ash, Lime grinding, Oil sands, Mineral sands, Fine tailings, Slag granulation, Phosphoric acid, Coal, Flotation, Process chemical, Phosphoric acid etc.
