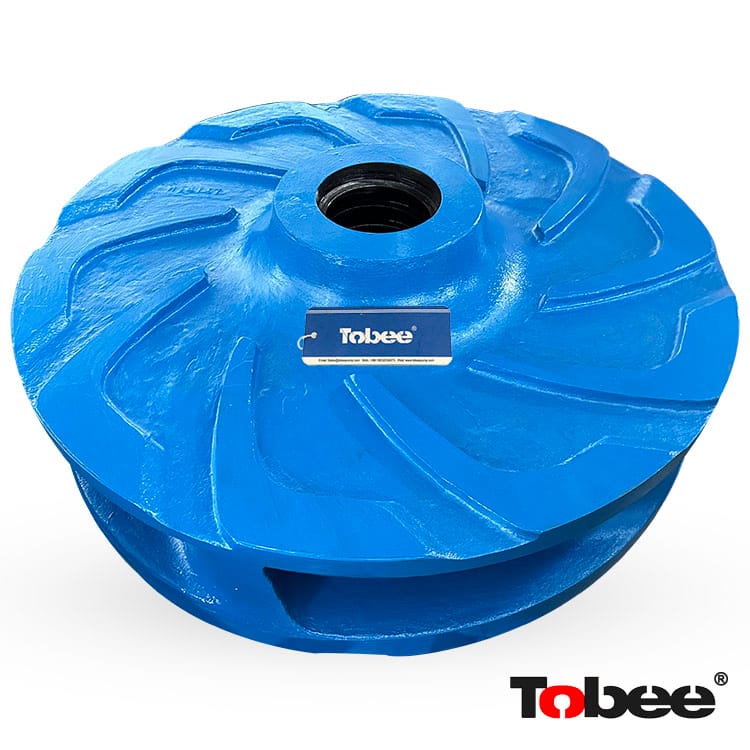

H14147A05A Impeller for 16x14TU-AH Marine Sand Dredging Pump

Product Brands: Tobee

China Horizontal Slurry Pump Spare Parts namely the pump parts have direct connection with slurry, are very crucial to the service life of slurry pumps. The wet parts, include impeller, liner, throatbush, frame plate liner insert, casing, etc., are very easily worn-out components because they work under longtime impact of abrassive and corrosive slurries in the high speed.

price:

$3,900.00 $4,980.00

Part Materials:

A05 A04 A03 A61 A49

Pump Model:

16x14TU-AH

HS Code:

8413910000

Quantity:

- + (500 available)

Add to Favorite Items (0)

Sales: 0+

Slurry Pump impeller is one of the most important parts of centrifugal slurry pump. Depending on site application, slurry pump impeller selection can be crucial to pump performance. Slurry applications can be especially hard on the impeller of slurry pump because of their abrasive nature. In order for your process to operate efficiently and stand up to the test of time, you must choose the proper slurry pump impeller.

Tobee® offers three different types of slurry pump impellers: open, closed, and semi-closed. Each has its own strengths and weaknesses, depending on the application. Some are better for solids handling, others are better for high efficiency. To learn more about the specifics of each type of slurry pump impeller.

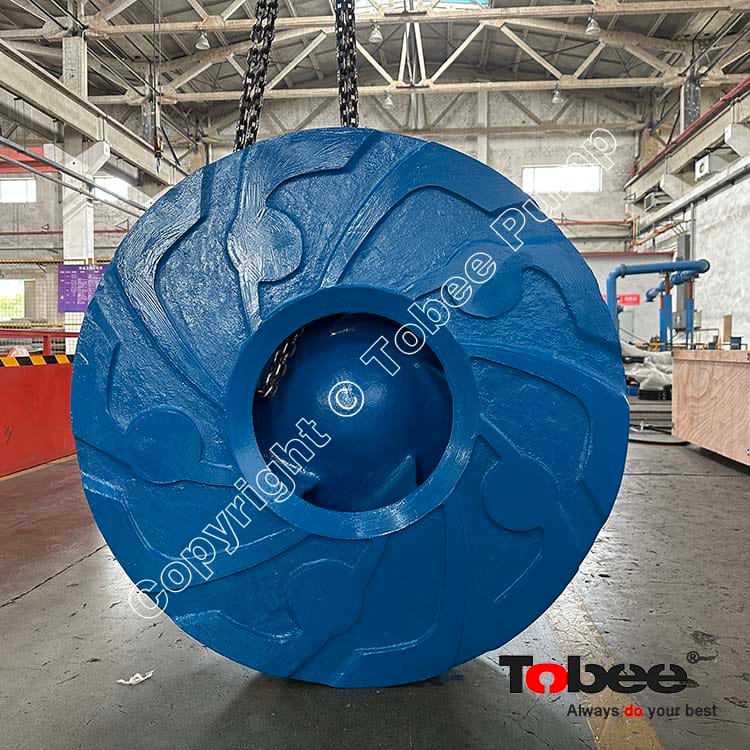

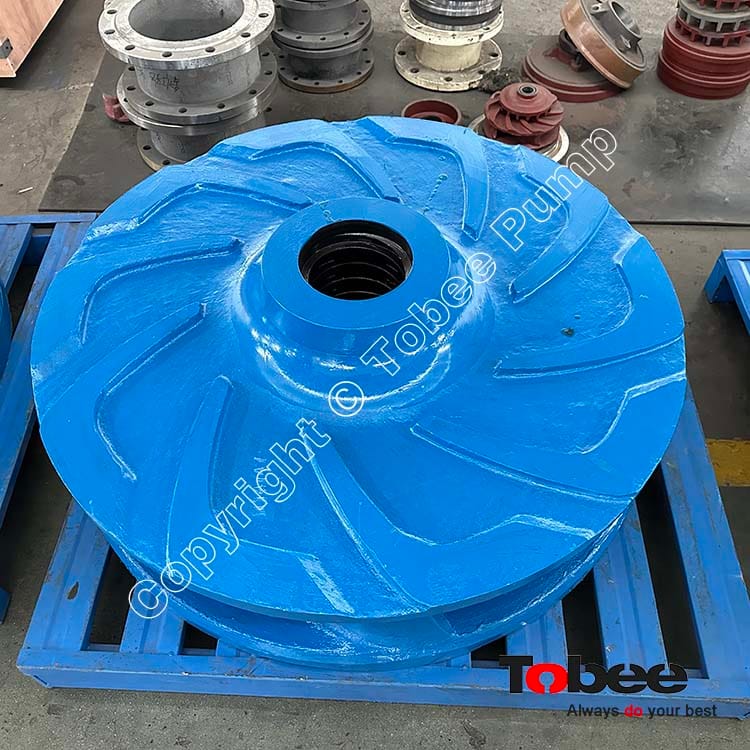

H14147A05A Impeller for 16x14TU-AH Marine Sand Dredging Pump

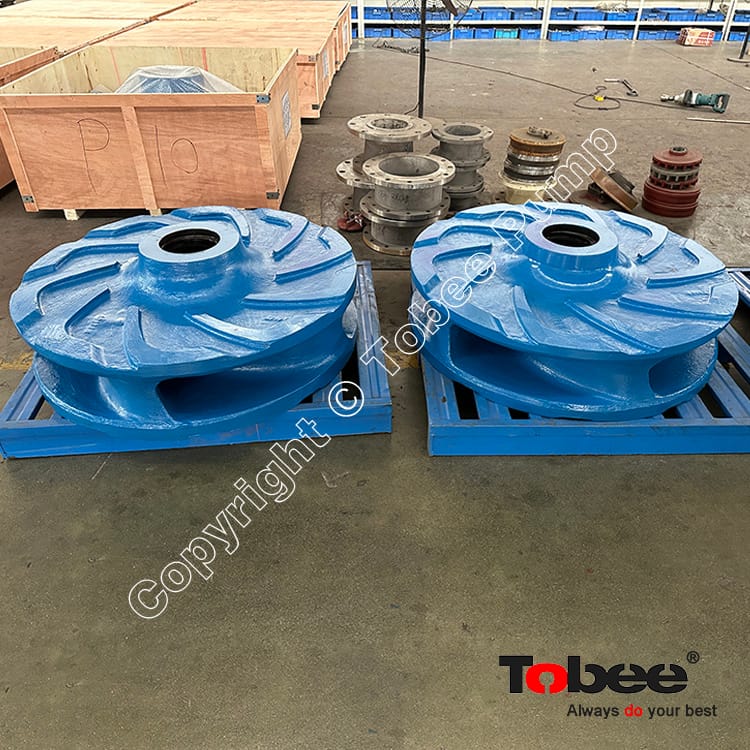

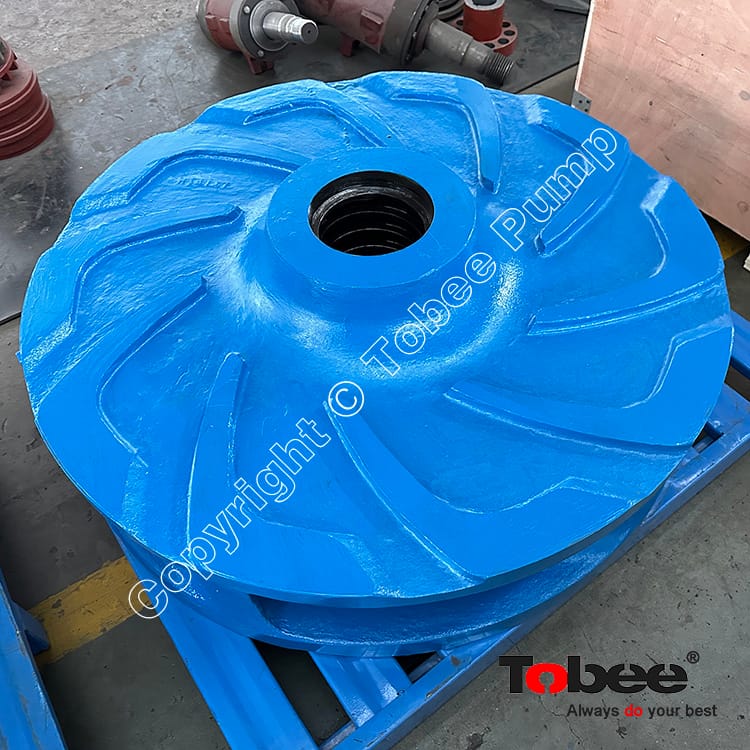

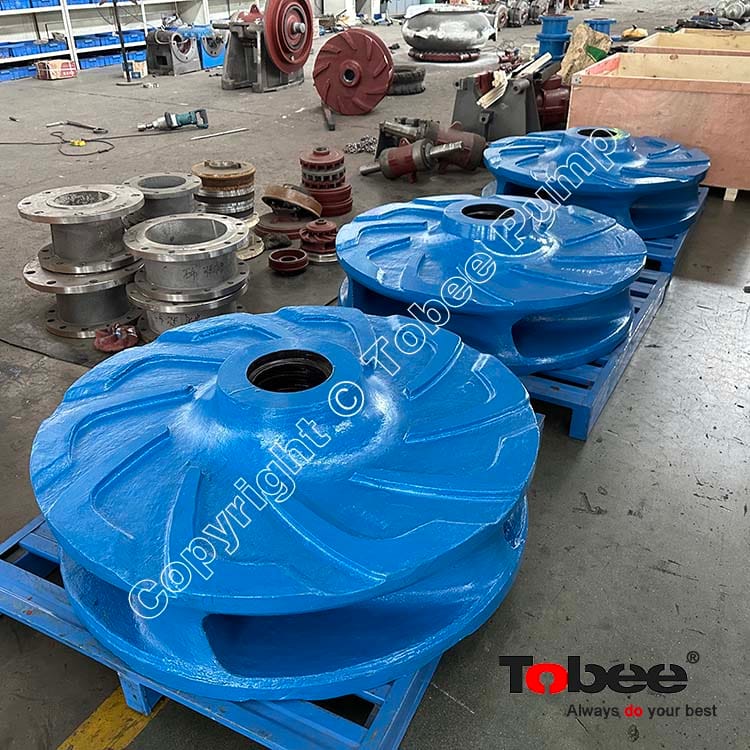

China Slurry Pump Spare Parts:

Bearing assembly--A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.

Liners--Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.

Casing--Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

Impeller--front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

Throatbush--Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

Slurry Pump Impeller Code:

Slurry Pump Impeller Code	AH Slurry Pump	Slurry Pump Materials Code
B1127	1.5/1B-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
B15127	2/1.5B-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2147	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2127	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2051	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3147	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3145HE1	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3021	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4147	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4056	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4058	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6147	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6056	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6021	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6058HE1	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM8147	10/8F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G8147	10/8ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM10147	12/10F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G10147	12/10ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM12147	14/12F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G12147	14/12ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GAM14147	16/14TU-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	L Slurry Pump	Slurry Pump Materials Code
175056	20A-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
32056	50B-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
43056	75C-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
64056	100D-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
86056	150E-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
108056	200E-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SL30147	300S-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SL35147	350S-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
STL40147	400ST-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
STL45147	450ST-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
TUL55147	550TU-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	M Slurry Pump	Slurry Pump Materials Code
F8147	10/8E-M, 10/8F-M, 10/8R-M	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F10147	12/10F-M, 12/10R-M	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	HH Slurry Pump	Materials
CH1127	1.5/1C-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
DH2147	3/2D-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
EH3147	4/3E-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FH4147	6/4F-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FH6147	6S-H, 8/6S-H	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	G(H) Gravel Pump	Slurry Pump Materials Code
DG4137	6/4D-G, 6/4E-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
EG6137	8/6E-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FG8137	10/8F-G, 10/8S-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FG10137	12/10G-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GG12137	14/12G-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FGH8137	10/8F-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GGH10137	12/10G-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
TG14148	16/14TU-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	SP Vertical Slurry Pump	Slurry Pump Materials Code
SP4206	40PV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP65206	65QV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP10206	100RV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP15206	150SV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP20206	200SV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP25206	250TV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP30206	300TV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

China Slurry Pumps On-Site Application:

1)Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying.

2)Metallurgy:Transport various slurry for aluminium or steel manufacture.

3)Coal: Coal mining, washing and various coarse and fine coal slurry transportation.

4)Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation.

5)Construction materials:Various mud sand slurry(such as Cement slurry) transportation.

6)Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation.

7)Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation.

Label: slurry pump spares Slurry Pump Wear Parts Slurry Pump wearing parts slurry pump spare and wear parts Slurry Pump Wetted Parts Pump parts for slurry pump river sand pump parts Heavy duty sand pump parts Squeeze Mortar Pump parts AMST Dredge pump parts mining high density slurry pump
