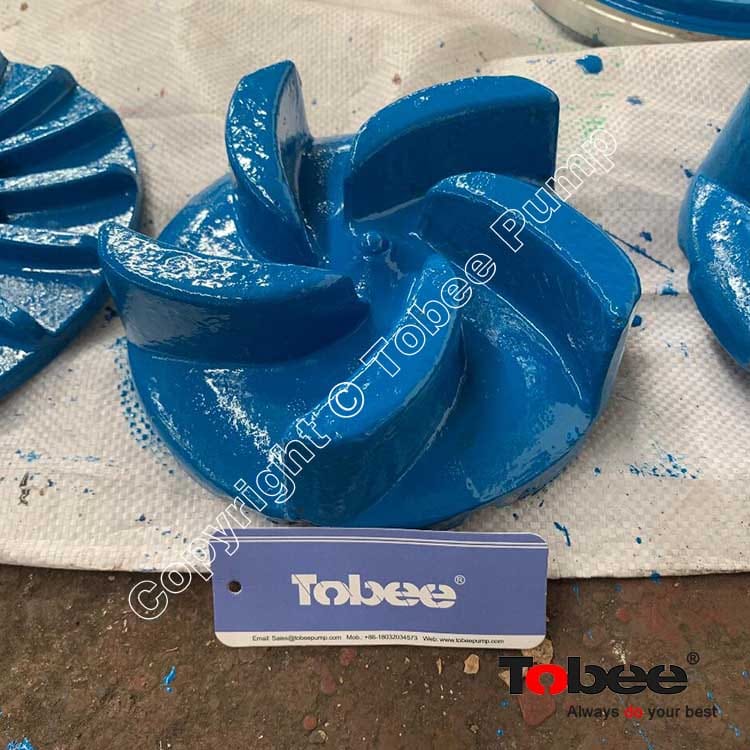

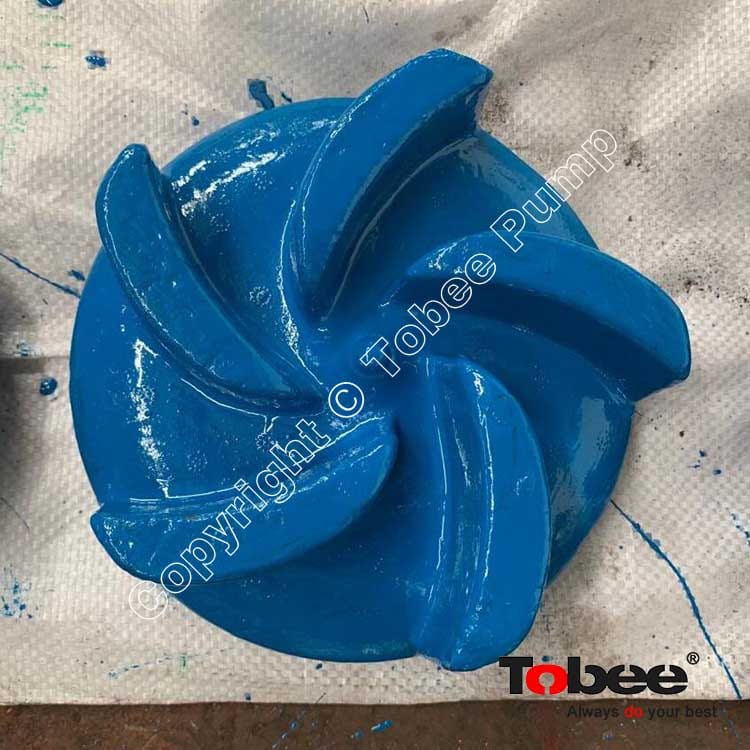

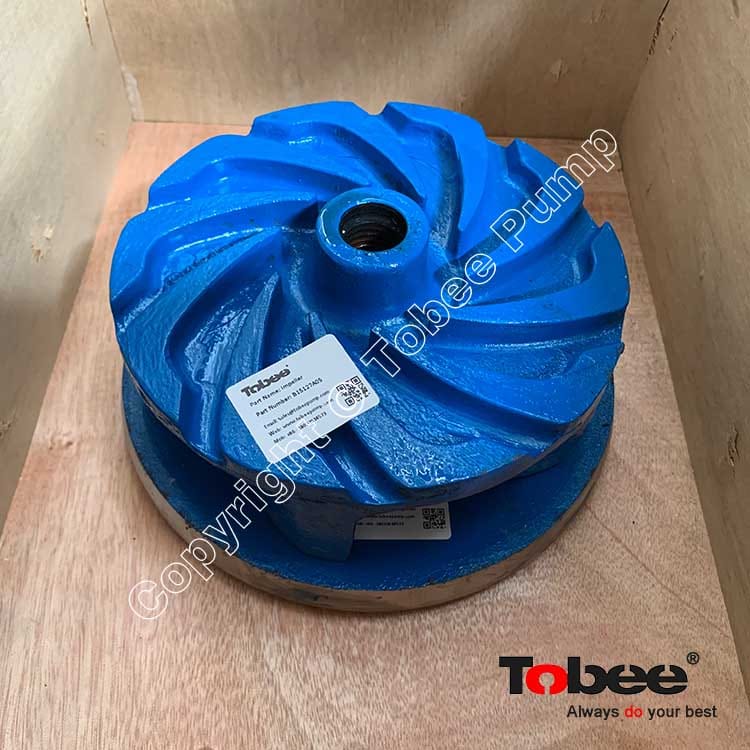

B15127A05 Impeller for 2/1.5 B AH Horizontal Pump

Product Brands: Tobee

B15127A05 High Chrome Impeller is an important wear parts of 2x1.5B-AH Horizontal Slurry Pump.

price:

$200.00 $299.00

Parts Code:

B15127A05

Pump model:

2x1.5B-AH

Metal Materials:

A05 A05A

Quantity:

- + (260 available)

Add to Favorite Items (22)

Sales: 60+

B15127A05 High Chrome Impeller is an important wear parts of 2x1.5B-AH Horizontal Slurry Pump.

Slurry Pump Impeller is Wetted Parts, the slurry pump wetted parts including the volute liner, throat bush, frame plate liner insert and the impeller. The slurry pump impeller is one of the most important parts of the slurry pumps. It is located in the pump casings on the shaft and connects with the motor to form a centrifugal force system. When the motor drives the impeller to rotate, the blades force fluid to rotate, increasing its pressure, potential energy, and kinetic energy. At the same time, under the force of inertia, fluid flows from the center to the edge of the impeller, out at a very high speed, and passes through the discharge pipeline to be transported. When an impeller is rotating, and in good condition, the slurry pump can easily meet output expectations. however, highly prone to wear and require regular maintenance to ensure efficiency.

Slurry Pump Impellers List:

Impeller Code	AH Slurry Pump	Slurry Pump Materials Code
B1127	1.5/1B-AH	A05, A06, A07, A33, A49, A51, A61, etc
B15127	2/1.5B-AH	A05, A06, A07, A33, A49, A51, A61, etc
C2147	3/2C-AH	A05, A06, A07, A33, A49, A51, A61, etc
C2127	3/2C-AH	A05, A06, A07, A33, A49, A51, A61, etc
C2051	3/2C-AH	A05, A06, A07, A33, A49, A51, A61, etc
D3147	4/3C-AH, 4/3D-AH	A05, A06, A07, A33, A49, A51, A61, etc
D3145HE1	4/3C-AH, 4/3D-AH	A05, A06, A07, A33, A49, A51, A61, etc
D3021	4/3C-AH, 4/3D-AH	A05, A06, A07, A33, A49, A51, A61, etc
E4147	6/4D-AH, 6/4E-AH	A05, A06, A07, A33, A49, A51, A61, etc
E4056	6/4D-AH, 6/4E-AH	A05, A06, A07, A33, A49, A51, A61, etc
E4058	6/4D-AH, 6/4E-AH	A05, A06, A07, A33, A49, A51, A61, etc
F6147	8/6E-AH, 8/6F-AH, 8/6R-AH	A05, A06, A07, A33, A49, A51, A61, etc
F6056	8/6E-AH, 8/6F-AH, 8/6R-AH	A05, A06, A07, A33, A49, A51, A61, etc
F6021	8/6E-AH, 8/6F-AH, 8/6R-AH	A05, A06, A07, A33, A49, A51, A61, etc
F6058HE1	8/6E-AH, 8/6F-AH, 8/6R-AH	A05, A06, A07, A33, A49, A51, A61, etc
FAM8147	10/8F-AH	A05, A06, A07, A33, A49, A51, A61, etc
G8147	10/8ST-AH	A05, A06, A07, A33, A49, A51, A61, etc
FAM10147	12/10F-AH	A05, A06, A07, A33, A49, A51, A61, etc
G10147	12/10ST-AH	A05, A06, A07, A33, A49, A51, A61, etc
FAM12147	14/12F-AH	A05, A06, A07, A33, A49, A51, A61, etc
G12147	14/12ST-AH	A05, A06, A07, A33, A49, A51, A61, etc
GAM14147	16/14TU-AH	A05, A06, A07, A33, A49, A51, A61, etc
Impeller Code	L Slurry Pump	Slurry Pump Materials Code
175056	20A-L	A05, A06, A07, A33, A49, A51, A61, etc
32056	50B-L	A05, A06, A07, A33, A49, A51, A61, etc
43056	75C-L	A05, A06, A07, A33, A49, A51, A61, etc
64056	100D-L	A05, A06, A07, A33, A49, A51, A61, etc
86056	150E-L	A05, A06, A07, A33, A49, A51, A61, etc
108056	200E-L	A05, A06, A07, A33, A49, A51, A61, etc
SL30147	300S-L	A05, A06, A07, A33, A49, A51, A61, etc
SL35147	350S-L	A05, A06, A07, A33, A49, A51, A61, etc
STL40147	400ST-L	A05, A06, A07, A33, A49, A51, A61, etc
STL45147	450ST-L	A05, A06, A07, A33, A49, A51, A61, etc
TUL55147	550TU-L	A05, A06, A07, A33, A49, A51, A61, etc
Impeller Code	M Slurry Pump	Slurry Pump Materials Code
F8147	10/8E-M, 10/8F-M, 10/8R-M	A05, A06, A07, A33, A49, A51, A61, etc
F10147	12/10F-M, 12/10R-M	A05, A06, A07, A33, A49, A51, A61, etc
Impeller Code	HH Slurry Pump	Materials
CH1127	1.5/1C-HH	A05, A06, A07, A33, A49, A51, A61, etc
DH2147	3/2D-HH	A05, A06, A07, A33, A49, A51, A61, etc
EH3147	4/3E-HH	A05, A06, A07, A33, A49, A51, A61, etc
FH4147	6/4F-HH	A05, A06, A07, A33, A49, A51, A61, etc
FH6147	6S-H, 8/6S-H	A05, A06, A07, A33, A49, A51, A61, etc
Impeller Code	G(H) Gravel Pump	Slurry Pump Materials Code
DG4137	6/4D-G, 6/4E-G	A05, A06, A07, A33, A49, A51, A61, etc
EG6137	8/6E-G	A05, A06, A07, A33, A49, A51, A61, etc
FG8137	10/8F-G, 10/8S-G	A05, A06, A07, A33, A49, A51, A61, etc
FG10137	12/10G-G	A05, A06, A07, A33, A49, A51, A61, etc
GG12137	14/12G-G	A05, A06, A07, A33, A49, A51, A61, etc
FGH8137	10/8F-GH	A05, A06, A07, A33, A49, A51, A61, etc
GGH10137	12/10G-GH	A05, A06, A07, A33, A49, A51, A61, etc
TG14148	16/14TU-GH	A05, A06, A07, A33, A49, A51, A61, etc
Impeller Code	SP Vertical Slurry Pump	Slurry Pump Materials Code
SP4206	40PV-SP	A05, A06, A07, A33, A49, A51, A61, etc
SP65206	65QV-SP	A05, A06, A07, A33, A49, A51, A61, etc
SP10206	100RV-SP	A05, A06, A07, A33, A49, A51, A61, etc
SP15206	150SV-SP	A05, A06, A07, A33, A49, A51, A61, etc
SP20206	200SV-SP	A05, A06, A07, A33, A49, A51, A61, etc
SP25206	250TV-SP	A05, A06, A07, A33, A49, A51, A61, etc
SP30206	300TV-SP	A05, A06, A07, A33, A49, A51, A61, etc

Label: 2x1.5B-AH Pump Impeller B15127 B15127A05 Impeller for Slurry Pump Slurry Pump Impellers 2/1.5B AH Slurry Pump Impeller B15127A05
