Home > GRAVEL PUMP PARTS > G Gravel Pump Parts > 12/10 G Gravel Pump > 12/10 G-GH Gravel Sand Pump Impeller GGH10137A05

12/10 G-GH Gravel Sand Pump Impeller GGH10137A05

(267 Reviews)

GGH10137A05

Product Brands: Tobee

12/10 G-GH Gravel Sand Pump is the world's standard pump for dredge and gravel with high pressure applications. The 12x10 pump performance range provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. A wide variety of shaft seals provide a perfect fit for a wide range of applications.

price:

$8446.00 $8619.00

Part Code:

GGH10137A05

Quantity:

- + (150 available)
Add to Favorite Items (111)

Sales: 564+

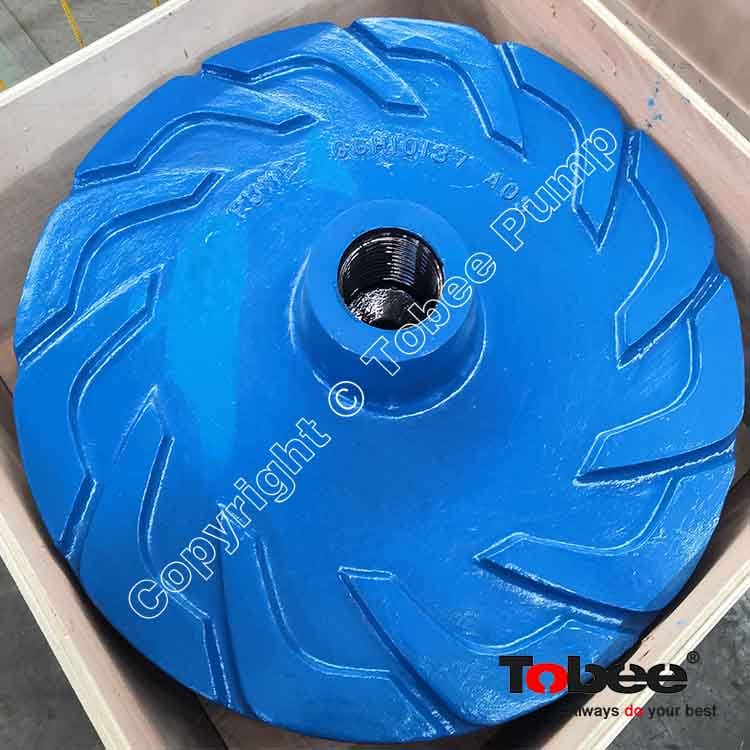

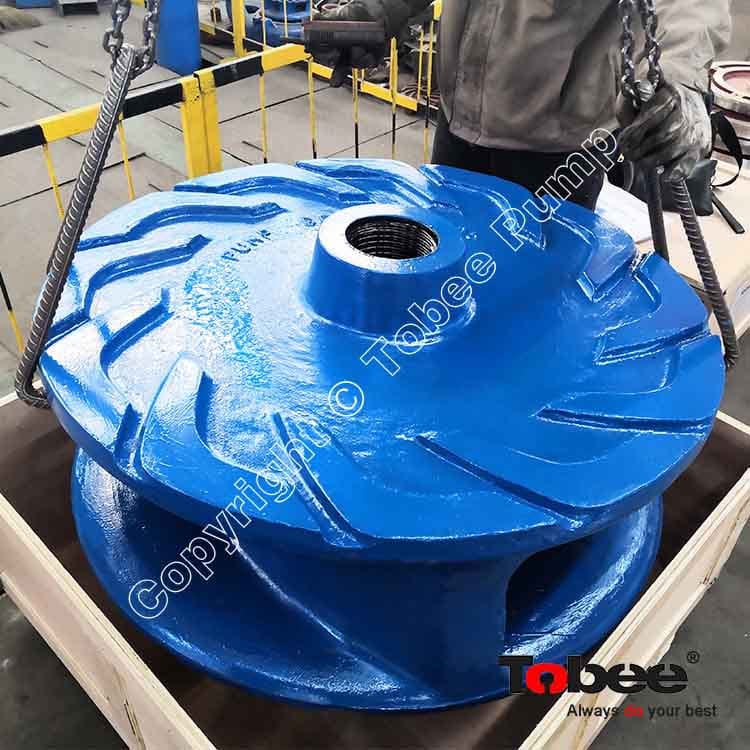

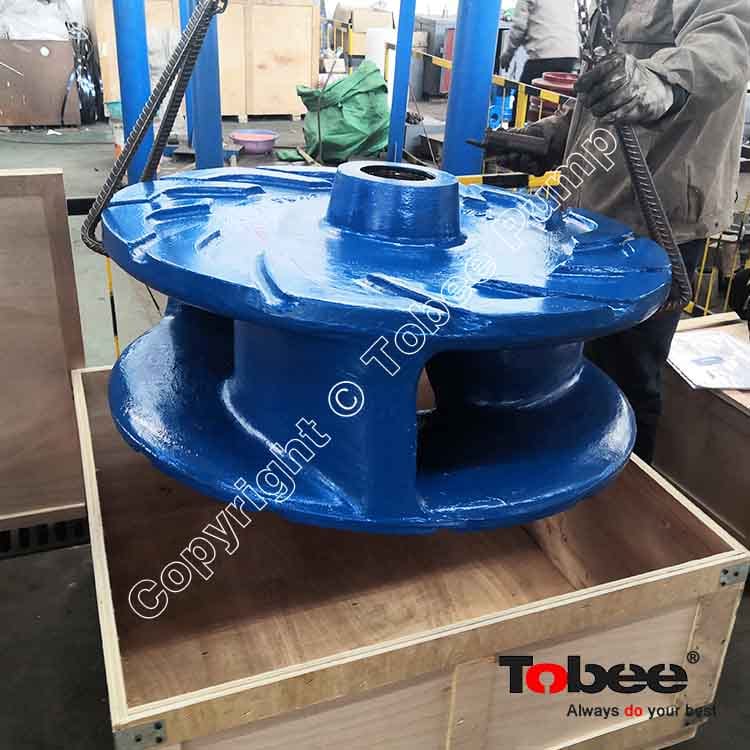

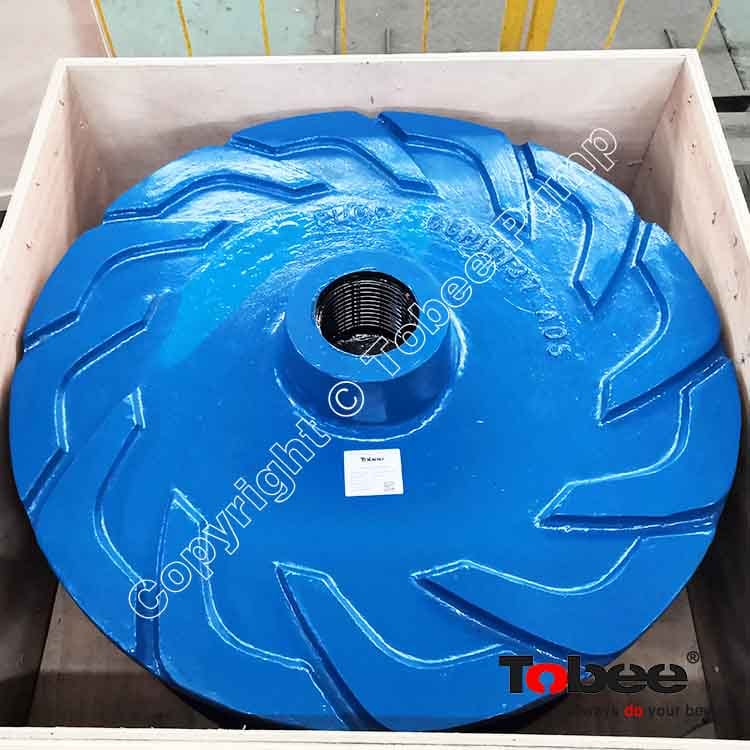

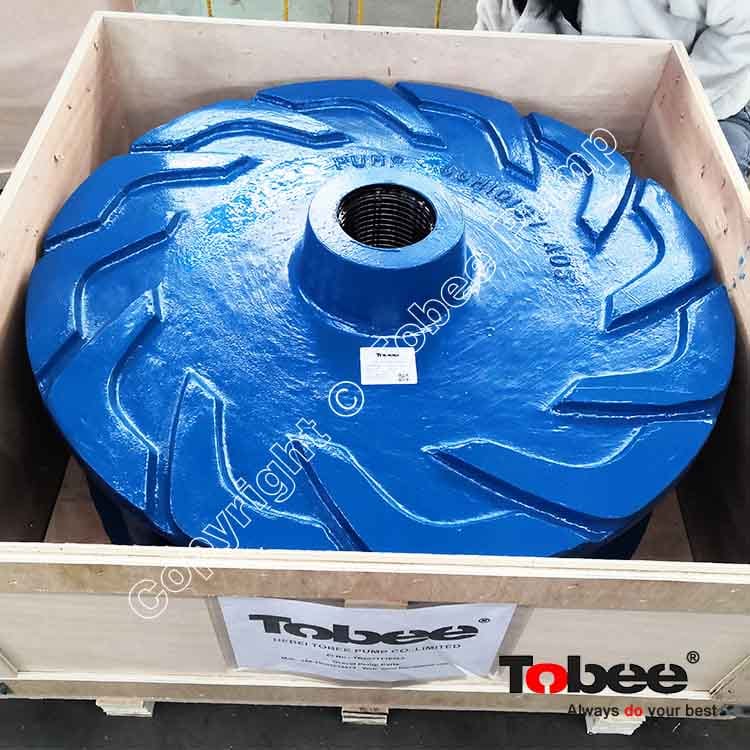

GGH10137A05 Impeller is 3 vane closed type impeller used for 12x10 G GH Gravel Sand Pump, the function of gravel pump impeller is to impart and direct the centrifugal force to the sand gravel slurries. Compared to slurry pump impeller, gravel pump impeller has larger internal profile that allows bigger particles for handling the most difficult higher abrasive slurries. And Impeller expulsion vanes reduce gland pressure and intrusion of high concentrations of solids in the gland area. Efficiency is maintained by minimising suction side recirculation.

12/10 G-GH Gravel Sand Pump is the world’s standard pump for dredge and gravel with high pressure applications. The 12x10 pump performance range provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. A wide variety of shaft seals provide a perfect fit for a wide range of applications.

Tobee® Horizontal Gravel Sand Pump Parts Code:

Base Code

Part Name

6/4D-G

8/6E-G

10/8F-G

10/8S-G

10/8S-GH

12/10G-G

12/10G-GH

14/12G-G

003

Base

D003M

E003M

F003M

S003M

S003M

G003M

G003M

G003M

005

Bearing Assembly

DAM005M

E005M

F005M

S005

S005

G005

G005



013

Door



EG86013

FG108013

FG108013

FGH8013

GG10013

GGH10013

GG1412013

024

End Cover

D024

E024

F024

S024

S024

G024

G024

G024

028

Expeller

DAM028

E028

F028

F028

FH028

GG028





029

Expeller Ring

DAM029

E029

F029

F029

FH029

G029





032

Adaptor Plate

DG4032M

EG6032M

FG8032M

FG8032M

FGH8032

GG10032

GGH10032

GG12032

041

Back Liner

DG4041

E4041

FG8041

FG8041

FGH8041

GG10041

GGH10041

GG12041

044

Gland

D044

E044

F044

F044

F044

G044

G044

G044

062

Labyrinth

D062

E062

F062

S062

S062

S062DM

G062

G062

GAM062

G062

GAM062

063

Labyrinth Ring

D063

E063

F063

F063

F063

G063

G063



064

Impeller O-ring

F064

F064













067

Neck Ring

D067

E067

F067

F067

F067

G067

G067

G067

073

Shaft

DAM073M

E073M

F073M

S073



GG073M

G073M

G073M

075

Shaft Sleeve

D075

E075

F075

F075

F075

G075



G075

078

Stuffing Box

DAM078

E078

F078

F078

FH078

G078

G078

G078

108

Piston Ring





F108











109

Shaft O-ring

D109

E109

F109

F109

F109

G109

G109

G109

111

Packing

D111

E111

F111

F111



G111





117

Shaft Spacer

DAM117

E117

F117

F117

FG117

GG10117

G117

G117

118

Lantern Restrictor

D118

E118

F118

F118

F118





G118

122

Expeller Ring/Stuffing Box Seal

D122

E122

F122

FH122

F122

G122

G122

G122

U18122

124

Bowl Sea/Door Seal

DG6124

EG6124

FG10124

FG8124

FG10124

FG8124

G8124







130

Flange



E6130

F10130

F8130

F10130

F8130

F10130

F8130

F10130

F12130

GGH10130

F12130

F14130

131

Bowl

DG4131

EG6131

FG8131

FG8131

FGH8131

FG10131

GGH10131

GG12131

132

Discharge Joint Ring

E4132

F6132

FG10132

F8132

FG10132

F8132

FG10132

F8132

FG10132

FG10132



134

Clamp Ring



E134

F134

F134









135

Clamp Ring

E6135

F6135

F8135

F8135

FGH8135

F10135

GGH10135

G12135

137

Impeller

DG4137

EG86137

FG8137

FG8137

FGH8137

FG10137

GGH10137

GG12137

138

Grease Cup Adaptor





D138

D138

D138







221

Discharge Flange

DG4221











GGH10221



239

Impeller Release Collar









S239M

G239

G239

G239

292

Door Clamp Plate













GGH10292

GG1412292

Tobee® 12/10 G-GH Gravel Sand Pump Impellers are used for rivers, lakes and sea sand dredging, blowing sand reclamation, river dredging, pumping sand selected iron ore, tailing pumping, coal mines, power plants and mining companies such as transport medium containing solid particles.
