> VERTICAL PUMP PARTS > 100RV-SP Cantilever Sump Pump Impeller SP10206A05

100RV-SP Cantilever Sump Pump Impeller SP10206A05

(0 Reviews)

TB-SP10206-A05

Product Brands: Tobee

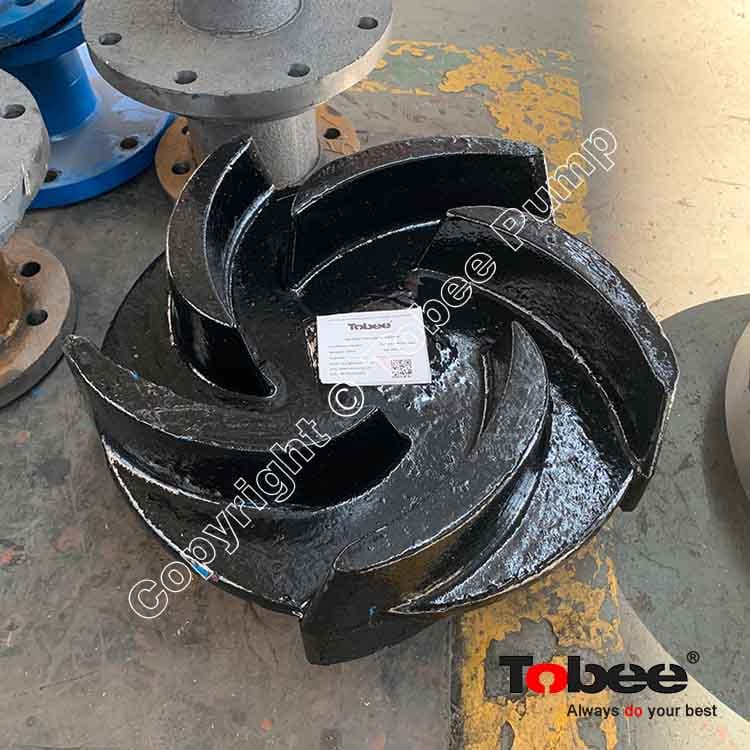

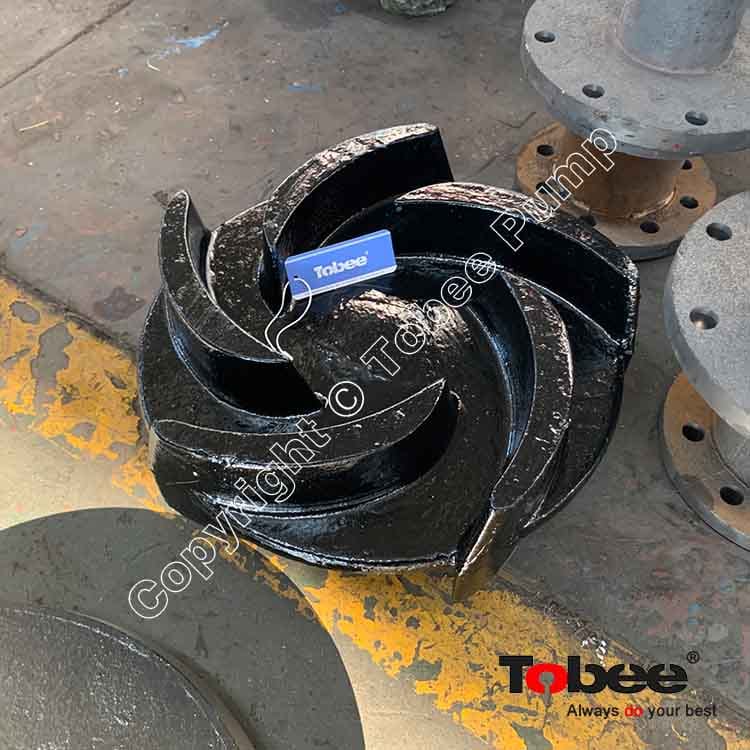

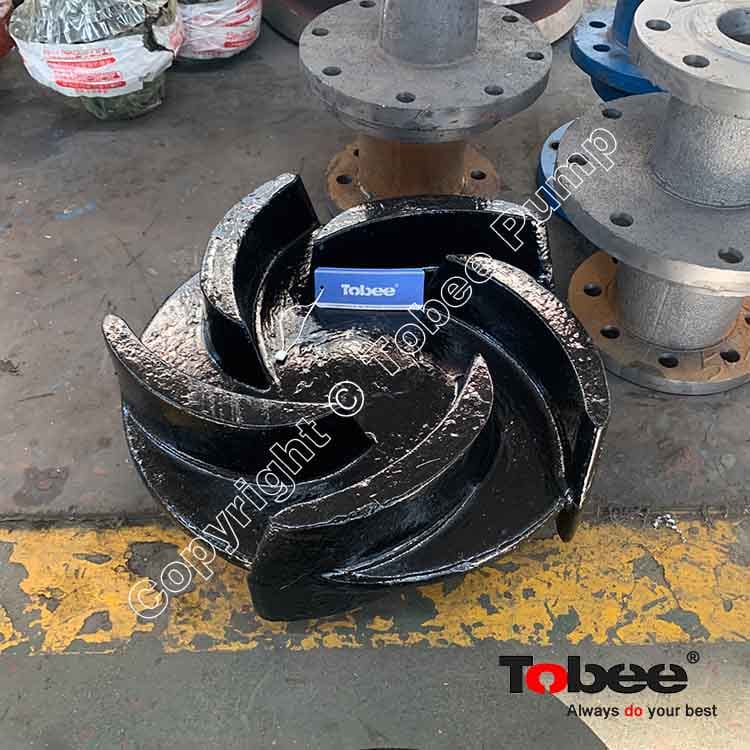

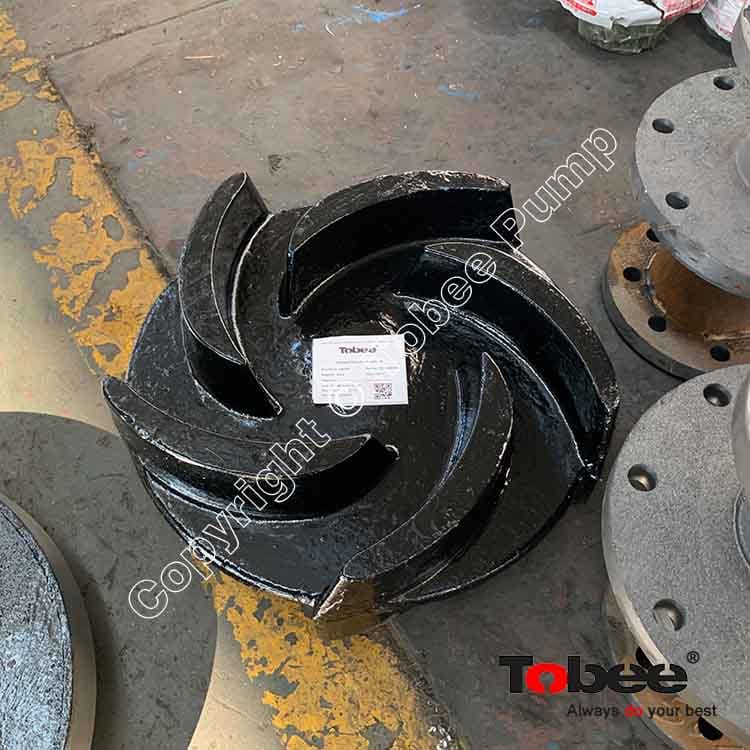

Impeller SP10206A05 is semi-open type impeller used for 100RV-SP Cantilever Vertical Slurry Pump.

price:

$679.00 $739.00

Part Code:

SP10206A05

Pump model:

100RV-SP

Quantity:

- + (330 available)
Add to Favorite Items (0)

Sales: 0+

Impeller SP10206A05 is semi-open type impeller used for 100RV-SP Cantilever Vertical Slurry Pump.



Impeller SP10206 - Double suction impellers (top and bottom entry) induce low axial bearing loads and have heavy deep vanes for maximum wear resistance and for handling large solids. Wear resistant alloys, polyurethane and moulded elastomer impellers are interchangeable. The impeller is adjusted axially within the casting during assembly by external shims under the bearing housing feet. No further adjustment is necessary.

100RV-SP Vertical Sump Pump is mainly used in a variety of sump conditions,  It can also be readily applied on floating dewatering or other floating pump platforms. As a true cantilevered vertical slurry pump, TP100RV vertical spindle pump does not have submerged bearings or seals, thus, eliminating the primary failure mechanism for similarly fielded pump lines.

Design Features:

• Compared to traditional sump pumps, SP series sump pumps have superb performance in capacity, head and efficiency.
• Unique cantilevered design makes EV series work normally even if the suction volume is not enough.
• Various pump models are available including traditional single-casing pumps as well as pioneering double-casing ones.
• Don't need any seal and seal water.



100RV-SP Vertical Slurry Pump Spare Parts List:

No.

Pump Model

Part Name

Basic Part No.

Part Code

Material

1

100RV-SP

Bearing Housing

004

RV004-1

Ductile

2

100RV-SP

Bearing Sleeve

008

RV008

-

3

100RV-SP

Bearing

009

R009

SKF/Timken

4

100RV-SP

Bearing

009D

R009D-1

SKF/Timken

5

100RV-SP

Mounting Plate

019

RV10019

Steel

6

100RV-SP

End Cover

024

RV024

Ductile

7

100RV-SP

Low End Cover

024L

RV024L-1

Steel

8

100RV-SP

Key

-

RV070

Steel

9

100RV-SP

Washer

-

85

Steel

10

100RV-SP

Shim Set

025

RV025

-

11

100RV-SP

Nipple

-

M10X1

Steel

12

100RV-SP

Name Plate

-

-

-

13

100RV-SP

Rivet

-

-

Steel

14

100RV-SP

Back Liner

041

SP10041

Chrome alloy

15

100RV-SP

Suction Joint

060

SP10060

-

16

100RV-SP

Lock Nut

061

RV061

Steel

17

100RV-SP

Labyrinth

062

RV062

Steel

18

100RV-SP

Nipple 45

-

M10X1

Steel

19

100RV-SP

O Ring

064

RV064

Ductile

20

100RV-SP

Shaft

073

RV10073

Steel

21

100RV-SP

Shaft Sleeve Ejector

077

RV077

-

22

100RV-SP

Bearing Seal

089

RV089

-

23

100RV-SP

Casing

092

SP10092

Chrome alloy

24

100RV-SP

Column

102

RV10102

-

25

100RV-SP

Piston Ring

108

R108

Steel

26

100RV-SP

End Cover Set Screw

-

S027M

Steel

27

100RV-SP

Strainer

116

SP10116-1

-

28

100RV-SP

Lower Strainer

116L

SP10116L

D21

29

100RV-SP

Casing Seal

124

E4124

-

30

100RV-SP

Discharge Pipe

154

RV10154

-

31

100RV-SP

Flinger

184

RV-184-1

-

32

100RV-SP

Discharge Pipe Gasket

204

SP10204

-

33

100RV-SP

Impeller

206

SP10206

Chrome alloy

34

100RV-SP

O Ring

217

RV217

Steel

35

100RV-SP

Spacer Set

290

RV290

-

36

100RV-SP

Suction Pipe

322

SP10322

-
