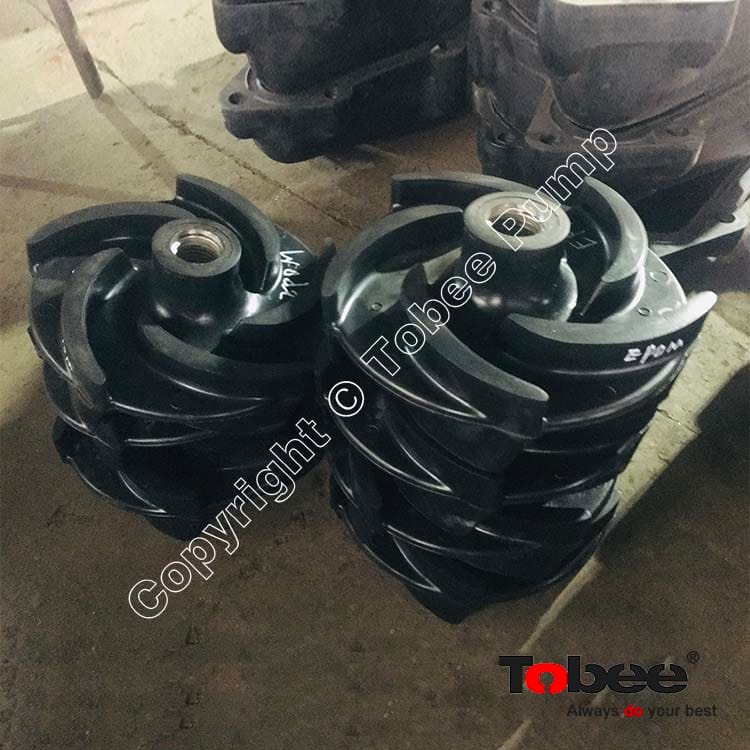

100mm Rubber Vertical Sump Pump Impeller SPR10206

(0 Reviews)

TB-SPR10206

Product Brands: Tobee

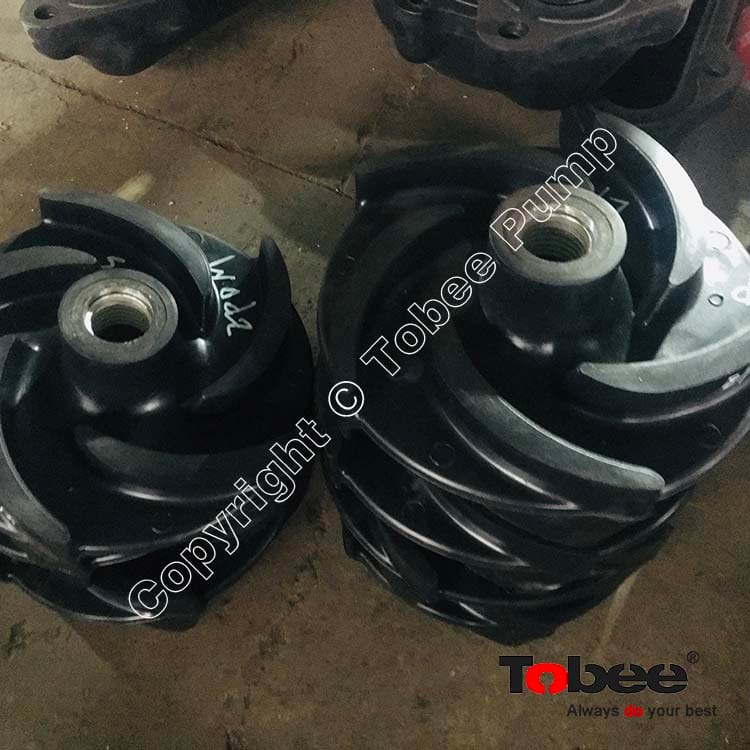

Tobee® Wear Parts Impeller SPR10206 of 100mm SPR Vertical Sump Pumps are made of Ethylene Propylene Diene Monomer (EPDM) material which replace original 100RV-SPR Vertical Pump Parts on site.

price:

$507.00 $598.00

Part Code:

SPR10206

Pump model:

100RV-SPR

Quantity:

- + (125 available)
Add to Favorite Items (0)

Sales: 0+

Tobee® Wear Parts Impeller SPR10206 of 100mm SPR Vertical Sump Pumps are made of Ethylene Propylene Diene Monomer (EPDM) material which replace original 100RV-SPR Vertical Pump Parts on site.



Tobee® Vertical slurry pump named vertical spindle pump, Vertical sump pump, vertical cantilever pump. vertical submerged pump. Vertical sewage pump, Column pump as well.

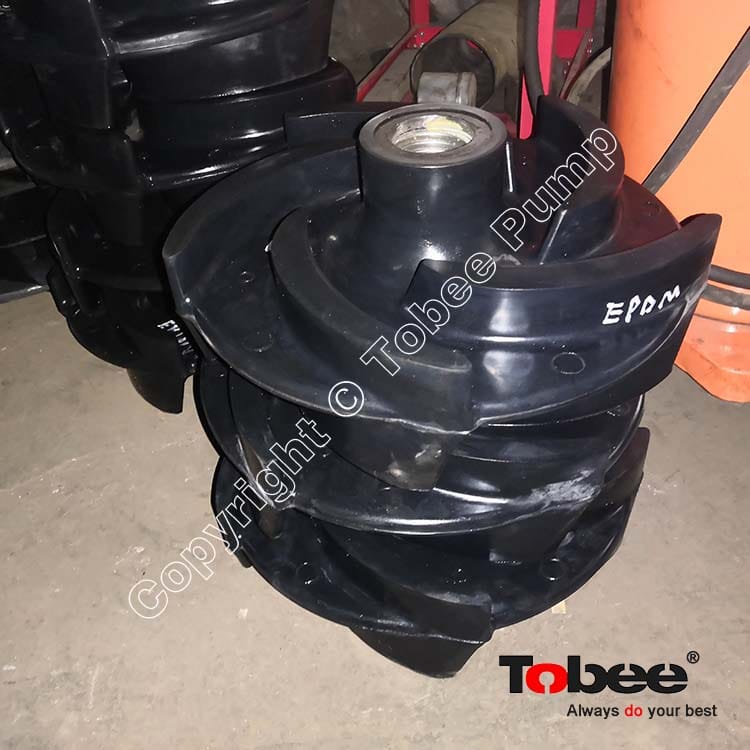

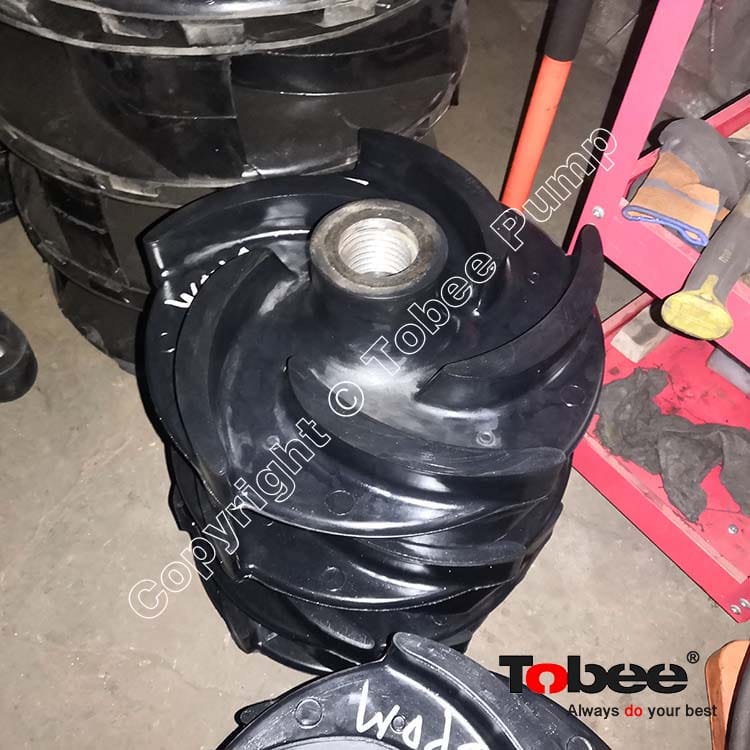

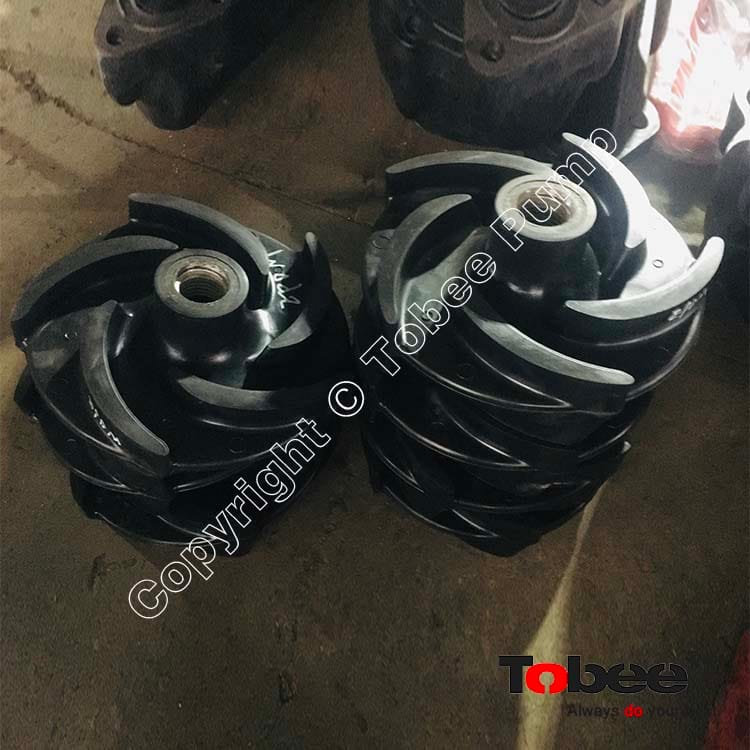

Impeller SP10206 - Double suction impellers (top and bottom entry) induce low axial bearing loads and have heavy deep vanes for maximum wear resistance and for handling large solids. Wear resistant alloys, polyurethane and moulded elastomer impellers are interchangeable. The impeller is adjusted axially within the casting during assembly by external shims under the bearing housing feet. No further adjustment is necessary.

Casing SP10092 - Has a simple bolt-on attachment to the base of the column. It is manufactured from a wear resistant alloy for the SP and from moulded elastomer for the SPR.

Back Liner SP10041 - It forms a pump chamber with throat bush and volute liner where the slurry would flow through them, Tobee offers back liners are interchangeable with stardard pump back liners with high chrome, natural rubber, polyurethane for different working condition.

Vertical Sump Pump Parts:
• Bearing Assembly - The bearings, shaft and housing are generously proportioned to avoid problems associated with the operation of cantilevered shafts in the first critical speed zones. The assembly is grease lubricated and sealed by labyrinths; the upper is grease purged and the lower protected by a special flinger. The upper or drive end bearing is a parallel roller type whilst the lower bearing is a double taper roller with preset end float. This high performance bearing arrangement and robust shaft eliminates the need for a lower submerged bearing.
• Column Assembly - Completely fabricated from mild steel. The SPR model is elastomer covered.
• Discharge Pipe - Metal for SP, elastomer covered for SPR. All wetted metal parts are completely rust protected.
• Submerged Bearings - None
• Agitation - An external agitator spray connection arrangement can be fitted to the pump as an option. Alternatively, a mechanical agitator is fitted to an extended shaft protruding from the impeller eye.
• Materials - Pumps can be manufactured in abrasive and corrosive resistant materials.

100RV-SPR Rubber Lined Vertical Sump Pumps are available in various standard lengths to suit common sump depths, for very deep sumps or where high shaft speeds limit the length of the pump, a suction extension pipe can be fitted to the bottom inlet to extend the depth of the pump by up to 2 meters. Pumping is maintained even when the top inlet is not submerged, thus enabling the level of liquid to be lowered right down to the bottom inlet or the bottom of any suction extension pipe. The wet parts of SPR vertical sump pump is interchangeable with the SP series hard metal lined heavy duty sump pumps.



100RV-SPR Rubber Vertical Sump Pump Parts List:

No.

Pump Model

Part Name

Basic Part No.

Part Code

Material

1

100RV-SPR

Bearing Housing

004

RV004-1

Ductile

2

100RV-SPR

Bearing Sleeve

008

RV008

-

3

100RV-SPR

Bearing

009

R009

SKF/Timken (Standard)

4

100RV-SPR

Bearing

009D

R009D-1

SKF/Timken (Standard)

5

100RV-SPR

Mounting Plate

019

RVR10019

Steel

6

100RV-SPR

End Cover

024

RV024

Ductile

7

100RV-SPR

Low End Cover

024L

RV024L-1

Steel

8

100RV-SPR

Key

-

RV070

Steel

9

100RV-SPR

Washer

-

85

Steel

10

100RV-SPR

Shim Set

025

RV025

-

11

100RV-SPR

Nipple

-

M10X1

Steel

12

100RV-SPR

Name Plate

-

-

-

13

100RV-SPR

Rivet

-

-

Steel

14

100RV-SPR

Back Liner

041

SPR10041

Rubber

15

100RV-SPR

Suction Joint

060

SPR10060

-

16

100RV-SPR

Lock Nut

061

RV061

Steel

17

100RV-SPR

Labyrinth

062

RV062

Steel

18

100RV-SPR

Nipple 45

-

M10X1

Steel

19

100RV-SPR

O Ring

064

RV064

Ductile

20

100RV-SPR

Shaft

073

RVR10073

Steel

21

100RV-SPR

Shaft Sleeve Ejector

077

RV077

-

22

100RV-SPR

Bearing Seal

089

RV089

-

23

100RV-SPR

Casing

092

SPR10092

Rubber

24

100RV-SPR

Column

102

RVR10102

-

25

100RV-SPR

Piston Ring

108

R108

Steel

26

100RV-SPR

End Cover Set Screw

-

S027M

Steel

27

100RV-SPR

Strainer

116

SPR10116-1

Rubber

28

100RV-SPR

Socket Head Protector

-

M24-291

-

29

100RV-SPR

Discharge Pipe

154

RVR10154

-

30

100RV-SPR

Flinger

184

RV-184-1

-

31

100RV-SPR

Impeller

206

SPR10206A

Rubber

32

100RV-SPR

O Ring

217

RV217

Steel

33

100RV-SPR

Spacer Set

290

RV290

-

34

100RV-SPR

Socket Head Protector

291

M20-291

-

35

100RV-SPR

Suction Pipe

322

SPR10322

-

36

100RV-SPR

Lower Strainer

1162

SPR10116L

Rubber
