Home > SLURRY PUMP PARTS > AHR Slurry Pump Parts > 1.5/1 AHR Slurry Pump > 1.5/1B-AHR Slurry pump polyurethane impeller B1052U38

1.5/1B-AHR Slurry pump polyurethane impeller B1052U38

(0 Reviews)

TOBEE-B1052U38

Product Brands: Tobee

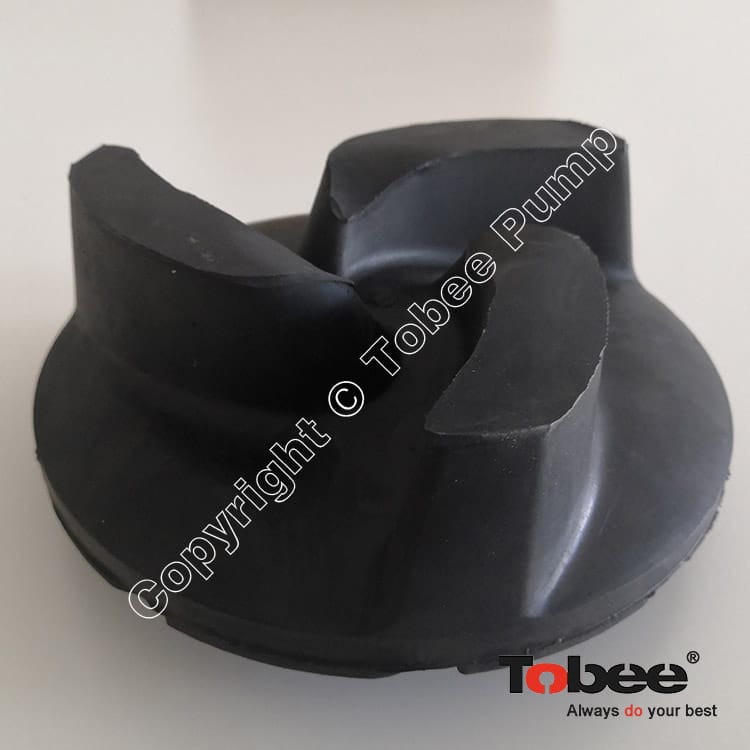

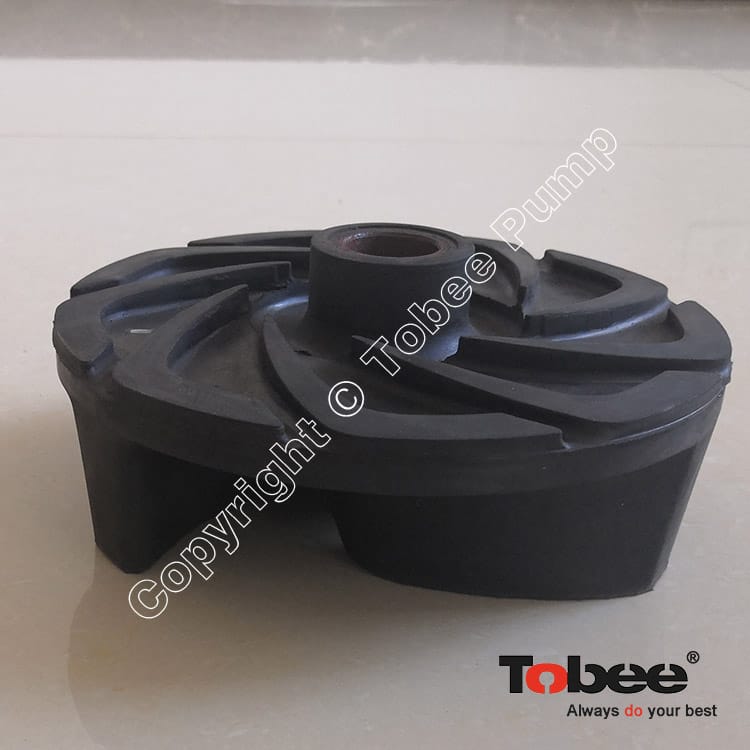

Polyurethane impeller B1052U38 replace rubber Impeller B1052R55, Expand a life span 3-5times

price:

$369.00

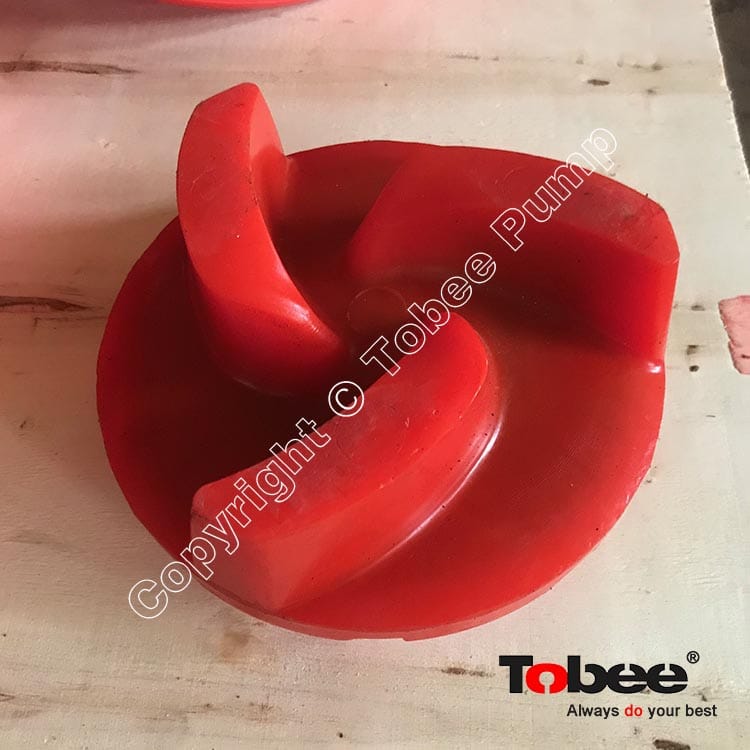

Impeller Type:

Semi-open 3 VCG

Quantity:

- + (69 available)
Add to Favorite Items (0)

Sales: 0+

B1052U38 Slurry Pump Polyurethane Impeller  is used on small slurry pump 1.5/1B-AHR. Expand work life 3-5times than normal standard R55 material.

Slurry pump impeller is the main component in centrifugal slurry pumps which has vanes to impart and direct the centrifugal force to the slurry. Slurry pump impeller is also the most diverse component in slurry pumps, by changing impeller, the same slurry pump can cover more different duties.

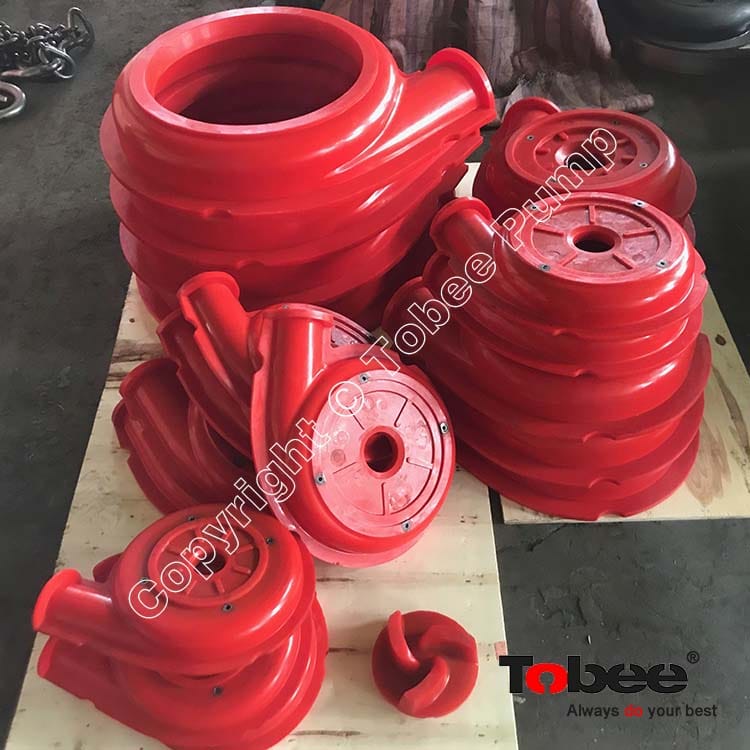

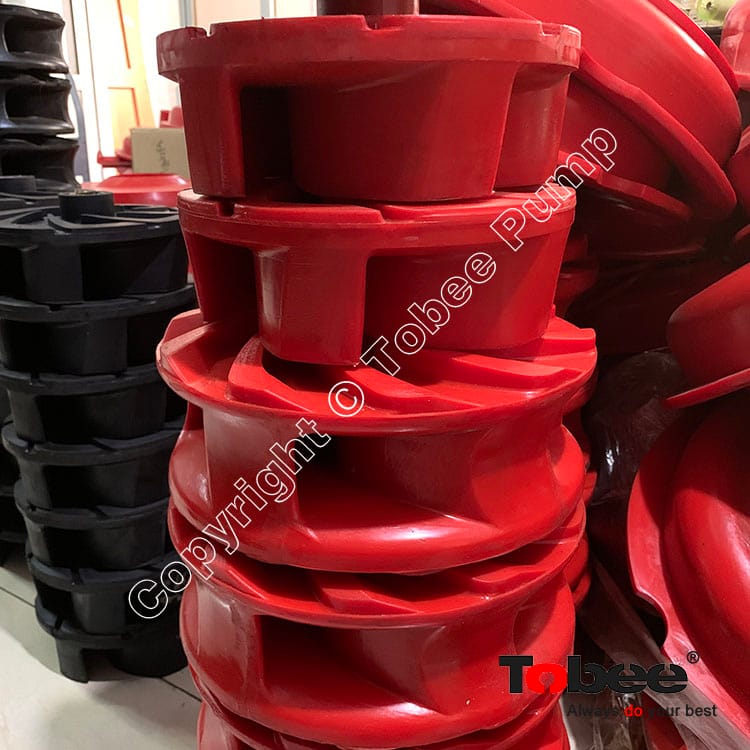

Slurry Pump Polyurethane Parts(commonly abbreviated PU) is a unique material that offers the elasticity of rubber combined with the toughness and durability of metal. It allows the engineer to replace rubber, plastic and metal with the ultimate in abrasion resistance and physical properties. Polyurethane can reduce plant maintenance.

Urethane abrasion and tear resistance are much better than rubbers, while offering higher load bearing capacity. Compared to plastics, urethane offer superior impact resistance, while offering excellent wear properties and elastic memory. And, PU is advance in weight reduction, noise abatement and wear improvement than metal slurry pump parts.



1.5/1 AH Slurry Pump Part List:

No.

Part Name

Pump Model

Part Code

Material Code

Unit Weight

(kg)

1

Adjust Screw

1.5/1 B-AH

B001

E62



2

Base

1.5/1 B-AH

B003M

G01

20.0

3

Bearing Assembly

1.5/1 B-AH

B005M

ZWZ Bearing

15.5

4

Bearing Housing

1.5/1 B-AH

B004M

G01

7.0

5

Cover Plate

1.5/1 B-AH

B1013

D21

13.8

6

Cover Plate Bolt

1.5/1 B-AH

B015

E65



7

Cover Plate Liner

1.5/1 B-AH

B1017

R55

2.0

8

Discharge Joint

1.5/1 B-AH

B1132L

S01



9

End Cover

1.5/1 B-AH

B024

G01

0.8

10

Expeller

1.5/1 B-AH

B028

A05

0.6

11

Expeller Ring

1.5/1 B-AH

B029

A05

2.6

12

Expeller Ring

1.5/1 B-AH

B029

R55

0.7

13

Frame Plate

1.5/1 B-AH

B1032

D21

12.4

14

Frame Plate Bolt

1.5/1 B-AH

B026

E62



15

Frame Plate Liner

1.5/1 B-AH

B1036

R55

2.0

16

Frame Plate Liner Insert

1.5/1 B-AH

B1041

A05

3.0

17

Frame Plate Stud

1.5/1 B-AH

B039

E62



18

Gland

1.5/1 B-AH

B044

G01

0.4

19

Gland

1.5/1 B-AH

B044

C23

0.4

20

Gland Bolt

1.5/1 B-AH

B045

C23



21

Grease Retainer

1.5/1 B-AH

B046

G01

0.2

22

Impeller

1.5/1 B-AH

B1127

A05

4.2

23

Impeller

1.5/1 B-AH

B1052

R55

1.2

24

Intake Joint

1.5/1 B-AH

B1060

S01



25

Labyrinth

1.5/1 B-AH

B062

G01

0.3

26

Labyrinth Locknut

1.5/1 B-AH

B061

E62

0.1

27

Lantern Restrictor

1.5/1 B-AH

B118

C23

0.2

28

Lantern Ring

1.5/1 B-AH

B063

C23

0.1

29

Lip Seal

1.5/1 B-AH

B090

S01



30

Neck Ring

1.5/1 B-AH

B067

C23



31

O ring

1.5/1 B-AH

B109

S10



32

O ring

1.5/1 B-AH

B217

S10



33

Packing

1.5/1 B-AH

B111

Q05



34

Packing

1.5/1 B-AH

B111

Q05A



35

Packing

1.5/1 B-AH

B111

Q21



36

Packing

1.5/1 B-AH

B111

Q22



37

Piston Ring

1.5/1 B-AH

B108

G01



38

Seal

1.5/1 B-AH

B122

S01

0.1

39

Shaft

1.5/1 B-AH

B073M

E05

3.9

40

Shaft Sleeve

1.5/1 B-AH

B075

C21

0.3

41

Shaft Sleeve

1.5/1 B-AH

B075

C23

0.3

42

Shaft Sleeve

1.5/1 B-AH

B075

J05



43

Shaft Sleeve

1.5/1 B-AH

B076

C21

0.3

44

Shaft Sleeve

1.5/1 B-AH

B076

C23

0.3

45

Shaft Spacer

1.5/1 B-AH

B117

C21

0.2

46

Shaft Spacer

1.5/1 B-AH

B117

C23

0.2

47

Shaft Spacer

1.5/1 B-AH

B117

J05

0.2

48

Shim Set

1.5/1 B-AH

B025

P10



49

Stuffing Box

1.5/1 B-AH

B078

A05

2.5

50

Volute Frame Seal

1.5/1 B-AH

B1125

S01



51

Volute Liner

1.5/1 B-AH

B1110

A05

11.5
