6/4 DAH Slurry Pump Volute liner E4110-A05 to Zambia

(0 Reviews)

E4110-A05

Product Brands: Tobee

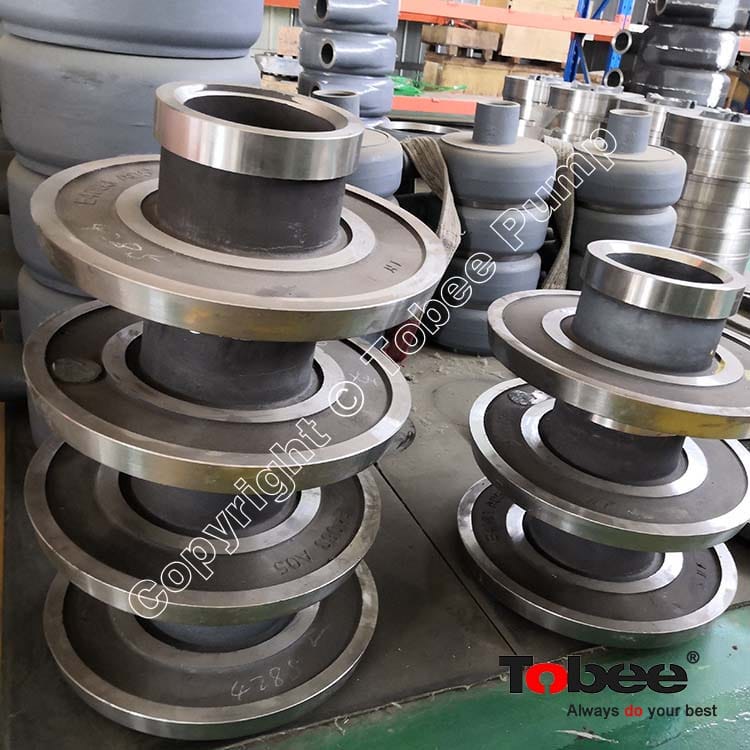

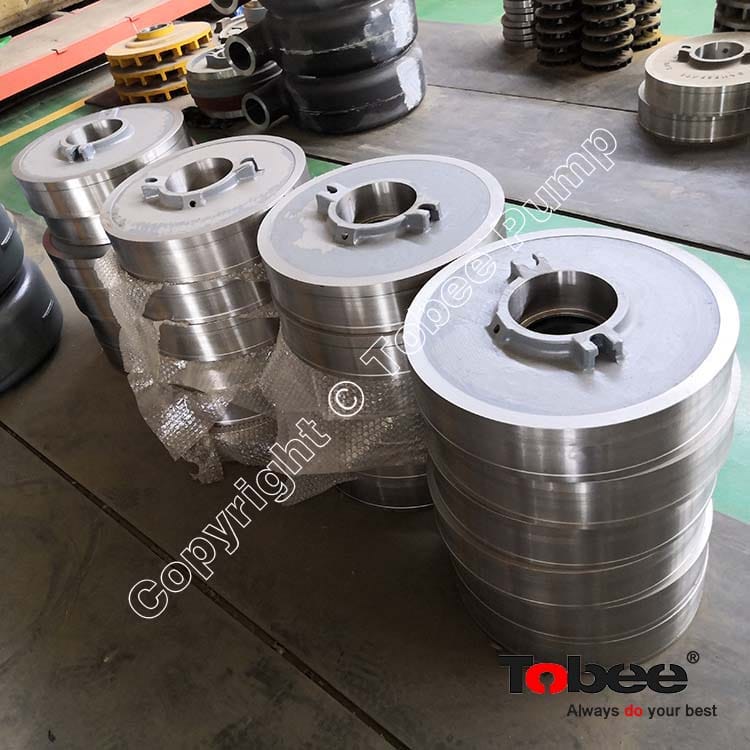

Tobee®  6/4 DAH slurry pump impeller E4147A05, 6x4 DAH pulp pump volute liner E4110A05, 6/4D Solid pump throat bush E4083A05, 6x4 slag pump Expeller ring DAM029A05.

price:

$789.00

Slurry Pump Model:

6x4 DAH 6x4 EAH

Part Codes:

E4147-A05

HS Code:

8413910000

Quantity:

- + (69 available)
Add to Favorite Items (0)

Sales: 0+

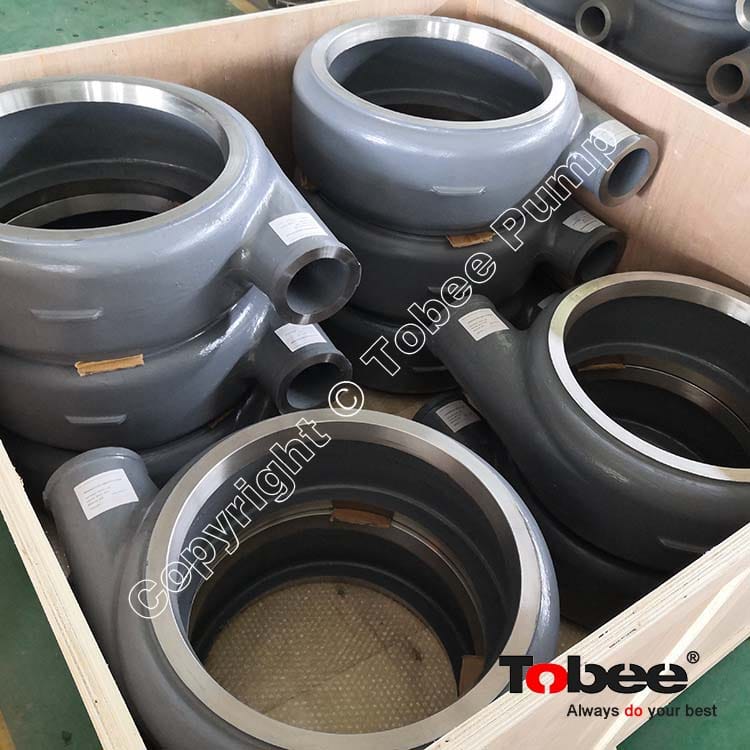

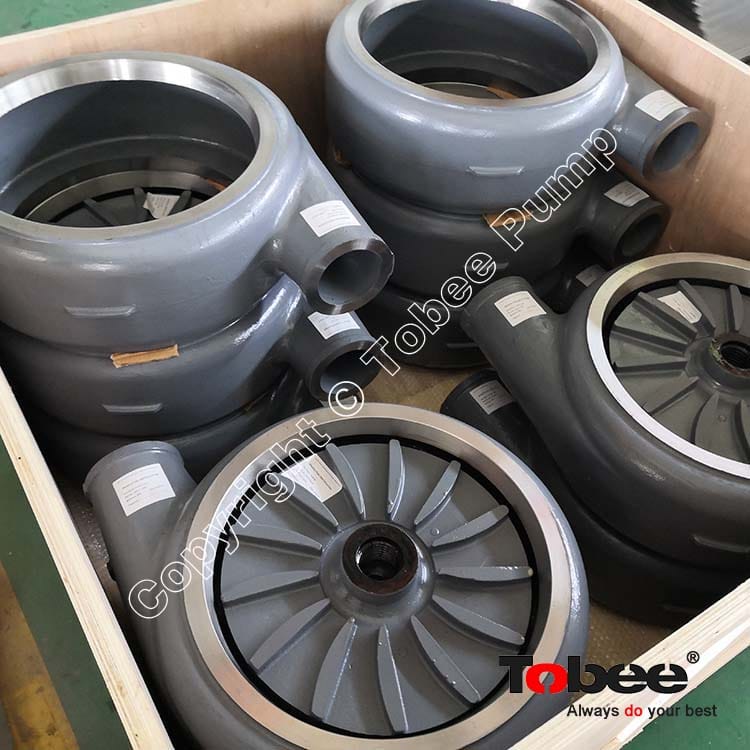

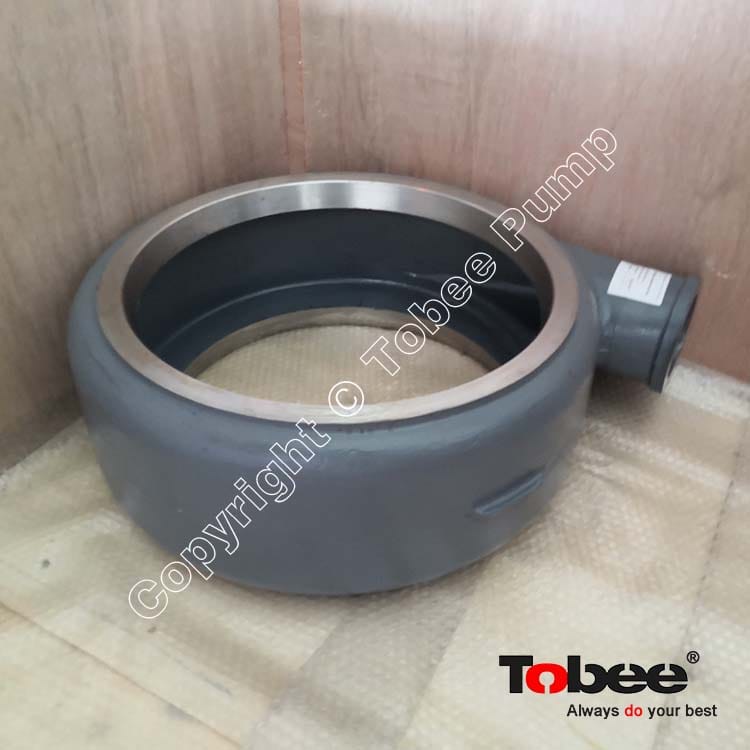

Tobee® E4110A61 Slurry Pump Volute Liner is an important wear part of 6/4D-AH & 6/4E-AH slurry pumps. It forms a slurry pump chamber with throat bush and frame plate liner insert where the slurry would flow through them. Slurry volute Liner is a curved funnel increasing in area to the discharge port. It is often used with slurry pump impeller. As the area of the cross-section increases, the volute reduces the speed of the liquids and increases the pressure of the liquids. The main purposes of a volute liner is to help balance the hydraulic pressure on the shaft of the slurry pump.

The volute is used on the pump body, and its function is mainly to protect the pump body from material damage, and to stabilize the operation of the equipment and prolong the service life. Usually, the material conveyed by the slurry pump contains solid particles of a certain size and some acid-base ions, so the sheath is subjected to wear and corrosion of the slurry during use.

Tobee® slurry pump parts are dimensionally interchangeable with original slurry pump parts and other brand slurry pumps. And more, we accept pump parts OEM and ODM business, especially abrasion and corrosion pump parts. Tobee own foundry and compound specialist to increase the wet parts wear life time, and We have been tested by end users plant of the most abrasive and most corrosive arduously applications. and also welcome the opportunity to discuss your applications in more detail. Our experienced technical engineers are always ready to give advice and make suggestions to improve future wear life of your slurry pumps. We are capable enough to help you work out a perfect casting material ingredient for special slurries.

Slurry pump volute liner code:

Volute Liner Code

AH Slurry Pump

Volute Liner Materials

B1110

1.5/1B-AH

High chrome, Natural rubber, Polyurethane

B15110

2/1.5B-AH

High chrome, Natural rubber, Polyurethane

C2110

3/2C-AH

High chrome, Natural rubber, Polyurethane

D3110

4/3C-AH, 4/3D-AH

High chrome, Natural rubber, Polyurethane

E4110

6/4D-AH, 6/4E-AH

High chrome, Natural rubber, Polyurethane

F6110

8/6E-AH, 8/6F-AH

High chrome, Natural rubber, Polyurethane

G8110

10/8F-AH, 10/8T-AH

High chrome, Natural rubber, Polyurethane

G10110

12/10F-AH, 12/10T-AH

High chrome, Natural rubber

G12110

14/12F-AH, 14/12T-AH

High chrome, Natural rubber

H14110

16/14TU-AH

High chrome, Natural rubber

Volute Liner Code

HH Slurry Pump

Volute Liner Materials

CH1110

1.5/1C-HH

High chrome

DH2110

3/2D-HH

High chrome

EH3110

4/3E-HH

High chrome

FH4110

6/4F-HH

High chrome

FH4110

6-H

High chrome

Volute Liner Code

M Slurry Pump

Volute Liner Materials

F8110

10/8E-M, 10/8F-M,10/8R-M

High chrome, Natural rubber, Polyurethane

F10110

12/10E-M, 12/10F-M

High chrome, Natural rubber, Polyurethane

Volute Liner Code

L Slurry Pump

Volute Liner Materials

AL2110

20A-L

High chrome, Natural rubber

BL5110

50B-L

High chrome, Natural rubber

CL75110

75C-L

High chrome, Natural rubber

DL10110

100D-L

High chrome, Natural rubber

EL15110

150E-L

High chrome, Natural rubber

SL20110

200E-L

High chrome, Natural rubber

SL30110

300S-L

High chrome, Natural rubber

SL35110

350S-L

High chrome, Natural rubber

TL40110

400ST-L

High chrome, Natural rubber

TL45110

450ST-L

High chrome, Natural rubber

UL55110

550TU-L

High chrome, Natural rubber
