Home > SLURRY PUMP PARTS > AH Slurry Pump Parts > 4/3 AH Slurry Pump > Alumina Refinery Pump impeller D3147A05 A49 A51 A61

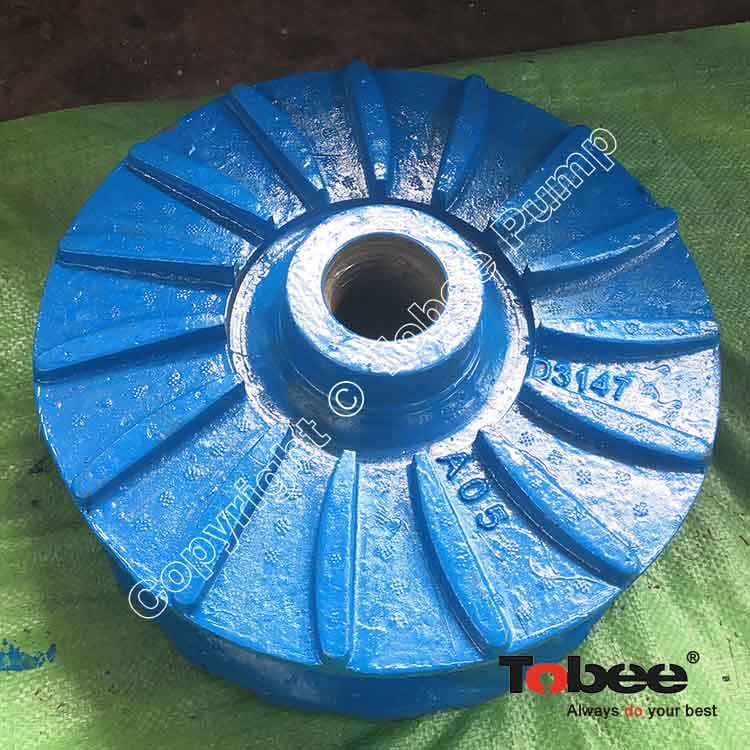

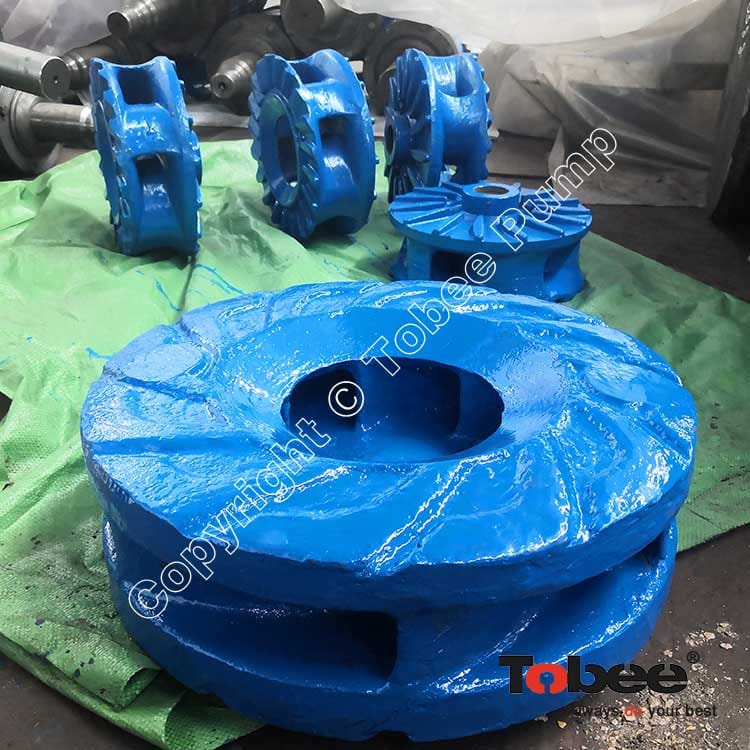

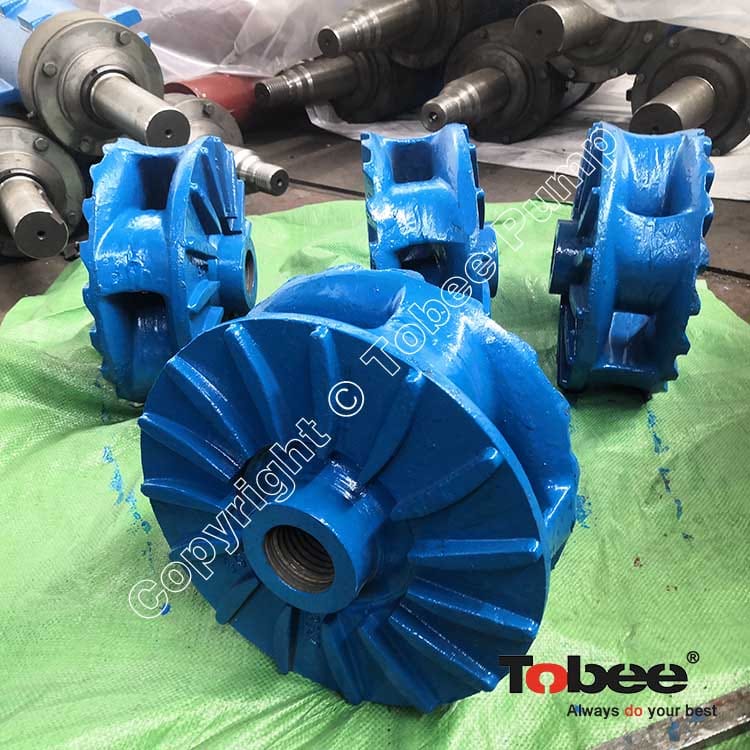

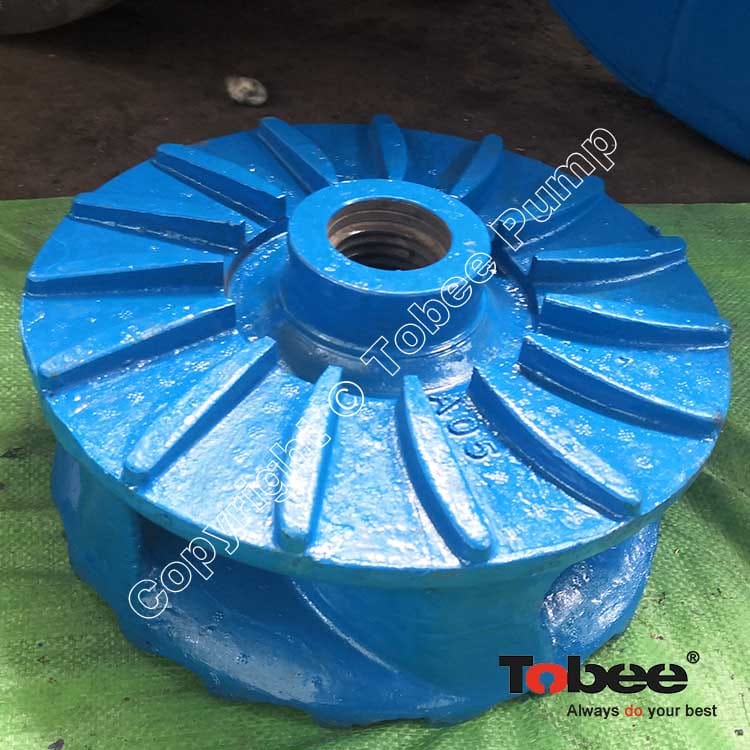

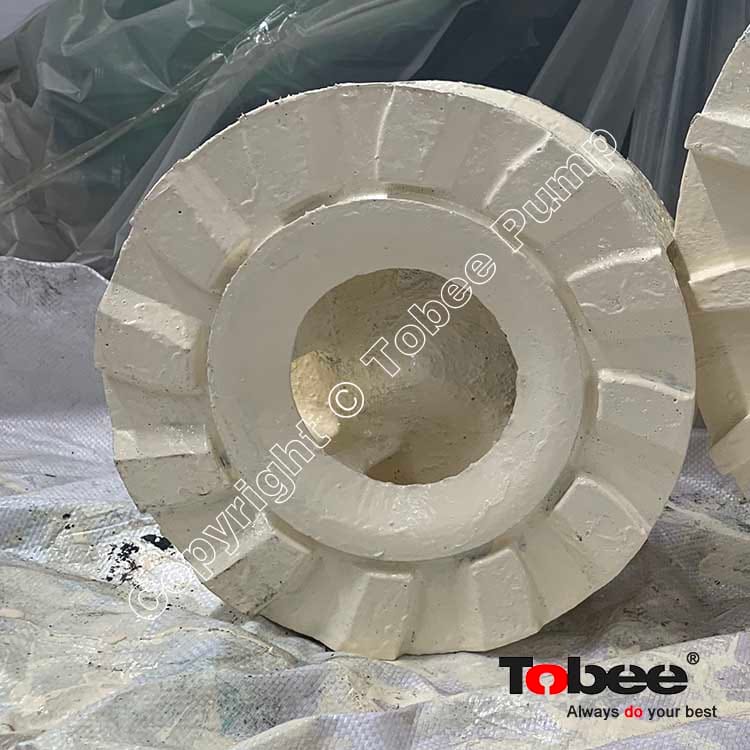

Alumina Refinery Pump impeller D3147A05 A49 A51 A61

(0 Reviews)

D3147A51

Product Brands: Tobee

D3147A05 Impeller aslo called work wheel is used on 4/3C-AH Slurry pumps and 4/3D-AH slurry pumps, D3145WRT1A05, D3058A05, D3147A49, D3147A51, D3147A61.

price:

$450.00

HS Code:

8413910000

Quantity:

- + (69 available)
Add to Favorite Items (0)

Sales: 0+

D3147A05 Impeller called work wheel is used on  4/3C-AH Slurry pumps and 4/3D-AH slurry pumps, D3145WRT1A05, D3058A05, D3147A49, D3147A51, D3147A61.

There are three different types of slurry pump impellers; open, closed, and semi-open. Each has its own strengths and weaknesses, depending on the application. Some are better for solids handling, others are better for high efficiency. To learn more about the specifics of each type of impeller.

Any type of impeller can be used in slurry applications, but closed slurry pump impellers are more common because they are high efficient and abrasion Resistance,. Open slurry pump impellers are usually used well for high concentration solids as they are less likely to clog. For example, the small fibers in paper stock which, in high densities, may have a tendency to clog the impeller. Pumping slurry can be difficult and you want to avoid a clogged pump at all costs.

Replacement AH Slurry Pump Impellers:

Impeller Code

AH Slurry Pump

Slurry Pump Materials Code

B1127

1.5/1B-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

B15127

2/1.5B-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

C2147

3/2C-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

C2127

3/2C-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

C2051

3/2C-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

D3147

4/3C-AH, 4/3D-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

D3145HE1

4/3C-AH, 4/3D-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

D3021

4/3C-AH, 4/3D-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

E4147

6/4D-AH, 6/4E-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

E4056

6/4D-AH, 6/4E-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

E4058

6/4D-AH, 6/4E-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

F6147

8/6E-AH, 8/6F-AH, 8/6R-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

F6056

8/6E-AH, 8/6F-AH, 8/6R-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

F6021

8/6E-AH, 8/6F-AH, 8/6R-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

F6058HE1

8/6E-AH, 8/6F-AH, 8/6R-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

FAM8147

10/8F-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

G8147

10/8ST-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

FAM10147

12/10F-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

G10147

12/10ST-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

FAM12147

14/12F-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

G12147

14/12ST-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

GAM14147

16/14TU-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
