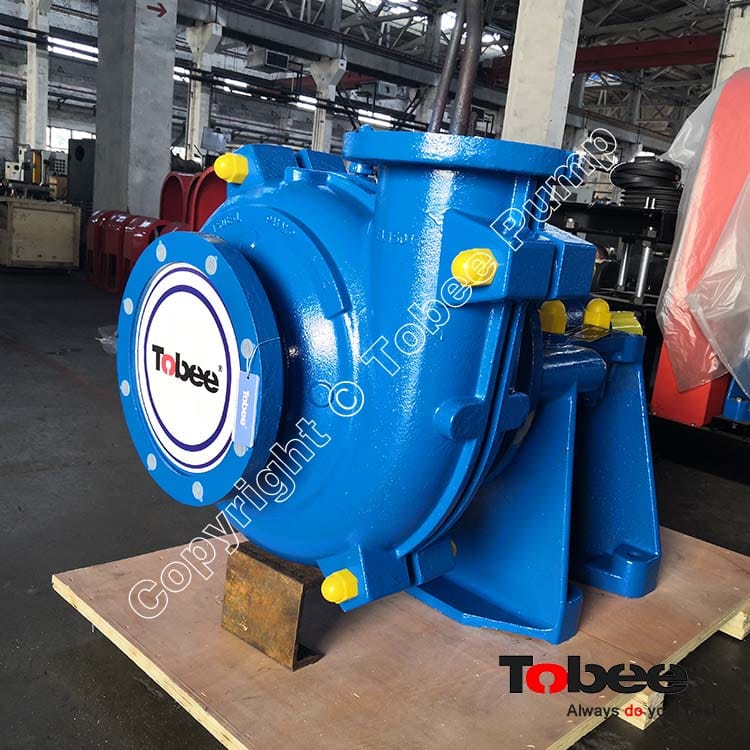

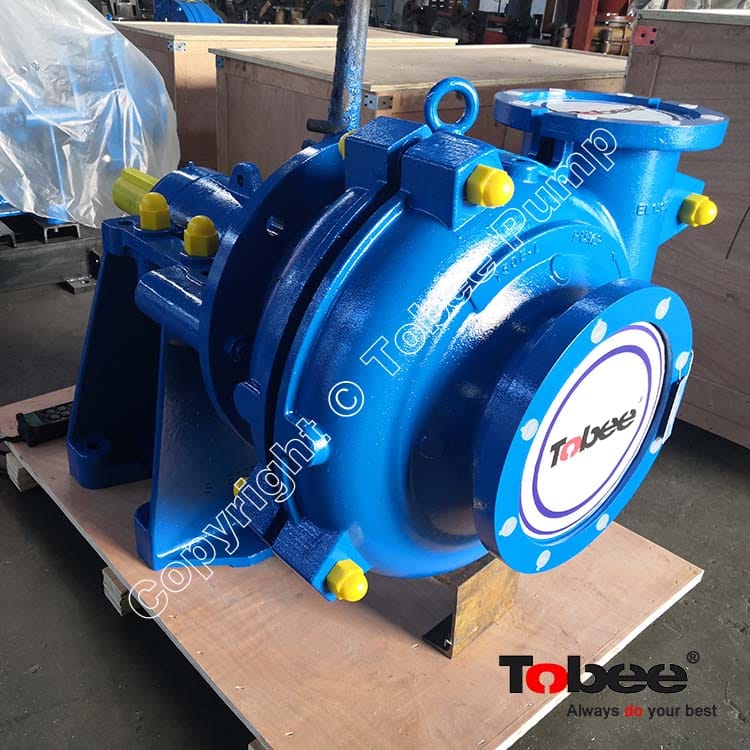

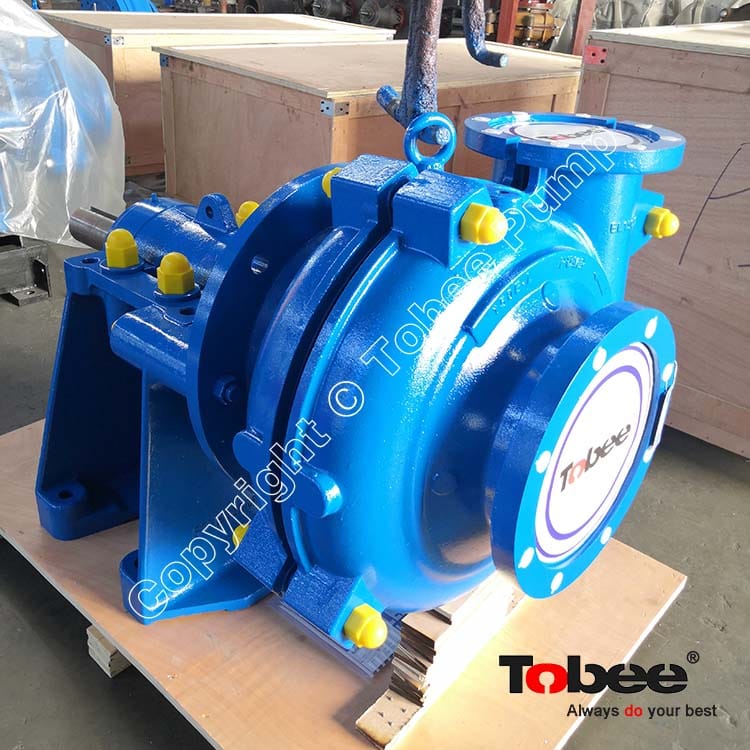

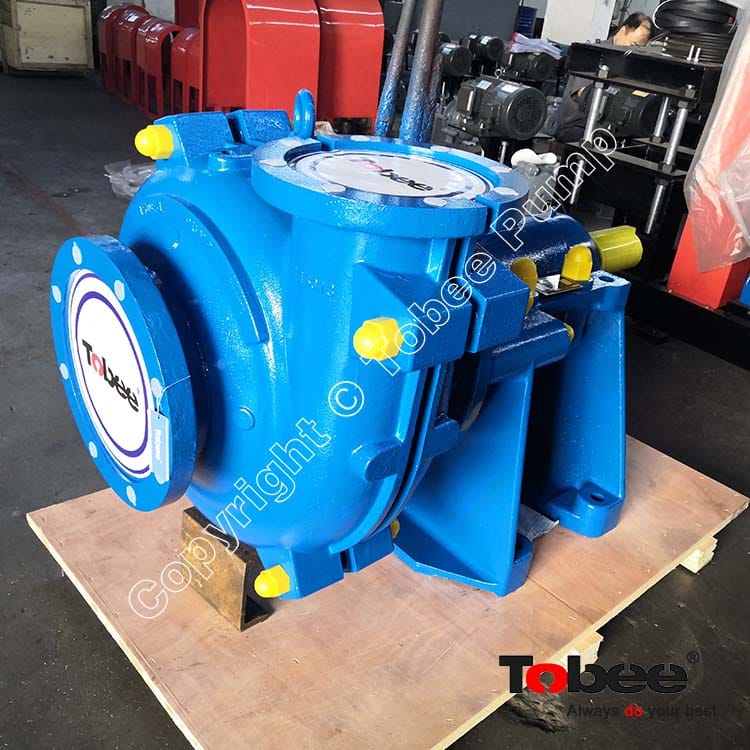

Tobee® 150E-L Light Duty Slurry Pumps have been developed for continuous use in slurry applications where low to medium developed head is required, designed for lighter slurry densities up to 1,35. Shares proven unique design features with the AH slurry pump range, A key feature is the light duty high efficiency impeller, engineered with the latest hydraulic and wear technologies for high efficiency and increased wear life. With a range of high quality parts and different material combinations the L Light duty slurry pump has the versatility to ensure the most appropriate pumping solution provided for any given application.
Tobee® L Light Duty Slurry Pumps Performance Parameters:
|
Model |
Allowable Max. Power (kw) |
Clear Water Performance |
|
|||||
|
Capacity Q |
Head H (m) |
Speed n (r/min) |
Eff. η |
NPSH |
Impeller Dia. (mm) |
|||
|
m3/h |
l/s |
|||||||
|
20A-L |
7.5 |
2.34-10.8 |
0.65-3 |
6-37 |
1400-3000 |
40 |
2.5-3 |
152.4 |
|
50B-L |
15 |
11.5-76 |
3.2-21.1 |
8.5-46 |
1400-2800 |
62 |
2.5-5.5 |
190 |
|
75C-L |
30 |
18-151 |
5-42 |
4-46.4 |
900-2400 |
57 |
3-6 |
229 |
|
100D-L |
60 |
46.8-324 |
13-90 |
7-48.3 |
800-1800 |
64 |
2-6 |
305 |
|
120 |
115-568.8 |
32-158 |
10.5-51.8 |
800-1500 |
60 |
2.5-6 |
381 |
|
|
200E-L |
120 |
234-910 |
65-235 |
9.5-40 |
600-1100 |
64 |
3-6 |
457 |
|
250E-L |
120 |
396-1425 |
110-396 |
8–30 |
500-800 |
77 |
2-10 |
550 |
|
300S-L |
560 |
468-2538 |
130-708 |
8-60 |
400-950 |
79 |
2-10 |
653 |
|
350S-L |
560 |
650-2800 |
180-780 |
10-59 |
400-840 |
81 |
3-10 |
736 |
|
400ST-L |
560 |
756-3312 |
210-920 |
7-37.5 |
300-600 |
85 |
2-8 |
825 |
|
450ST-L |
560 |
1080-4356 |
300-1210 |
9-40 |
300-550 |
87 |
3-10 |
933 |
|
550TU-L |
1200 |
1980-7920 |
560-2200 |
10-50 |
250-475 |
86 |
4-10 |
1213 |
|
650TU-L |
1200 |
2520-9108 |
700-2530 |
10-55 |
200-350 |
86 |
2-8 |
1425 |
|
50B-LR |
15 |
9-61 |
2.5-17 |
3-32.4 |
1200-2600 |
48 |
2.75-4.5 |
190 |
|
75C-LR |
30 |
28.8-154.8 |
8-43 |
9-43 |
1100-2300 |
60 |
3-5 |
229 |
|
100D-LR |
60 |
54-288 |
15-80 |
12-38 |
800-1600 |
65 |
2.5-5.5 |
305 |
|
150E-LR |
120 |
72-576 |
20-160 |
4-38 |
800-1300 |
65 |
2.5-5.5 |
381 |
|
250E-LR |
120 |
396-1425 |
110-396 |
8-30 |
500-800 |
77 |
2-10 |
550 |
|
300S-LR |
560 |
432-1900 |
120-528 |
7-41 |
400-800 |
81 |
3-8 |
653 |
|
350S-LR |
560 |
720-2844 |
200-790 |
10-41 |
400-700 |
86 |
3-7 |
736 |
|
400ST-LR |
560 |
720-3312 |
200-920 |
7-51 |
300-700 |
80 |
2-10 |
825 |
|
450ST-LR |
560 |
1008-4356 |
280-1210 |
9-48 |
300-600 |
80 |
2-9 |
933 |
|
550TU-LR |
1200 |
1980-7920 |
560-2200 |
10-50 |
250-475 |
86 |
4-10 |
1213 |
|
650TU-LR |
1200 |
2520-9108 |
700-2530 |
10-39 |
200-350 |
86 |
2-8 |
1425 |
Tobee® L Light Duty Slurry Pumps Applications:
L series Light Duty Slurry Pumps are designed for handling light abrasive,lower density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.The L series slurry pumps can be used in many applications, such as Pipeline transport, High velocity hydraulic transport, Mineral processing, Coal prep, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, secondary grinding, Industrial processing, Pulp and paper, Food processing, Cracking operations, Ash handling etc.
