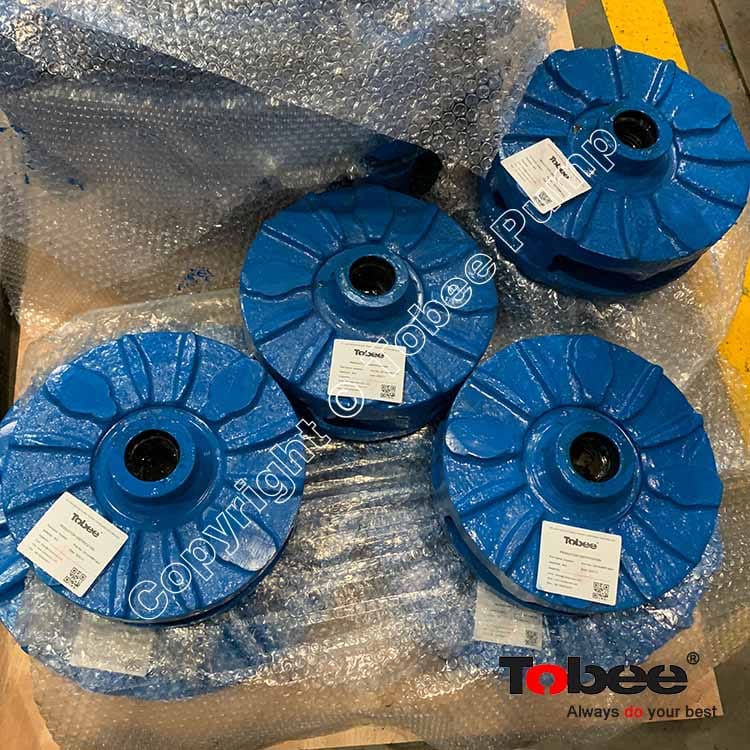

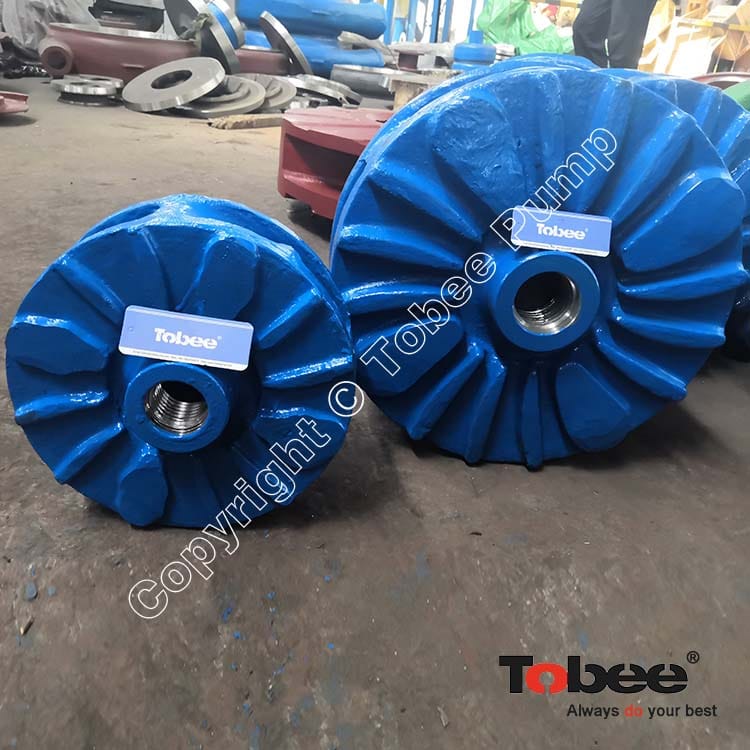

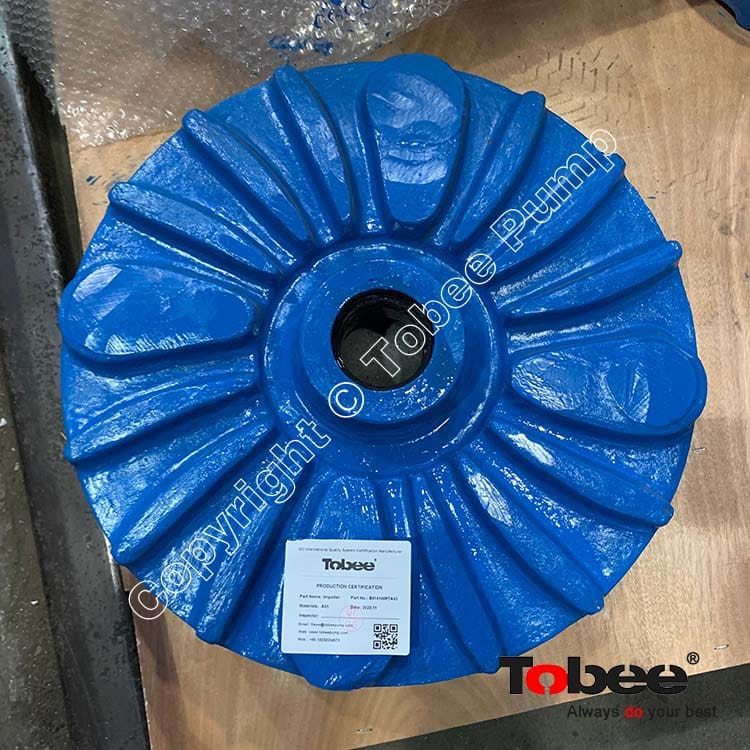

Upgrade 4-vanes WRT1 impeller D3145WRT1A05 installs on 4/3C-AH Slurry pumps &4/3D-AH Slurry pumps
Pump Model: AH, HH, L, M, SP, G, GH, AF
Impeller Type: Open, Semi-open, Closed.
Material: A03, A04, A05, A05A, A06, A07, A12, A14, A25, A33, A49, A51, A61
Number of Vanes:127 (2VCG); 137(3VCG); 145(4VCG); 147(5VCG); 058(6VCG), etc.
Representative Code:
B1127, B15127, C2127, D3147, E4147, F6147, G8147, G10147, G12147, FAM12147, DH2147, E4058, F6058, FGH8137, FG10137, RSL30147, SL3514, RSL30147, SP65026, D3145, etc.
Upgrade impeller WRT1 having a wear-resistant lifespan of increase around 40%.
Upgrade WRT1 Impeller and Throat-bush List:
|
WRT1 Impeller |
Standard impeller |
WRT1 Throat-bush |
Standard throat-bush |
|
C2145WRT1A05 |
C2147A05 |
C2110WRT1A05 |
C2110A05 |
|
D3145WRT1A05 |
D3147A05 |
D3110WRT1A05 |
D3110A05 |
|
E4147A05 |
E4083WRT1A05 |
E4083A05 |
|
|
F6145WRT1A05 |
F6083WRT1A05 |
F6083A05 |
|
|
FAM8145WRT1A05 |
FAM8147A05 |
G8083A05 |
|
|
G8145WRT1A05 |
G8147A05 |
G8083WRT1A05 |
|
|
G10145WRT1A05 |
G10147A05 |
G10083WRT1A05 |
G10083A05 |
|
G12145WRT1A05 |
G12147A05 |
G12083WRT1A05 |
G12083A05 |
|
GAM14145WRT1 |
GAM14147A05 |
H14083WRT1A05 |
H14083A05 |
|
H14145WRT1 |
H14147A05 |
H14083WRT1A05 |
H14083A05 |
