Home > SLURRY PUMP PARTS > AHR Slurry Pump Parts > UMCR55041R55 Frame Plate Liner Insert on 550MCR Slurry Pumps

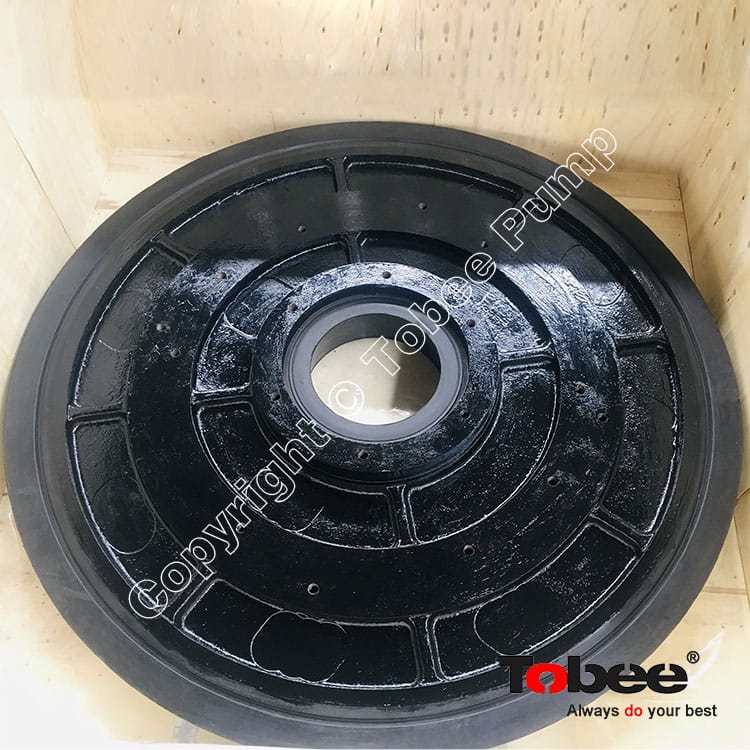

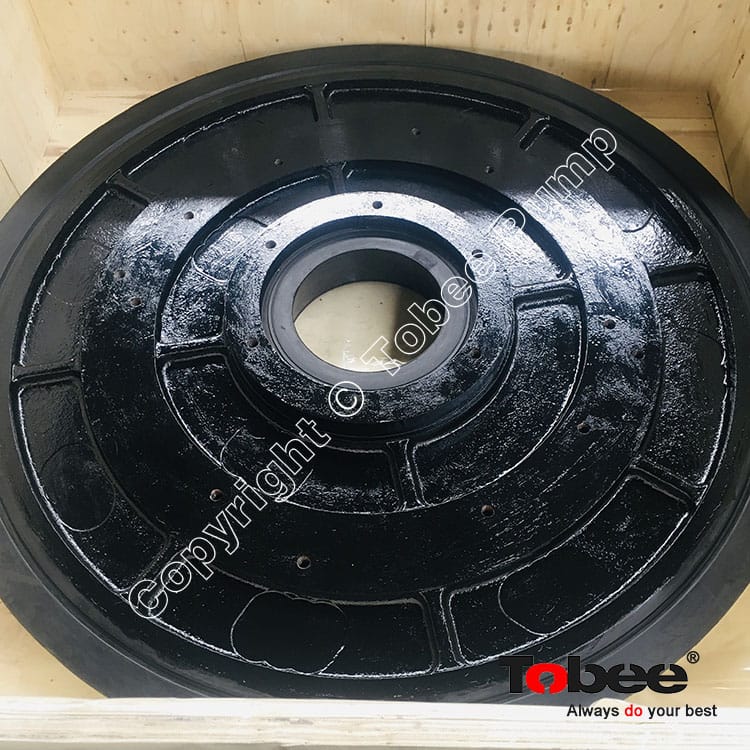

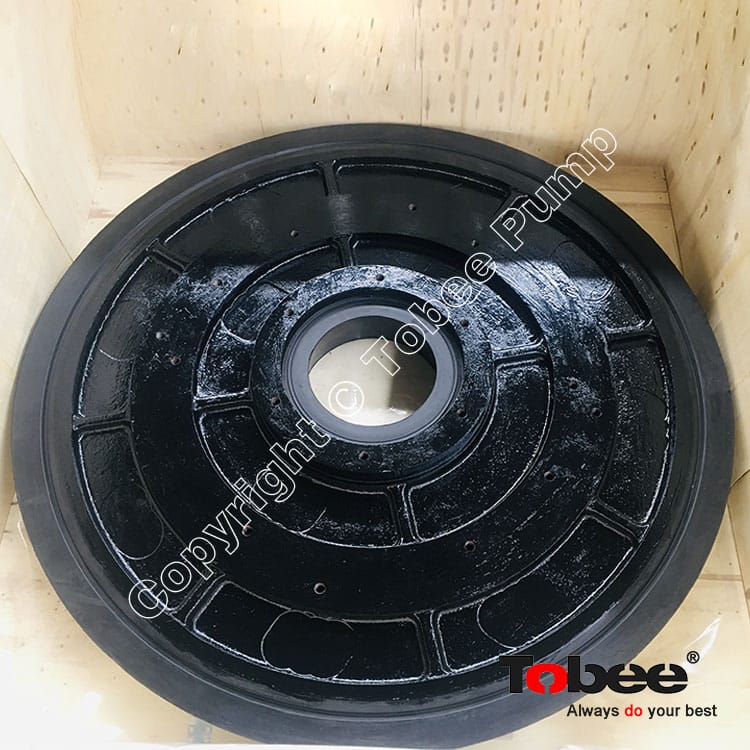

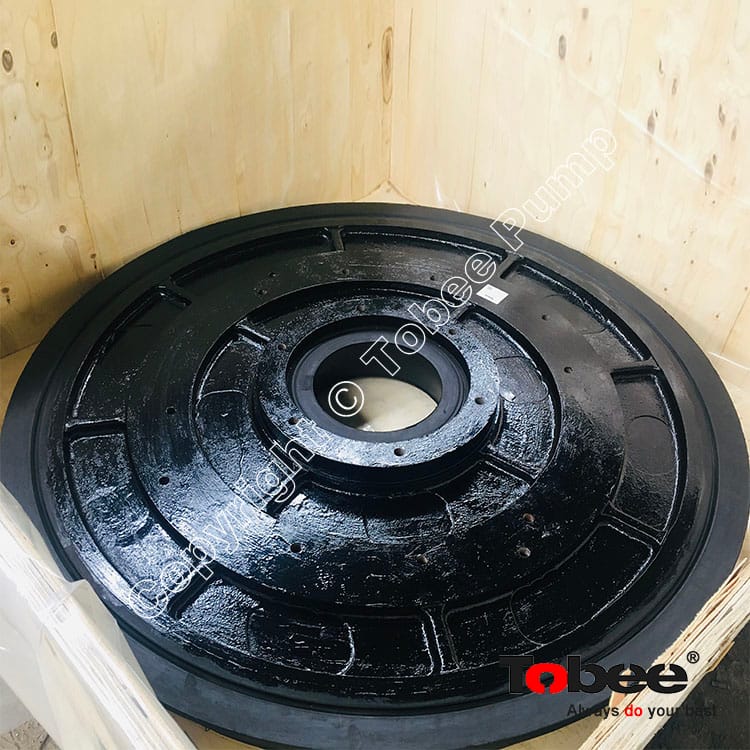

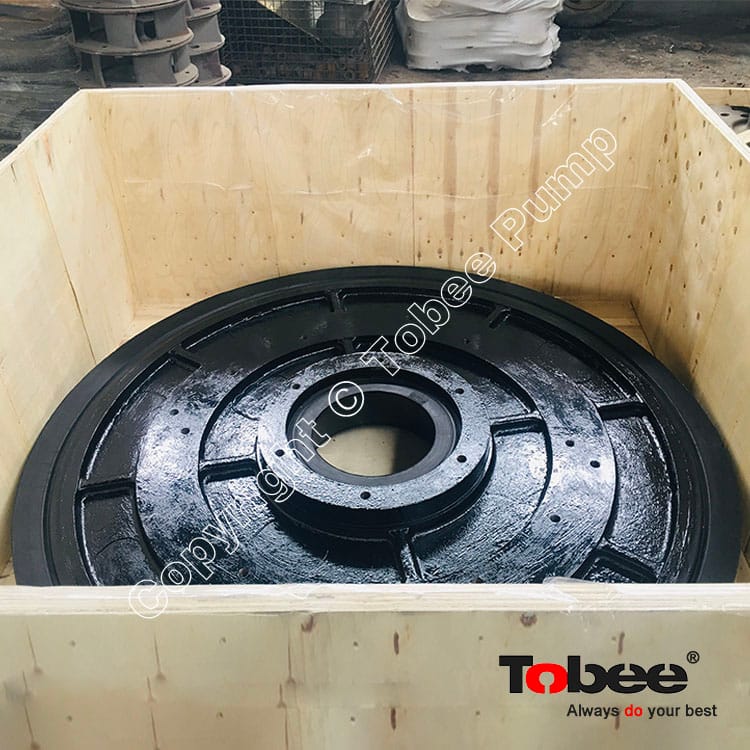

UMCR55041R55 Frame Plate Liner Insert on 550MCR Slurry Pumps

(0 Reviews)

TB-UMCR55041R55

Product Brands: Tobee

Tobee® Frame plate liner insert UMCR55041R55 is one of the wetted parts on 550MCR Centrifugal Slurry Pumps, Tobee Slurry pump frame plate liner insert are normally made in high chrome alloy or natural rubber, special materials are also available

price:

$15,000.00 $18,000.00

Part Number:

UMCR55041R55

Part Materials:

R55

Quantity:

- + (50 available)
Add to Favorite Items (0)

Sales: 0+

Tobee® Frame plate liner insert UMCR55041R55 is one of the wetted parts on 550MCR Centrifugal Slurry Pumps, it is called slurry pump back liner, Rare Plate. It forms a pump chamber with throat bush and volute liner where the slurry would flow through them. We proudly manufacture quality Frame Plate Liner Insert and other replacement parts for some famous pump manufactures, which are 100% REVERSE INTERCHANGEABLE, no need to change your stock.

Frame plate liner insert can be abbreviated to FPL Insert, it is a common and generally accepted alternate spelling. Slurry pump frame plate liner insert are normally made in high chrome alloy or natural rubber, special materials are also available.

Slurry Pump Frame Plate Liner Insert Code:

Frame Plate Liner Insert Code

AH Slurry Pumps

Materials

B1041

1.5/1B-AH

High chrome, Natural rubber, Polyurethane

B15041

2/1.5B-AH

High chrome, Natural rubber, Polyurethane

C2041

3/2C-AH

High chrome, Natural rubber, Polyurethane

D3041

4/3C-AH, 4/3D-AH

High chrome, Natural rubber, Polyurethane

E4041

6/4D-AH, 6/4E-AH

High chrome, Natural rubber, Polyurethane

F6041

8/6E-AH, 8/6F-AH, 8/6R-AH

High chrome, Natural rubber, Polyurethane

G8041

10/8ST-AH

High chrome, Natural rubber, Polyurethane

G10041

12/10ST-AH

High chrome, Natural rubber, Polyurethane

G12041

14/12F-AH,14/12ST-AH

High chrome, Natural rubber, Polyurethane

H14041

16/14TU-AH

High chrome, Natural rubber, Polyurethane

FPL Insert

HH Slurry Pumps

Materials

CH1041

1.5/1C-HH

High chrome, Polyurethane

DH2041

3/2D-HH

High chrome, Polyurethane

EH3041

4/3E-HH

High chrome, Polyurethane

FH4041

6/4F-HH

High chrome, Polyurethane

FH6041

6S-H, 8/6S-H

High chrome, Polyurethane

FPL Insert

L Slurry Pumps

Materials

175041

20A-L

High chrome, Natural rubber

32056

50B-L

High chrome, Natural rubber

43041

75C-L

High chrome, Natural rubber

64041

100D-L

High chrome, Natural rubber

86041

150E-L

High chrome, Natural rubber

108041

200E-L

High chrome, Natural rubber

SL30041

300S-L

High chrome, Natural rubber

SL35041

350S-L

High chrome, Natural rubber

STL40041

400ST-L

High chrome, Natural rubber

STL45041

450ST-L

High chrome, Natural rubber

TUL55041

550TU-L

High chrome, Natural rubber

FPL Insert

G(H) Gravel Pumps

Materials

DG4041

6/4D-G, 6/4E-G

High chrome

EG6041

8/6E-G

High chrome

FG8041

10/8F-G, 10/8S-G

High chrome

FG10041

12/10G-G

High chrome

GG12041

14/12G-G

High chrome

FGH8041

10/8F-GH

High chrome

SGGH10041

12/10G-GH

High chrome

TG14041

16/14TU-GH

High chrome

FPL Insert

SP Vertical Slurry Pumps

Materials

SP4041

40PV-SP

High chrome, Natural rubber, Polyurethane

SP65041

65QV-SP

High chrome, Natural rubber, Polyurethane

SP10041

100RV-SP

High chrome, Natural rubber, Polyurethane

SP15041

150SV-SP

High chrome, Natural rubber, Polyurethane

SP20041

200SV-SP

High chrome, Natural rubber, Polyurethane

SP25041

250TV-SP

High chrome, Natural rubber, Polyurethane

SP30041

300TV-SP

High chrome, Natural rubber, Polyurethane

Tobee offers spare parts for T-MCR 350, T-MCR 400, T-MCR 450, T-MCR 550, T-MCR 650, T-MCR 750 etc.

T - MCR mill circuit duty slurry pumps are designed for the most aggressive duties and provide excellent wear life and reliability. Hydraulic and wear experience combined with advanced material technology make mill circuit pumps the best choice for mill circuit applications.

T - MCR mill circuit pumps easily manage large size particles in highly abrasive slurries and are specifically designed for the most severe slurry applications such as ball and SAG mill cyclone feed plus water-flush crushing in mineral processing plants.

T - MCR mill circuit pump hydraulics are based on more than 30 years of fundamental and applied research and backed up by wear performance field trials. Unique design and wear evaluation software promotes high efficiency and optimum life.

T - MCR mill circuit pump designs incorporate the latest in hypereutectic alloy and elastomer technology, extending wear life in highly abrasive and corrosive slurries.

Designed Features:
• Large diameter, low speed, high efficiency impeller manufactured from a range of abrasion resistant alloys provides increased wear life.
• Patented shrouds that extend past the periphery of the impeller and expelling vanes are designed to provide improved flow and reduced wear at the expelling vane tips.
• Large, open internal passages which reduce internal velocities thus reducing wear.
• A large diameter shaft with a short overhang and heavy duty roller bearings housed in a low profile fixed assembly or a removable bearing cartridge.
• Patented casing profile with more material in areas of high particle impingement gives exceptional wear life.
• Reversible casing allows the discharge orientation to be either “right vertical” position (standard) or “left vertical” position, thereby giving greater flexibility to the plant layout designer. The only additional parts required to effect the changeover are the clockwise rotation impeller and shaft.
