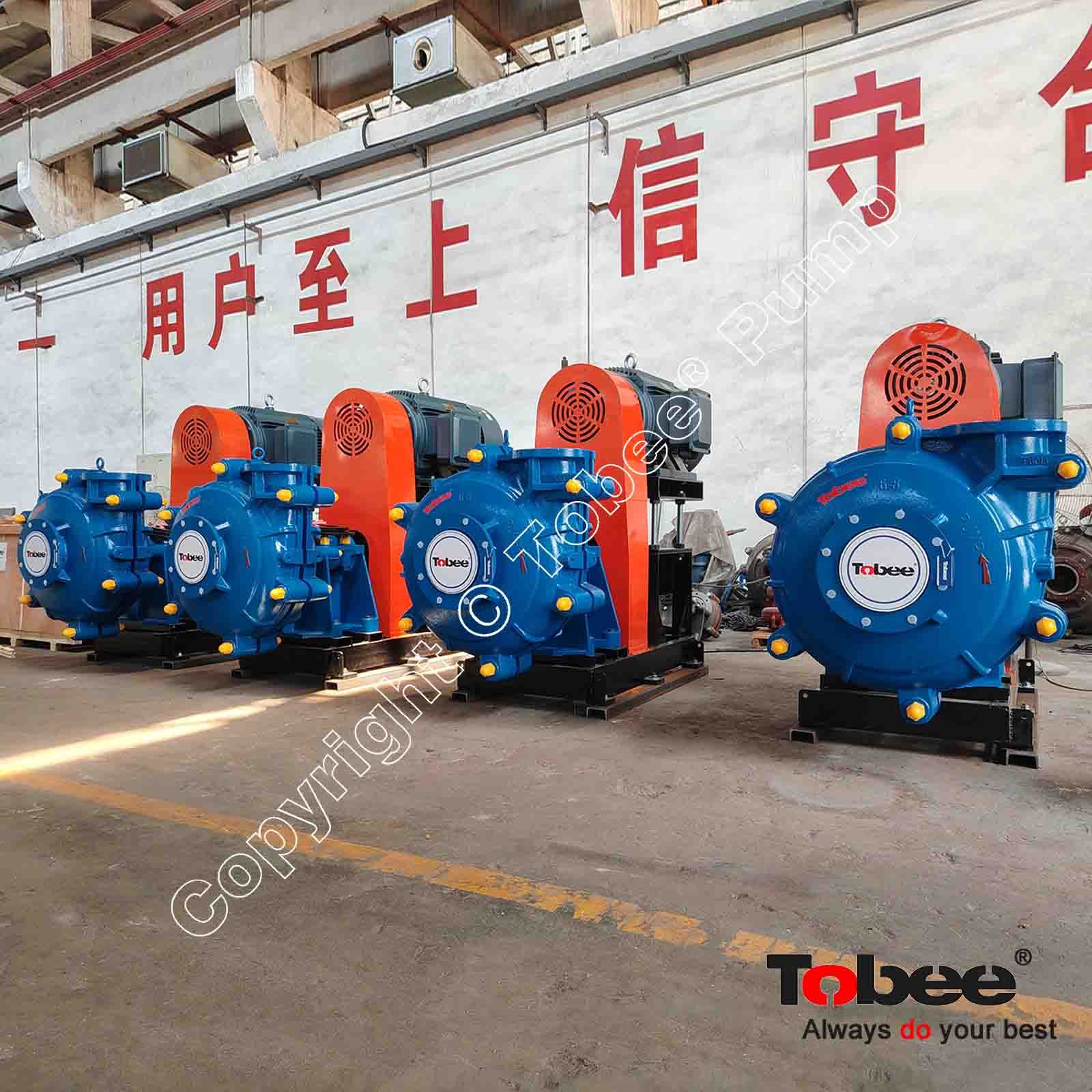

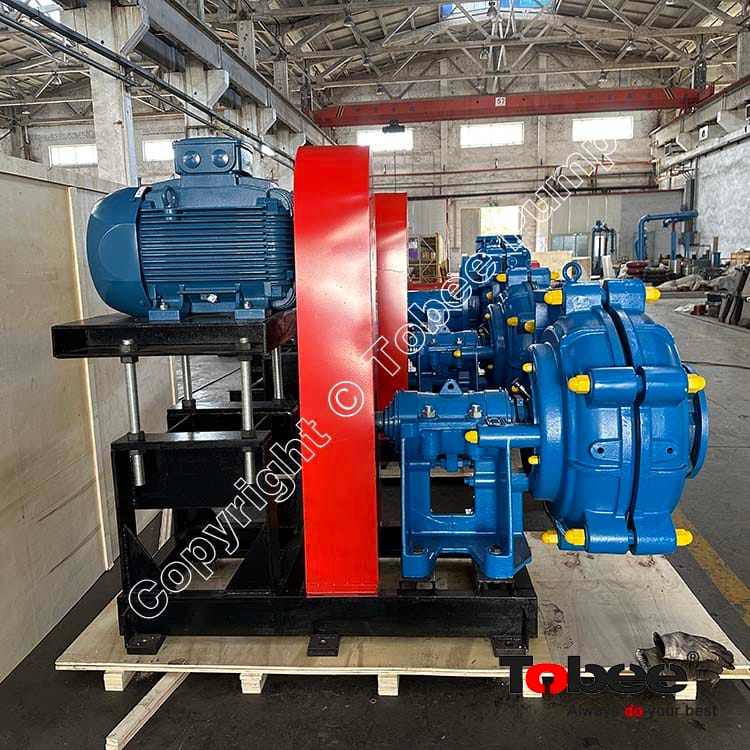

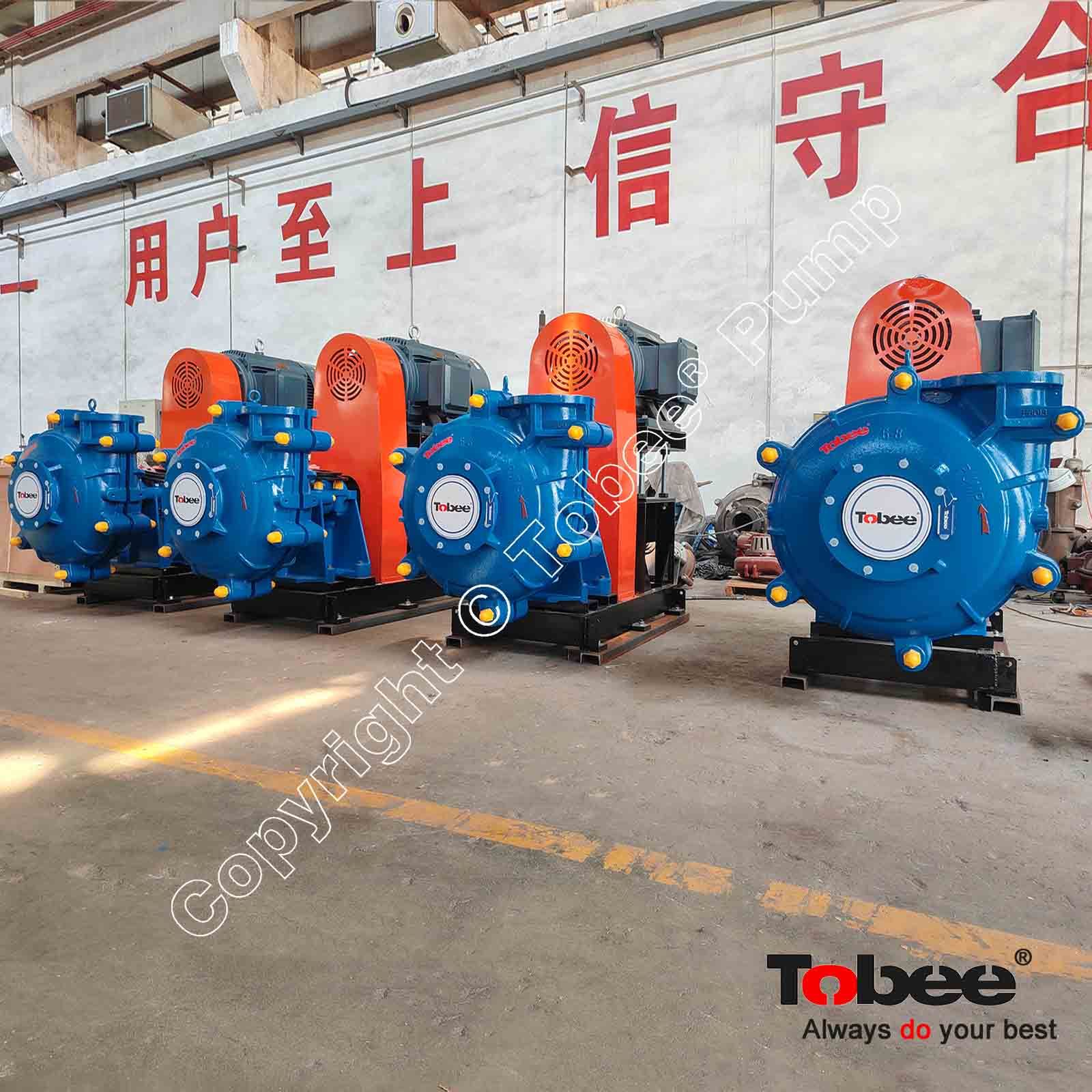

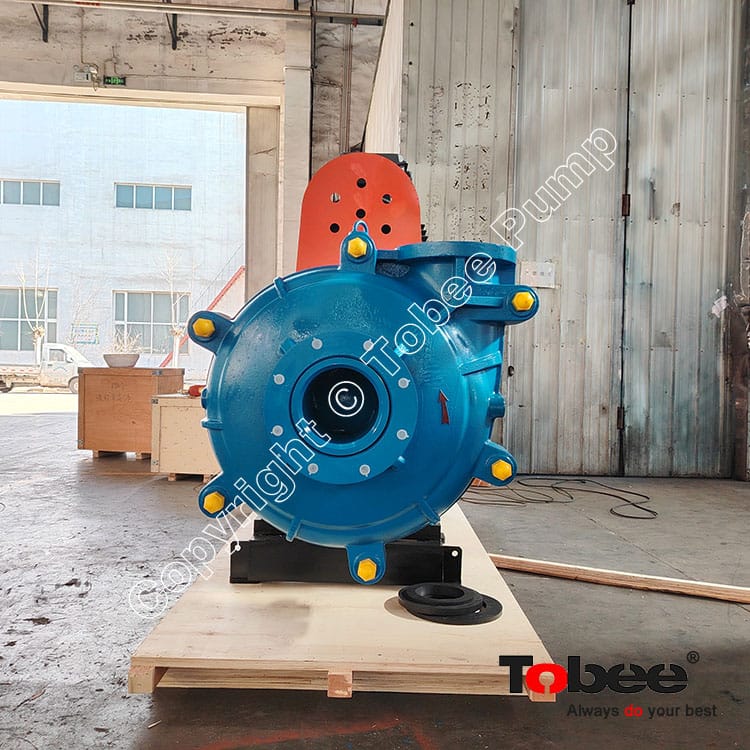

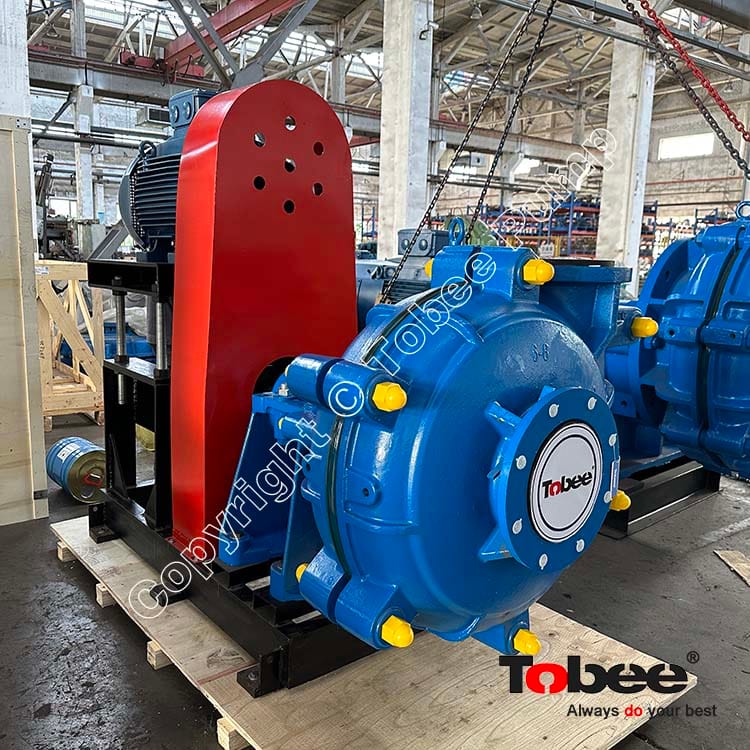

Tobee® TH8x6E Slurry Pump is equivalent to 8x6E-AH model Slurry Pump, mainly handling high abrasive and high-density slurries in iron ore mines and mineral processing plants.
Slurry Pump Design Features:
√ Bearing assembly - a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
√ Volute Liners - easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure moulded elastomer.
√ Elastomer seal rings back all liner joints.
√ Pump casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
√ Impeller–front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and moulded elastomer impellers are completely interchangeable.
√ Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
√ Throatbush - wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
√ One-piece frame - a very robust one-piece frame cradles the cartridge type bearing and shaft assembly.
√ An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.
Tobee® TH8/6E Slurry Pump Parameters:
Model | Max. Power (kw) | Materials | Clear Water Performance | Impeller Vane No. | |||||
Liner | Impeller | Capacity Q (m3/h) | Head H (m) | Speed n (rpm) | Eff. η (%) | NPSH (m) | |||
TH8/6E | 120 | M | M | 360-828 | 10-61 | 500-1140 | 72 | 2-9 | 5 |
