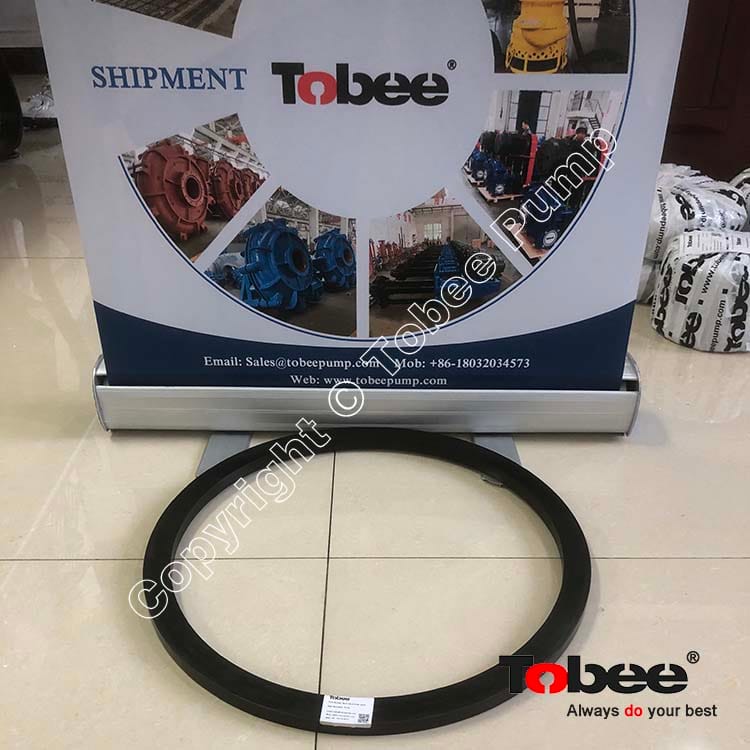

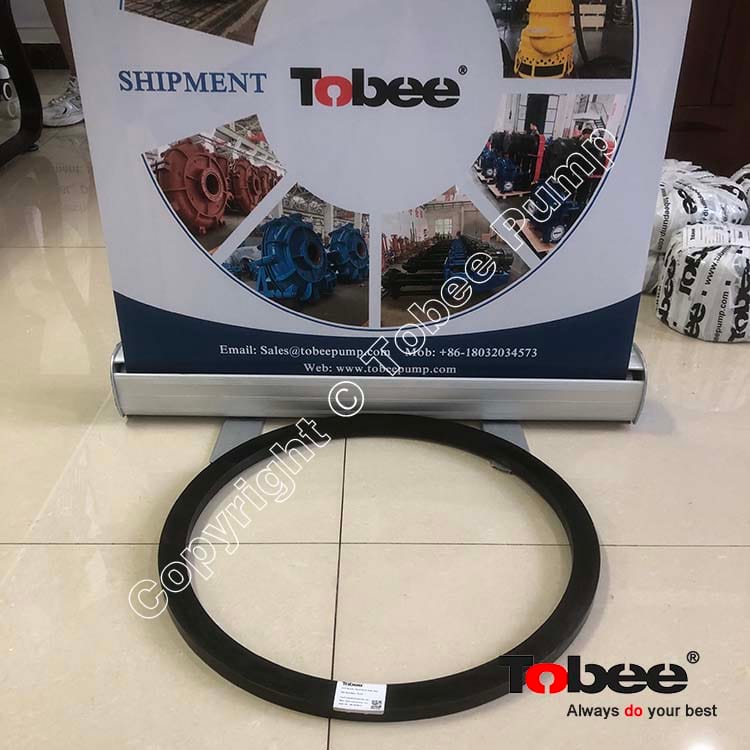

Stuffing Box Seal F122 Pump Parts of Slurry Mud Sand Pumps

Product Brands: Tobee

Tobee® AH Series Slurry Pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, minerals processing, coal preparation, dredging, metallurgy, power plant, chemical and general industry applications. The wetted parts materials designed by High abrasion and corrosion resistance alloy, rubber or polyurethane etc.

price:

$73.00

Pumps Model:

8/6E-AHR 8x6E-AHR 8/6E-AH 8x6E-AH

Parts Codel:

F122

HS Code:

8413910000

Quantity:

- + (100 available)

Add to Favorite Items (0)

Sales: 0+

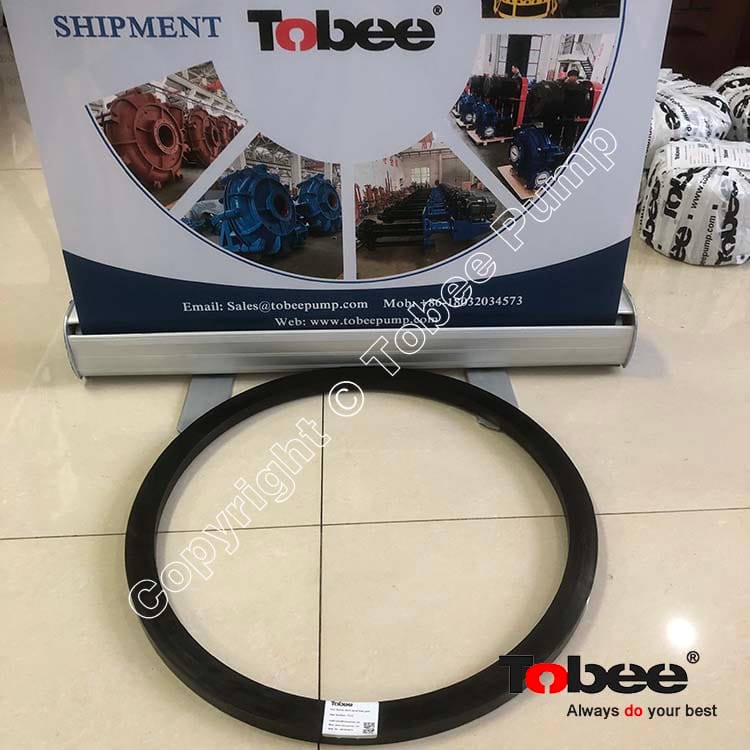

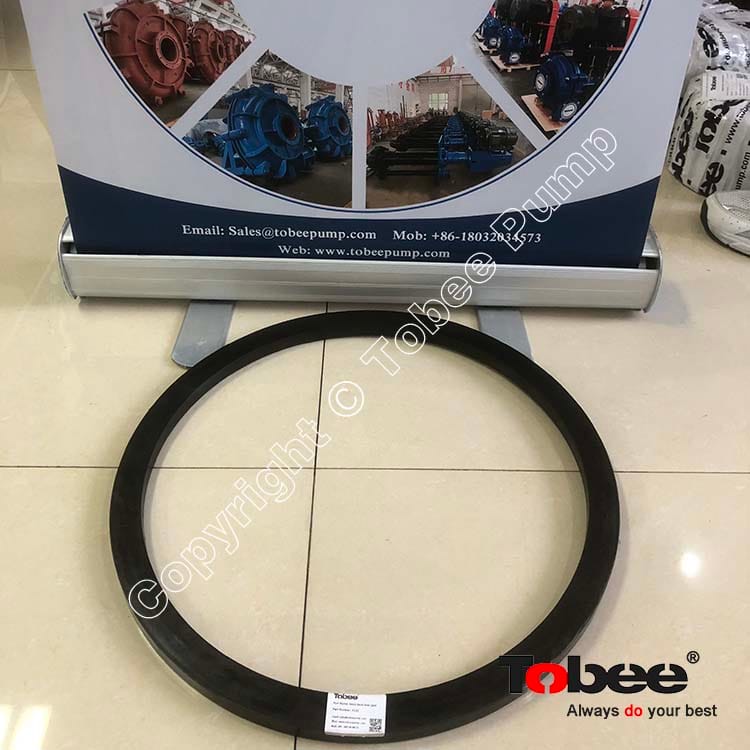

Tobee^®Slurry Pump Stuffing Box Seal stayed between the stuffing box (078) and frame plate liner insert (041) for avoiding leak. Material for slurry pump seals is great significance to its sealing performance and service life, so Tobee can supply the slurry pump rubber seals in NBR, HNBR, SIL, VITON, FLS, EPDM, CR, IIR, ACM, NR etc. rubber material based on the different application. Tobee offered slurry pump rubber seals with the appropriate mechanical strength, including expansion strength, elongation tear resistance, and the slurry pump seals are not susceptible to corrosion, thus do not contaminate the medium.

Slurry Pump Rubber Seals included: Intake joint seal, Impeller O-ring, Bearing seal, Shaft seal,Shaft O-ring, Stuffing box seal, Volute cover seal, FPL insert seal, Discharge joint, etc.

Slurry Pump Stuffing Box Seal Codes: B122, C122, D122, E122, F122, G122, H122, CH122, EP122, EH122, FH122, 32122, 43122, 64122, 86122, U18122...

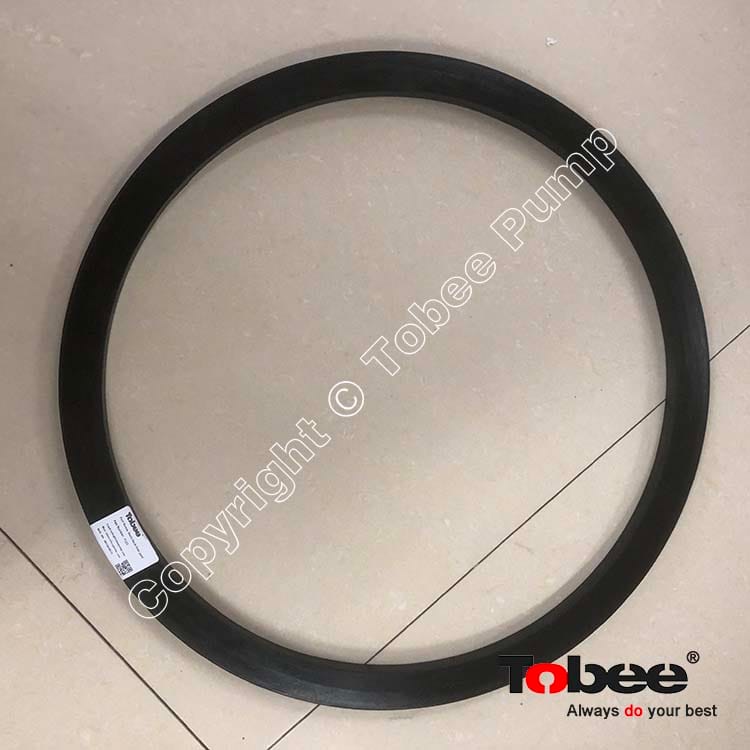

Seals Back Liner Joint F122 Pump Parts of Slurry Mud Sand Pumps

Tobee^® Slurry Pump Parts Design Features:

√ Bearing assembly - a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
√ Volute Liners - easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure moulded elastomer.
√ Elastomer seal rings back all liner joints.
√ Pump casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
√ Impeller–front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and moulded elastomer impellers are completely interchangeable.
√ Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
√ Throatbush - wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
√ One-piece frame - a very robust one-piece frame cradles the cartridge type bearing and shaft assembly.
√ An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

Tobee^® Slurry Pump Rubber Parts Applications:

Tobee Slurry Pump Rubber Parts are widely used for AH/HH/L/M Horizontal slurry pumps, SPR Vertical rubber lined slurry pumps, Centrifugal horizontal slurry pumps, Warman rubber lined slurry pumps, Chemical slurry pumps, Silica sand slurry pumps, Minerals processing slurry pumps, De-Watering Screen Pump, Ore sand pumps, Tailings Pump, Pipe-jacking slurry pumps, Ball mill discharge Pump, Tunnelling slurry pumps, Mixing tank slurry Pump, Wet crushers slurry pumps, SAG mill discharge pumps, Ball mill discharge pumps, Rod mill discharge slurry pumps, Ni acid slurry pumps, Coarse sand pumps, Coarse tailings pumps, Phosphate matrix slurry pumps, Scrubber slurry Pump, Minerals concentrate pumps, Heavy media slurry pumps, Dredging Sand slurry pumps, Bottom ash slurry pumps, Fly ash pumps, Lime grinding pumps, Screen feed Pump, Oil sands pumps, Mineral Sands pumps, Fine tailings pumps, Tailings booster Pump, Thickner Tailings Pump, Process recycle Pump, Pipeline transfer pumps, Phosphoric acid slurry pumps, Coal slurry pumps, Flotation pumps.

Label: Slurry Pump Parts Slurry Pump Spare Parts Mud Pump Parts centrifugal sand pump parts acid proof slurry pump parts Gravel Pump Parts horizontal slurry pump parts Spare Parts for Slurry Pump Pump Spare Parts
