Home > SLURRY PUMP PARTS > AH Slurry Pump Parts > 12/10 AH Slurry Pump > 12/10F-AHR Slurry Pump Ceramic Long Shaft Sleeve FAM076J04 FAM076J05

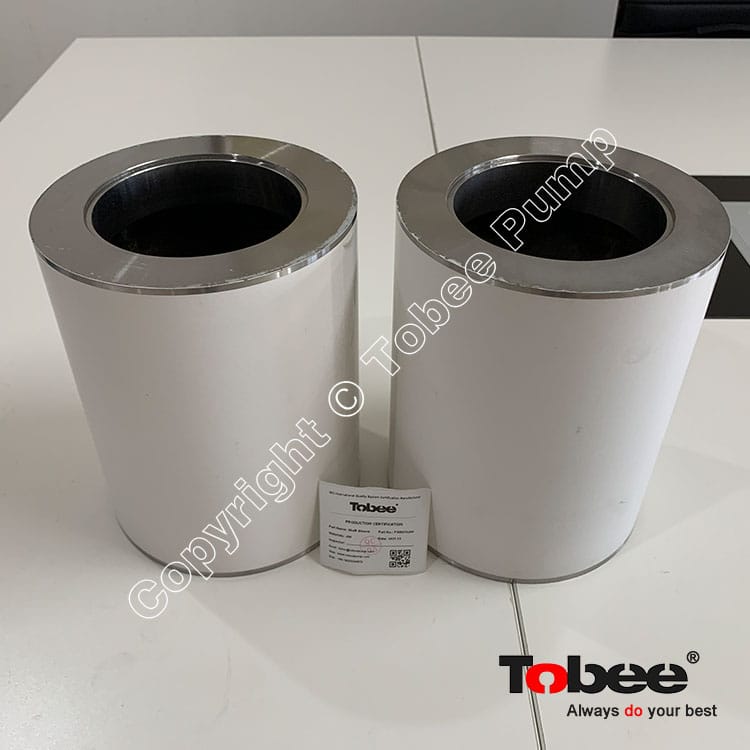

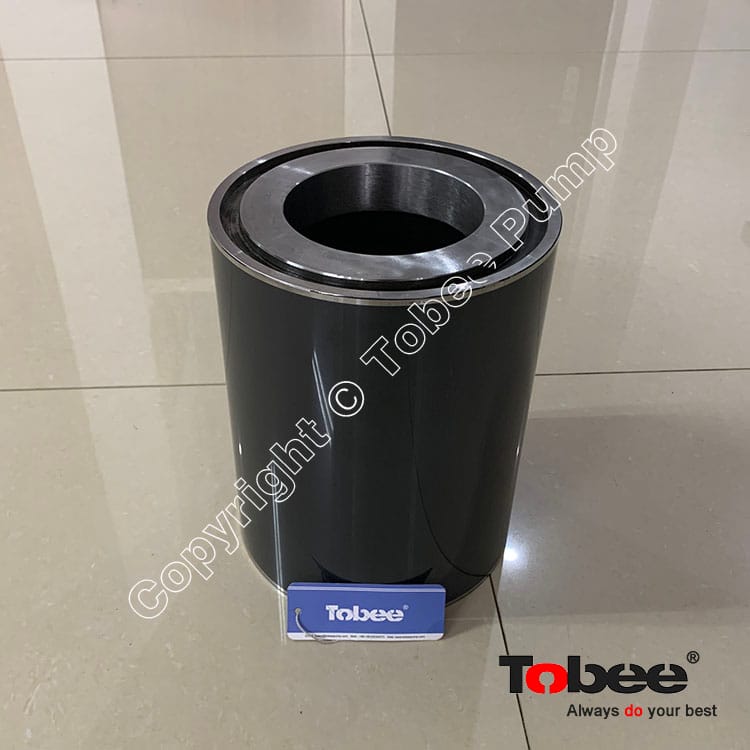

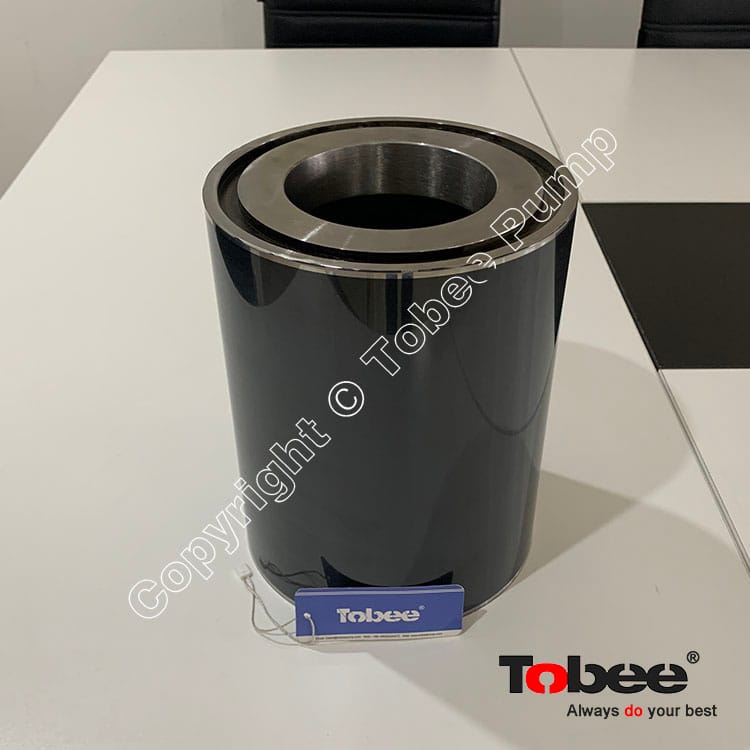

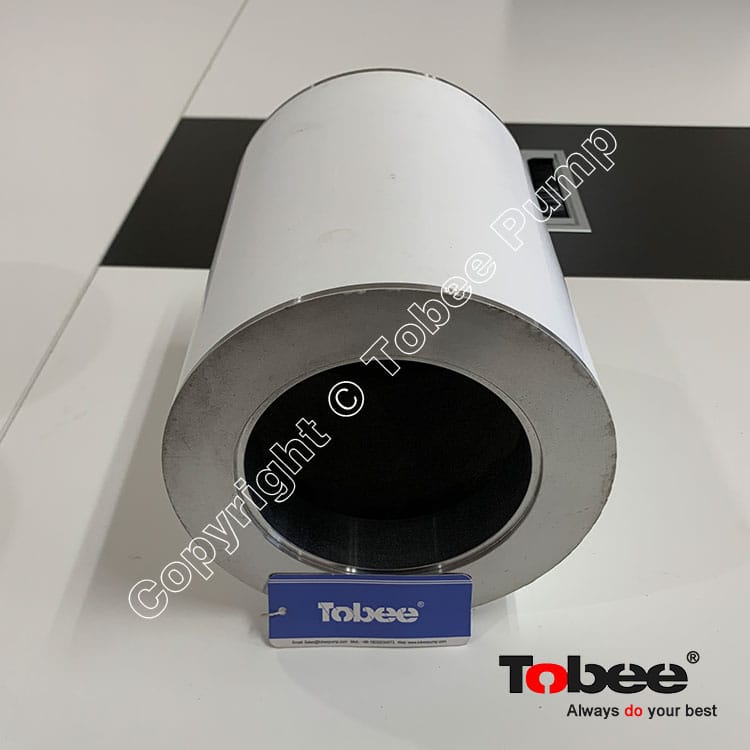

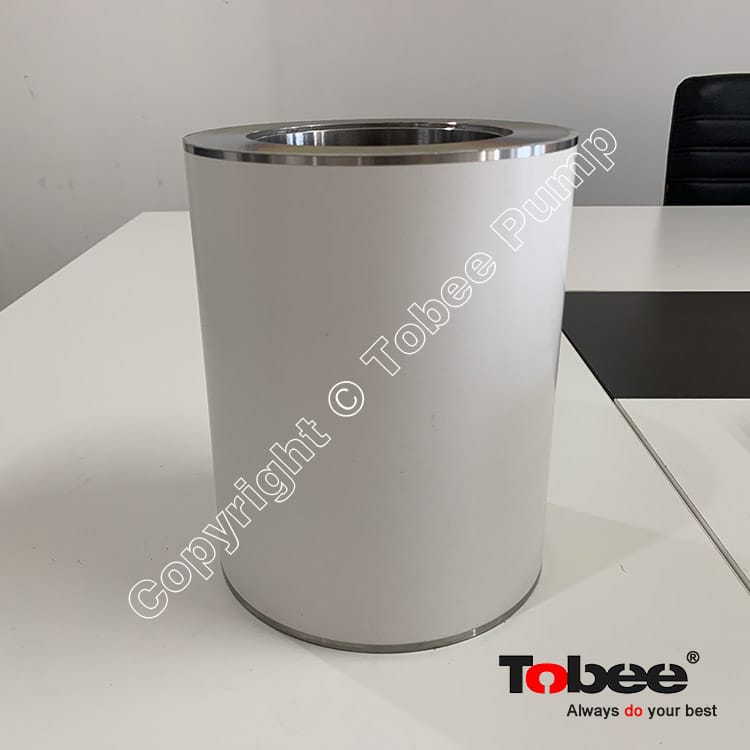

12/10F-AHR Slurry Pump Ceramic Long Shaft Sleeve FAM076J04 FAM076J05

(0 Reviews)

TB-FAM076J05

Product Brands: Tobee

Ceramic Long Shaft Sleeve FAM076J04 FAM076J05 are used on 12/10F-AH, 12/10F-AHR Slurry pumps.

price:

$980.00

HS Code:

8413910000

Quantity:

- + (69 available)
Add to Favorite Items (0)

Sales: 0+

Tobee®12x10F-AH Slurry Pump Long Shaft Sleeve FAM076J04  J05 has an extended work life several times than steel shaft sleeve FAM076C21.

Ceramic Shaft Sleeve for 12/10 Pump is a kind of inorganic nonmetallic material. Its wear-resisting performance is 5 times of high chrome with Mohs hardness 8.9, only after Diamond and Cubic Boron Nitride. Compare with similar products, Tobee ceramic density is about 5% higher than others, and double flexural strength higher at normal temperature.

Ceramic Slurry Pump spare parts is a kind of inorganic nonmetallic material. Its wear-resisting performance is 5 times of high chrome with Mohs hardness 8.9, only after Diamond and Cubic Boron Nitride. Compare with similar products, Tobee’s ceramic density is about 5% higher than others, and double flexural strength higher at normal temperature. The Ceramic Slurry Pump Parts mainly included impeller, Liners, Throat bush, Volute, Shaft Sleeve etc., the abrasion resistance of ceramic slurry pump parts are 5 times as wearable as high chrome slurry pump parts. However, the weight of ceramic spare parts is only 1/3 of chrome spare parts.

Tobee® Slurry Pump Ceramic Shaft Sleeve which has undergone destructive field tests for over 18 months, has proved to extend part life several times that of steel shaft sleeves on the same pump, same service. Total maintenance costs and downtime were reduced accordingly. Tobee slurry pump ceramic shaft sleeves are precision formed of high-density alumina, fired, and ground to size. The hardness of ceramics (9.0 to 9.5 MOH Scale) resists this destructive action, In addition, the ceramic coated sleeve surface is highly polished which, together with its lower coefficient of friction, results in extended sleeve life and long service from the packing.

Tobee® offers part codes for ceramic shaft sleeves include: B075J04, B075J05, C075J04, C075J05, CH075J04, CH075J05, CH076J04, CH076J05, D075J04, D075J05, E075J04, E075J05, F075J04, F075J04, FAM075J04, FAM075J05, FAM076J04, FAM076J05, PE075J04, PE075J05, PF075J04, PF075J05, G075J04, G075G05, SH075J04, SH075J05, SH076J04,SH076J05, GH075J04, GH075J05, GH076J04, GH076J05.

Centrifugal Slurry Pumps Shaft Sleeves Spare Parts Code List:

Shaft Sleeve Code

AH Slurry Pump

Shaft Sleeve Materials

B075

1.5/1B-AH, 2/1.5B-AH

SS420, SS304, SS316L, Ceramic

C075

3/2C-AH, 4/3C-AH

SS420, SS304, SS316L, Ceramic

D075

4/3D-AH, 6/4D-AH

SS420, SS304, SS316L, Ceramic

E075

6/4E-AH, 8/6E-AH, 8/6R-AH

SS420, SS304, SS316L, Ceramic

F075

8/6F-AH

SS420, SS304, SS316L, Ceramic

FAM075

10/8F-AH, 12/10F-AH, 14/12F-AH

SS420, SS304, SS316L, Ceramic

SH075

10/8ST-AH, 12/10ST-AH, 14/12ST-AH

SS420, SS304, SS316L, Ceramic

TH075

16/14TU-AH

SS420, SS304, SS316L, Ceramic

TH076

16/14TU-AH

SS420, SS304, SS316L, Ceramic

Shaft Sleeve Code

HH Slurry Pump

Shaft Sleeve Materials

CH075

1.5/1C-HH

SS420, SS304, SS316L, Ceramic

D075

3/2D-HH

SS420, SS304, SS316L, Ceramic

E075

4/3E-HH

SS420, SS304, SS316L, Ceramic

F075

6/4F-HH

SS420, SS304, SS316L, Ceramic

Shaft Sleeve Code

M Slurry Pump

Shaft Sleeve Materials

E075

10/8E-M

SS420, SS304, SS316L, Ceramic

F075

10/8F-M

SS420, SS304, SS316L, Ceramic

Shaft Sleeve Code

L Slurry Pump

Shaft Sleeve Materials

A075

20A-L

SS420, SS304, SS316L, Ceramic

BSC075

50B-L

SS420, SS304, SS316L, Ceramic

C075

75C-L

SS420, SS304, SS316L, Ceramic

D075

100D-L

SS420, SS304, SS316L, Ceramic

E075

150E-L

SS420, SS304, SS316L, Ceramic

S075

300S-L

SS420, SS304, SS316L, Ceramic

Shaft Sleeve Code

G(H) Gravel Pump

Shaft Sleeve Materials

D075

6/4D-G

SS420, SS304, SS316L, Ceramic

E075

8/6E-G

SS420, SS304, SS316L, Ceramic

F075

10/8F-G

SS420, SS304, SS316L, Ceramic

G075

12/10G-G, 14/12G-G, 12/10G-GH

SS420, SS304, SS316L, Ceramic

TH075

14/12TU-G,16/14TU-G,16/14TU-GH

SS420, SS304, SS316L, Ceramic

TH076

14/12TU-G, 16/14TU-G, 16/14TU-GH

SS420, SS304, SS316L, Ceramic
