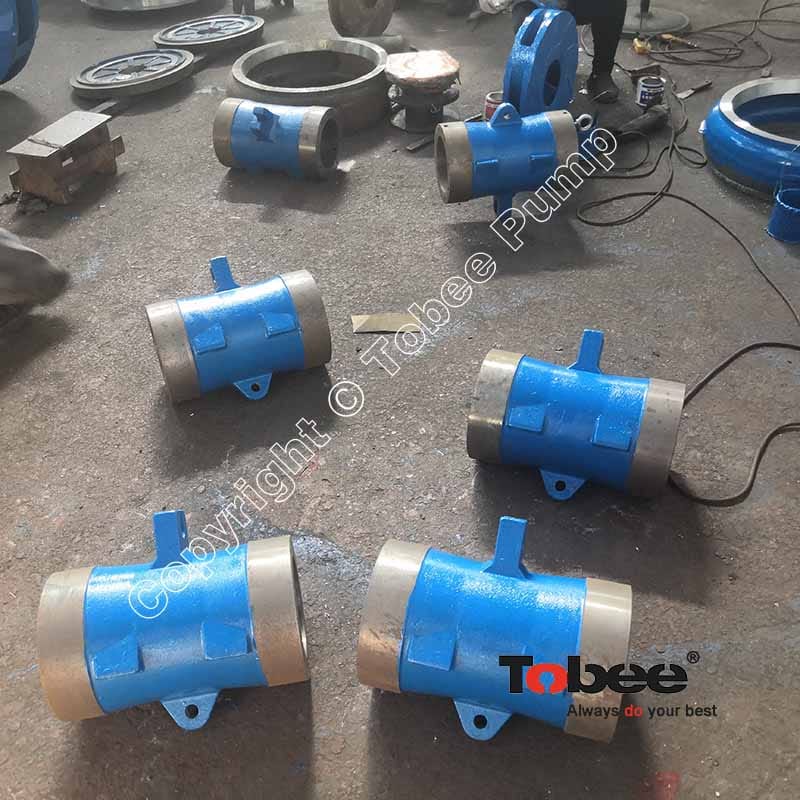

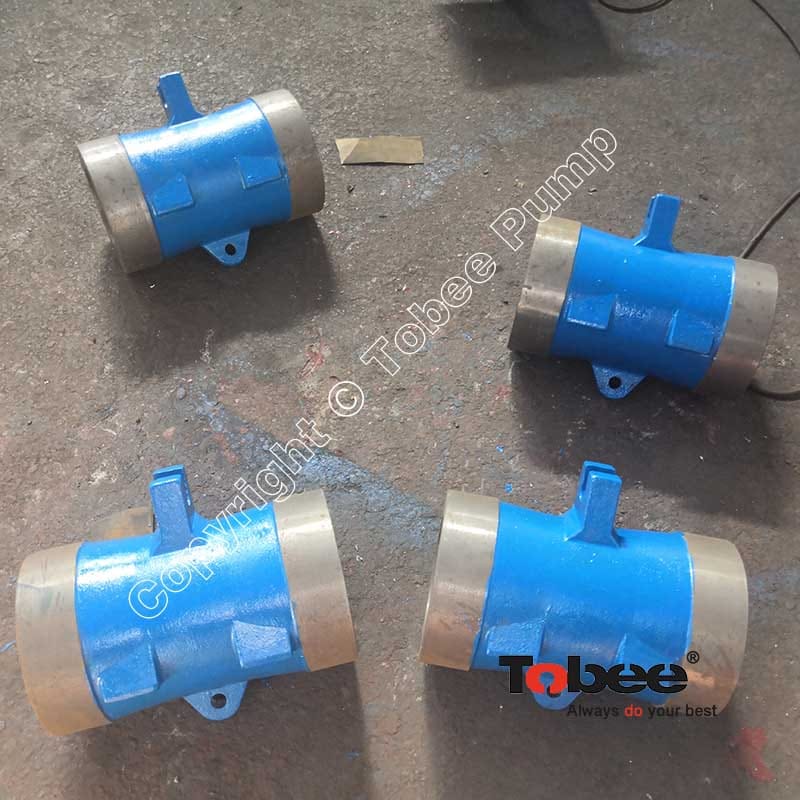

Slurry pump bearing housing

(360 Reviews)

TB-004

Product Brands: Tobee

Slurry pump shaft, slurry pump bearing housing, slurry pump bearings, slurry pump end cover, and slurry pump labyrinth, etc.assembled a slurry pump bearing assembly

price:

$98.00

Parts Code:

004

HS Code:

8413910000

Certificates:

ISO CE SGS

Quantity:

- + (200 available)
Add to Favorite Items (390)

Sales: 300+

Bearing Housing with Shaft for Bearing Assembly of Heavy Duty Slurry Pumps. Introduction: Bearing assembly is an assembled part which comprises parts like shaft, bearing housing, bearings, end cover, labyrinth, etc. and is the rotor part of a slurry pump.Heavy duty roller bearings are housed in a removable bearing cartridge. Cartridge type with grease lubricated roller bearings designed for more than 60 000 operating hours.

Slurry pump shaft, slurry pump bearing housing, slurry pump bearings, slurry pump end cover, and slurry pump labyrinth, etc.assembled a slurry pump bearing assembly, and is the rotor parts of slurry pump. The bearings installed are branded, ZWZ, HRB, SKF, TIMKEN.

6/4 E-AH Slurry Pump Parts List:

No.

Pump Parts Name

Pump Model

Pump Parts Code

Matl. Code

Unit Weight
(kg)

1

Adjust Screw

6/4E-AH

E001

E62



2

Base

6/4E-AH

E003

G01

143.0

3

Bearing Assembly

6/4E-AH

E005M

ZWZ Bearing

113.0

4

Bearing Housing

6/4E-AH

E004M

G01

43.5

5

Cover Plate

6/4E-AH

E4013

D21

90.0

6

Cover Plate Bolt

6/4E-AH

E4015

E65



7

Cover Plate Liner

6/4E-AH

E4018

R55

10.0

8

Cover Plate Liner

6/4E-AH

E4018TL1

R55

10.0

9

Discharge Joint

6/4E-AH

E4132L

S01

0.4

10

End Cover

6/4E-AH

E024

G01

3.3

11

Expeller

6/4E-AH

E028

A05

7.3

12

Expeller Ring

6/4E-AH

E029

A05

15.2

13

Expeller Ring

6/4E-AH

E029R

R55

4.5

14

Frame Plate

6/4E-AH

E4032

D21

106.0

15

Frame Plate Bolt

6/4E-AH

DAM026

E62



16

Frame Plate Liner

6/4E-AH

E4036

R55

17.0

17

Frame Plate Liner

6/4E-AH

E4036TL1

R55

17.0

18

Frame Plate Liner Insert

6/4E-AH

E4041

A05

29.0

19

Frame Plate Stud

6/4E-AH

D039

E62



20

Gland

6/4E-AH

E044

G01

2.6

21

Gland

6/4E-AH

E044

C23



22

Gland Bolt

6/4E-AH

E045

C23



23

Grease Retainer

6/4E-AH

E046

G01

1.9

24

Impeller

6/4E-AH

E4147

A05

68.0

25

Impeller

6/4E-AH

E4147

R55

23.3

26

Intake Joint

6/4E-AH

E4060

S01

0.5

27

Labyrinth

6/4E-AH

E062

G01

2.0

28

Labyrinth Locknut

6/4E-AH

E061

E62

0.6

29

Lantern Restrictor

6/4E-AH

E118

C23

1.0

30

Lantern Ring

6/4E-AH

E063

C23

0.6

31

Neck Ring

6/4E-AH

E067

C23

0.2

32

O ring

6/4E-AH

E109

S10



33

O ring

6/4E-AH

F064

S10



34

Packing

6/4E-AH

E111

Q05



35

Packing

6/4E-AH

E111

Q05A



36

Packing

6/4E-AH

E111

Q21



37

Packing

6/4E-AH

E111

X06



38

Piston Ring

6/4E-AH

E108

G01



39

Seal

6/4E-AH

E122

S01

0.4

40

Shaft

6/4E-AH

E073M

E05

41.6

41

Shaft Sleeve

6/4E-AH

E075

C21

2.0

42

Shaft Sleeve

6/4E-AH

E075

C23

2.0

43

Shaft Sleeve

6/4E-AH

E075

J05



44

Shaft Sleeve

6/4E-AH

E076

C21

2.0

45

Shaft Sleeve

6/4E-AH

E076

C23

2.0

46

Shaft Sleeve

6/4E-AH

E076

J05



47

Shaft Spacer

6/4E-AH

E117

C21

1.2

48

Shaft Spacer

6/4E-AH

E117

C23



49

Shaft Spacer

6/4E-AH

E117

J05



50

Shim Set

6/4E-AH

E025

P10



51

Stuffing Box

6/4E-AH

E078

A05

15.6

52

Throatbush

6/4E-AH

E4083

A05

46.0

53

Throatbush

6/4E-AH

E4083

R55

17.4

54

Volute Frame Seal

6/4E-AH

E4124

S01

0.6

55

Volute Liner

6/4E-AH

E4110

A05

97.0
