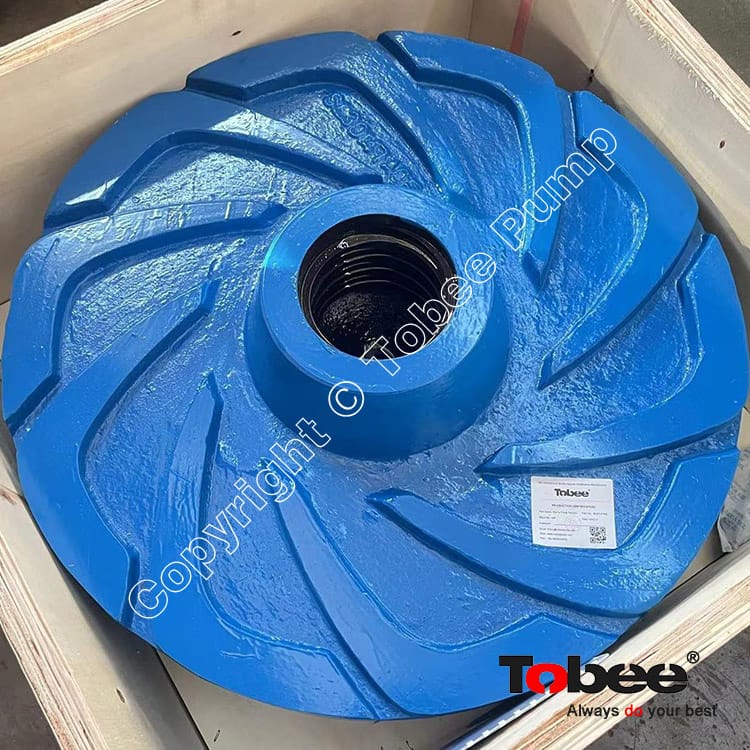

SL30147A05-Impeller for 300S-L slurry pump

Tobee® Impeller SL30147A05 is made from A05 that will be used for 300S-L Horizontal Slurry Pump.

The slurry pump impeller is one of the most important parts of the slurry pumps. It is located in the pump casings on the shaft and connects with the motor to form a centrifugal force system. When the motor drives the impeller to rotate, the blades force fluid to rotate, increasing its pressure, potential energy, and kinetic energy. At the same time, under the force of inertia, fluid flows from the center to the edge of the impeller, out at a very high speed, and passes through the discharge pipeline to be transported. When an impeller is rotating, and in good condition, the slurry pump can easily meet output expectations. however, highly prone to wear and require regular maintenance to ensure efficiency.

Design Features:

√ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.

√ Ductile iron fully lined casing provides durability, strength, safety, and long service life.

√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.

√ Large, open internal passages designed to reduce internal velocities, maximize wear life and lower operating costs.

√ Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximize wear life.

√ Designed for rugged duties while offering excellent efficiencies.

√ Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.

√ Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life.

√ Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.

√ Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.

√ Mechanical seals reduce flush water usage, minimizing pump operating costs.
