Shaft Sleeve Ceramic Coated F075J04 for 6/4F-HH Mining Mud Mixing Pump

Product Brands: Tobee

Tobee® Ceramic Shaft Sleeves for 6/4 Pump are an unavoidable cost associated with operating centrifugal slurry pumps, the primary slurry pump parts included impeller, volute, frame plate liner insert, throatbush and bearing assembly etc.

price:

$350.00 $420.00

Parts Material:

J04 White Ceramic J05 Black Ceramic

Pumps Model:

6/4F-HH 6x4F-HH 6/4F HH 6x4F HH

HS Code:

8413910000

Quantity:

- + (100 available)

Add to Favorite Items (0)

Sales: 0+

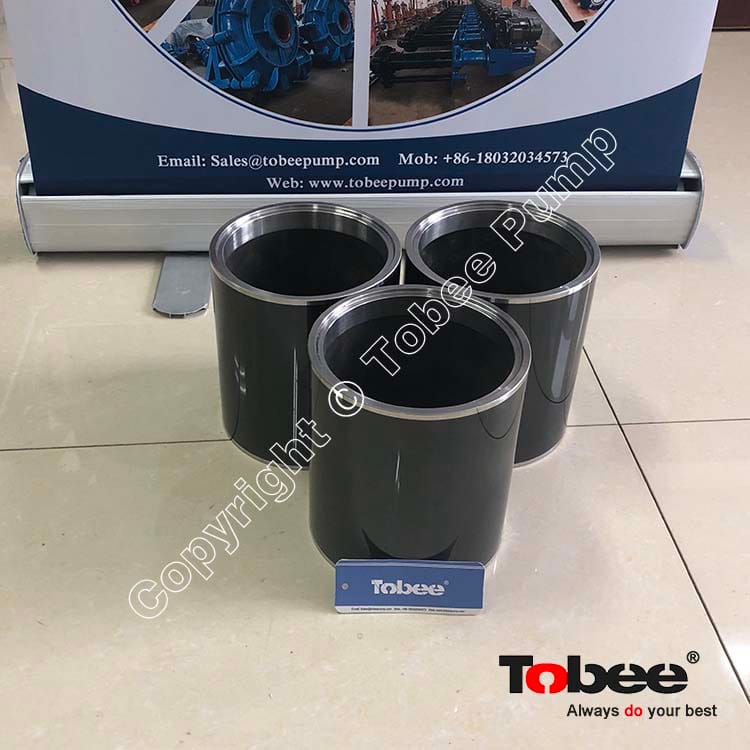

Tobee^® Slurry Pump Ceramic Shaft Sleeve, which has undergone destructive field tests for over 18 months, has proved to extend part life several times that of steel shaft sleeves on the same pump, same service. Total maintenance costs and down-time were reduced accordingly. Tobee's slurry pump ceramic shaft sleeves are precision formed of high density alumina, fired, and ground to size. The hardness of ceramics (9.0 to 9.5 MOH Scale) resists this destructive action, In addition, the ceramic coated sleeve surface is highly polished which, together with its lower co-efficient of friction, results in extended sleeve life and long service from the packing.

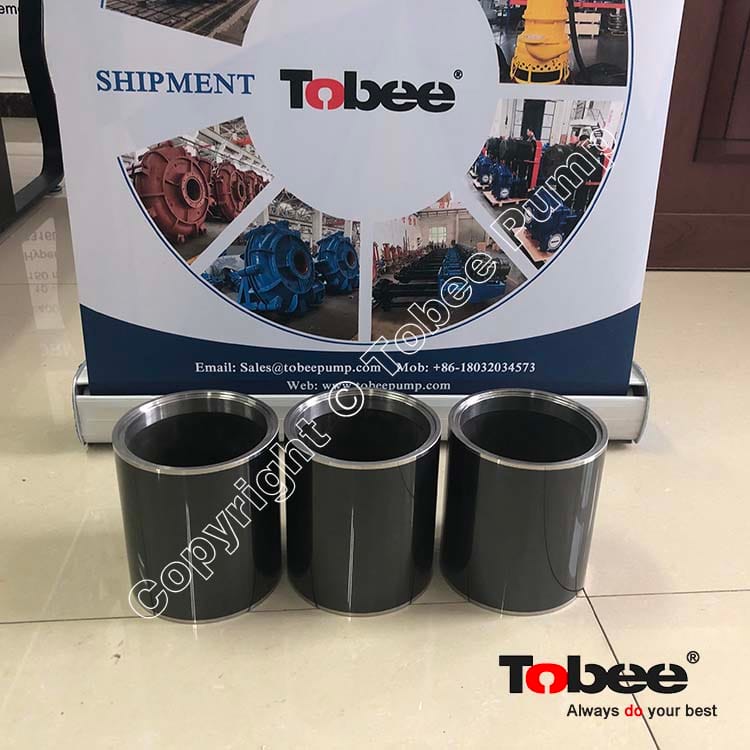

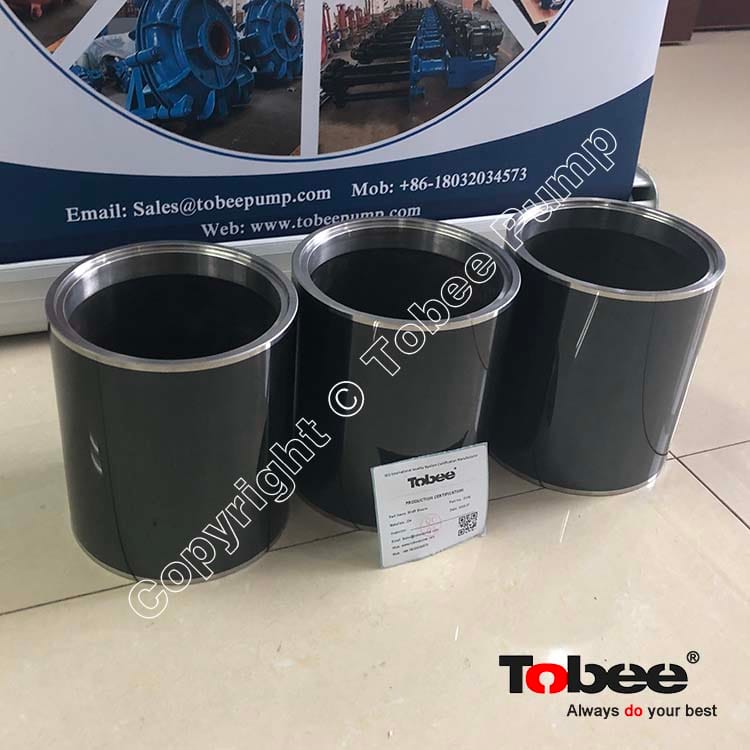

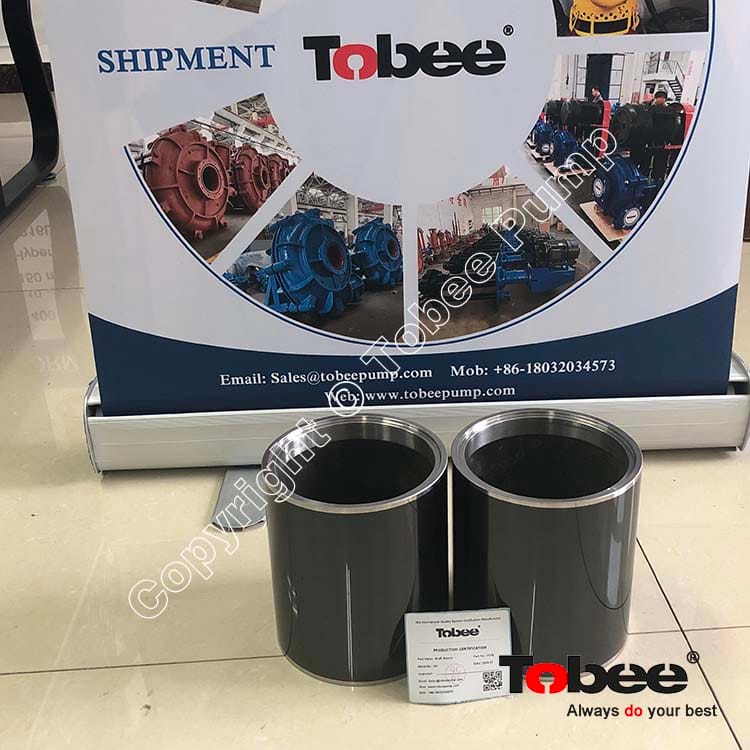

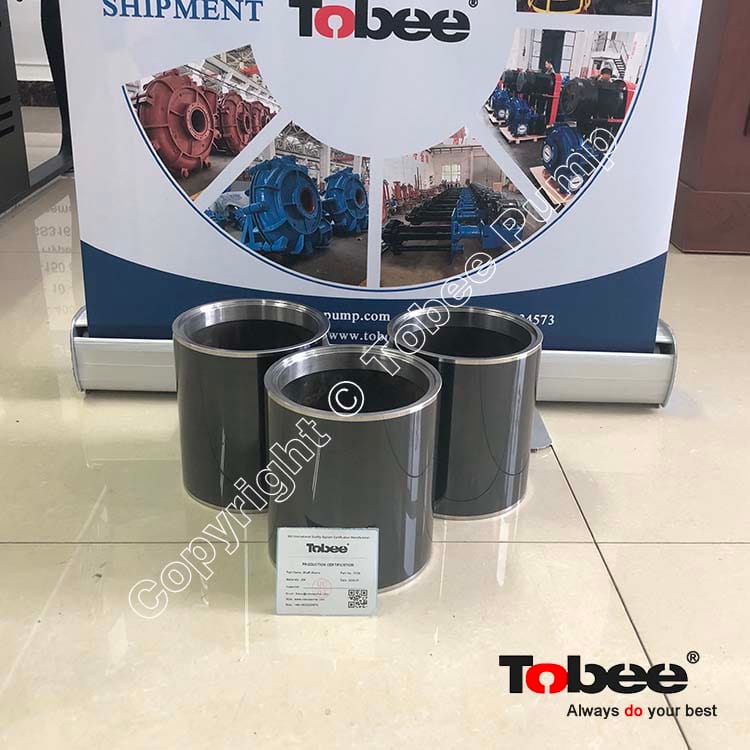

Shaft Sleeve Ceramic Coated F075J04 for 6/4F-HH Mining Mud Mixing Pump

Tobee^® Slurry Pump Ceramic Shaft Sleeves Code:

Ceramic Shaft Sleeve Code	AH Slurry Pump	Ceramic Shaft Sleeve Materials
B075	1.5/1B-AH, 2/1.5B-AH	J04 White Ceramic, J05 Black Ceramic
C075	3/2C-AH, 4/3C-AH	J04 White Ceramic, J05 Black Ceramic
D075	4/3D-AH, 6/4D-AH	J04 White Ceramic, J05 Black Ceramic
E075	6/4E-AH, 8/6E-AH, 8/6R-AH	J04 White Ceramic, J05 Black Ceramic
F075	8/6F-AH	J04 White Ceramic, J05 Black Ceramic
FAM075	10/8F-AH, 12/10F-AH, 14/12F-AH	J04 White Ceramic, J05 Black Ceramic
SH075	10/8ST-AH, 12/10ST-AH, 14/12ST-AH	J04 White Ceramic, J05 Black Ceramic
TH075	16/14TU-AH	J04 White Ceramic, J05 Black Ceramic
TH076	16/14TU-AH	J04 White Ceramic, J05 Black Ceramic
Ceramic Shaft Sleeve Code	HH Slurry Pump	Ceramic Shaft Sleeve Materials
CH075	1.5/1C-HH	J04 White Ceramic, J05 Black Ceramic
D075	3/2D-HH	J04 White Ceramic, J05 Black Ceramic
E075	4/3E-HH	J04 White Ceramic, J05 Black Ceramic
F075	6/4F-HH	J04 White Ceramic, J05 Black Ceramic
Ceramic Shaft Sleeve Code	M Slurry Pump	Ceramic Shaft Sleeve Materials
E075	10/8E-M	J04 White Ceramic, J05 Black Ceramic
F075	10/8F-M	J04 White Ceramic, J05 Black Ceramic
Ceramic Shaft Sleeve Code	L Slurry Pump	Ceramic Shaft Sleeve Materials
A075	20A-L	J04 White Ceramic, J05 Black Ceramic
BSC075	50B-L	J04 White Ceramic, J05 Black Ceramic
C075	75C-L	J04 White Ceramic, J05 Black Ceramic
D075	100D-L	J04 White Ceramic, J05 Black Ceramic
E075	150E-L	J04 White Ceramic, J05 Black Ceramic
S075	300S-L	J04 White Ceramic, J05 Black Ceramic
Ceramic Shaft Sleeve Code	G(H) Gravel Pump	Ceramic Shaft Sleeve Materials
D075	6/4D-G	J04 White Ceramic, J05 Black Ceramic
E075	8/6E-G	J04 White Ceramic, J05 Black Ceramic
F075	10/8F-G	J04 White Ceramic, J05 Black Ceramic
G075	12/10G-G, 14/12G-G, 12/10G-GH	J04 White Ceramic, J05 Black Ceramic
TH075	14/12TU-G,16/14TU-G,16/14TU-GH	J04 White Ceramic, J05 Black Ceramic
TH076	14/12TU-G, 16/14TU-G, 16/14TU-GH	J04 White Ceramic, J05 Black Ceramic
