Andman S3-200-470.3 Pump Design Advantage:
• Impeller: Adopting full open type impeller with large channel design by precision casting, No. of vanes is 3-6 vanes,This configuration can reduce the axial force, And in the transporting, it will not generate bubbles, non-clog impeller channel,Improving the pulp concentration.
• Volute casing: Adopting single stage vortex casing, big size, Casing is designed as double casing structure for reducing radial force and axis deviation.
• Materials: Various materials of Wetted parts are available, Such as Cast iron, SS304, SS316L, Duplex stainless steel etc.
• Shaft seal: Mechanical seals and packing seal can be used as per requested.
• Severe application: Excellently suited for transporting media containing solids (e.g. for pulp, paper, or effluent applications).

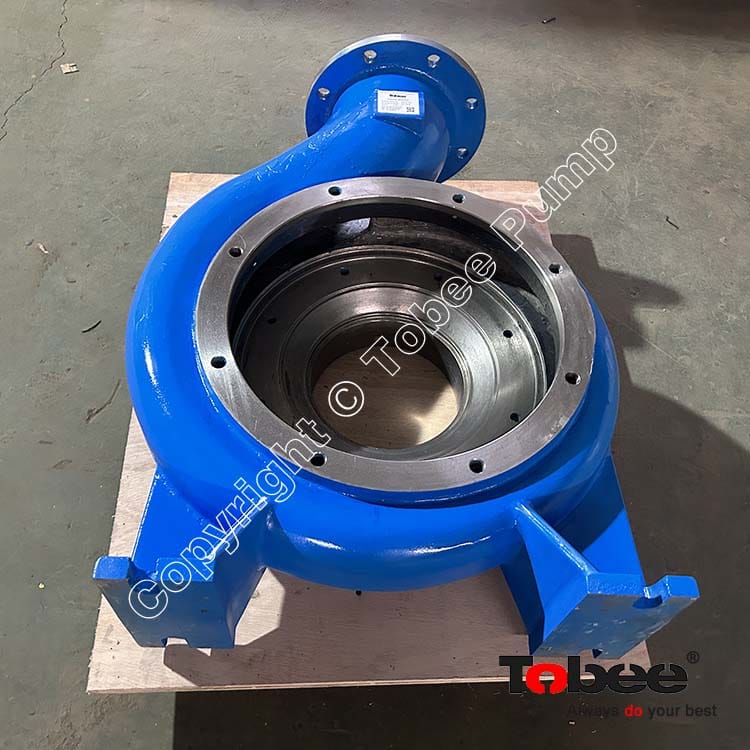

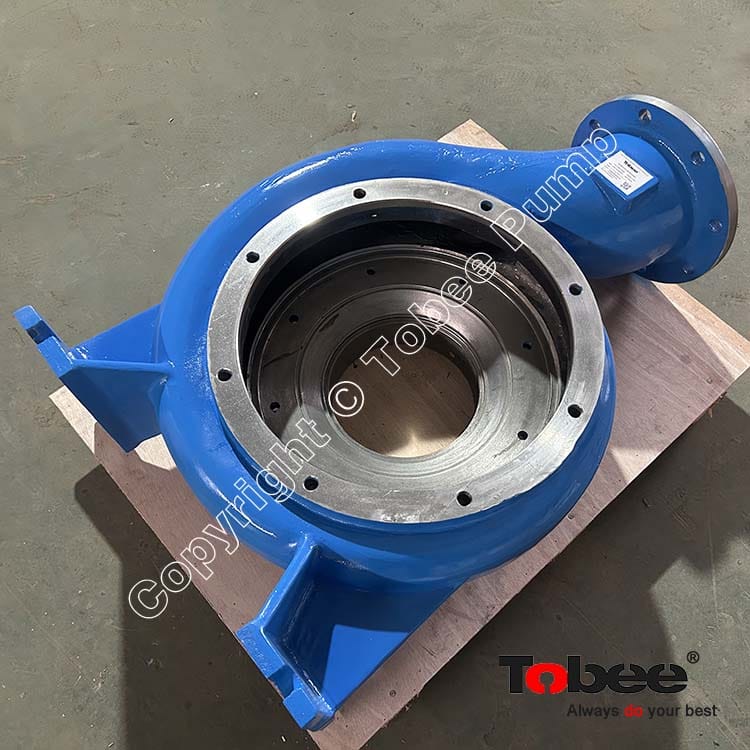

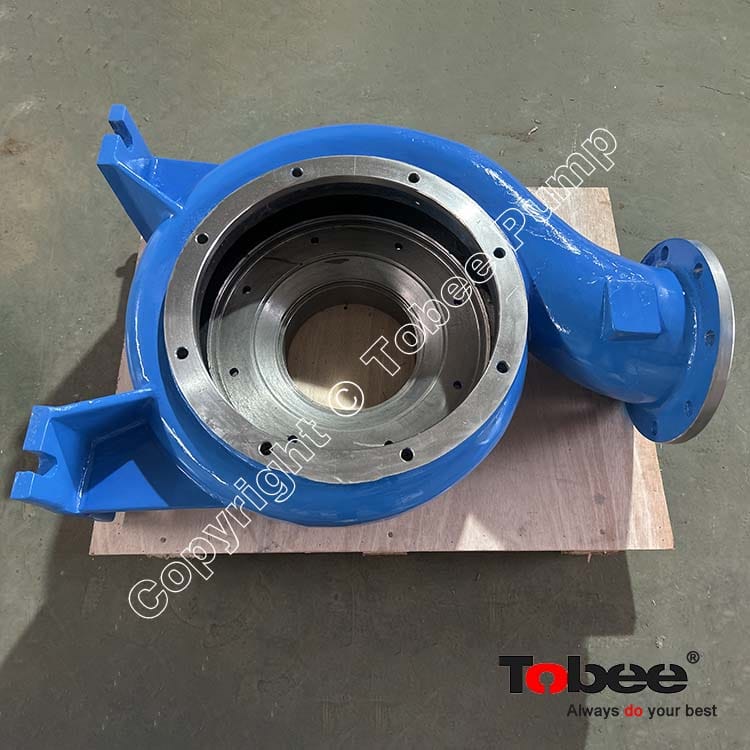

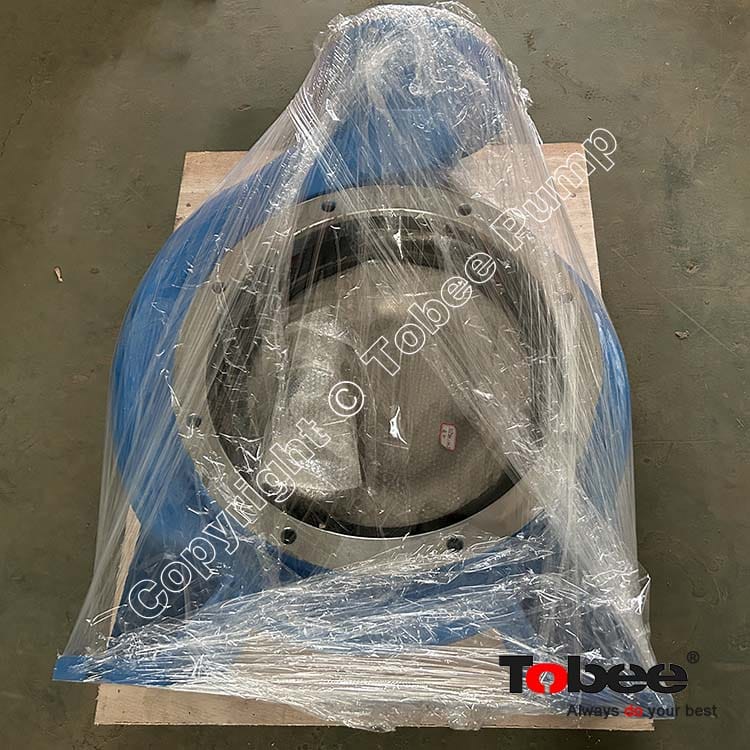

The Volute Casing 102 suitable for S Series, the model: S 80-265, S 100-265, S 125-265, S 100-350, S 125-350, S150-330, S125-400, S 150-400, S 200-380, S 150-470, S 200-470, S 250-430, S 350-470, S 500-600, S 600-700.
Andman® paper parts including impellers (2 vanes, 3 vanes, 6 vanes, 8 vanes), casings, casing cover, front lining, rear lining, stuffing box body, shaft.
Andman® Pump is always making continuous optimization of materials like Cast steel, EPDM, Hypalon, Hastelloy, CD4MCu, Viton, Fluoroplastic, Ceramic, Bronze, Titanium, Aluminum and other anti-abrasive & corrosive materials for various applications.
Such as impeller: EN-GJL 250, 1.4460 and 1.4517, casing/casing cover: EN-GJL 250 and 1.4460, volute casing: EN-GJL 250, EN-GJS-400-15 and 1.4460, bearing housing EN-GJL 250 and 1.4468, front and rear lining: 1.4460 and 1.4517, stuffing box body EN-GJL 250, 1.4460 and 1.4408, shaft: 1.4021 & 1.4462 and 1.4404 & 1.4439, etc.

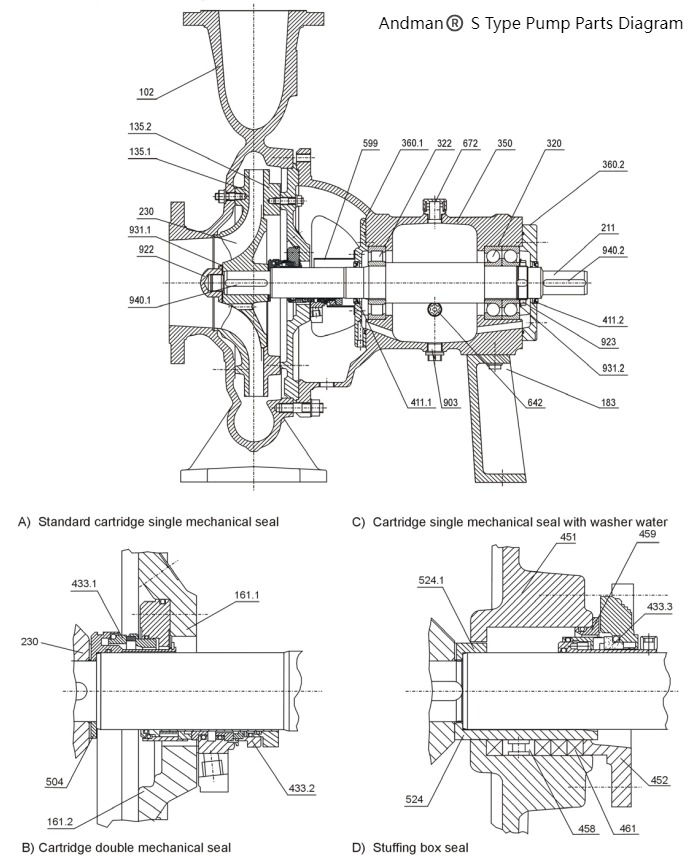

Andman® S Type Paper Pulp Centrifugal Pump Parts Dragram:
Item | Qty | Description | Item | Qty | Description |
102 | 1 | Volute casing | 433.3 | 1 | Cartridge mechanical seal-ACS3| |
135.1 | 1 | Front lining | 451 | 1 | Stuffing box body (STB) |
135.2 | 1 | Rear lining | 452 | 1 | Stuffing box gland |
135.3 | 1 | Rear lining for dynamic seal | 458 | 1 | Sealing water ring |
161 | 1 | Casing cover (SMS) | 459 | 1 | Transition ring |
161.1 | 1 | Casing cover (ACS1) | 461 | 4(5) | Stuffing box packing |
161.2 | 1 | Casing cover (ACS2) | 500.3 | 1 | Adjusting ring |
161.3 | 1 | Casing cover (DYA) | 511 | 1 | Back-up ring for dynamic seal |
183 | 1 | Support leg | 504 | 1 | Spacer |
211 | 1 | Pump shaft | 524 | 1 | Shaft protection sleeve (STB) |
230 | 1 | Impeller | 524.1 | 1 | Shaft sleeve(ACS3) |
235 | 1 | Wing wheel | 540 | 1 | Shaft sleeve for dynamic seal |
320 | 2 | Roller bearing | 599 | 2 | Sealing guard |
322 | 1 | Cylindrical roller bearing | 642 | 2 | Oil sight glass |
350 | 1 | Bearing housing | 672 | 1 | Vent valve |
360.1 | 1 | Bearing cover, pump end | 903 | 1 | Oil-draining plug |
360.2 | 1 | Bearing cover, coupling end | 922 | 1 | Impeller nut |
410 | 1 | PTFE seal ring | 923 | 1 | Shaft nut |
411.1 | 1 | Bearing isolator | 931.1 | 1 | Locking plate |
411.2 | 1 | Bearing isolator | 931.2 | 1 | Locking plate |
433 | 1 | Mechanical seal-MG (si/si) | 932 | 1 | Lock washer |
433.1 | 1 | Cartridge mechanical seakACS1 | 940.1 | 1 | Key (pump end) |
433.2 | 1 | Cartridge mechanical seal-ACS2 | 940.2 | 1 | Key (coupling end) |
