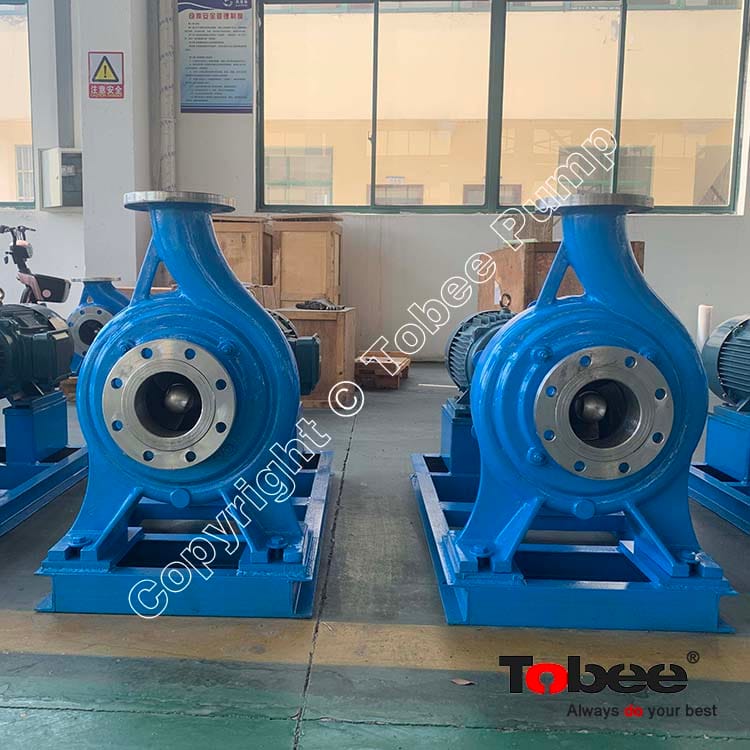

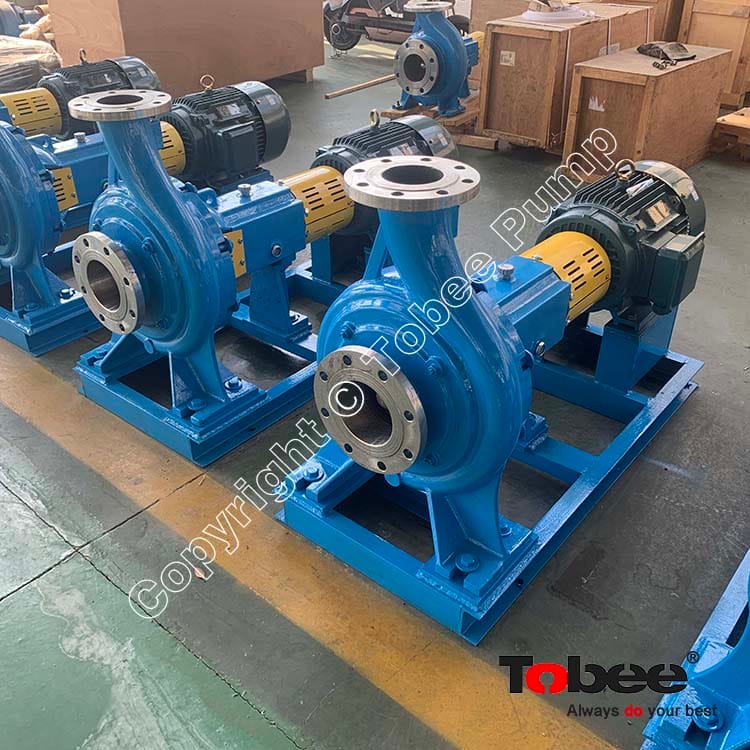

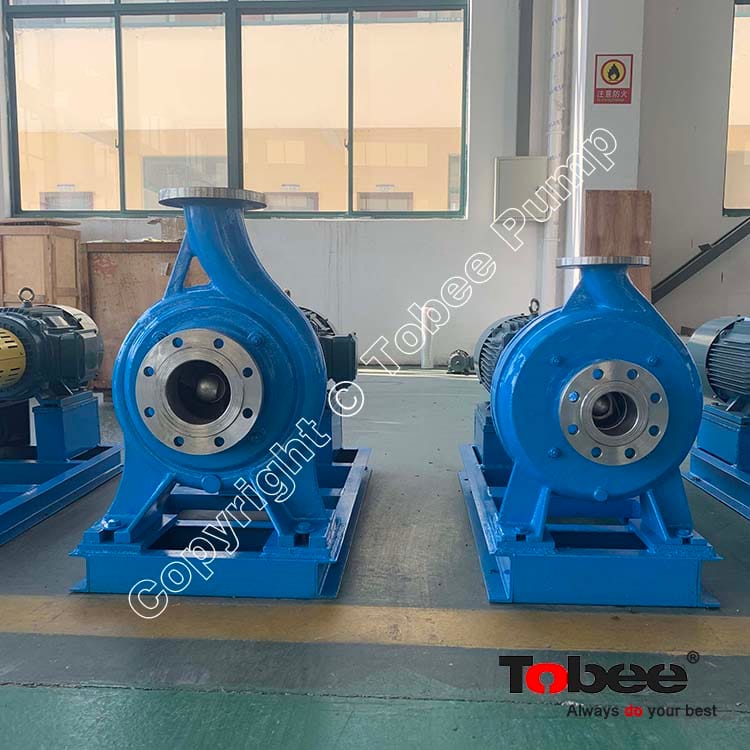

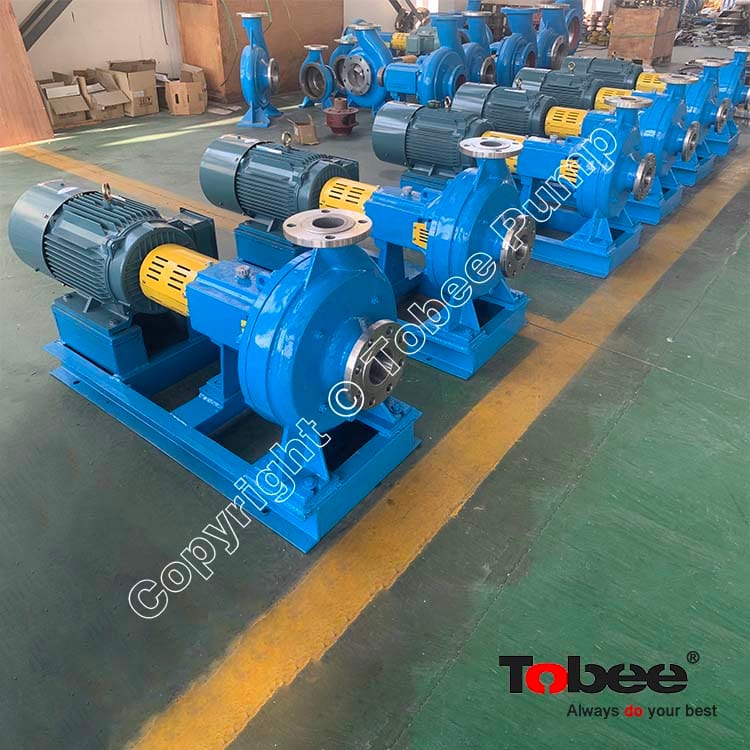

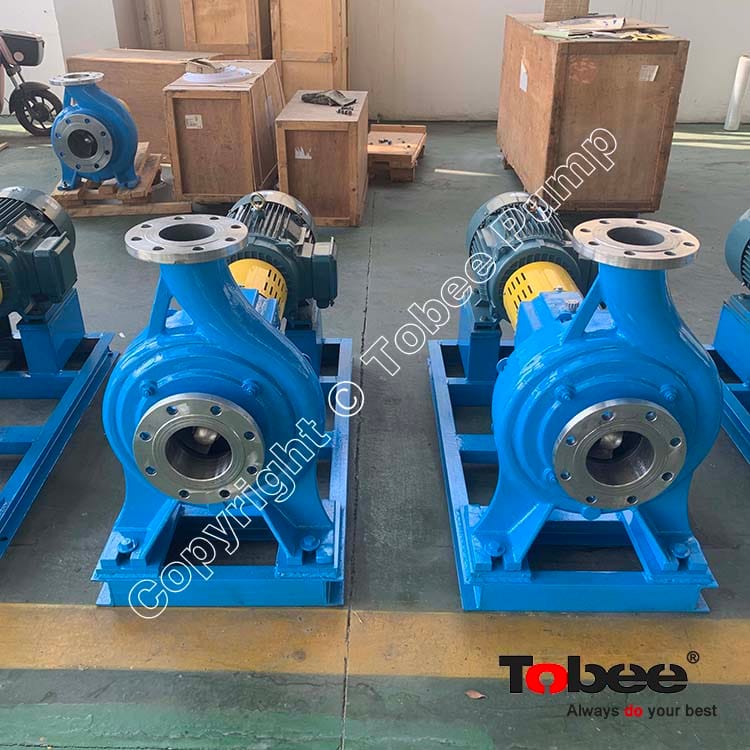

Andman® S series single-stage process centrifugal pumps are available with closed, semi-open or open impellers. These wear-resistant pumps are suitable for working with a wide range of media. Depending on the type of impeller, they can transport contaminated liquids with amount of solids up to 8%. They are used as process pumps in paper, chemical, sugar, energy, food industries, water, sewage treatment, drainage or other systems.
Paper pulp Pumps Advantages:
1. High efficiency and energy saving: The operating efficiency is 3-10 percentage points higher than that of ordinary pulp pumps on average, and the energy saving and consumption reduction reach 15-30%.
2. Good cavitation performance and long service life: the actual service life can be 2-3 times longer than that of ordinary pulp pumps;
3. High concentration and no clogging: the pulp concentration can reach 6%;
4. Reasonable structure and convenient maintenance: The pump head part adopts a front and rear door-opening structure. There is no need to disassemble the pipeline during maintenance. The pump can be disassembled and repaired by simply moving the motor backward.
Andman® ACP and S series Pump Specifications:
Design:single-stage, single-flow, open and semi-open impeller
Consistency:up to 8%
Head:10-180 m
Flow rate:up to 8,000 m3/h
Pressure:up to 40 bar
Temperature:up to 200℃
Efficiency:up to 90%
Andman® ACP and S series Pump benefits:
Maximum efficiency of up to 90%
State-of-the-art NPSH behavior
Part load behavior better than industry benchmark
Reduced number of spare parts to be held in stock
The modular system of Andman® end-suction centrifugal pumps only needs 5 bearing support sizes.
