Tobee Horiozntal Inline Pumps common used for pumping the water in connection with cooling systems, like seawater coooling pumps, bilge pumps, ballast pumps, fire pumps, brine pumps, pumps for irrigation,district heating, salvage corps, army and navy, etc.

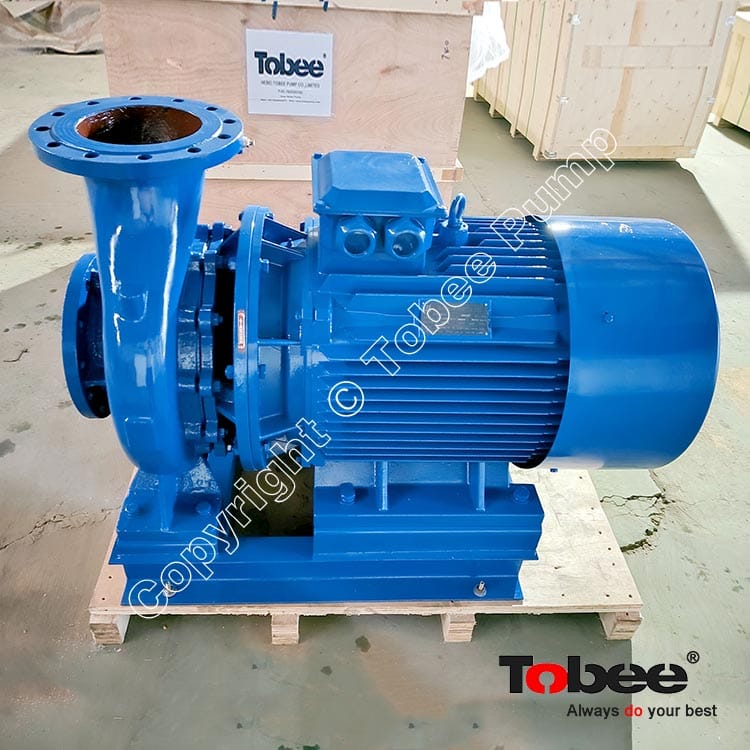

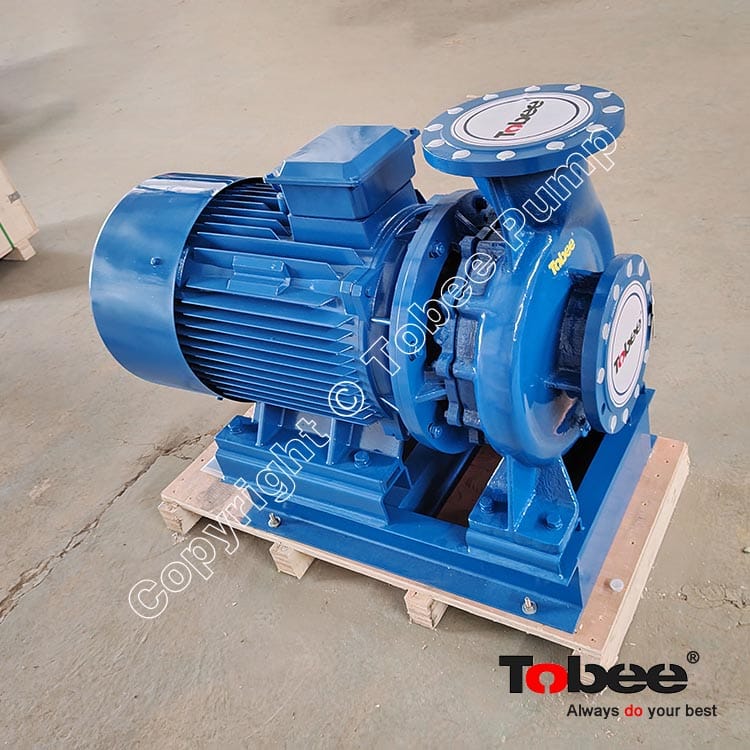

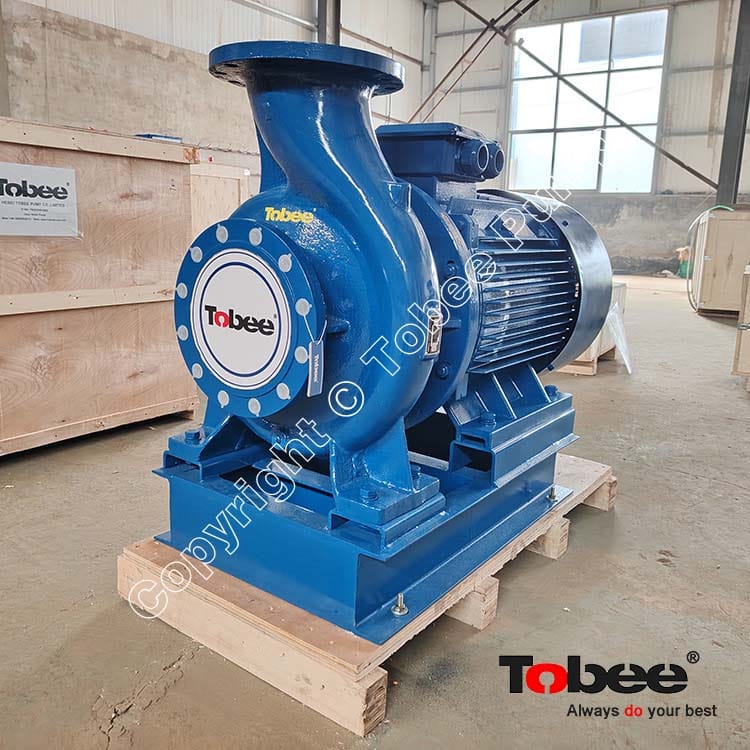

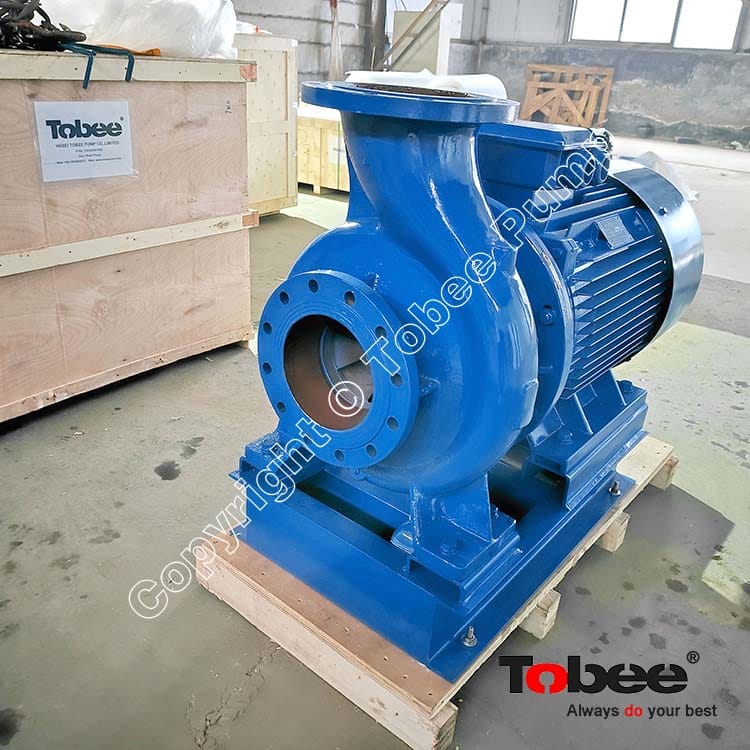

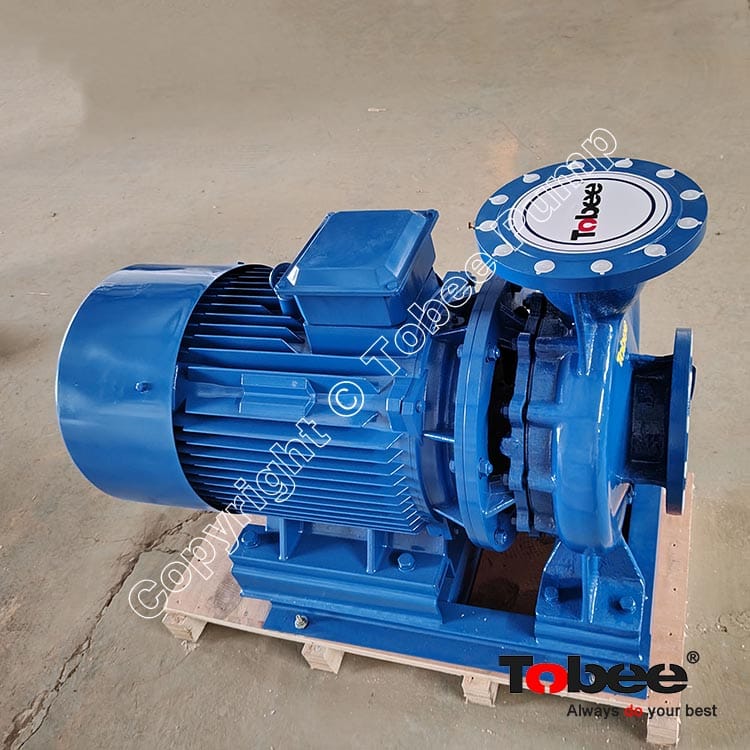

Tobee® TSW Horizontal Inline Pump is a single-stage single-suction horizontal direct-connected centrifugal pump.
In the ever-evolving landscape of fluid handling systems, the horizontal inline pump has emerged as a cornerstone of modern engineering, offering unparalleled efficiency, compactness, and versatility. Widely adopted across sectors such as water supply, HVAC, and chemical processing, these pumps are redefining operational standards with their innovative design and robust performance capabilities.
At its core, a horizontal inline pump features a single-stage, end-suction configuration where the suction and discharge ports are aligned in a straight line on the same horizontal axis. This inline arrangement eliminates the need for complex piping bends, reducing installation space by up to 50% compared to traditional base-mounted pumps. Key characteristics include a compact footprint—often fitting into tight spaces like mechanical rooms or skid-mounted systems—and a centrifugal impeller that ensures smooth, non-pulsating flow. Materials range from durable cast iron for general water applications to corrosion-resistant stainless steel or bronze for handling aggressive fluids.
One of the standout features is its high hydraulic efficiency, typically achieving 80-90% under optimal conditions, thanks to precision-engineered impellers and volutes that minimize energy losses. These pumps operate at speeds up to 3,600 RPM, delivering flow rates from 5 to 5,000 gallons per minute (GPM) and heads exceeding 300 feet. Mechanical seals, often cartridge-type for easy maintenance, prevent leakage and extend service life, while optional variable frequency drives (VFD) enable precise speed control, slashing energy consumption by 20-30% in variable-demand scenarios.
Applications for horizontal inline pumps span diverse industries. In municipal water systems, they excel in booster stations, maintaining consistent pressure in high-rise buildings or distribution networks. HVAC installations favor them for chilled water circulation, where their low noise levels (below 75 dB) and vibration-dampening mounts ensure quiet operation in commercial spaces. In the oil and gas sector, specialized models handle viscous fluids or hazardous chemicals, complying with API 610 standards for reliability in refineries. Agriculture benefits from their use in irrigation systems, providing reliable water transfer over long distances with minimal downtime.
As global demand for efficient fluid management rises, horizontal inline pumps stand out not just for their technical prowess but for their role in fostering sustainable operations. For engineers and facility managers seeking reliable, space-saving solutions, these pumps represent a smart investment in performance and longevity.

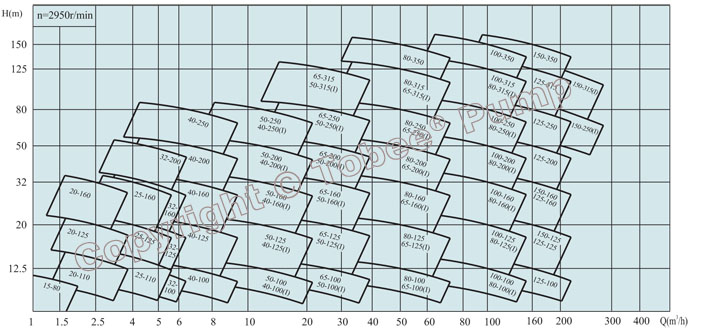

Tobee® TSW Horizontal Inline Pump Quick Selection Chart:
