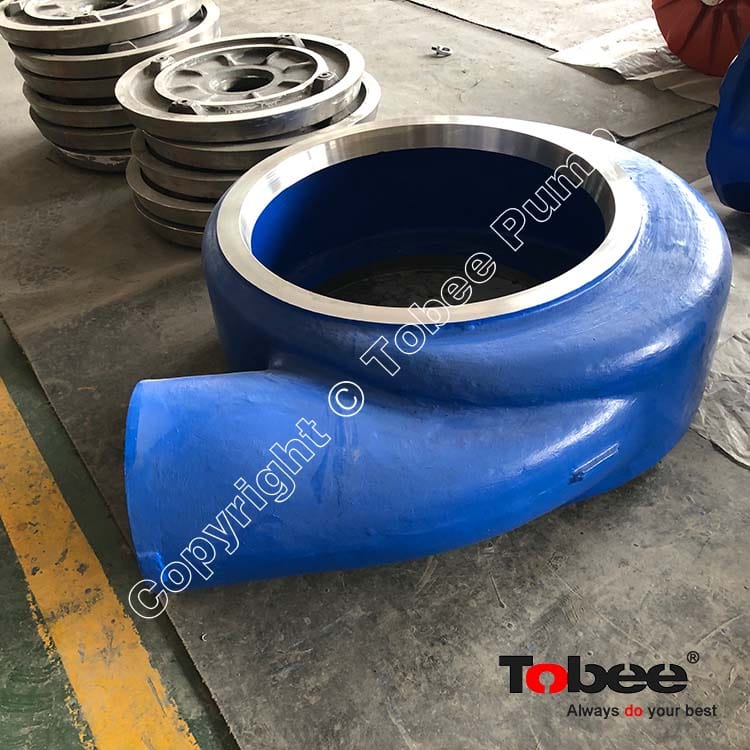

Tobee® 12x10 Slurry Pump F10110 Volute Liner works together with the impeller F10147, throatbush F10083, and frame plate liner insert F10041 to form the slurry flow chamber.
Tobee® Volute Liner Key Features:
• Manufactured from A05A high chrome white iron for excellent abrasion resistance.
• Precision-cast and CNC-machined to ensure dimensional accuracy and interchangeability.
• Designed to withstand continuous pumping of highly abrasive mineral slurries.
• Optimized hydraulic profile improves efficiency and reduces internal turbulence.
• Fully interchangeable with OEM-standard 12/10E-M and 12/10F-M slurry pump components.
• Compatible with standard throatbush, impeller, and frame plate liner insert assemblies.
Tobee® 12/10F-M and 12/10E-M Slurry Pump is a proven horizontal end suction centrifugal slurry pump that will reliably and economically handle abrasive and corrosive medium duty services, The M medium slurry pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries. They feature a wide choice of replaceable abrasion resistant metal casting liners and Impellers, which are all interchangeable within a common casting assembly.
Tobee® Slurry Pump Volute Liners:
AH Slurry Pump | Volute Liner Materials | |
B1110 | 1.5/1B-AH | High chrome, Natural rubber, Polyurethane |
B15110 | 2/1.5B-AH | High chrome, Natural rubber, Polyurethane |
C2110 | 3/2C-AH | High chrome, Natural rubber, Polyurethane |
D3110 | 4/3C-AH, 4/3D-AH | High chrome, Natural rubber, Polyurethane |
E4110 | 6/4D-AH, 6/4E-AH | High chrome, Natural rubber, Polyurethane |
EP4110 | 6/4E-AHP | High chrome, Natural rubber, Polyurethane |
F6110 | 8/6E-AH, 8/6F-AH | High chrome, Natural rubber, Polyurethane |
G8110 | 10/8F-AH, 10/8ST-AH | High chrome, Natural rubber, Polyurethane |
G10110 | 12/10F-AH, 12/10ST-AH | High chrome, Natural rubber |
G12110 | 14/12F-AH, 14/12ST-AH | High chrome, Natural rubber |
H14110 | 16/14TU-AH | High chrome, Natural rubber |
HH Slurry Pump | Volute Liner Materials | |
CH1110 | 1.5/1C-HH | High chrome |
DH2110 | 3/2D-HH | High chrome |
EH3110 | 4/3E-HH | High chrome |
FH4110 | 6/4F-HH | High chrome |
FH4110 | 6-H | High chrome |
Code | M Slurry Pump | Volute Liner Materials |
F8110 | 10/8E-M, 10/8F-M,10/8R-M | High chrome, Natural rubber, Polyurethane |
F10110 | 12/10E-M, 12/10F-M | High chrome, Natural rubber, Polyurethane |
L Slurry Pump | Volute Liner Materials | |
AL2110 | 20A-L | High chrome, Natural rubber |
BL5110 | 50B-L | High chrome, Natural rubber |
CL75110 | 75C-L | High chrome, Natural rubber |
DL10110 | 100D-L | High chrome, Natural rubber |
EL15110 | 150E-L | High chrome, Natural rubber |
SL20110 | 200E-L | High chrome, Natural rubber |
SL30110 | 300S-L | High chrome, Natural rubber |
SL35110 | 350S-L | High chrome, Natural rubber |
TL40110 | 400ST-L | High chrome, Natural rubber |
TL45110 | 450ST-L | High chrome, Natural rubber |
UL55110 | 550TU-L | High chrome, Natural rubber |
