Home > SLURRY PUMP PARTS > AHR Slurry Pump Parts > 4/3 AHR Slurry Pump > Hi-seal Frame Plate Liner CAM3036HS1R55 for 4x3 CAH Pump

Hi-seal Frame Plate Liner CAM3036HS1R55 for 4x3 CAH Pump

(102 Reviews)

TB-CAM3036HS1 R55

Product Brands: Tobee

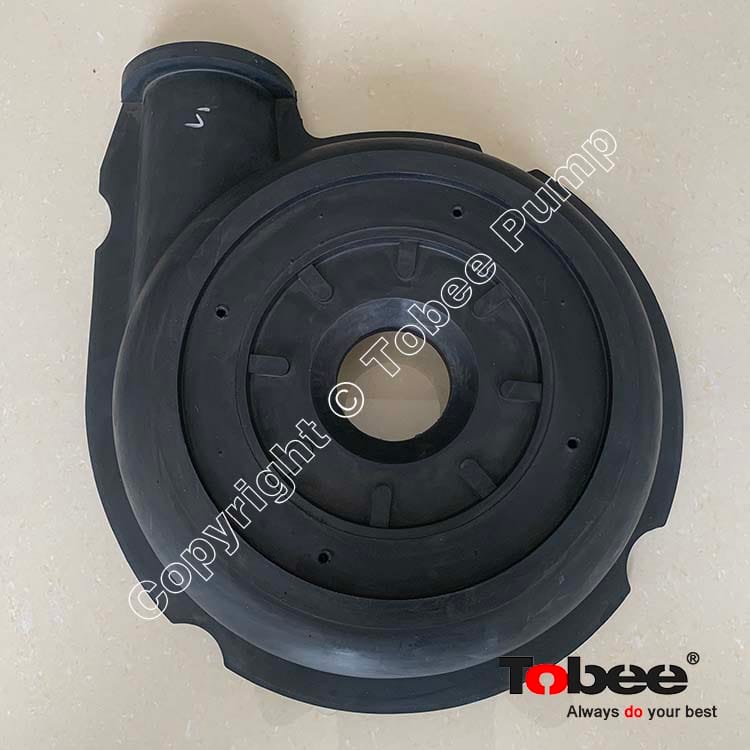

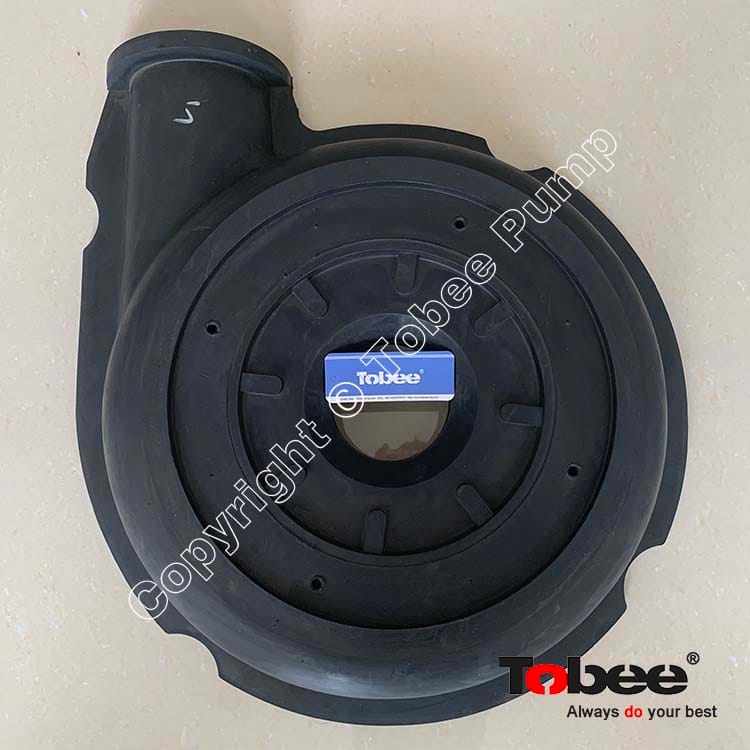

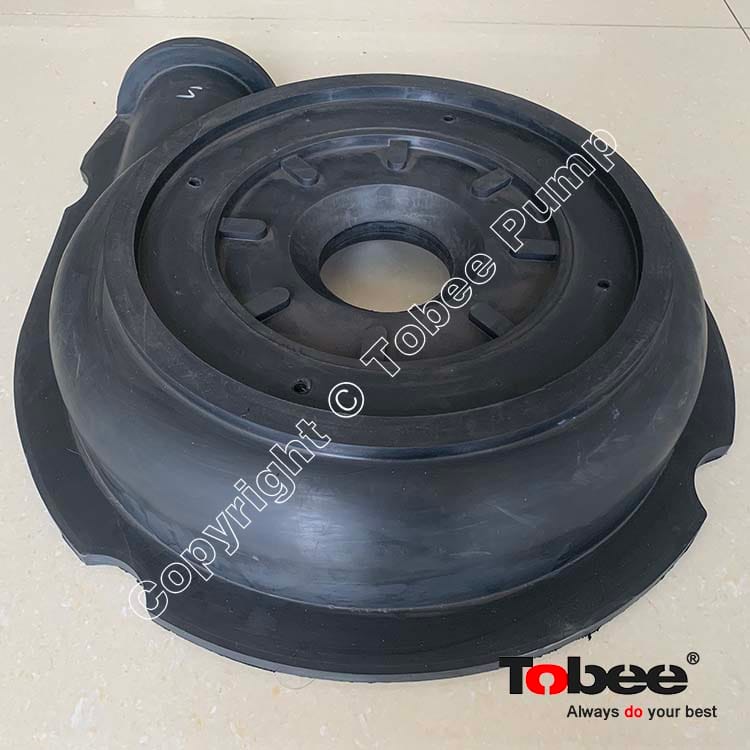

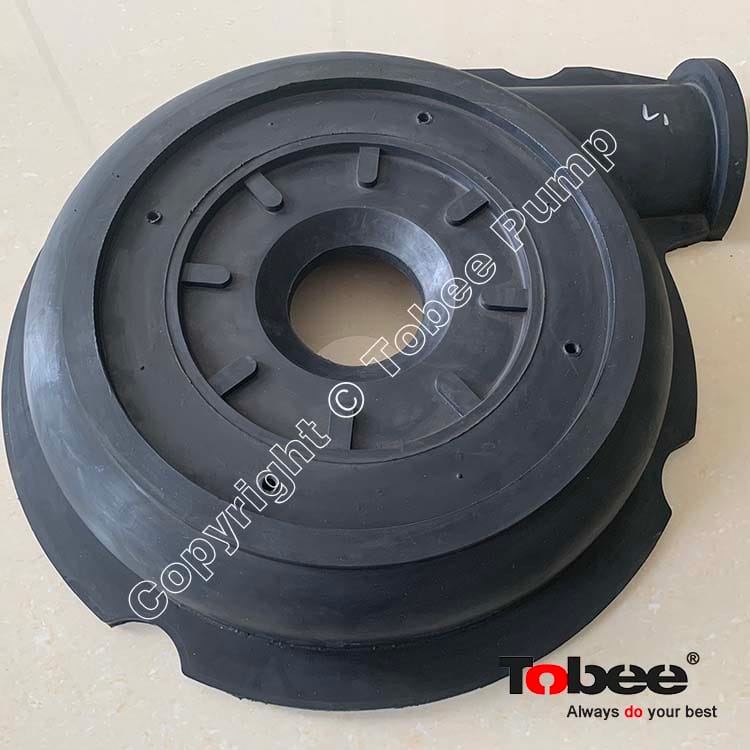

Rubber Frame Plate Liner CAM3036HS1R55 is used for 4x3C-AH Rubber Lined Slurry Pump.

price:

$420.00 $450.00

Parts Code:

CAM3036HS1R55

Pump model:

4x3C-AHR

Quantity:

- + (180 available)
Add to Favorite Items (98)

Sales: 136+

Rubber Frame Plate Liner CAM3036HS1R55 is used for 4x3C-AH Rubber Lined Slurry Pump.



Tobee® Rubber Lined Slurry Pump Parts namely the rubber parts have direct connection with slurries, They are very easily worn-out components because they work under longtime impact of abrasive and corrosive slurries in the high speed, The wetted parts include impeller, cover plate liner, frame plate liner, throat bush, frame plate liner insert etc, These wear parts are very crucial to the service life of slurry pumps, For the long service life of pump parts, the material plays an important role here, Tobee offers rubber slurry pump parts are more suitable for delivering strong corrosive or abrasive slurries of small particle size without sharp edges.

Tobee offers high seal rubber slurry pump parts for 1.5/1B-AH, 1.5/1C-HH, 2/1.5B-AH, 3/2C-AH, 4/3C-AH, 4/3D-AH, 4/3E-HH, 6/4D-AH, 6/4E-AH, 6/4F-HH, 8/6E-AH, 10/8E-M, 10/8ST-AH, 12/10ST-AH, 14/12ST-AH, 16/14TU-AH, 18/16TU-AH, 20/18TU-AH slurry pumps etc.


Tobee® Slurry Pump Rubber Wear Parts:


√ Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.

√ Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

√ Throat bush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.



Rubber Frame Plate Liner codes:

AH Slurry Pump

Standard Part Code

HS1 Part Code

Rubber Material

1.5/1B-AH

B1036

B1036HS1

R08, R26, R33, R55, S42, etc

2/1.5B-AH

B15036

B15036HS1

R08, R26, R33, R55, S42, etc

3/2C-AH

C2036

C2036HS1

R08, R26, R33, R55, S42, etc

4/3C-AH

CAM3036

CAM3036HS1

R08, R26, R33, R55, S42, etc

4/3C-AH, 4/3D-AH

D3036

D3036HS1

R08, R26, R33, R55, S42, etc

6/4D-AH, 6/4E-AH, 4E-AHF

E4036

E4036HS1

R08, R26, R33, R55, S42, etc

8/6E-AH, 8/6F-AH, 8/6R-AH

F6036

F6036HS1

R08, R26, R33, R55, S42, etc

10/8F-AH

F8036

F8036HS1

R08, R26, R33, R55, S42, etc

10/8ST-AH

G8036

G8036HS1

R08, R26, R33, R55, S42, etc

12/10F-AH

FAM10036

FAM10036HS1

R08, R26, R33, R55, S42, etc

12/10ST-AH

G10036

G10036HS1

R08, R26, R33, R55, S42, etc

14/12F-AH

FAM12036

FAM12036HS1

R08, R26, R33, R55, S42, etc

14/12ST-AH

G12043

/

R08, R26, R33, R55, S42, etc

16/14TU-AH

H14043

/

R08, R26, R33, R55, S42, etc

20/18TU-AH

U18043

/

R08, R26, R33, R55, S42, etc
