Home > SLURRY PUMP PARTS > 2QV-AF Vertical Froth Pump Frame Plate Liner Insert BAF2041A05

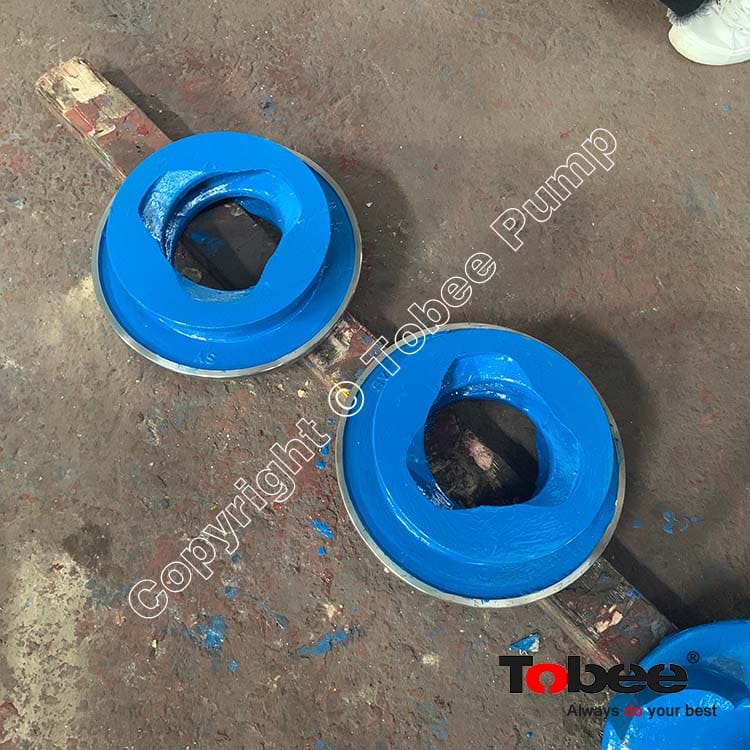

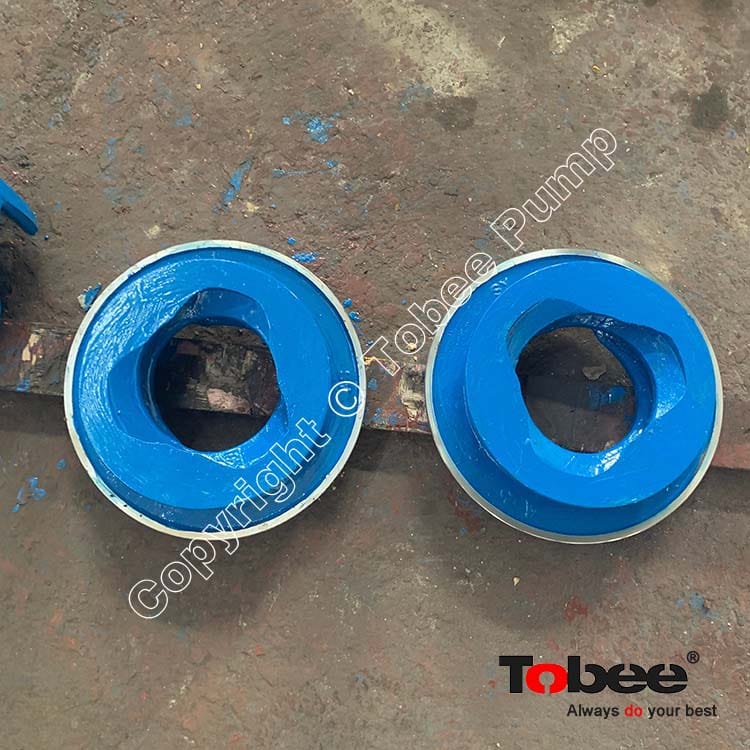

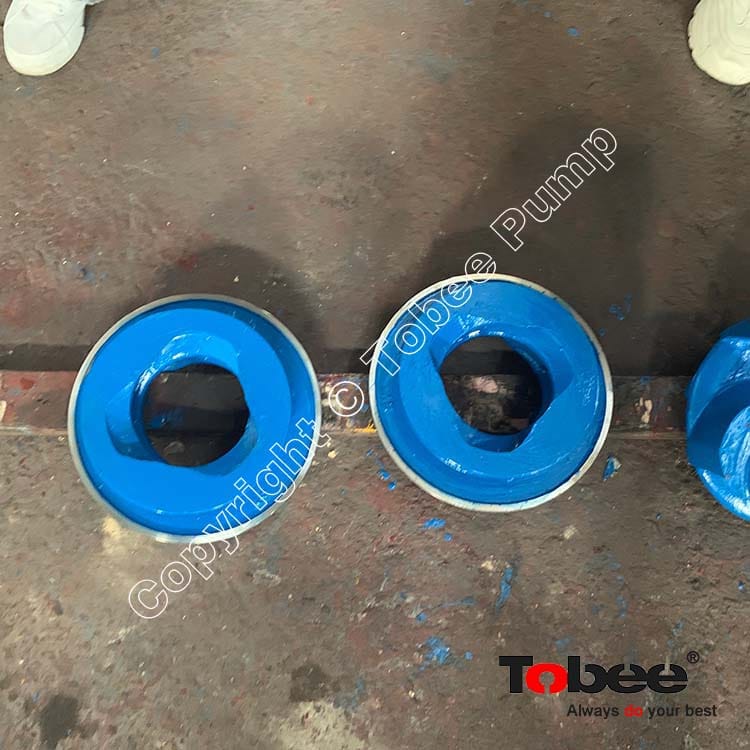

2QV-AF Vertical Froth Pump Frame Plate Liner Insert BAF2041A05

(0 Reviews)

BAF2041A05

Product Brands: Tobee

Tobee® AF Vertical Froth Slurry Pumps are latest generation of froth pump based on advanced technology at home and abroad. It is vertical shaft configuration, and comprise a hopper, with vertical bearing assembly. AF froth slurry pump is designed for transporting high abrasive and corrosive froth slurries, Especially used in the flotation process.

price:

$289.00 $298.00

Part Codes:

BAF2041A05

HS Code:

8413910000

Quantity:

- + (69 available)
Add to Favorite Items (0)

Sales: 0+

2Q-AF Vertical Froth Pump

SPECIFICATIONS:

Inlet: 4 inch
Outlet: 2 inch
Capacity: 7.6-42.8m3/h
Head: 6-29.5m
Max.power: 15kw
Materials: High chrome alloy, Rubber, Polyurethane etc.

2QV-AF Froth Slurry Pump is vertical, double casing, single stage centrifugal forth pump, manufactured with advanced technology. The 2QV-AF froth pump can effectively eliminate the bubble in the slurry at work, even the slurry capacity is not enough the pump can work normally. It is suitable for various of flotation process and a perfect pump for handing frothy pulp indeed. AF vertical forth pump’s capacity is much higher than that of other types slurry pump without shaft seal and sealing water.



Design Features:

√ Excellent performance, easy assembly & disassembly, high reliability and etc.
√ Without shaft seal and sealing water.
√ The discharge branch can be positioned at intervals of 45 degrees by request and oriented to √ Any eight positions to suit installations and applications.
√ Drive type: It can be used in direct drive or indirect drive, and the belt pulley can be replaced √ Easily,used to change the pump speed and meet the variations of working conditions.
√ The transmission parts are in commonly used with SP(R) type vertical sump pump.

Tobee®  AF Vertical Froth Slurry Pump Performance Parameters:

Model

Inlet

(mm)

Outlet

(mm)

Matching Power P

(kw)

Capacity Q

(m³/h)

Head H

(m)

Speed n

(r/min)

Eff. η

(% )

Impeller dia.

(mm)

2QV-AF

100

50

3-15

6-43

6-30

800-1800

45

229

3QV-AF

150

75

3-18.5

23-78

5-28

700-1500

55

268

4RV-AF

150

100

5.5-37

33-187

5-28

500-1050

55

397

6SV-AF

200

150

15-75

80-393

5-25

250-680

55

560

8SV-AF

250

200

37-110

126-575

5-26

350-650

55

-

Tobee®  AF Vertical Froth Slurry Pumps Structural Drawing:

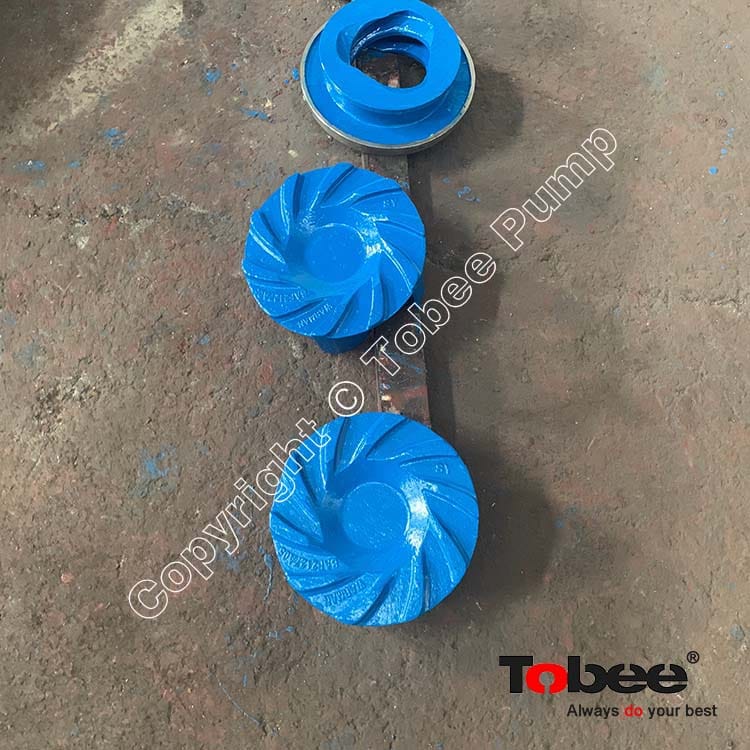

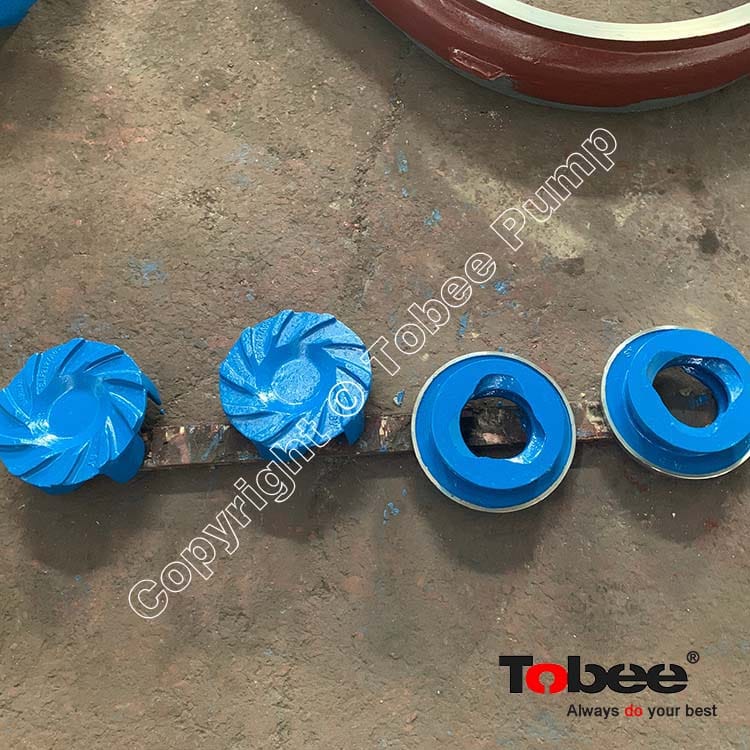

BAF2127A05 Impeller for 2QV-AF Vertical Froth Pump

Tobee®  AF Vertical Froth Slurry Pumps Applications:

AF series vertical forth pump is widely used in minerals froth handling processes, slurry transportation, coal, chemical, industrial applications. Especially for suitable for conveying abrasive & corrosive slurries containing foam.
