Home > SLURRY PUMP PARTS > AH Slurry Pump Parts > 4/3 AH Slurry Pump > D076C21 Shaft Sleeve for 4/3 AH Slurry Pump

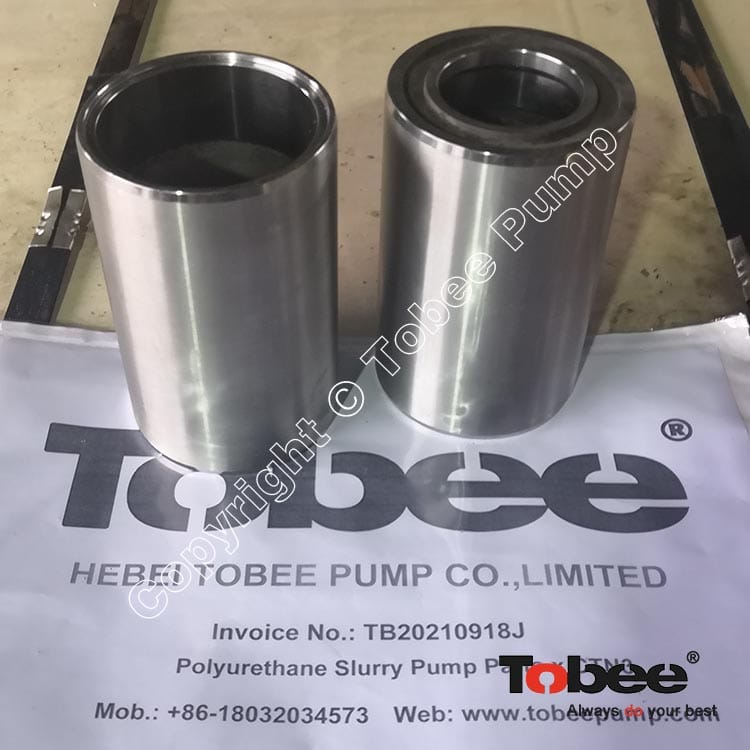

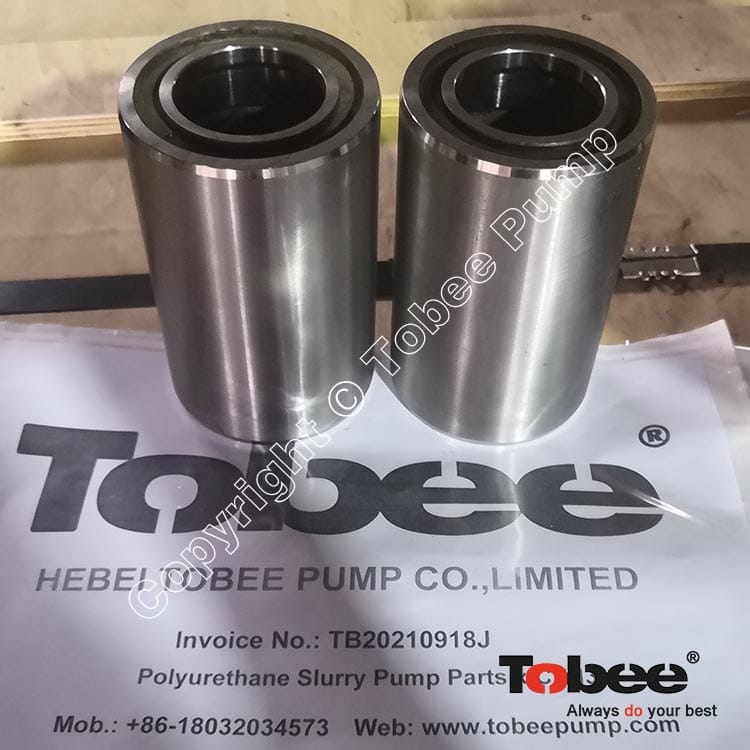

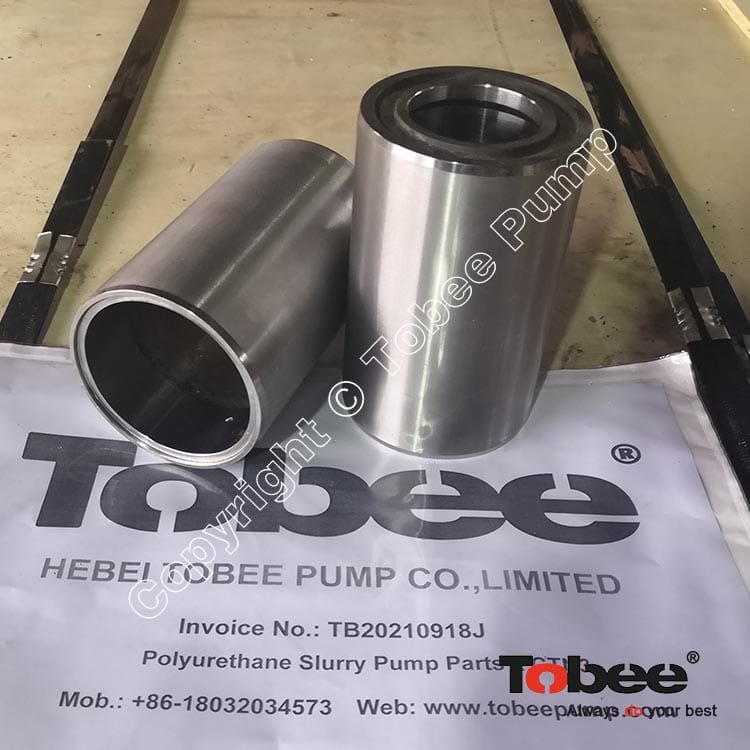

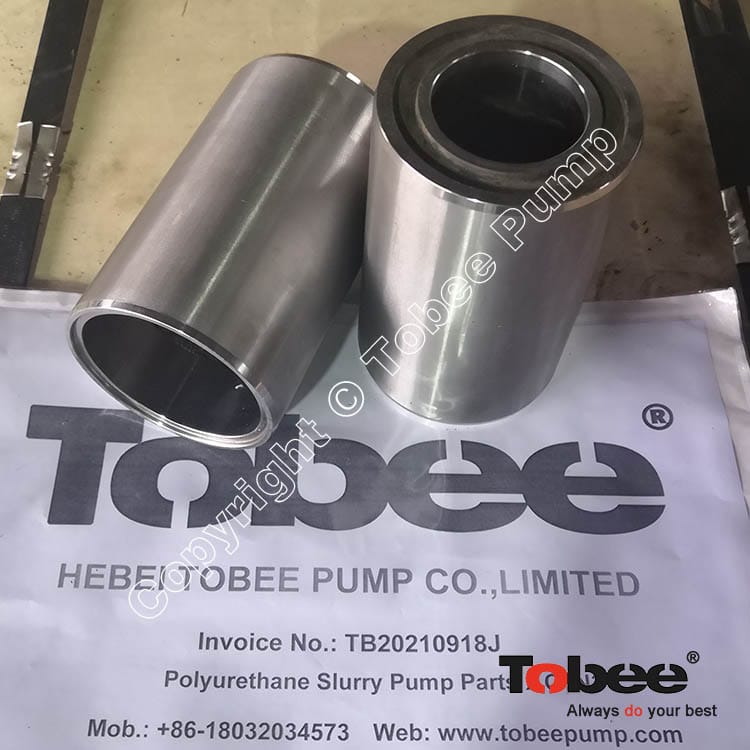

D076C21 Shaft Sleeve for 4/3 AH Slurry Pump

(400 Reviews)

TB-D076C21

Product Brands: Tobee

D076C21 shaft sleeve is long type slurry pump shaft sleeves used for 4/3D AH Slurry Pump, Slurry Pump Shaft Sleeve is a quick - wear part of slurry pumps. The design and material of shaft sleeve is significant to slurry pump work-life.

price:

$690.00

Part Code:

D076C21

Quantity:

- + (300 available)
Add to Favorite Items (390)

Sales: 390+

D076C21 shaft sleeve is long type slurry pump shaft sleeves used for 4/3D AH Slurry Pump, Slurry Pump Shaft Sleeve is a quick - wear part of slurry pumps. The design and material of shaft sleeve is significant to slurry pump work-life, The slurry pump shaft sleeve protects pump shaft from abrasion and corrosion within seal arrangements, Tobee offers different materials of shaft sleeve for international brand pumps.

Shaft sleeves of slurry pump are cylindrical metal tubes in the wet ends of slurry pumps used to protect vulnerable areas of pump shafts. Sleeves most commonly protect shafts from packing wear at the stuffing box. By design, renewable sleeves already protect pump shafts from erosion, corrosion, and wear at leakage joints and seal chambers. But shaft sleeves, in particular, can provide extra protection and are much more cost-efficient to replace than shafts. For example, a sleeve can protect the shaft from coming in contact with pumping fluid while providing a cushion easier and far less expensive to replace than the shaft itself.

To avoid early replacement, shaft sleeve for slurry pumps best maintenance practices involve regularly inspecting slurry pumps for unusual vibration or wear and establishing a routine maintenance schedule. As specified in your slurry pump user manual, you should replace oil quarterly. At this time, routine maintenance should include removing shaft sleeves to check for wear and repacking the stuffing box. The safest and most efficient way to remove the shaft sleeve is by using a shaft sleeve lifting device.

Slurry Pump Shaft Sleeve Code List:

Shaft Sleeve Code

AH Slurry Pump

Shaft Sleeve Materials

B075

1.5/1B-AH, 2/1.5B-AH

SS420, SS304, SS316L, Ceramic

C075

3/2C-AH, 4/3C-AH

SS420, SS304, SS316L, Ceramic

D075

4/3D-AH, 6/4D-AH

SS420, SS304, SS316L, Ceramic

E075

6/4E-AH, 8/6E-AH, 8/6R-AH

SS420, SS304, SS316L, Ceramic

F075

8/6F-AH

SS420, SS304, SS316L, Ceramic

FAM075

10/8F-AH, 12/10F-AH, 14/12F-AH

SS420, SS304, SS316L, Ceramic

SH075

10/8ST-AH, 12/10ST-AH, 14/12ST-AH

SS420, SS304, SS316L, Ceramic

TH075

16/14TU-AH

SS420, SS304, SS316L, Ceramic

TH076

16/14TU-AH

SS420, SS304, SS316L, Ceramic

Shaft Sleeve Code

HH Slurry Pump

Shaft Sleeve Materials

CH075

1.5/1C-HH

SS420, SS304, SS316L, Ceramic

D075

3/2D-HH

SS420, SS304, SS316L, Ceramic

E075

4/3E-HH

SS420, SS304, SS316L, Ceramic

F075

6/4F-HH

SS420, SS304, SS316L, Ceramic

Shaft Sleeve Code

M Slurry Pump

Shaft Sleeve Materials

E075

10/8E-M

SS420, SS304, SS316L, Ceramic

F075

10/8F-M

SS420, SS304, SS316L, Ceramic

Shaft Sleeve Code

L Slurry Pump

Shaft Sleeve Materials

A075

20A-L

SS420, SS304, SS316L, Ceramic

BSC075

50B-L

SS420, SS304, SS316L, Ceramic

C075

75C-L

SS420, SS304, SS316L, Ceramic

D075

100D-L

SS420, SS304, SS316L, Ceramic

E075

150E-L

SS420, SS304, SS316L, Ceramic

S075

300S-L

SS420, SS304, SS316L, Ceramic

Shaft Sleeve Code

G(H) Gravel Pump

Shaft Sleeve Materials

D075

6/4D-G

SS420, SS304, SS316L, Ceramic

E075

8/6E-G

SS420, SS304, SS316L, Ceramic

F075

10/8F-G

SS420, SS304, SS316L, Ceramic

G075

12/10G-G, 14/12G-G, 12/10G-GH

SS420, SS304, SS316L, Ceramic

TH075

14/12TU-G,16/14TU-G,16/14TU-GH

SS420, SS304, SS316L, Ceramic

TH076

14/12TU-G, 16/14TU-G, 16/14TU-GH

SS420, SS304, SS316L, Ceramic
