Home > All Product > C2058A05 Impeller Pump Parts for 3x2CC Centrifugal Slurry Pump

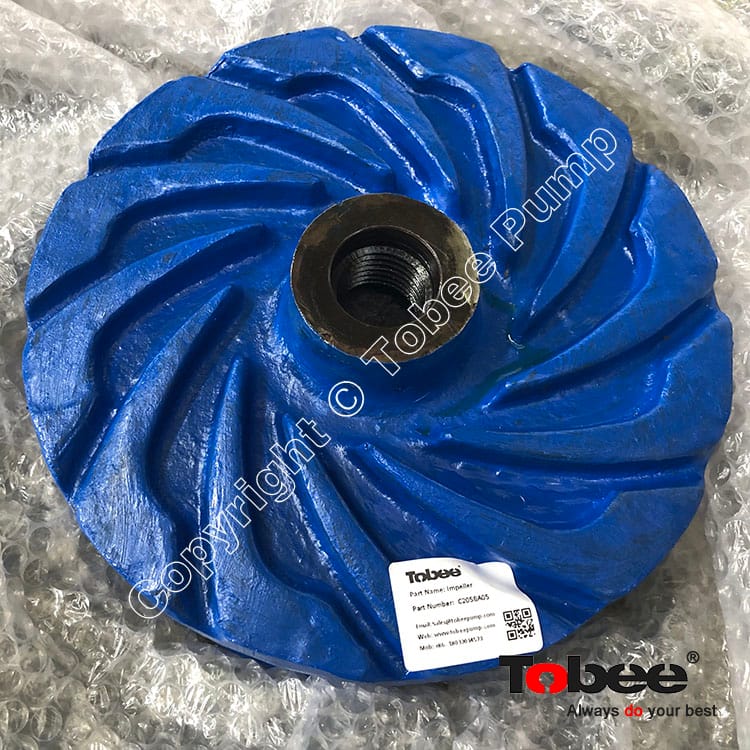

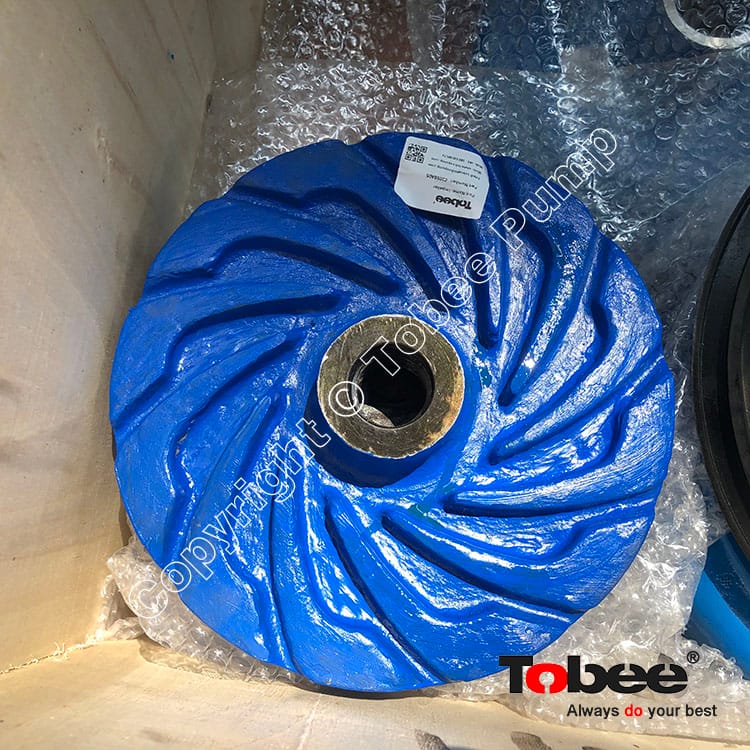

C2058A05 Impeller Pump Parts for 3x2CC Centrifugal Slurry Pump

(0 Reviews)

Tb-C2058--A05

Product Brands: Tobee

Tobee® Slurry Pump WRT Impeller namely the pump parts have direct connection with slurries, They are very easily worn-out components because they work under longtime impact of abrasive and corrosive slurries in the high speed, The wetted parts include impeller, cover plate liner, frame plate liner, throatbush, frame plate liner insert etc.

price:

$360.00

Part Number:

C2058A05

Quantity:

- + (100 available)
Add to Favorite Items (0)

Sales: 0+

Tobee® Slurry Pump impeller is one of the most important parts of centrifugal slurry pump. Depending on site application, slurry pump impeller selection can be crucial to pump performance. Slurry applications can be especially hard on the impeller of slurry pump because of their abrasive nature. In order for your process to operate efficiently and stand up to the test of time, you must choose the proper slurry pump impeller.

Tobee® offers three different types of slurry pump impellers: open, closed, and semi-closed. Each has its own strengths and weaknesses, depending on the application. Some are better for solids handling, others are better for high efficiency. To learn more about the specifics of each type of slurry pump impeller.

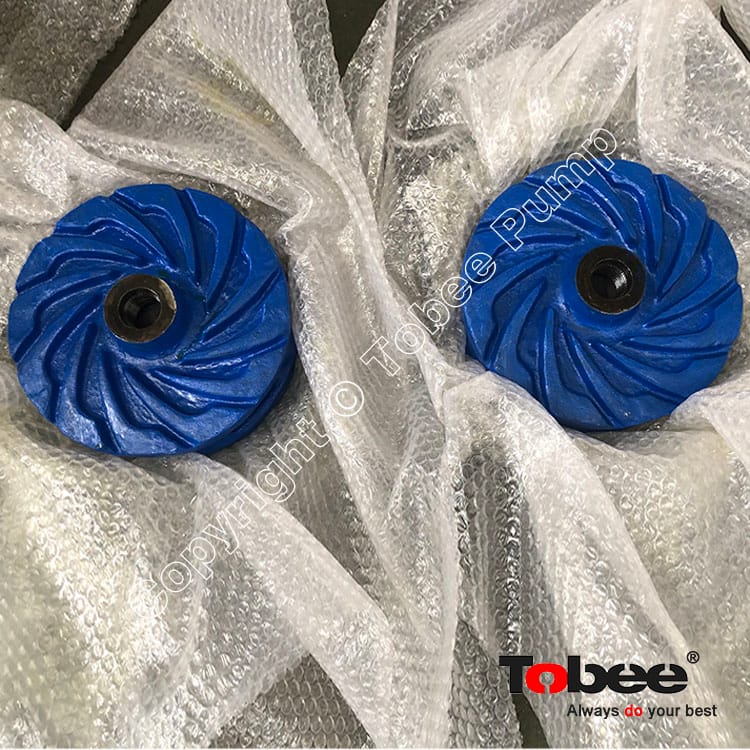

C2058A05 Impeller Pump Parts for 3x2C Centrifugal Slurry Pump

Tobee® Slurry Pump Impeller Code:

Slurry Pump Impeller Code

AH Slurry Pump

Slurry Pump Materials Code

B1127

1.5/1B-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

B15127

2/1.5B-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

C2147

3/2C-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

C2127

3/2C-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

C2051

3/2C-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

D3147

4/3C-AH, 4/3D-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

D3145HE1

4/3C-AH, 4/3D-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

D3021

4/3C-AH, 4/3D-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

E4147

6/4D-AH, 6/4E-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

E4056

6/4D-AH, 6/4E-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

E4058

6/4D-AH, 6/4E-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

F6147

8/6E-AH, 8/6F-AH, 8/6R-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

F6056

8/6E-AH, 8/6F-AH, 8/6R-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

F6021

8/6E-AH, 8/6F-AH, 8/6R-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

F6058HE1

8/6E-AH, 8/6F-AH, 8/6R-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

FAM8147

10/8F-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

G8147

10/8ST-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

FAM10147

12/10F-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

G10147

12/10ST-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

FAM12147

14/12F-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

G12147

14/12ST-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

GAM14147

16/14TU-AH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

Impeller Code

L Slurry Pump

Slurry Pump Materials Code

175056

20A-L

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

32056

50B-L

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

43056

75C-L

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

64056

100D-L

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

86056

150E-L

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

108056

200E-L

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

SL30147

300S-L

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

SL35147

350S-L

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

STL40147

400ST-L

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

STL45147

450ST-L

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

TUL55147

550TU-L

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

Impeller Code

M Slurry Pump

Slurry Pump Materials Code

F8147

10/8E-M, 10/8F-M, 10/8R-M

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

F10147

12/10F-M, 12/10R-M

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

Impeller Code

HH Slurry Pump

Materials

CH1127

1.5/1C-HH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

DH2147

3/2D-HH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

EH3147

4/3E-HH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

FH4147

6/4F-HH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

FH6147

6S-H, 8/6S-H

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

Impeller Code

G(H) Gravel Pump

Slurry Pump Materials Code

DG4137

6/4D-G, 6/4E-G

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

EG6137

8/6E-G

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

FG8137

10/8F-G, 10/8S-G

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

FG10137

12/10G-G

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

GG12137

14/12G-G

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

FGH8137

10/8F-GH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

GGH10137

12/10G-GH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

TG14148

16/14TU-GH

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

Impeller Code

SP Vertical Slurry Pump

Slurry Pump Materials Code

SP4206

40PV-SP

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

SP65206

65QV-SP

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

SP10206

100RV-SP

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

SP15206

150SV-SP

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

SP20206

200SV-SP

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

SP25206

250TV-SP

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

SP30206

300TV-SP

A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

Tobee® Slurry Pump WRT Impeller Interchangeable parts:

√ Completely interchangeable with AH, AHR, HH, M, L horizontal slurry pumps, SP, SPR vertical slurry pumps, G,GH gravel sand pumps, AF froth slurry pumps etc

√ Metal materials code: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

√ Nature rubber materials code: R08, R24, R26, R33, R38, R55, R66

√ Synthetic rubber materials code: S01, S10, S12, S21, S31, S42, S44, S50

√ Polyurethane materials code: U01, U05

√ Shaft material: 45#, 40CrMo, SS304, SS316

√ Shaft sleeve material: SS410, SS420 SS304, SS316

√ Lantern ring material: 304, 316, PTFE

√ Bearing housing/ bearing end cover material: G01, D21

√ Expeller, Expeller ring: A05

√ Packing: Q05
