Home > SLURRY PUMP PARTS > AHR Slurry Pump Parts > 1.5/1 AHR Slurry Pump > B1052R55 Elastomer Rubber impeller for 1.5/1 B-AHR Rubber-Lined Slurry Pumps

B1052R55 Elastomer Rubber impeller for 1.5/1 B-AHR Rubber-Lined Slurry Pumps

(0 Reviews)

TB-B1052-R55

Product Brands: Tobee

Displacement Warman rubber pump impeller B1052R55 for 1.5/1B-AHR slurry pumps.

price:

$198.00

Parts Code:

B1052R55

Quantity:

- + (69 available)
Add to Favorite Items (0)

Sales: 0+

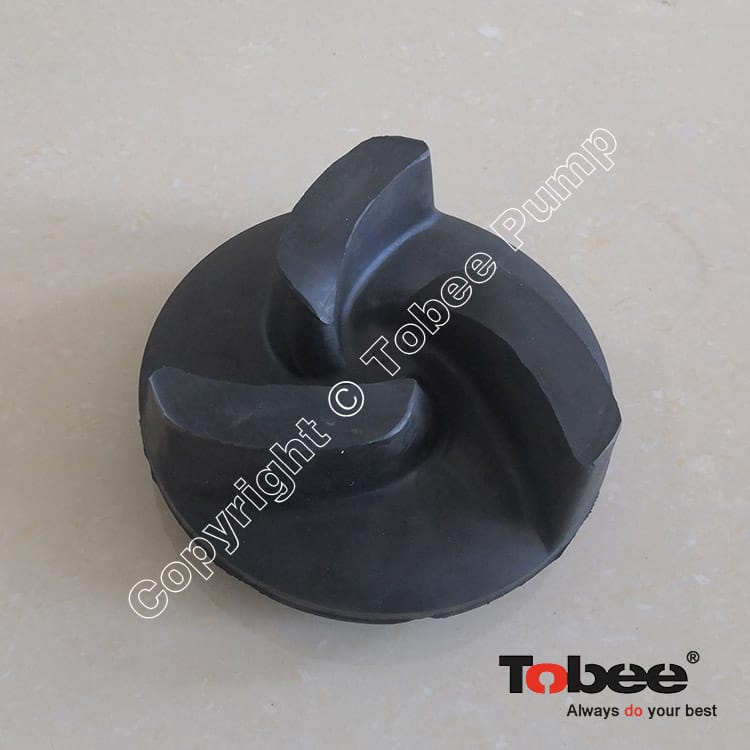

Rubber Slurry Pump Impeller B1052R55 is a kind of Open type with 3 vanes impeller, operation on 1.5/1 B AH slurry pump. Rubber slurry pump impellers are used to deal with the corrosive slurry with blunt particles. Tobee offers a wide variety of natural rubber and synthetic rubber for the majority of slurry pump parts in both horizontal slurry pumps and vertical slurry pumps. A sample of our elastomer options: Natural Rubber, Neoprene, Hypalon, EPDM, Nitrile, Butyl, Polyurethane etc.

1.5/1 B AH slurry pump parts list:

No.

Pump Parts Name

Pump Model

Pump Part Code

Matl. Code

Unit Weight

(kg)

1

Adjust Screw

1.5/1 B-AH

B001

E62



2

Base

1.5/1 B-AH

B003M

G01

20.0

3

Bearing Assembly

1.5/1 B-AH

B005M

ZWZ Bearing

15.5

4

Bearing Housing

1.5/1 B-AH

B004M

G01

7.0

5

Cover Plate

1.5/1 B-AH

B1013

D21

13.8

6

Cover Plate Bolt

1.5/1 B-AH

B015

E65



7

Cover Plate Liner

1.5/1 B-AH

B1017

R55

2.0

8

Discharge Joint

1.5/1 B-AH

B1132L

S01



9

End Cover

1.5/1 B-AH

B024

G01

0.8

10

Expeller

1.5/1 B-AH

B028

A05

0.6

11

Expeller Ring

1.5/1 B-AH

B029

A05

2.6

12

Expeller Ring

1.5/1 B-AH

B029

R55

0.7

13

Frame Plate

1.5/1 B-AH

B1032

D21

12.4

14

Frame Plate Bolt

1.5/1 B-AH

B026

E62



15

Frame Plate Liner

1.5/1 B-AH

B1036

R55

2.0

16

Frame Plate Liner Insert

1.5/1 B-AH

B1041

A05

3.0

17

Frame Plate Stud

1.5/1 B-AH

B039

E62



18

Gland

1.5/1 B-AH

B044

G01

0.4

19

Gland

1.5/1 B-AH

B044

C23

0.4

20

Gland Bolt

1.5/1 B-AH

B045

C23



21

Grease Retainer

1.5/1 B-AH

B046

G01

0.2

22

Impeller

1.5/1 B-AH

B1127

A05

4.2

23

Impeller

1.5/1 B-AH

B1052

R55

1.2

24

Intake Joint

1.5/1 B-AH

B1060

S01



25

Labyrinth

1.5/1 B-AH

B062

G01

0.3

26

Labyrinth Locknut

1.5/1 B-AH

B061

E62

0.1

27

Lantern Restrictor

1.5/1 B-AH

B118

C23

0.2

28

Lantern Ring

1.5/1 B-AH

B063

C23

0.1

29

Lip Seal

1.5/1 B-AH

B090

S01



30

Neck Ring

1.5/1 B-AH

B067

C23



31

O ring

1.5/1 B-AH

B109

S10



32

O ring

1.5/1 B-AH

B217

S10



33

Packing

1.5/1 B-AH

B111

Q05



34

Packing

1.5/1 B-AH

B111

Q05A



35

Packing

1.5/1 B-AH

B111

Q21



36

Packing

1.5/1 B-AH

B111

Q22



37

Piston Ring

1.5/1 B-AH

B108

G01



38

Seal

1.5/1 B-AH

B122

S01

0.1

39

Shaft

1.5/1 B-AH

B073M

E05

3.9

40

Shaft Sleeve

1.5/1 B-AH

B075

C21

0.3

41

Shaft Sleeve

1.5/1 B-AH

B075

C23

0.3

42

Shaft Sleeve

1.5/1 B-AH

B075

J05



43

Shaft Sleeve

1.5/1 B-AH

B076

C21

0.3

44

Shaft Sleeve

1.5/1 B-AH

B076

C23

0.3

45

Shaft Spacer

1.5/1 B-AH

B117

C21

0.2

46

Shaft Spacer

1.5/1 B-AH

B117

C23

0.2

47

Shaft Spacer

1.5/1 B-AH

B117

J05

0.2

48

Shim Set

1.5/1 B-AH

B025

P10



49

Stuffing Box

1.5/1 B-AH

B078

A05

2.5

50

Volute Frame Seal

1.5/1 B-AH

B1125

S01



51

Volute Liner

1.5/1 B-AH

B1110

A05

11.5
