Andman® S3 Single Suction Paper Stock Pump SS316 Spare Parts

Andman® manufacture a range of replacement parts including impellers(2 vanes, 3 vanes, 6 vanes, 8 vanes), casings, casing cover, front lining, rear lining, stuffing box body, shaft etc which for S series pumps, ACP series pumps, FP series pumps, VP series pumps, CP series pumps etc.

Andman® manufacture Andman® S series Pumps and Parts, Andman® ACP series Pumps and Parts, Andman® FP series Pumps and Parts, Andman® VP series Pumps and Parts, Andman® CP series Pumps and Parts etc.

Andman® Stainless Steel impeller pump Applicable industries:
1、Paper industry: for conveying pulp with a concentration of less than 6% and for circulating, lifting and pressurizing the medium in the industrial process of alkali recovery.
2、Sugar industry: used for conveying syrup with concentration below 4% and viscosity below 150mm2/s.
3、Urban sewage industry: used for circulation conveying, lifting and pressurization of medium in sewage treatment process. Water and watewater treatment. transport the non-abrasion medium in other industries.

Andman® Pump is always making continuous optimization of materials like Cast steel, EPDM, Hypalon, Hastelloy, CD4MCu, Viton, Fluoroplastic, Ceramic, Bronze, Titanium, Aluminum and other anti-abrasive & corrosive materials for various applications.

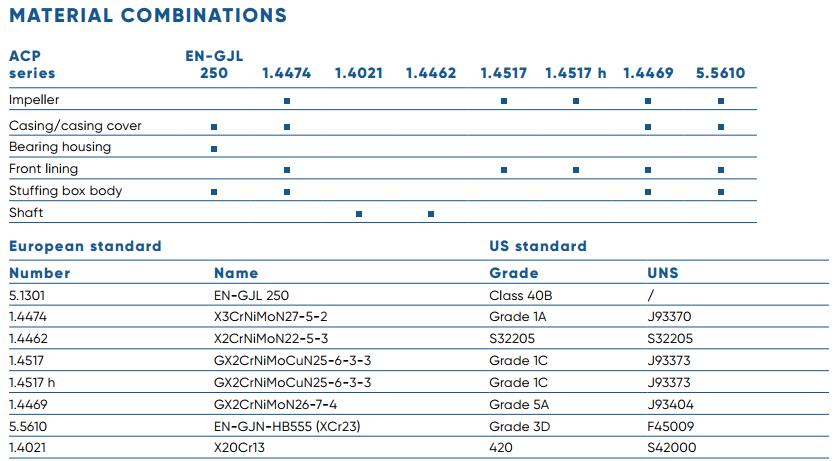

Such as impeller: EN-GJL 250, 1.4460 and 1.4517, casing/casing cover: EN-GJL 250 and 1.4460, volute casing: EN-GJL 250, EN-GJS-400-15 and 1.4460, bearing housing EN-GJL 250 and 1.4468, front and rear lining: 1.4460 and 1.4517, stuffing box body EN-GJL 250, 1.4460 and 1.4408, shaft: 1.4021 & 1.4462 and 1.4404 & 1.4439, etc.

Design Features:
• Impeller - Adopting full open type impeller with large channel design by precision casting, No. of vanes is 3-6 vanes,This configuration can reduce the axial force, And in the transporting, it will not generate bubbles, non-clog impeller channel,Improving the pulp concentration.
• Volute casing - Adopting single stage vortex casing, big size, Casing is designed as double casing structure for reducing radial force and axis deviation.
• Materials - various materials of Wetted parts are available, Such as Cast iron,SS304,SS316L,Duplex stainless steel etc
• Shaft seal - Mechanical seals and packing seal can be used as per requested
• Severe application - Excellently suited for transporting media containing solids (e.g. for pulp, paper, or effluent applications)

Andman® Pump Spare Parts namely the pump parts have direct connection with slurry, are very crucial to the service life of slurry pumps. The wet parts, include impeller, liner, throatbush, frame plate liner insert, casing, etc., are very easily worn-out components because they work under longtime impact of abrassive and corrosive slurries in the high speed. For the long service life of pump parts, the material plays an important role here.

Andman® Paper Pulp Pumps and Pump Spare Parts On-site Applications:
Paper mills, Paper Pulp, Coal prep, Waste pulp, Paper stock, Paper making, Waste paper stock, Chemical slurries, Sugar refining, Recycled fiber preparation, Chemical industry, Food industry, Energy supply, Water supply, Waste water treatment, Alkali recovery, Sugar syrup, Molasses, Pharmaceuticals industry, Potash Fertilizer Plant, Other industries etc.
