Andman® S & ACP Series Centrifugal Paper Pulp Pumps are available with closed, semi-open or open impellers with 3 vanes or 6vanes in a highly wear-resistant design. These pumps are suitable for conveying many different media. Depending on the impeller design, they can convey slightly contaminated and contaminated media with some solids and content up to consistencies up to 8%. S series and ACP series paper pulp pumps are wide used in the pulp and paper, mining, offshore, power, food, and chemical industry. Additionally, water supply, waste water treatment, desalination plants, and irrigation as well as drainage etc.
Andman® S series single-stage process centrifugal pumps are available with closed, semi-open or open impellers. These wear-resistant pumps are suitable for working with a wide range of media. Depending on the type of impeller, they can transport contaminated liquids with amount of solids up to 8%. They are used as process pumps in paper, chemical, sugar, energy, food industries, water, sewage treatment, drainage or other systems.
Andman® Single-stage Centrifugal Pump Specification:
Pump type: Horizontal
Materials: Cast Iron, Duplex, Super Duplex, Stainless Steel
Seal arrangement: Mechanical Seal, Double Seal
Max temperature: 200 Celsius
Available Andman® S Pump Models and Spares:
S80-265, S100-265, S125-265, S3 100-350.3, S125-350, S150-330, S3 125-400, S3 150-400.3, S3 200-380, S8 200-380, S3 150-470.3, S3 200-470.3, S3 250-430.3, S3 350-470.3, S8 350-470.6, S500-600, etc

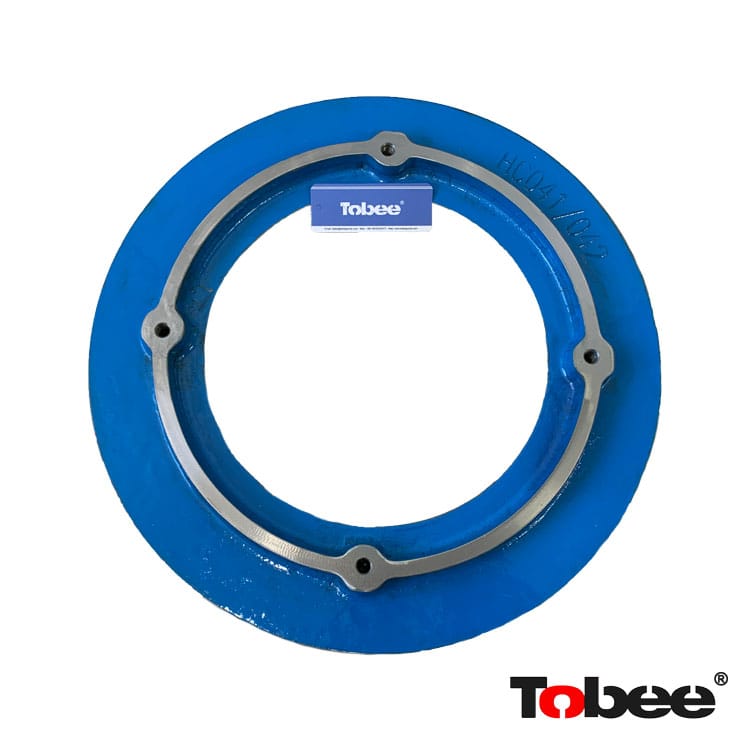

Andman® S pump spare parts including: Impeller (2 vanes, 3 vanes, 6 vanes, 8 vanes), Volute Casing, Casing Cover, Front Lining, Rear Lining, Stuffing Box Body, Shaft Wear Sleeve etc which for Andman S series paper-pulp pumps.
