Andman FP Series Fan Pump is a low pulse and high efficient paper pulp pump, It is new standards in terms of efficiency, flexibility, and design. This double-suction pump series was designed for flow rates up to 20,000 m³/h and heads up to 220 m. The pumps can convey stock suspensions with consistencies of up to 2%. The fan pump supplied has a very high efficiency of 92% and lowest pulsation in order to guarantee perfect sheet formation.

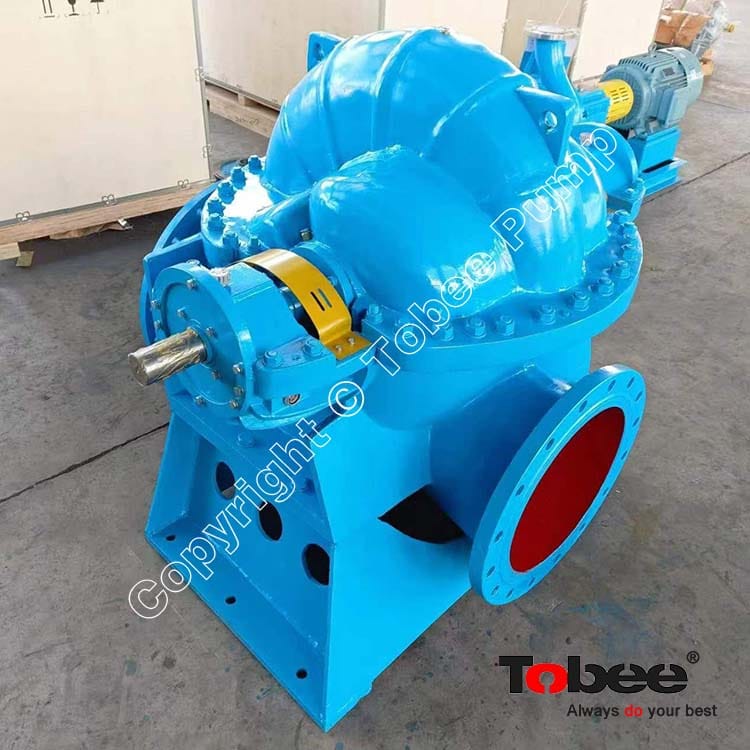

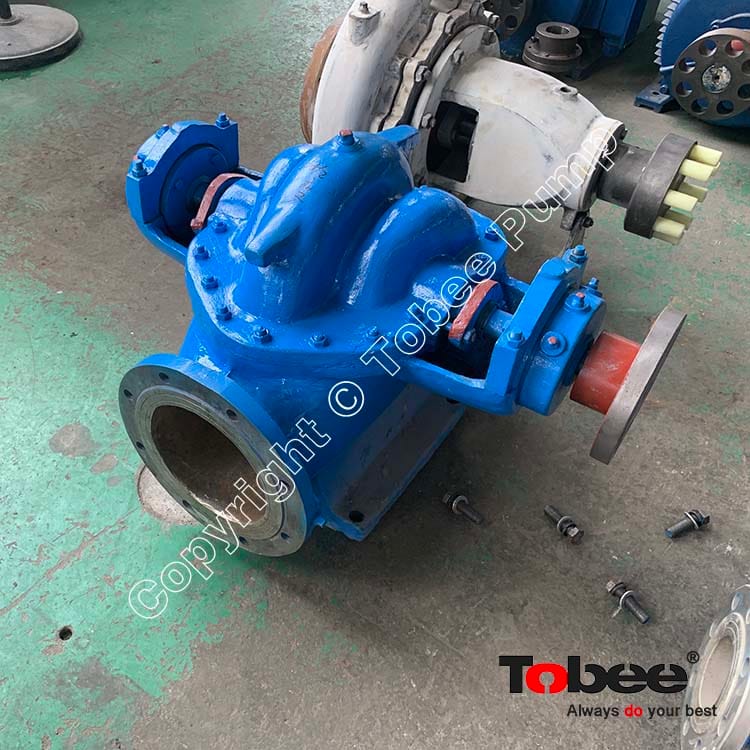

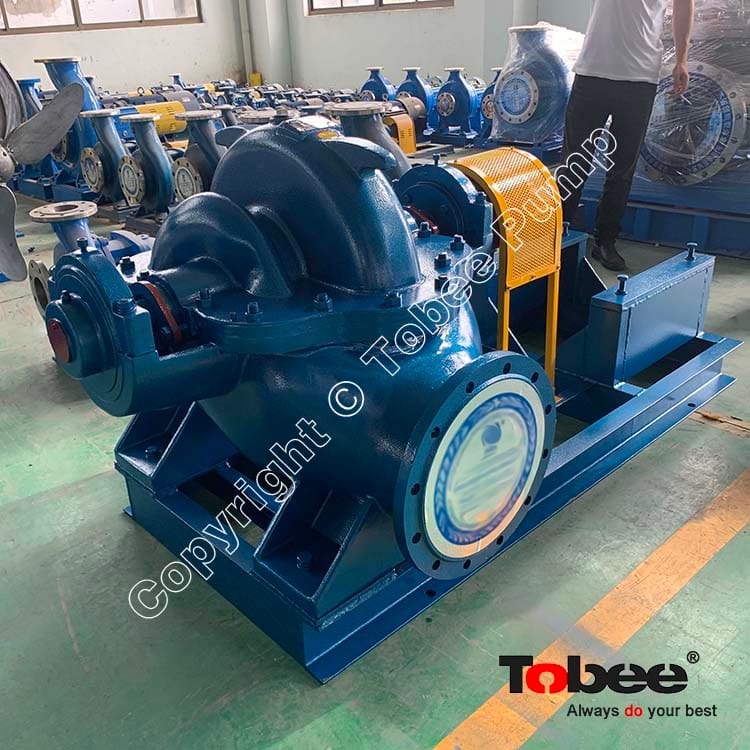

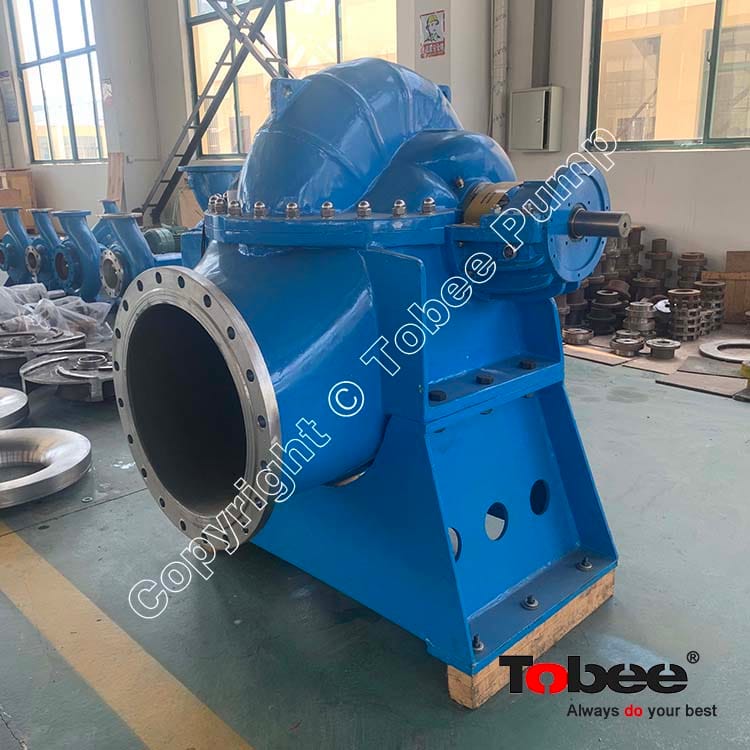

Tobee® FP Fan Pump also called low pulse paper pulp pump, It is a new pump type for paper making industry with advatages of high efficiency, low pulse and high dependability. It is used for transporting the paper pulp concentration ≤1% in medium-high speed paper making machine for supplying pulp system.
1. Double Suction, high efficiency, low pulse closed Impeller design.
2. Split Case Structure, easy to install and maintain.
3. Especially for the supplying paper pulp system of medium-high speed paper making machine
4. Oil Lubrucation,running stable,long service life.
5. Packing seal and mechnical seal for options
6. High abrasive and corrosive materials are available for various paper pulp.
| No. | Q’ty | Part Name | No. | Q’ty | Part Name |
| 1 | 1 | Volute Casing | 23 | 1 | Roller Bearing |
| 2 | 1 | Rear Lining | 24 | 1 | Bearing Cap (Pump End) |
| 3 | 1 | Front Lining | 25 | 1 | Water Retaining Ring |
| 4 | 1 | Impeller | 26 | 1 | Mechanical Seal AK5M |
| 5 | 1 | Check Washer | 27 | 1 | Casing Cover |
| 6 | 1 | Impeller Nuts | 28 | 1 | Locating Ring |
| 7 | 1 | Key (Pump End) | 29 | 1 | Mechanical Seal MG |
| 8 | 1 | Packing Ring | 30 | 1 | Mechanical Seal Gland |
| 9 | 1 | Packing Gland | 31 | 1 | Mechanical Seal MG |
| 10 | 1 | Shaft Sleeve | 32 | 1 | Gland Cover |
| 11 | 1 | Shaft | 33 | 1 | Retaining Ring |
| 12 | 1 | Drain Plug | 34 | 1 | Lock Plate |
| 13 | 1 | Oil Leveler | 35 | 1 | Support Ring |
| 14 | 1 | Support | 36 | 1 | Rear Lining (For Dynamic Seal) |
| 15 | 2 | Oil Seal | 37 | 1 | Casing Cover (For Dynamic Seal) |
| 16 | 1 | Key (Coupling End) | 38 | 1 | Expeller |
| 17 | 1 | Round Roller | 39 | 1 | Support Ring (For Dynamic Seal) |
| 18 | 1 | Retaining Washer | 40 | 1 | PTFE Sealing Ring |
| 19 | 1 | Bearing Cap (Coupling End) | 41 | 1 | Adjusting Ring |
| 20 | 2 | Ball Bearing | 42 | 1 | Shaft Sleeve (For Dynamic Seal) |
| 21 | 1 | Suspension | 43 | 1 | Retaining Ring |
| 22 | 1 | Breather Plug | 44 | 4(5) | Packing |
