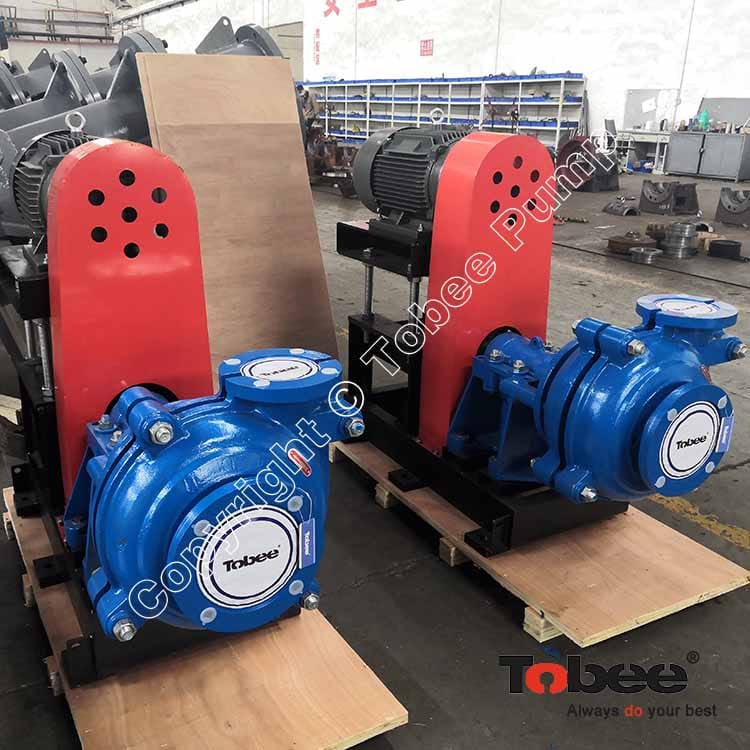

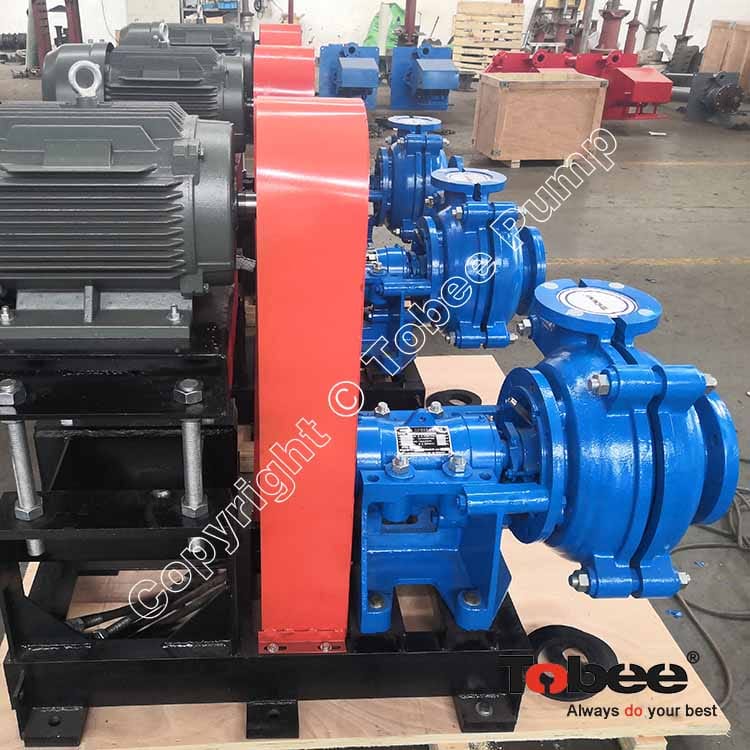

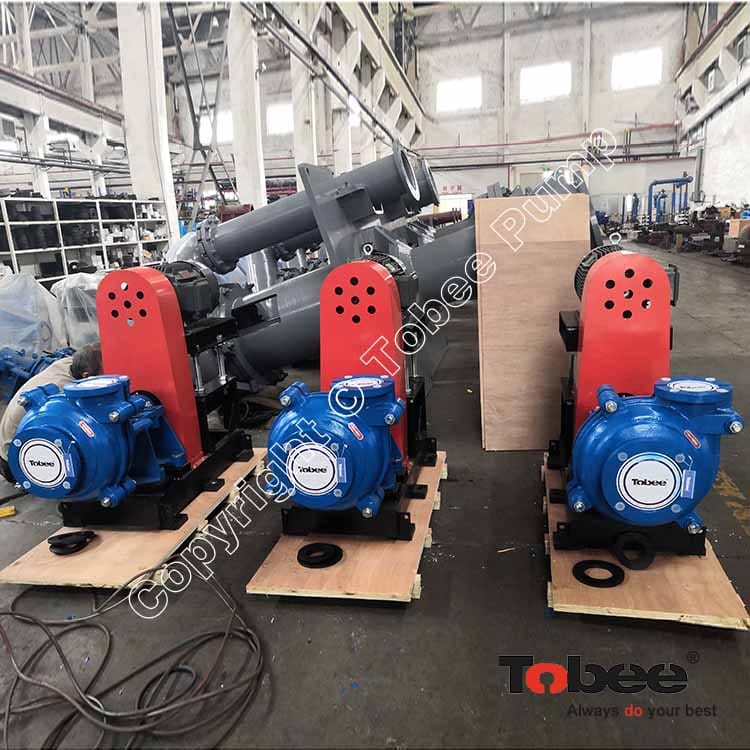

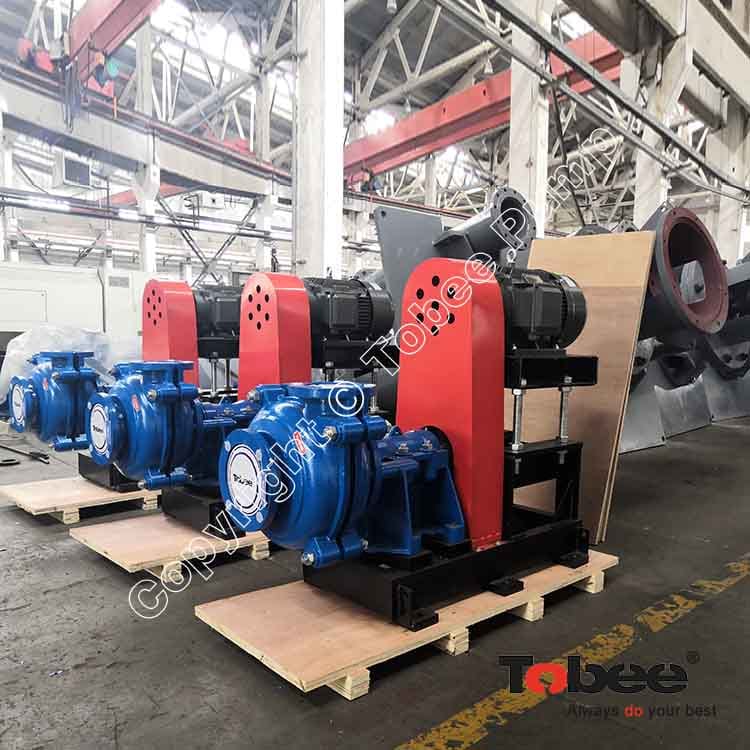

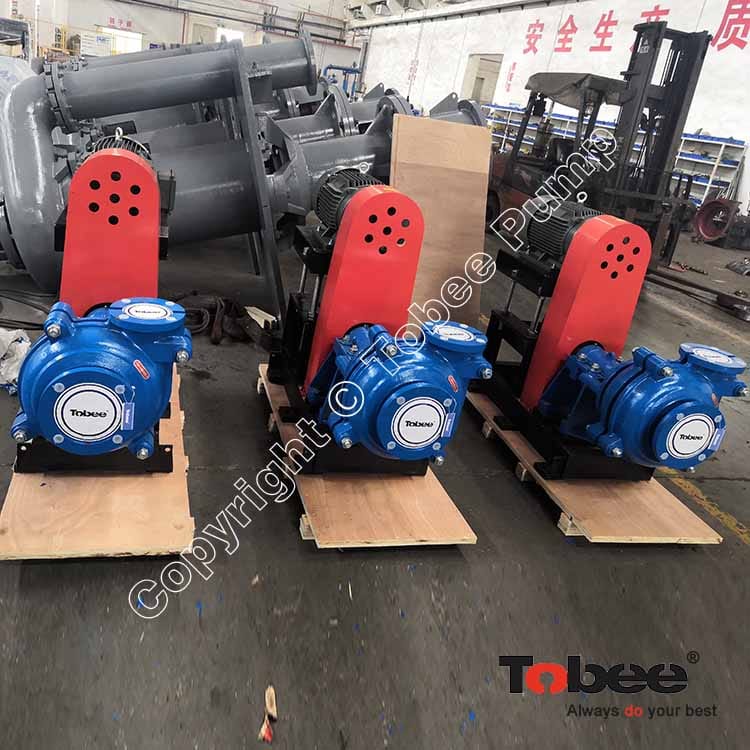

AH4x3D Horizontal Slurry Mud Sand Pump

Product Brands: Tobee

Tobee® AH slurry pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, chemical and general industry applications. The horizontal slurry pumps are designed for heavy duty applications such as mill discharge, power sector and tailings as well as specialty applications, which are used for continuous pumping of high abrasive, high density slurries.

price:

$5,400.00 $5,700.00

Seal Arrangement:

Packing seal Expeller seal Mechanical seal

Impeller Material:

Rubber Metal Polyurethane Ceramic

Drive Type:

CV Drive DC Drive CR Drive CL Drive ZV Drive

Quantity:

- + (100 available)

Add to Favorite Items (0)

Sales: 0+

Tobee^® 4x3D-AH Slurry Pump is a standard horizontal dewatering pump for pumping abrasive slurries, designed for ultra heavy duty applications such as mill discharge, process plant and tailings, high pressure pipelines, as well as other specialty applications.

Bearing assembly use cylindrical structure, which helps adjust the space between impeller and cover plate liner easily, and being removed completely when being repaired. Bearings use grease lubrication. The shaft seal could use the packing seal, centrifugal seal and mechanical seal. The discharge side can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. Here are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices. Wide performance, good NPSH and high efficiency, the pump of this type may be installed in multistage series to meet the delivery for long distance

Detailed specification:

1. Horizontal, cantilevered, centrifugal, single stage slurry pump.

2.Long bearing life: The bearing assembly is with large diameter shaft and short overhang.

3. Wear resistant and anti abrasion wet parts: High chrome alloy and rubber etc. They are completely interchangeable with each other.

4. Easily replaceable liners: Liners are bolted to the casing.

5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.

6 Discharge direction can be positioned at intervals of 45 degrees.

7. Simple maintenance throat bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.

8. Sealing type: pcking seal,impeller sealing and mechanical seal.

9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.

Tobee^® 4/3 D AH Slurry Pump Performance Parameters:

Model

Max. Power

(kw)

Materials

Clear Water Performance

Impeller

Vane No.

Liner

Impeller

Capacity Q

(m3/h)

Head H

(m)

Speed n

(rpm)

Eff. η

(%)

NPSH

(m)

4/3D-AH

97.2-198

9-53

1000-2200

4-6

Tobee^® AH Slurry Pump Shaft Seal:

Packing seal:

As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.

Expeller seal:

The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.

Mechanical seal:

TH series heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for various pumping applications.

Tobee^® AH Slurry Pump On-Site Application:

1)Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying.

2)Metallurgy:Transport various slurry for aluminium or steel manufacture.

3)Coal: Coal mining, washing and various coarse and fine coal slurry transportation.

4)Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation.

5)Construction materials:Various mud sand slurry(such as Cement slurry) transportation.

6)Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation.

7)Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation.
