Andman® ACP Pumps Impellers Alternative Spares Parts

Andman® Pump Spare Parts namely the pump parts have direct connection with slurry, are very crucial to the service life of slurry pumps. The wet parts, include impeller, liner, throatbush, frame plate liner insert, casing, etc., are very easily worn-out components because they work under longtime impact of abrassive and corrosive slurries in the high speed. For the long service life of pump parts, the material plays an important role here.

Andman® Single-stage Centrifugal Pump Specification:
Pump type: Horizontal
Materials: Cast Iron, Duplex, Super Duplex, Stainless Steel
Seal arrangement: Mechanical Seal, Double Seal
Max temperature: 200 Celsius

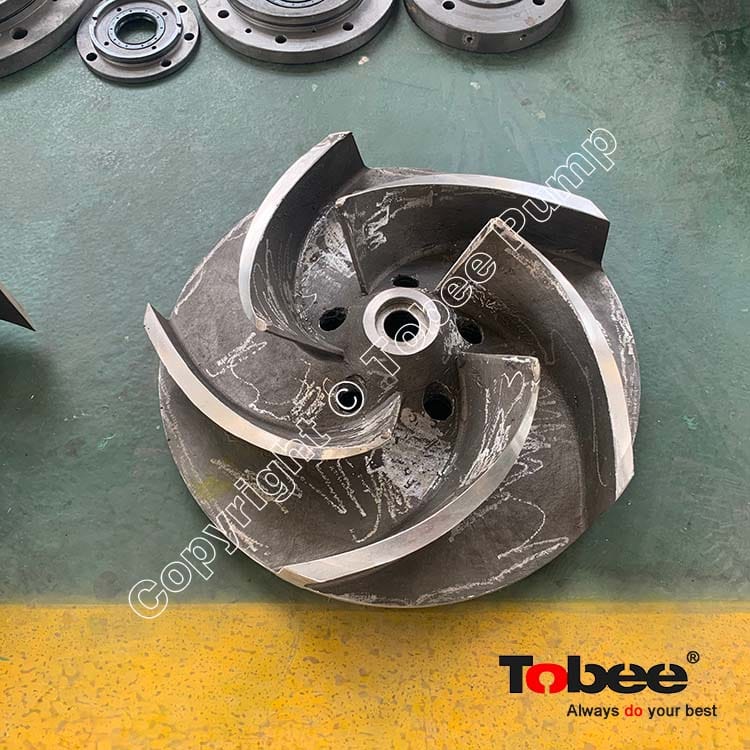

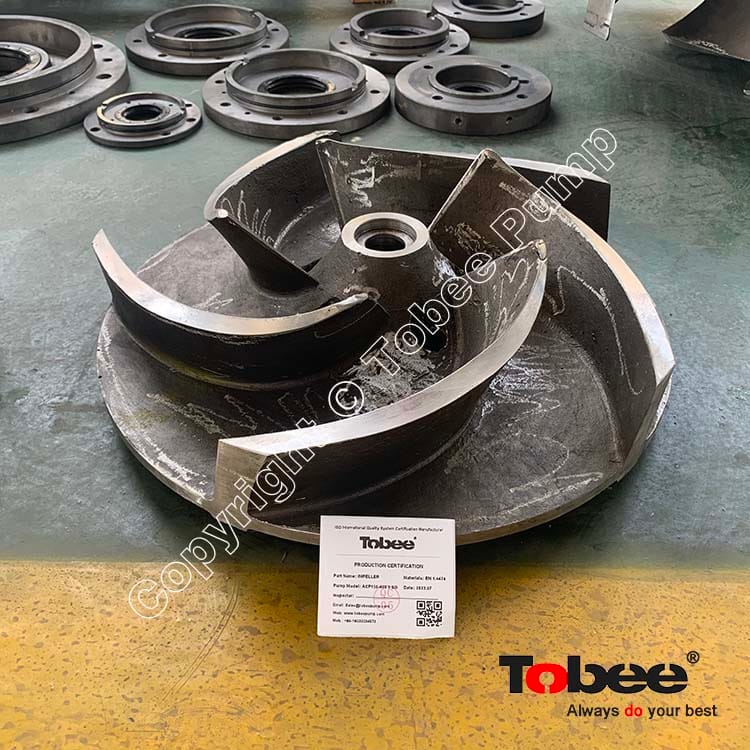

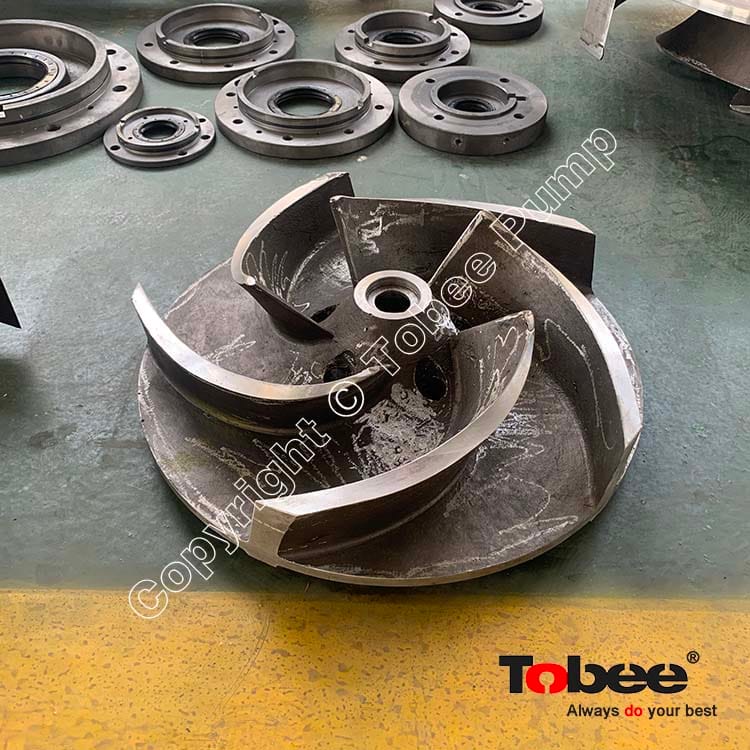

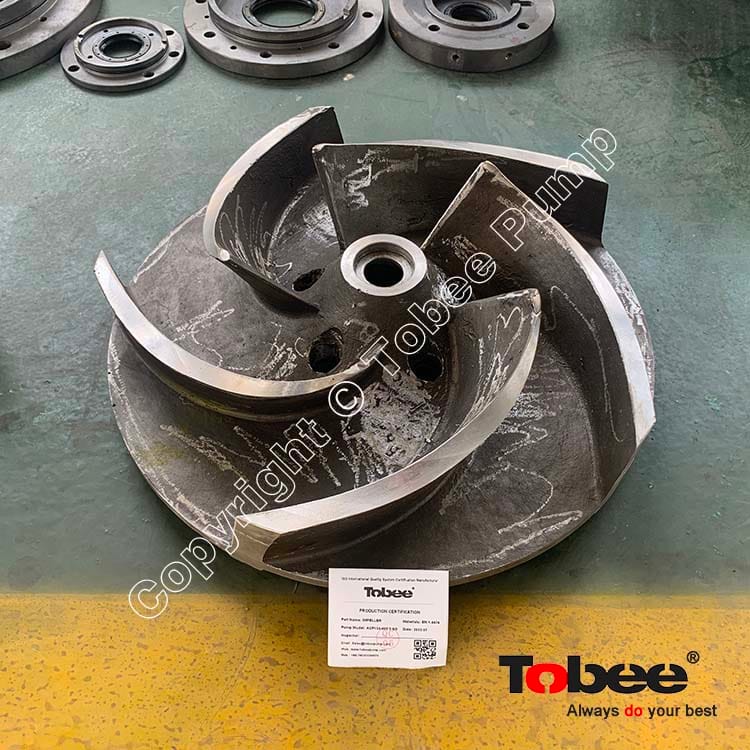

Andman® replacement parts including: Open or Semi Impellers(2 vanes, 3 vanes, 6 vanes, 8 vanes), Pump casings, Casing cover, Front linings, Rear linings, Stuffing box body, Shaft etc, The materials can be manufactured in cast iron, SS304L, SS316L, 1.4460 Duplex stainless steel, 1.4517, 1.4517 hardened etc.

ACP Mainly component: 102 volute casing, 330 bearing support, 135.1 front lining, 680 safety guard for sealing chamber, 230  Impeller, 183 supporting leg, 430 shaft seal, 161 casing cover etc.

Andman® Pump is always making continuous optimization of materials like Cast steel, EPDM, Hypalon, Hastelloy, CD4MCu, Viton, Fluoroplastic, Ceramic, Bronze, Titanium, Aluminum and other anti-abrasive & corrosive materials for various applications, Such as impeller: EN-GJL 250, 1.4460 and 1.4517, casing/casing cover: EN-GJL 250 and 1.4460, volute casing: EN-GJL 250, EN-GJS-400-15 and 1.4460, bearing housing EN-GJL 250 and 1.4468, front and rear lining: 1.4460 and 1.4517, stuffing box body EN-GJL 250, 1.4460 and 1.4408, shaft: 1.4021 & 1.4462 and 1.4404 & 1.4439, etc.

Andman® Paper Pulp Pumps and Pump Spare Parts On-site Applications: Paper mills, Paper Pulp, Coal prep, Waste pulp, Paper stock, Paper making, Waste paper stock, Chemical slurries, Sugar refining, Recycled fiber preparation, Chemical industry, Food industry, Energy supply, Water supply, Waste water treatment, Alkali recovery, Sugar syrup, Molasses, Pharmaceuticals industry, Potash Fertilizer Plant, Other industries etc.
