Home > SLURRY PUMP PARTS > AH Slurry Pump Parts > 8/6 AH Slurry Pump > Acid area Industrial Slurry pump impeller F6147A49

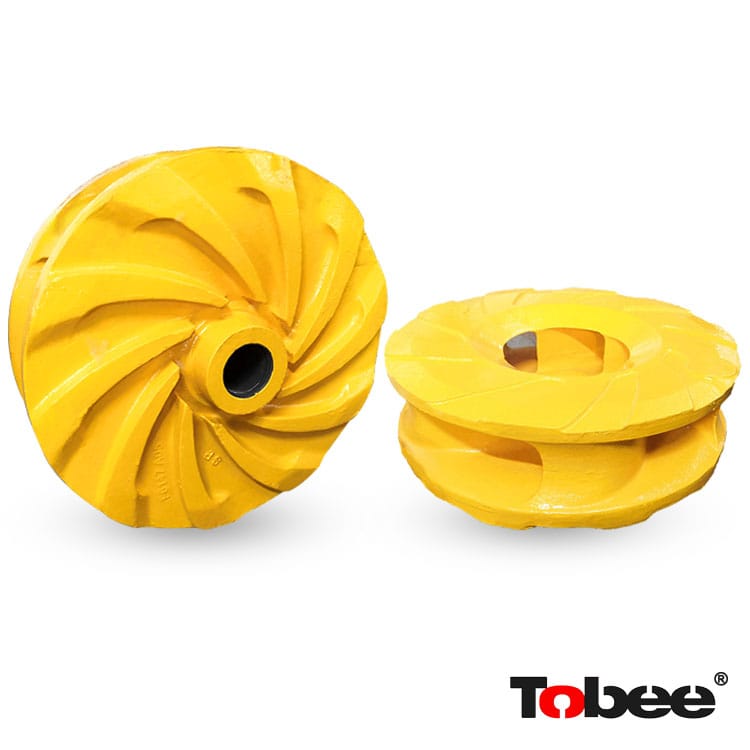

Acid area Industrial Slurry pump impeller F6147A49

(0 Reviews)

F6147A49

Product Brands: Tobee

A49 material for slurry pump parts are corrosion-resistant, and A05, A07 are used for the appliation that abrasion-resistant.

price:

$810.00

Quantity:

- + (69 available)
Add to Favorite Items (0)

Sales: 0+

Tobee® 8/6E-AH, 8/6F-AH Slurry Pump main parts Impeller F6147A05, F6147A49 Throat bush F6083A05, F6083A49 Volute Liner F6110A05, F6110A49, Back liner F6041MA05. F6041A49.

Tobee® slurry pump impellers are interchangeable with AH/HH/LM slurry pump impellers, The F6147A05, F6147A49 impeller is one of the most important parts for 8/6 AH slurry pumps. Centrifugal slurry pumps need impeller to produce the centrifugal force which transfer the slurries. The centrifugal force is produced by the impeller which rotates to a certain speed, As main rotating component which normally has vanes to impart the centrifugal force to the liquid, Usually, slurry pump impellers have a plain or a Francis type vane.

Centrifugal Slurry Pump Impellers are selected with purpose and are dependent upon the slurry application. Some are better for solids handling, others are better for high efficiency. Read on to find out which slurry pump impeller will be best for your slurry pump application.

For Slurry pump impeller normally made of High chrome alloy, elastomer, polyurethane and some other customzed. But High chrome alloy and elastomer are the main material for the slurry pumps. There are Open, Semi Open and Closed impeller. So slurry pump impeller selection to deal with different slurry with solid have different choices.

Slurry Pump Impeller List:

Impeller Code

AH Slurry Pump

Slurry Pump Materials Code

B1127

1.5/1B-AH

A05, A06, A07, A33, A49, A51, A61, etc

B15127

2/1.5B-AH

A05, A06, A07, A33, A49, A51, A61, etc

C2147

3/2C-AH

A05, A06, A07, A33, A49, A51, A61, etc

C2127

3/2C-AH

A05, A06, A07, A33, A49, A51, A61, etc

C2051

3/2C-AH

A05, A06, A07, A33, A49, A51, A61, etc

D3147

4/3C-AH, 4/3D-AH

A05, A06, A07, A33, A49, A51, A61, etc

D3145HE1

4/3C-AH, 4/3D-AH

A05, A06, A07, A33, A49, A51, A61, etc

D3021

4/3C-AH, 4/3D-AH

A05, A06, A07, A33, A49, A51, A61, etc

E4147

6/4D-AH, 6/4E-AH

A05, A06, A07, A33, A49, A51, A61, etc

E4056

6/4D-AH, 6/4E-AH

A05, A06, A07, A33, A49, A51, A61, etc

E4058

6/4D-AH, 6/4E-AH

A05, A06, A07, A33, A49, A51, A61, etc

F6147

8/6E-AH, 8/6F-AH, 8/6R-AH

A05, A06, A07, A33, A49, A51, A61, etc

F6056

8/6E-AH, 8/6F-AH, 8/6R-AH

A05, A06, A07, A33, A49, A51, A61, etc

F6021

8/6E-AH, 8/6F-AH, 8/6R-AH

A05, A06, A07, A33, A49, A51, A61, etc

F6058HE1

8/6E-AH, 8/6F-AH, 8/6R-AH

A05, A06, A07, A33, A49, A51, A61, etc

FAM8147

10/8F-AH

A05, A06, A07, A33, A49, A51, A61, etc

G8147

10/8ST-AH

A05, A06, A07, A33, A49, A51, A61, etc

FAM10147

12/10F-AH

A05, A06, A07, A33, A49, A51, A61, etc

G10147

12/10ST-AH

A05, A06, A07, A33, A49, A51, A61, etc

FAM12147

14/12F-AH

A05, A06, A07, A33, A49, A51, A61, etc

G12147

14/12ST-AH

A05, A06, A07, A33, A49, A51, A61, etc

GAM14147

16/14TU-AH

A05, A06, A07, A33, A49, A51, A61, etc

Impeller Code

L Slurry Pump

Slurry Pump Materials Code

175056

20A-L

A05, A06, A07, A33, A49, A51, A61, etc

32056

50B-L

A05, A06, A07, A33, A49, A51, A61, etc

43056

75C-L

A05, A06, A07, A33, A49, A51, A61, etc

64056

100D-L

A05, A06, A07, A33, A49, A51, A61, etc

86056

150E-L

A05, A06, A07, A33, A49, A51, A61, etc

108056

200E-L

A05, A06, A07, A33, A49, A51, A61, etc

SL30147

300S-L

A05, A06, A07, A33, A49, A51, A61, etc

SL35147

350S-L

A05, A06, A07, A33, A49, A51, A61, etc

STL40147

400ST-L

A05, A06, A07, A33, A49, A51, A61, etc

STL45147

450ST-L

A05, A06, A07, A33, A49, A51, A61, etc

TUL55147

550TU-L

A05, A06, A07, A33, A49, A51, A61, etc

Impeller Code

M Slurry Pump

Slurry Pump Materials Code

F8147

10/8E-M, 10/8F-M, 10/8R-M

A05, A06, A07, A33, A49, A51, A61, etc

F10147

12/10F-M, 12/10R-M

A05, A06, A07, A33, A49, A51, A61, etc

Impeller Code

HH Slurry Pump

Materials

CH1127

1.5/1C-HH

A05, A06, A07, A33, A49, A51, A61, etc

DH2147

3/2D-HH

A05, A06, A07, A33, A49, A51, A61, etc

EH3147

4/3E-HH

A05, A06, A07, A33, A49, A51, A61, etc

FH4147

6/4F-HH

A05, A06, A07, A33, A49, A51, A61, etc

FH6147

6S-H, 8/6S-H

A05, A06, A07, A33, A49, A51, A61, etc

Impeller Code

G(H) Gravel Pump

Slurry Pump Materials Code

DG4137

6/4D-G, 6/4E-G

A05, A06, A07, A33, A49, A51, A61, etc

EG6137

8/6E-G

A05, A06, A07, A33, A49, A51, A61, etc

FG8137

10/8F-G, 10/8S-G

A05, A06, A07, A33, A49, A51, A61, etc

FG10137

12/10G-G

A05, A06, A07, A33, A49, A51, A61, etc

GG12137

14/12G-G

A05, A06, A07, A33, A49, A51, A61, etc

FGH8137

10/8F-GH

A05, A06, A07, A33, A49, A51, A61, etc

GGH10137

12/10G-GH

A05, A06, A07, A33, A49, A51, A61, etc

TG14148

16/14TU-GH

A05, A06, A07, A33, A49, A51, A61, etc

Impeller Code

SP Vertical Slurry Pump

Slurry Pump Materials Code

SP4206

40PV-SP

A05, A06, A07, A33, A49, A51, A61, etc

SP65206

65QV-SP

A05, A06, A07, A33, A49, A51, A61, etc

SP10206

100RV-SP

A05, A06, A07, A33, A49, A51, A61, etc

SP15206

150SV-SP

A05, A06, A07, A33, A49, A51, A61, etc

SP20206

200SV-SP

A05, A06, A07, A33, A49, A51, A61, etc

SP25206

250TV-SP

A05, A06, A07, A33, A49, A51, A61, etc

SP30206

300TV-SP

A05, A06, A07, A33, A49, A51, A61, etc
