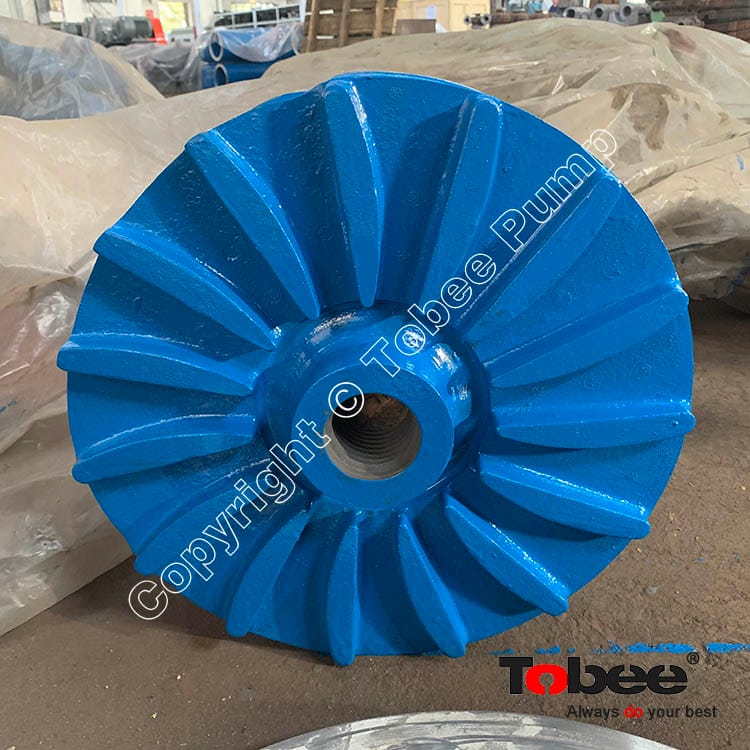

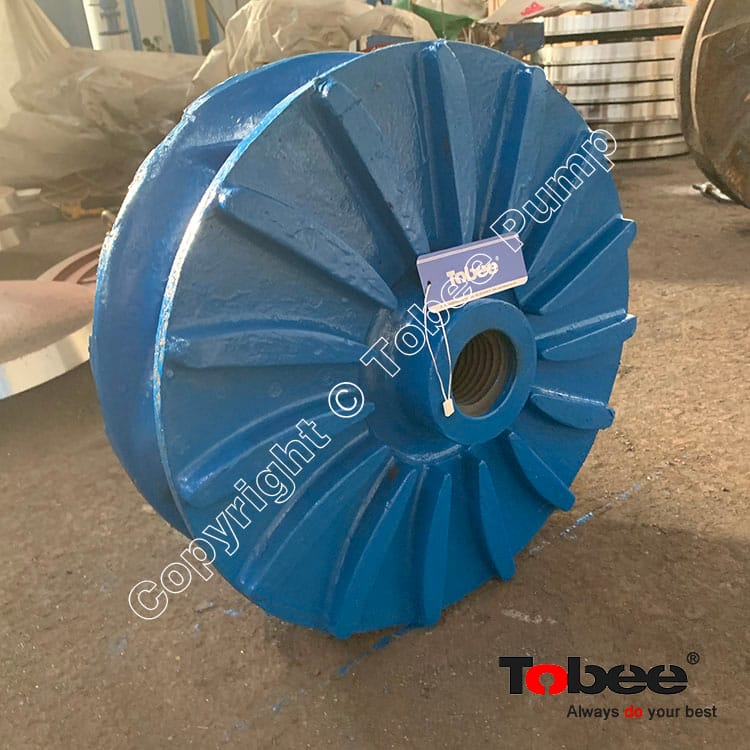

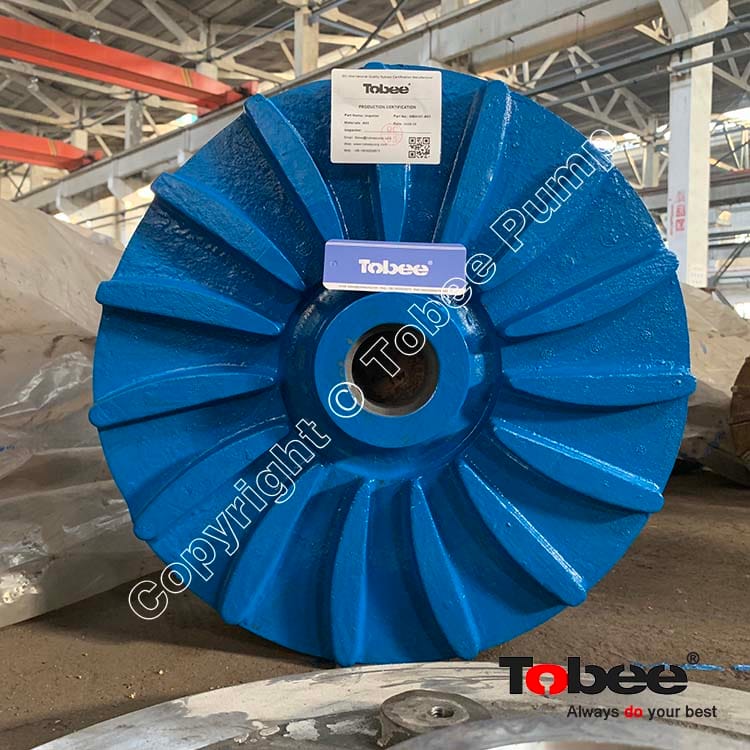

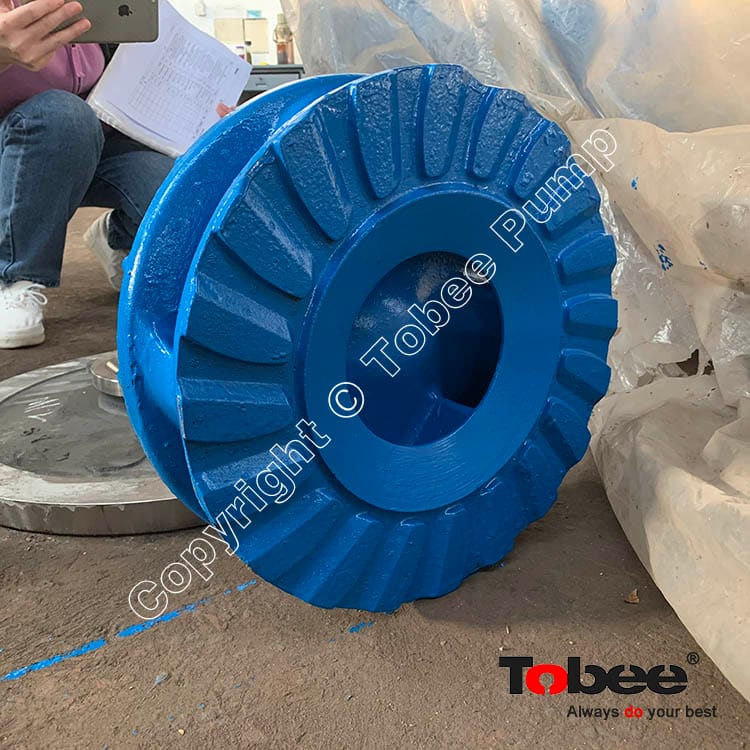

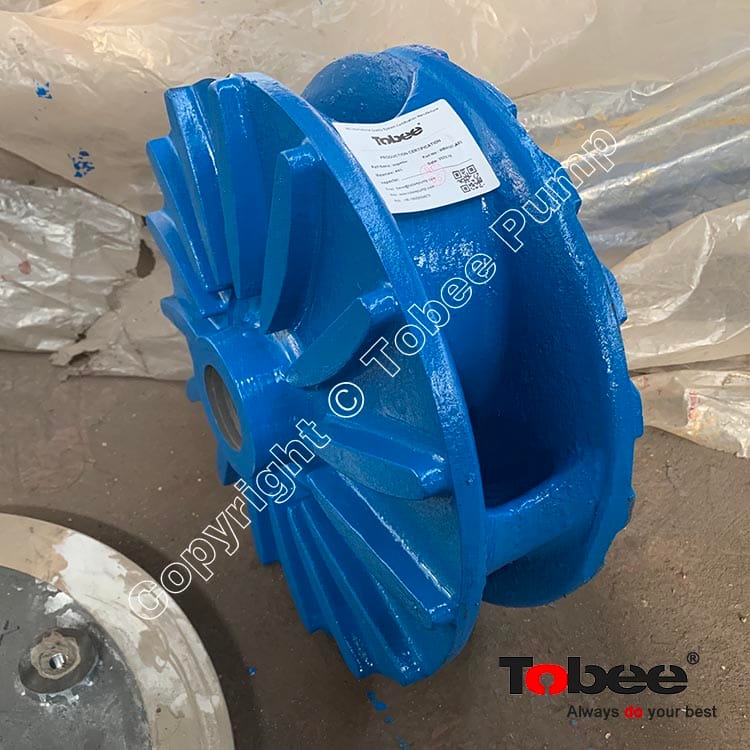

E4147A05 Impellers of 6x4E-AH Slurry Pump Wetted Parts

Product Brands: Tobee

E4147A05 Impeller is High Chrome wetted parts for 6/4 AH Horizontal Slurry Pumps

price:

$550.00 $599.00

Pump model:

6x4D-AH 6x4E-AH

Metal Materials:

A05 A07 A49 A61 A33 A05A

Impeller Vanes:

5 VCG

Impeller Type:

Closed

Part Code:

E4147A05

Quantity:

- + (300 available)

Add to Favorite Items (50)

Sales: 80+

E4147A05 Metal Lined Impeller is one of wetted parts of 6/4E-AH Horizontal Slurry Pumps.

Tobee® slurry pump impellers are interchangeable with AH/HH/LM slurry pump impellers, The E4147A05 impeller is one of the most important parts for 6/4 AH slurry pumps. Centrifugal slurry pumps need impeller to produce the centrifugal force which transfer the slurries. The centrifugal force is produced by the impeller which rotates to a certain speed, As main rotating component which normally has vanes to impart the centrifugal force to the liquid, Usually, slurry pump impellers have a plain or a Francis type vane.

Centrifugal Slurry Pump Impellers are selected with purpose and are dependent upon the slurry application. Some are better for solids handling, others are better for high efficiency. Read on to find out which slurry pump impeller will be best for your slurry pump application.

For Slurry pump impeller normally made of High chrome alloy, elastomer, polyurethane and some other customed. But High chrome alloy and elastomer are the main material for the slurry pumps. There are Open, Semi Open and Closed impeller. So slurry pump impeller selection to deal with different slurry with solid have different choices.

Slurry Pump Impeller Parts List :

Impeller Code	AH Slurry Pump	Slurry Pump Materials Code
B1127	1.5/1B-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
B15127	2/1.5B-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2147	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2127	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2051	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3147	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3145HE1	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3021	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4147	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4056	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4058	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6147	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6056	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6021	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6058HE1	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM8147	10/8F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G8147	10/8ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM10147	12/10F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G10147	12/10ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM12147	14/12F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G12147	14/12ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GAM14147	16/14TU-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	L Slurry Pump	Slurry Pump Materials Code
175056	20A-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
32056	50B-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
43056	75C-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
64056	100D-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
86056	150E-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
108056	200E-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SL30147	300S-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SL35147	350S-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
STL40147	400ST-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
STL45147	450ST-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
TUL55147	550TU-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	M Slurry Pump	Slurry Pump Materials Code
F8147	10/8E-M, 10/8F-M, 10/8R-M	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F10147	12/10F-M, 12/10R-M	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	HH Slurry Pump	Materials
CH1127	1.5/1C-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
DH2147	3/2D-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
EH3147	4/3E-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FH4147	6/4F-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FH6147	6S-H, 8/6S-H	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	G(H) Gravel Pump	Slurry Pump Materials Code
DG4137	6/4D-G, 6/4E-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
EG6137	8/6E-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FG8137	10/8F-G, 10/8S-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FG10137	12/10G-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GG12137	14/12G-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FGH8137	10/8F-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GGH10137	12/10G-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
TG14148	16/14TU-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	SP Vertical Slurry Pump	Slurry Pump Materials Code
SP4206	40PV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP65206	65QV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP10206	100RV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP15206	150SV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP20206	200SV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP25206	250TV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP30206	300TV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

Label: E4147A05 Impeller 6x4E-AH Slurry Pump Impeller E4147A05 Impeller for 6/4 EAH Pump
